SainSmart.com
Brand: SainSmart

[Discontinued] [Open Box] UNI-T UTi80P Mini Infrared Thermal Camera

[Discontinued] [Open Box] UNI-T UTi80P Mini Infrared Thermal Camera

SKU:  UNT-TI-80P*SEC
$199.99
-33% $299.99 $199.99
Save $100.00
Shipping calculated at checkout.
Ship to
  • UNT-TI-80P*SEC
Please check the necessary options first
I agree to the item is not eligible for exchange or return. Details

*Final Sale, no exchange or return. 6-Month Warranty. Ship to USA address only.

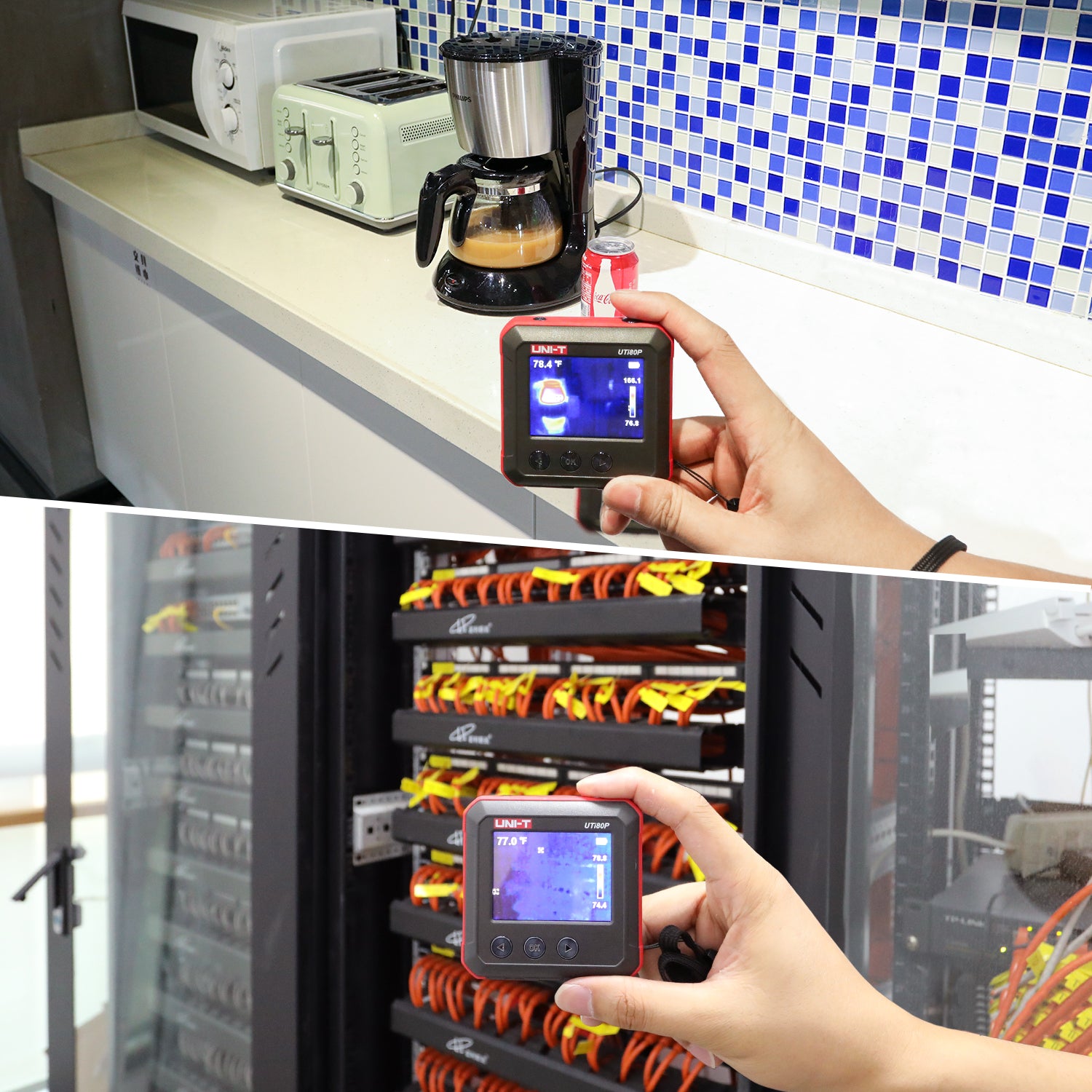

Professional and Home Use

From home inspection to professional field use, the UTi80P is perfect for jobs that require accurate temperature readings from -14 °F to 752 °F

Portable

The UTi80P’s compact design allows it to be easily stowed and transported and includes a rechargeable lithium battery for extended use and a lower environmental impact compared to other disposable battery devices.

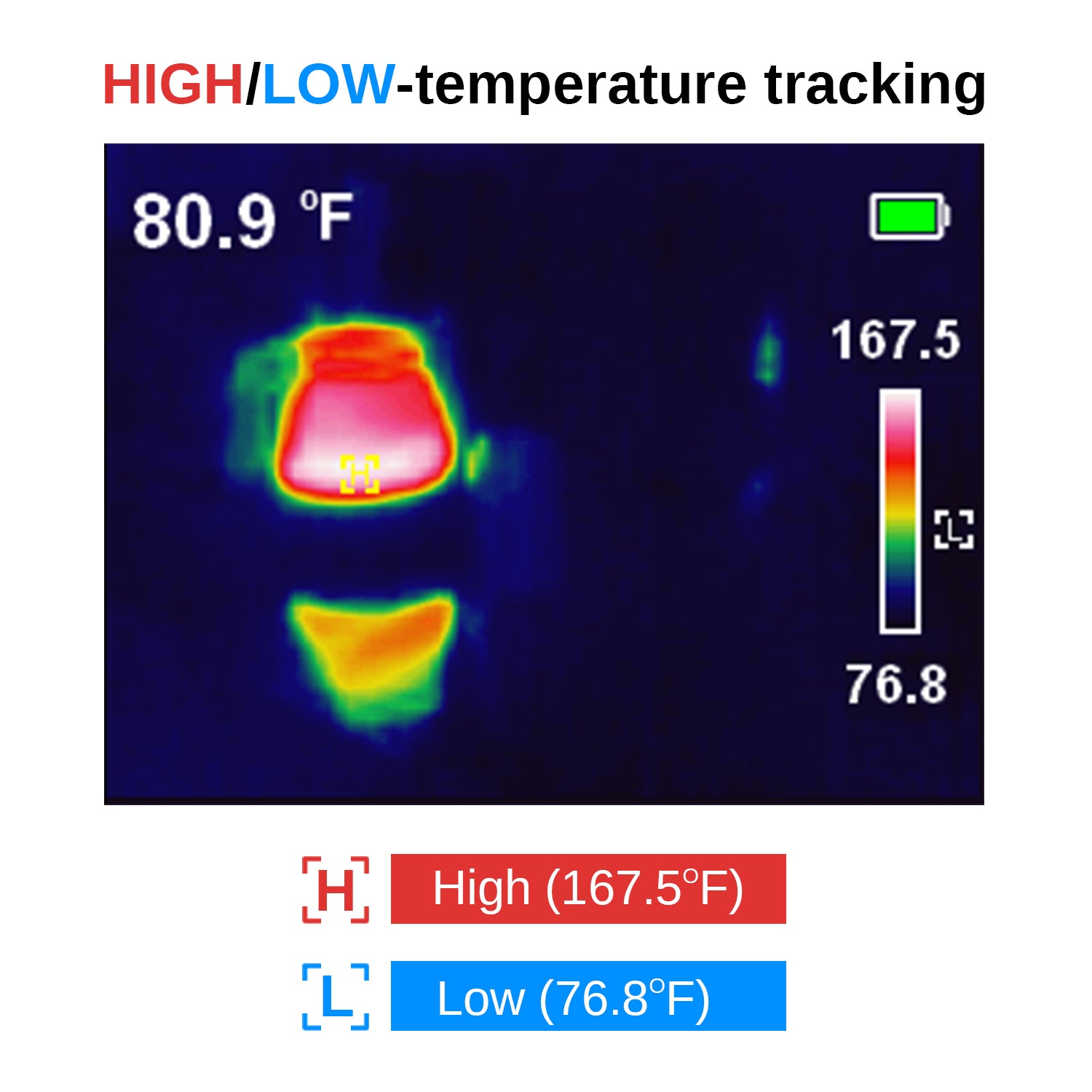

Thermal Tracking Modes

This device supports fast thermal tracking and high/low-temperature tracking modes, which can quickly locate the heat source and avoid potential danger. When there are many heat sources in the field, the highest temperature point can be highlighted.

High Resolution

The 80 x 60 pixel thermal imaging and 2.4 inch TFT LCD screen allows you to view and capture high-resolution professional images for later evaluation or reporting.

16GB Memory Card Storage

Images and data can be easily saved into the included 16GB microSD card for later troubleshooting and documentation.

Satisfaction Guaranteed

As a leading Testing and Measurement solutions provider, SainSmart provides a 1-year product warranty.


View full details
Open Box items are final sale with 6-month warranty. No exchange or return.
Overview

The UTi80P is a portable thermal Camera that supports fast thermal and high/low-temperature tracking, enabling you to quickly troubleshoot and detect dangers. 16GB memory card can store a large number of images and data and comes with a rechargeable Lithium battery for extended usage.


Technical Specification
  • Temperature Range: -14 °F to 752 °F
  • Accuracy:  ±2 °F / ±2%, whichever is greater
  • Emissivity: 0.95 (default, 0.1-0.99 adjustment)
  • Measurement Resolution: 0.1 °F
  • Response Time: ≦500ms
  • IR Resolution: 4800 pixels (80 x 60)
  • Pixel Size: 17µm
  • Color Palette: Rainbow, iron red, grey,  fast thermal tracking
  • Spectral Range: 8~14µm
  • FOV: 50° x 38°
  • Thermal Sensitivity: ≦150mk
  • Frame Rate: ≦9Hz
  • Image Format: BMP (320 x 240)

Parameters

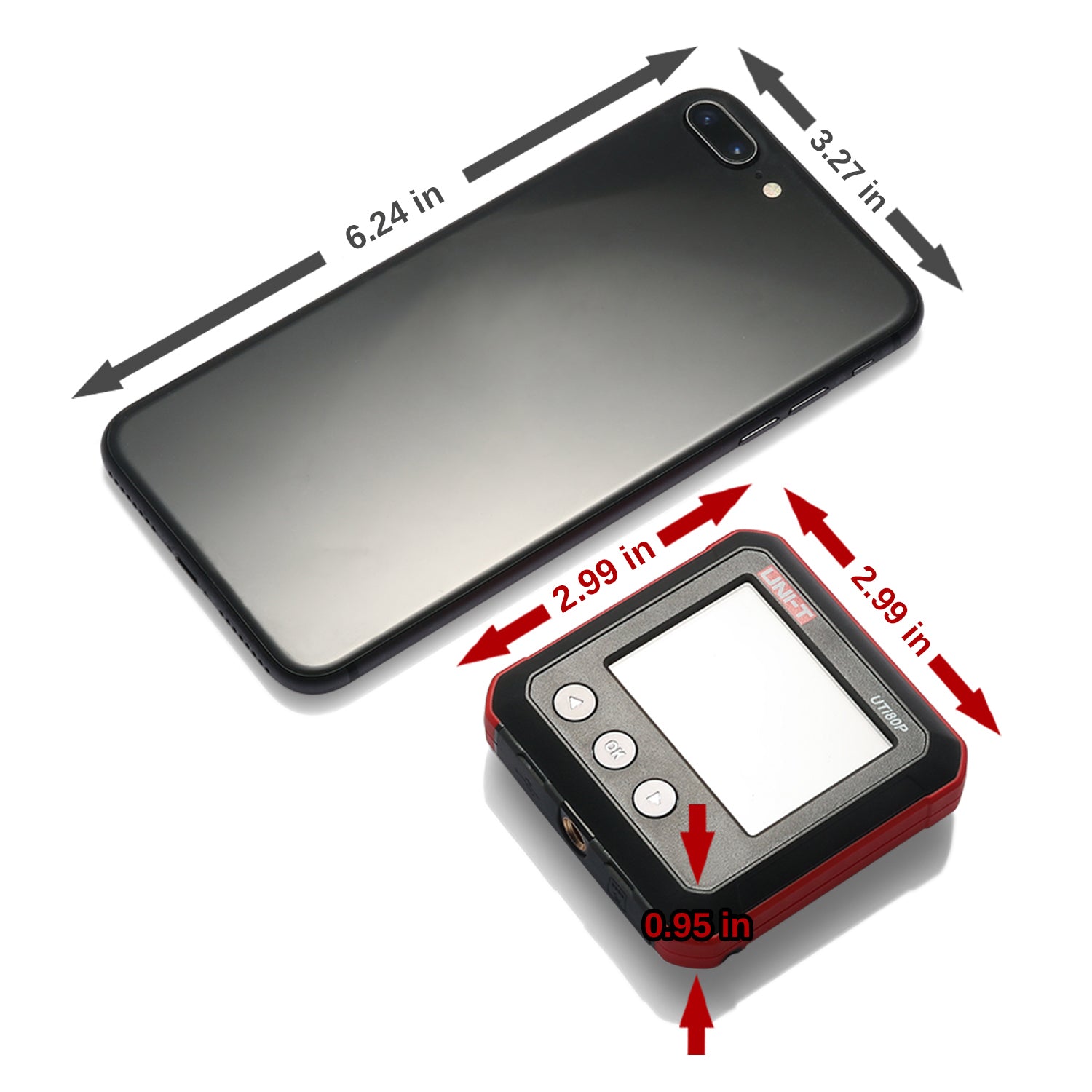

  • Item Size: 3 x 3 x 0.9 inch
  • Display Type: 2.4” TFT LCD
  • Display Resolution: 320 x 240 pixels
  • Battery:  3.7V/1300mAh, Rechargeable Lithium Battery
  • Auto Power Off: Yes
  • Battery Life: Approx. 3-4 hours
  • Certification: CE
  • Storage Card: 16GB Micro SD card
  • Storage Temperature: -4 °F to 140 °F
  • Working Temperature: 32 °F to 122 °F
  • Altitude: ≦ 2000 meters

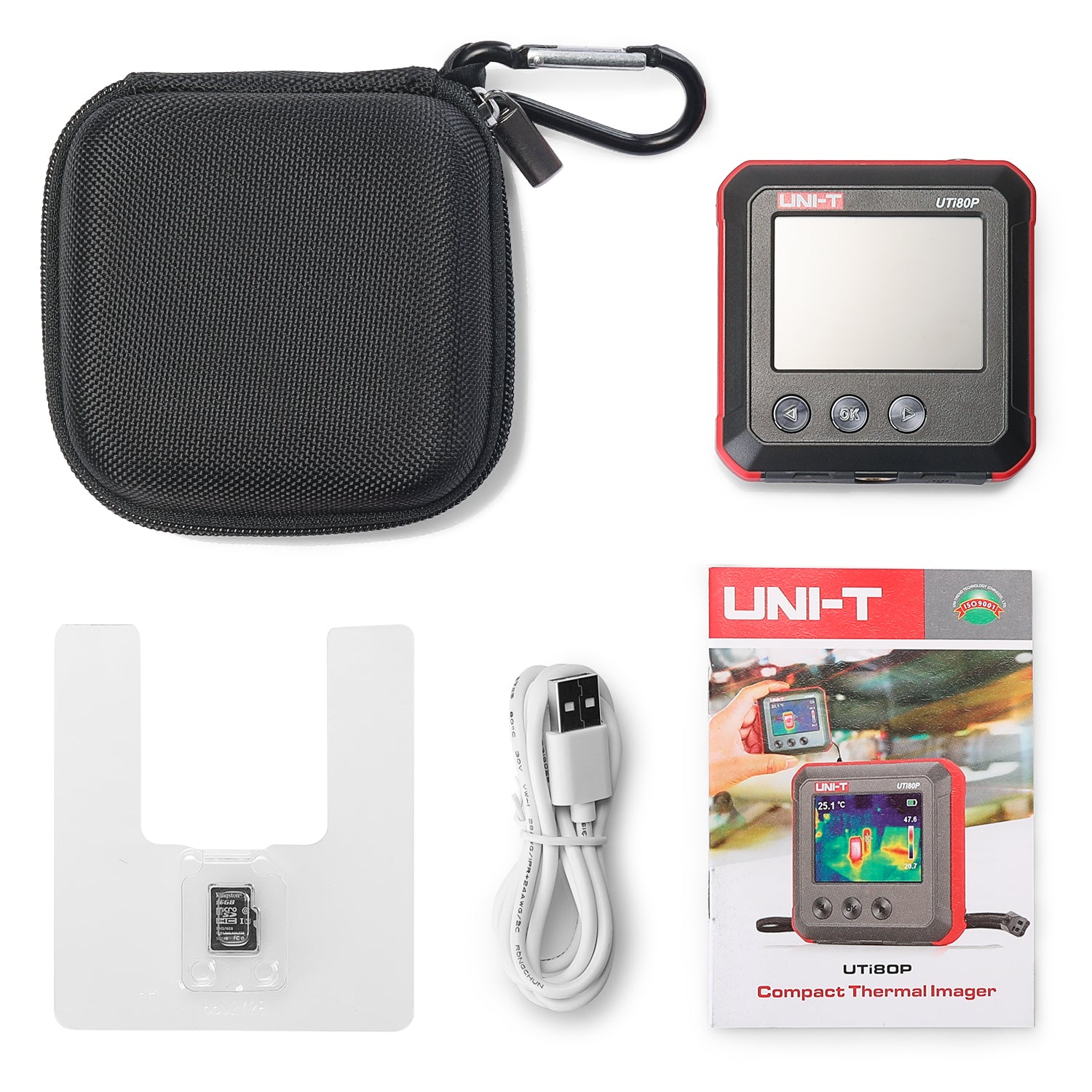

Package List
  • 1 x UTi80P Compact Thermal Camera
  • 1 x 16GB Micro SD Card
