[Discontinued] Special Bundle - Mini DSO203 Oscilloscope & ES120 Electric Motion-Sensing Screwdriver

[Discontinued] Special Bundle - Mini DSO203 Oscilloscope & ES120 Electric Motion-Sensing Screwdriver

SKU:  101-92-C20
$209.99
-22% $269.99 $209.99
Save $60.00
Shipping calculated at checkout.
Ship to
  • 101-92-C20
  • 101-92-C20

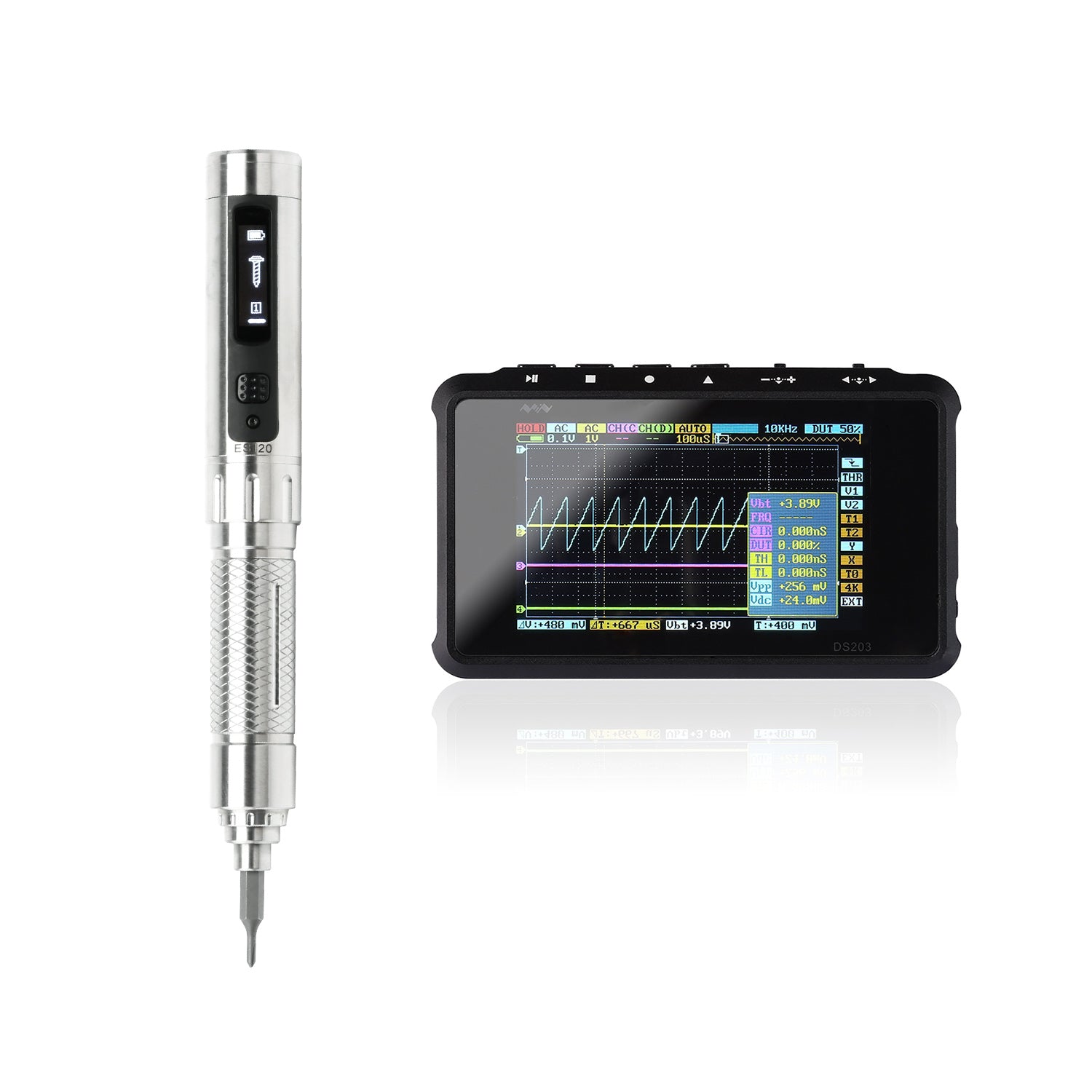

This is a bundle of our featured ToolPac series, 4-CH mini digital oscilloscope DSO203, and Motion-Sensing screwdriver ES120. This kit will significantly boost your work efficiency of electronic engineering and prototyping.

【Maker Essential Bundle】A must have kit for makers

【Limited Offer】Co-operating with e-Design, we provide only 300 bundles!

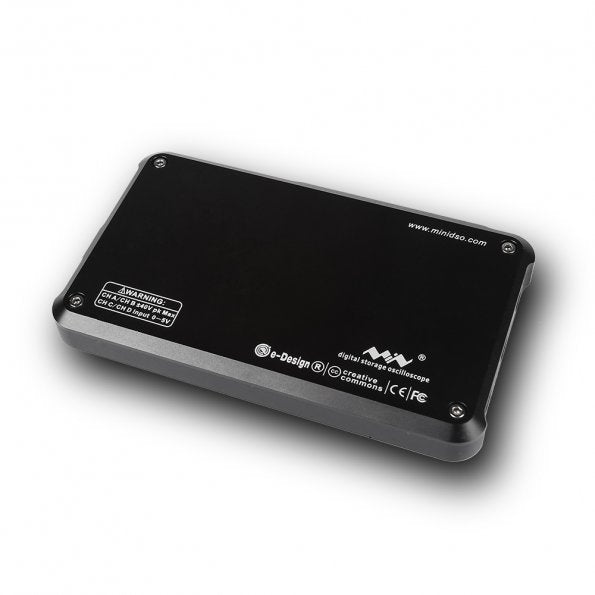

【Limited Edition】DSO203 in Aluminum shell material. It is a classic pocket size 4-channel digital storage oscilloscope.

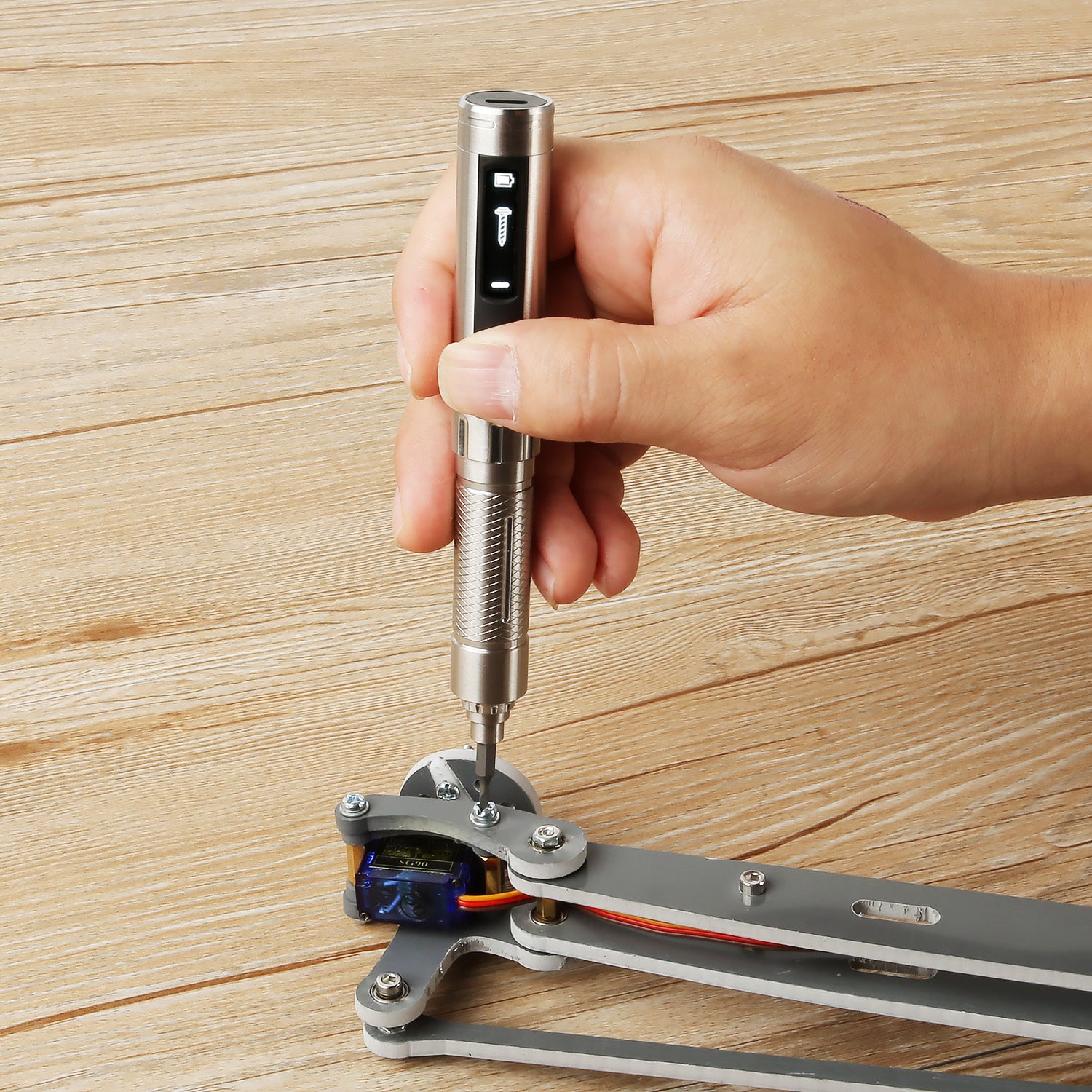

【Motion-sensing】ES120 features with its motion-sensing function and can be controlled by your gesture.
View full details
SPECIFICATION

DSO203 Titanium Color

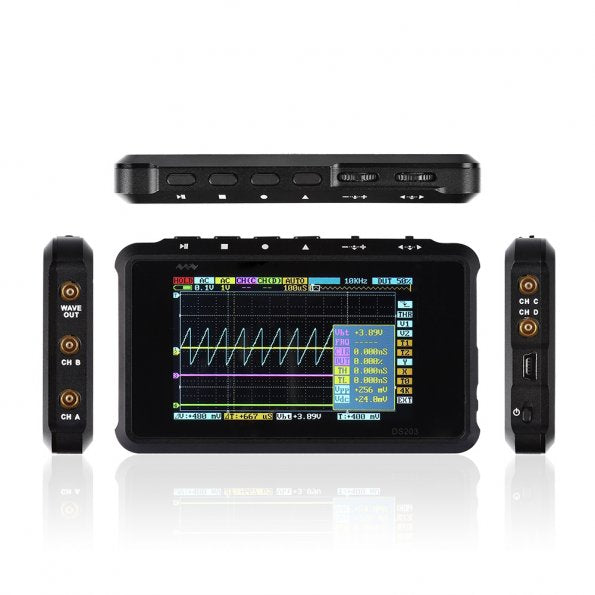

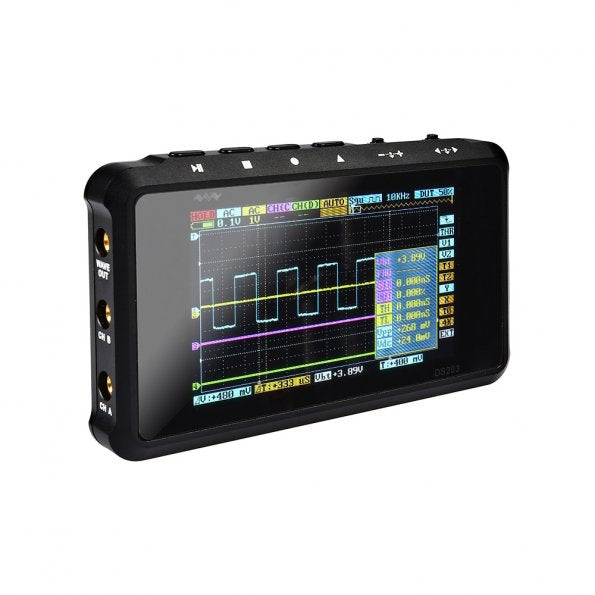

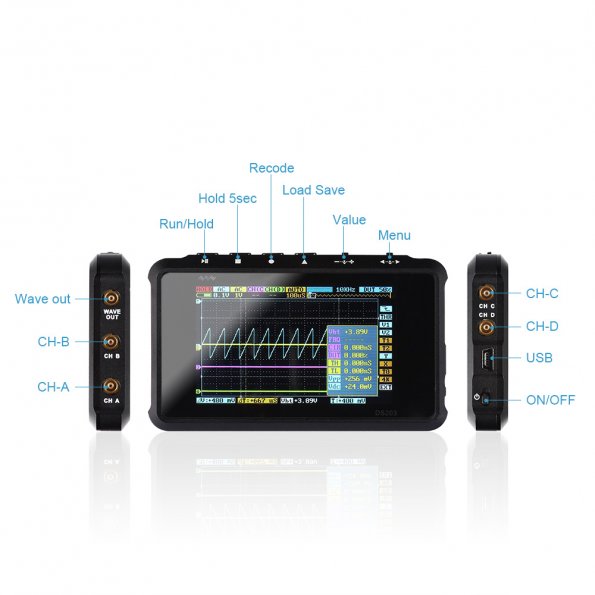

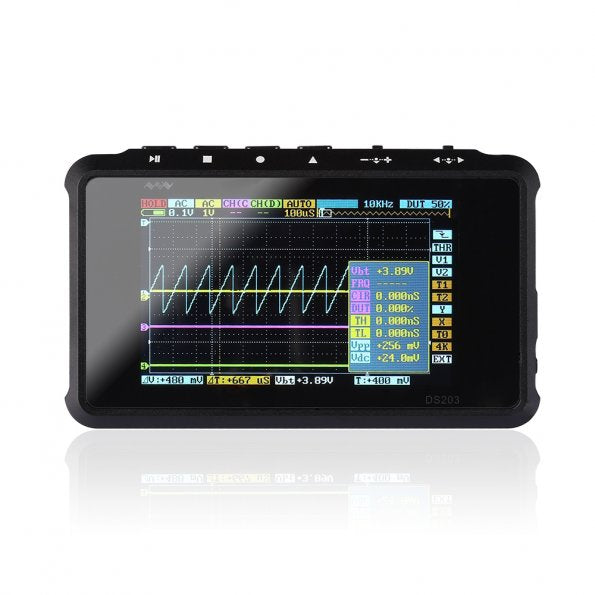

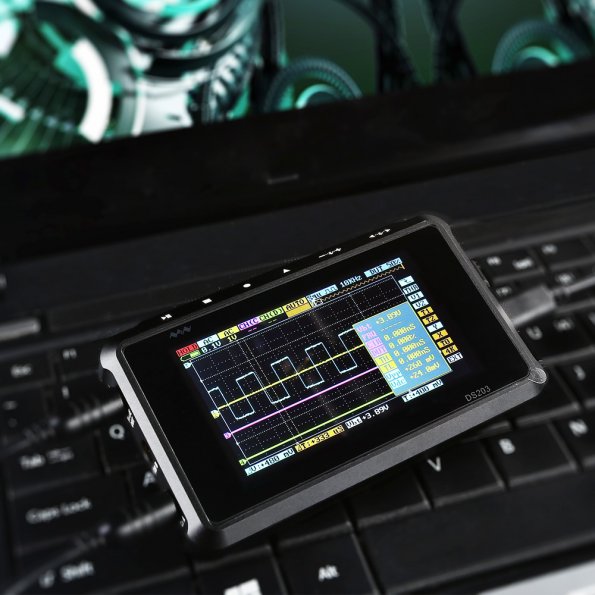

DSO203 is a 5-trace 4-channel digital oscilloscope for common electronic engineering tasks. We offer titanium color edition in this special bundle.

Model DSO203
Analog channel 2, [CH_A] [CH_B]
Digital channel 2, [CH_C] [CH_D]
Vertical Scale 20mV-10V/div (x1 probe)
Vertical solution 8 bit
Input coupling AC/DC
Max input voltage 80Vpp (x1 probe) / 400Vpp (x10 probe)
Storage 4K per channel, internal 8MB USB disk
Software trigger type edge, pulse, level (to be added)
Hardware trigger type edge
Trigger source CH1/CH2/EXT
Test Signal generator 10Hz to 1Mhz
Auto measure Vmax, Vmin, Vpp, Vavr, Vrms, Freq, Period, Pulse, Duty
Cursor measurement Level, Voltage
Display mode CH1, CH2, EXT, CH1+CH2, CH1-CH2, CH1*CH2
Sampling mode real time
Sampling rate 1KSa/s - 72MSa/S
Power Li-ion battery

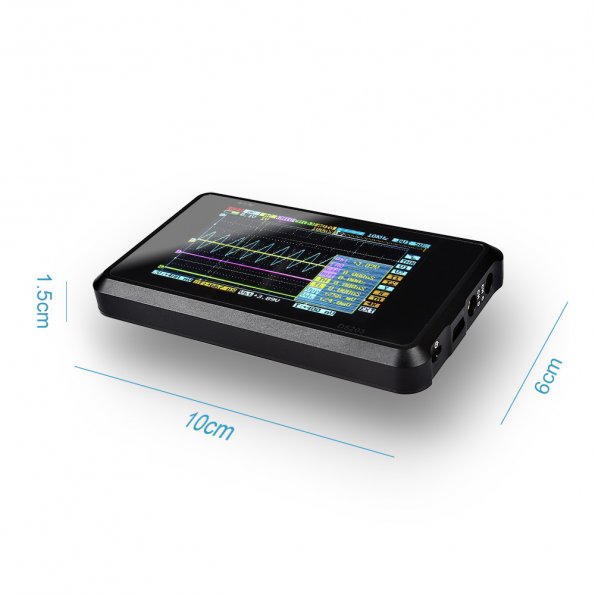

Dimension 98 x 60 x 14.5 mm

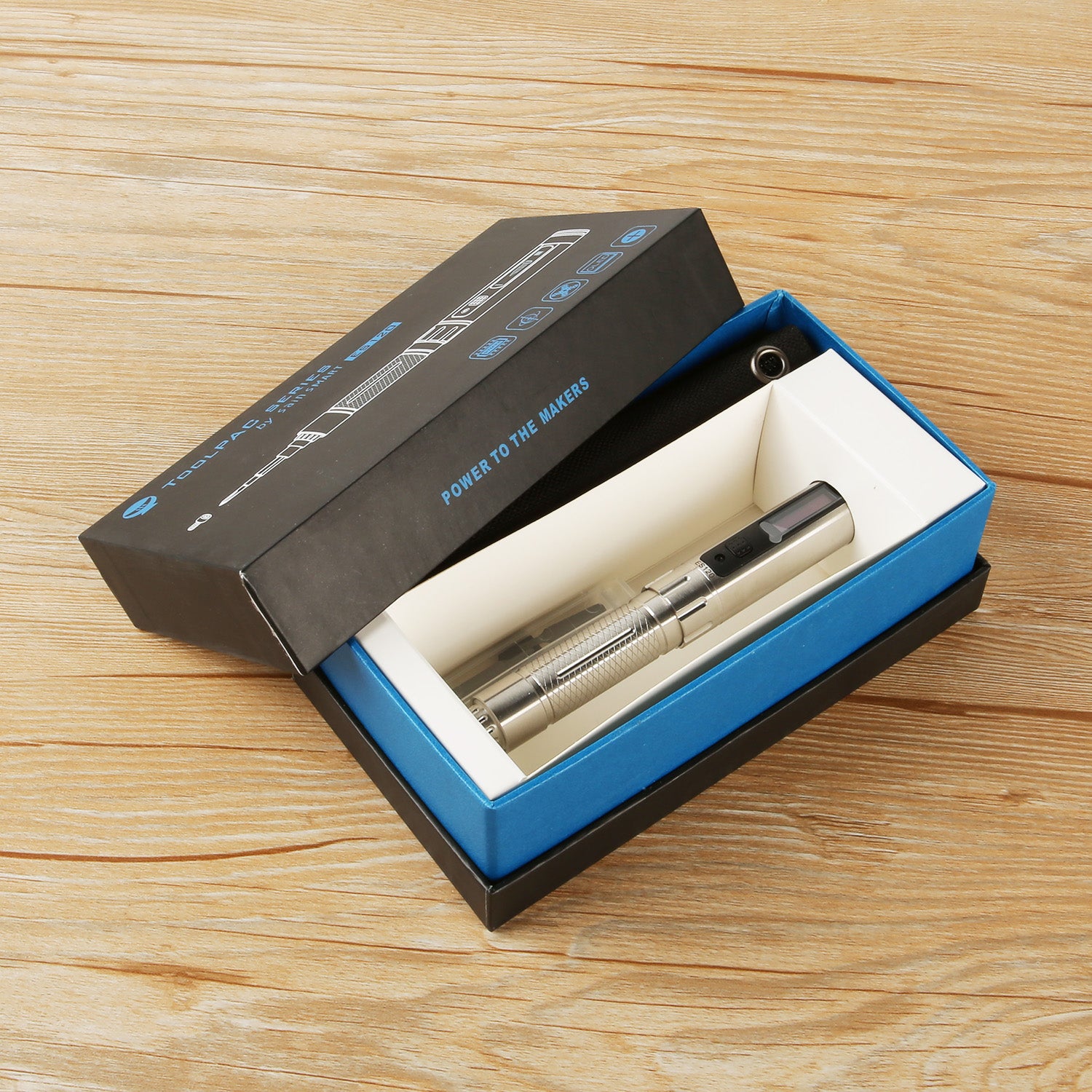

ES120



Model ES120
Main Chip STM32
Sensor Angular velocity sensor
Work Voltage DC3-5V
Material 304 stainless steel
No-load Speed About 170rpm
Electronic Torque 2.8kgf.cm
Maximum Torque 30kgf.cm (manual mode)
Screwdriver Bit 4mm hexagon
Charging Time 45min
Running Time 30min (full power)
Charging Mode Micro USB 5V Input
Screen 16x96 OLED
Battery 300mAh 10440 Lithium-ion battery
Rotor Bidirectional overrunning clutch
Gearbox 1:144 Integrated planetary gearbox
Motor 25,000 rpm brush motor

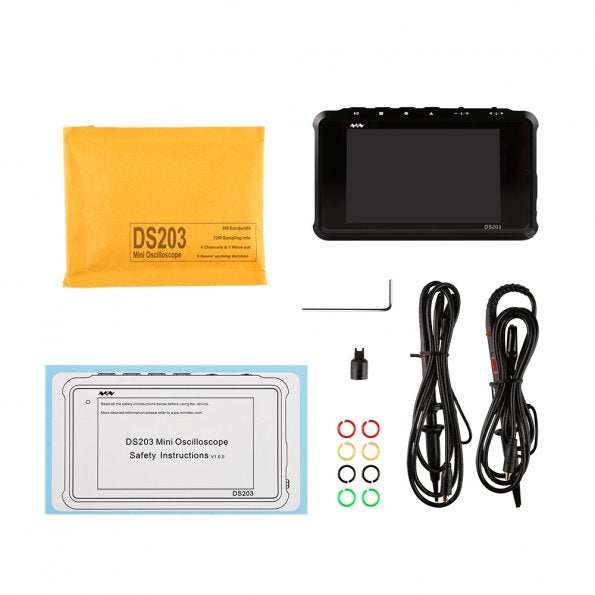

WHAT'S IN THE PACKAGE

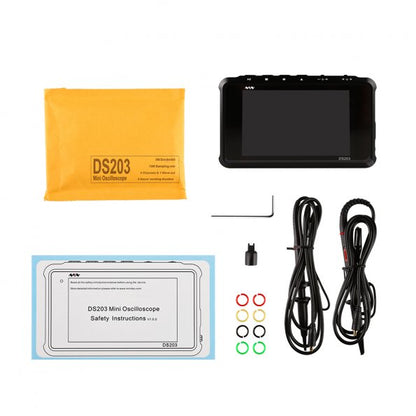

For DSO203

  • 1 x DSO203 with battery
  • 2 x mcx Oscilloscope probes

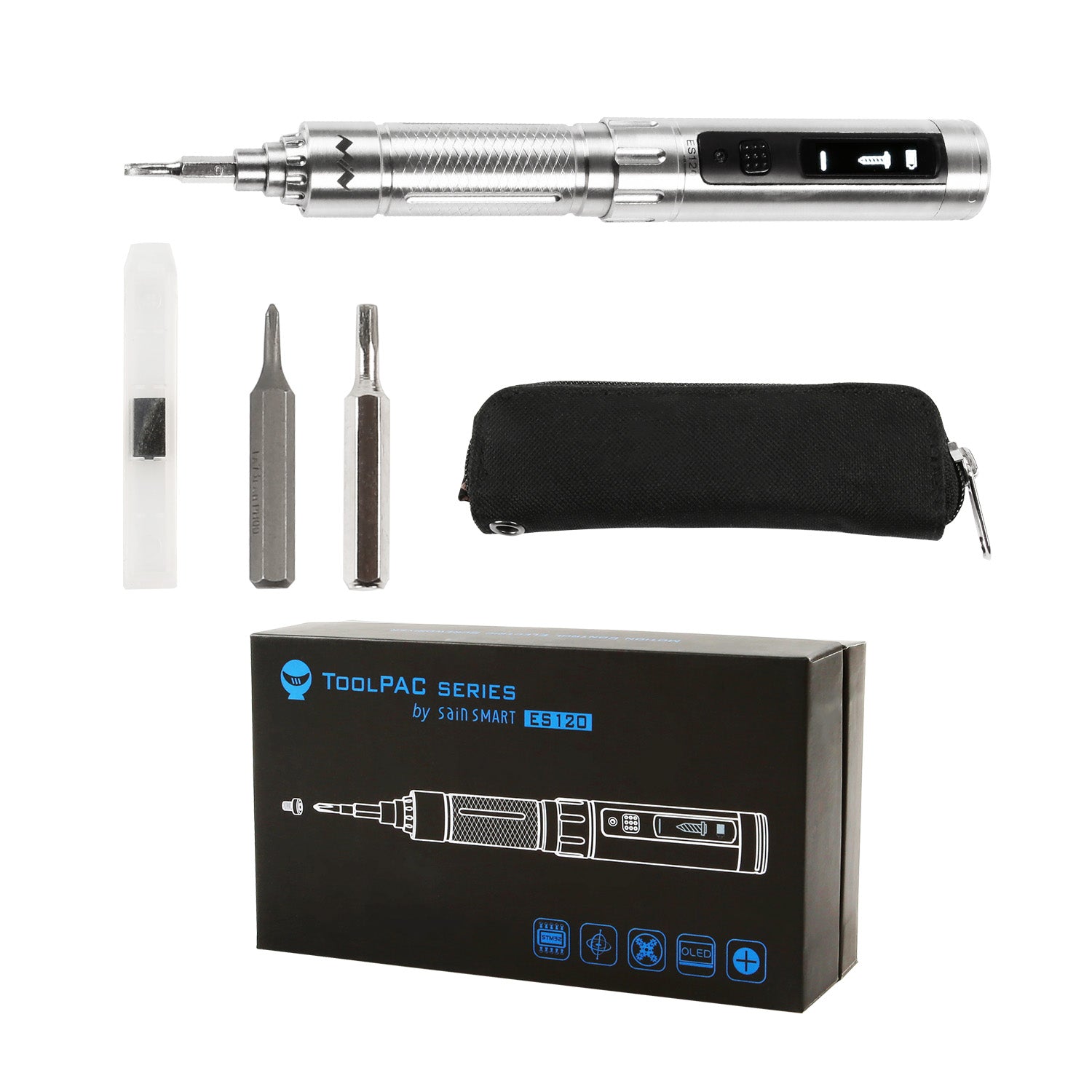

For ES120

  • 1 x Electric screwdriver
  • 1 x Slotted Bit SL2.0
  • 1 x Phillips Bit PH00
  • 1 x Carrying case
