3.9 inch high resolution ( 480 x 320 pixels) TFT large LCD display,can clear visual display state and a plurality of relevant parameters 1mV/1mA
Two separate controllable output 0V ~ 30V / 3A,A fixed output 5V / 3A, total output of high power 195W
Three channel output and electrical isolation,greatly reduce circuit interference
Low ripple and noise of pure power:(<300 uVrms / 2 mVpp)
Output resolution :
Internal implementation independent, parallel, series , positive-negative four kinds of work modes and automatic tracking ×270mm(W)
Overcurrent and overvoltage protection function,Can easily set up the overvoltage and overcurrent protection parameters,effectively protect the load
Call and storage system parameter setting function,Can be set up to 30 sets of data
With USB2.0, RS232 serial digital communication transmission function,Support U disk data storage
Timing output function ( arbitrary wave power ):Supports up to 1000 time setting and Unlimited / designated cycle number output,Reality output waveform
Constant voltage and current automatic conversion function
Output ON / OFF control,convenient and practical
Demension:340mm(L)×155mm(H)
Weight:4.9kg
Channel1&Channel 2
5V Fixed
Voltage output
0 ~ 30V(parallel,independent)
0~60V (series)
30V ~30V (positive-negative)
5V/3A
Current output
0 ~3A(independent,series,positive-negative)
0 ~6A(parallel)
3A
Adjust the rate of power supply(CV)
�/strong>0.1% + 3mA
Adjust the rate of power supply(CC)
�/strong>0.1% + 3mA
Adjust the rate of Load(CV)
�/strong>0.01%+3mV
�/strong>0.5%+5mV
Adjust the rate of Load(CC)
�/strong>0.2% + 3mA
Noise & Ripple(CV)
�/strong>1mVrms
�/strong>2mVrms
Noise & Ripple(CC)
�/strong>3mArms
Voltage display resolution /Precision(V)
1mV ; ≤Â?/strong>1%rdg+2digits
Choosing a selection results in a full page refresh.

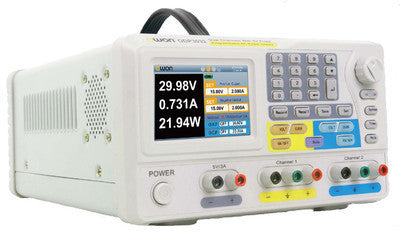

![[Discontinued] New OWON ODP3032 Programmable DC power supply 0-30V 0-3A series 60V paraller](http://www.sainsmart.com/cdn/shop/products/odp3032.jpg?v=1499266160&width=1445)
