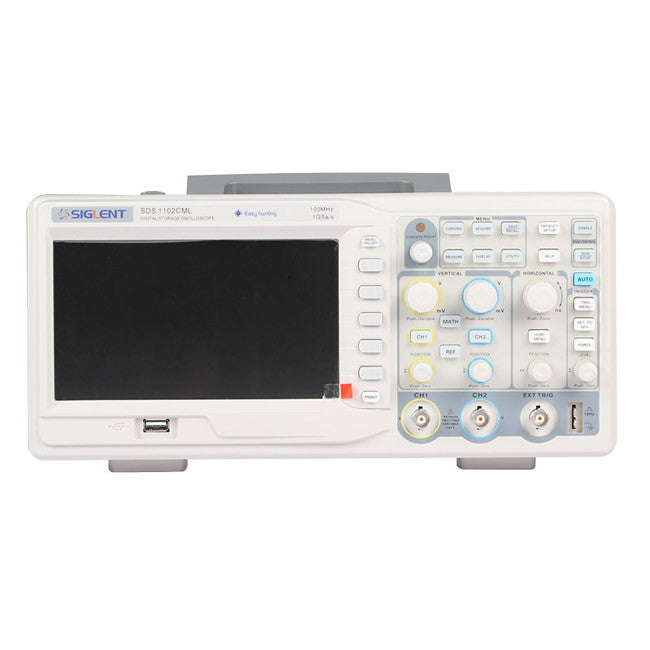

[Discontinued] Siglent SDS1102CML100MHz 1GSa/s Real Time Sample RateDigital Oscilloscope
[Discontinued] Siglent SDS1102CML100MHz 1GSa/s Real Time Sample RateDigital Oscilloscope
- 20-010-404
Couldn't load pickup availability
![[Discontinued] Siglent SDS1102CML100MHz 1GSa/s Real Time Sample RateDigital Oscilloscope](http://www.sainsmart.com/cdn/shop/products/01_14_16.jpg?v=1499266448&width=1445)

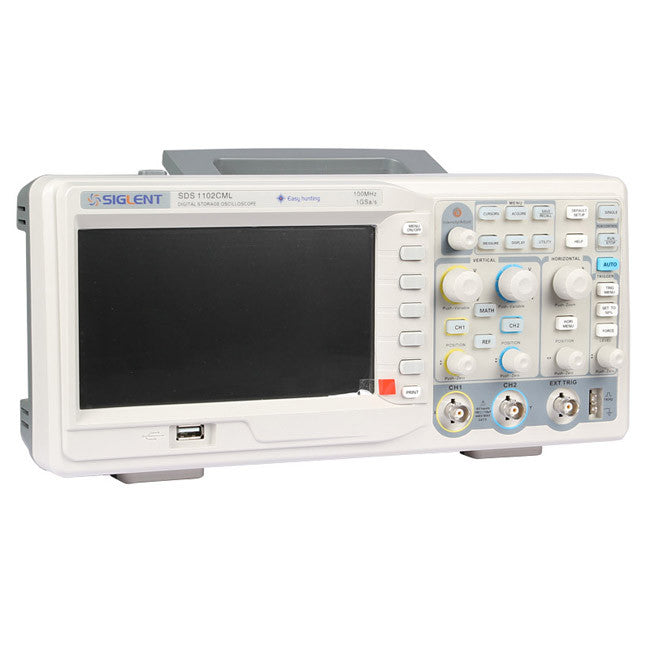

![[Discontinued] Siglent SDS1102CML100MHz 1GSa/s Real Time Sample RateDigital Oscilloscope](http://www.sainsmart.com/cdn/shop/products/02_11_16.jpg?v=1499266448&width=1445)
![[Discontinued] Siglent SDS1102CML100MHz 1GSa/s Real Time Sample RateDigital Oscilloscope](http://www.sainsmart.com/cdn/shop/products/05_10_13.jpg?v=1499266448&width=1445)
![[Discontinued] Siglent SDS1102CML100MHz 1GSa/s Real Time Sample RateDigital Oscilloscope](http://www.sainsmart.com/cdn/shop/products/06_5_67.jpg?v=1499266448&width=1445)

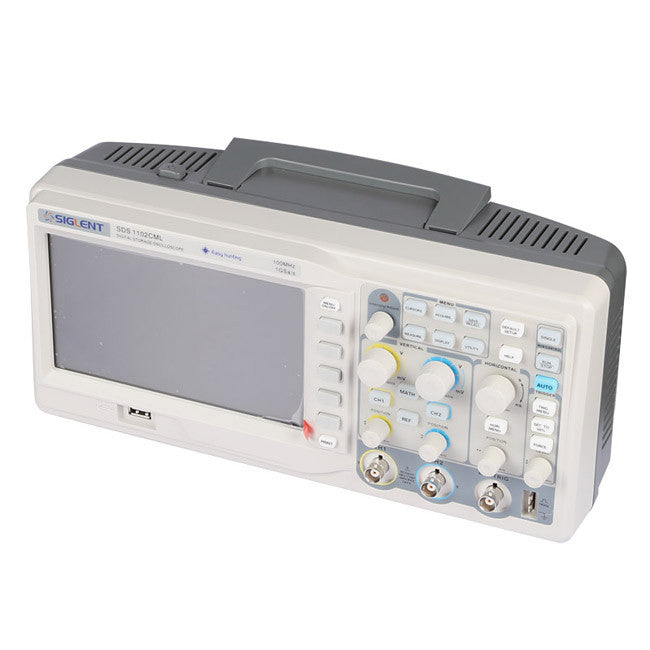

![[Discontinued] Siglent SDS1102CML100MHz 1GSa/s Real Time Sample RateDigital Oscilloscope](http://www.sainsmart.com/cdn/shop/products/03_16_16.jpg?v=1499266448&width=1445)

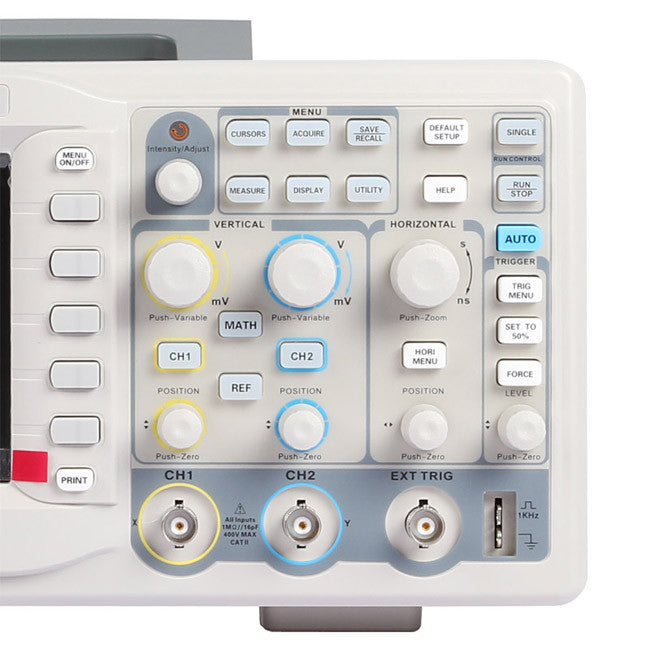

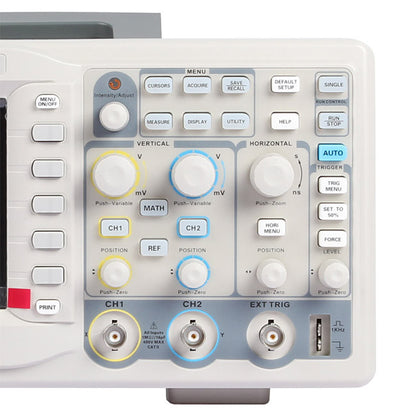

![[Discontinued] Siglent SDS1102CML100MHz 1GSa/s Real Time Sample RateDigital Oscilloscope](http://www.sainsmart.com/cdn/shop/products/04_12_16.jpg?v=1499266448&width=1445)
![[Discontinued] Siglent SDS1102CML100MHz 1GSa/s Real Time Sample RateDigital Oscilloscope](http://www.sainsmart.com/cdn/shop/products/08_4_39.jpg?v=1499266448&width=1445)
![[Discontinued] Siglent SDS1102CML100MHz 1GSa/s Real Time Sample RateDigital Oscilloscope](http://www.sainsmart.com/cdn/shop/products/07_5_53.jpg?v=1499266448&width=1445)
Description:
Features:
- Up to 150MHz Bandwidth 1GSa/s sample rate
- 7''TFT-LCD display, 8*18 grids
- Channels: 2CH+1EXT
- 1GSa/s samplinge rate, 2Mpts memory depth
- 6 digits hardware frequency counter, real time counting display
- Support SCPI programming command control

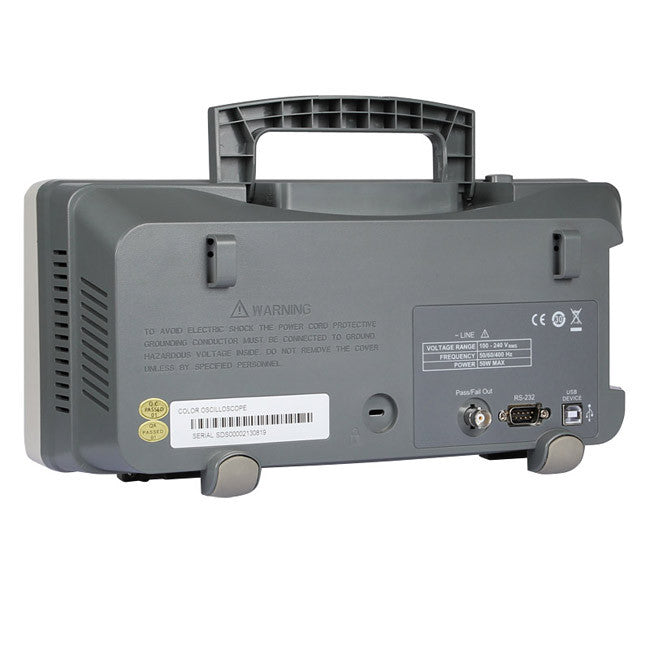

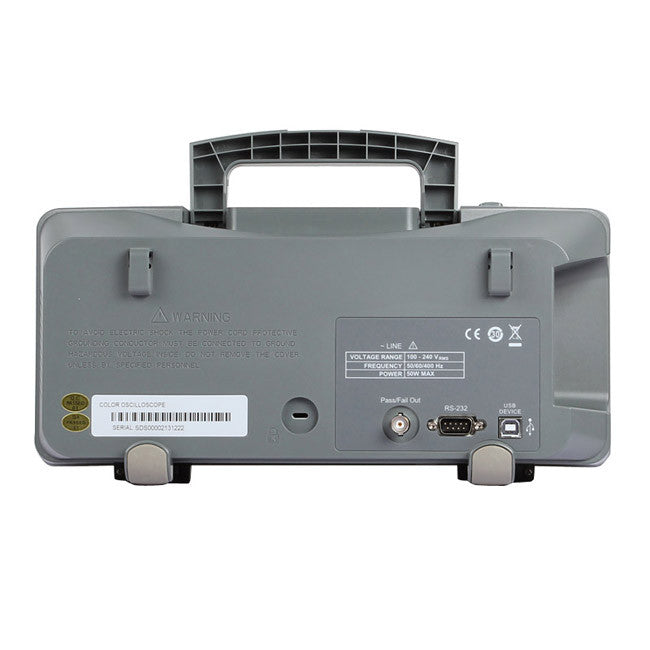

- Interface: USB Device, USB Host, RS-232, Pass/Fail
- Unique digital filter and data recorder function
- Embedded 12 languages, online help, one key storing and one key printing
- Dimensions: 323mmÃâ€?57mmÃâ€?35mm (W×H×D)
Applications:
- Electronic circuit design and debugging
- Electrical circuit function test
- Inspect instantaneous signal
- Industrial control and measuring
- Products quality control
- Education and training
Specifications:
- The oscilloscope must have been operating continuously for thirty minutes within the specified operating temperature.
- You must perform the Do Self Cal operation, accessible through the Utility menu, if the operating temperature changes by more than 5° C.
- The oscilloscope must be within the factory calibration interval
|
Model |
SDS1072CML |
SDS1102CML |
SDS1152CML |
|
Bandwidth |
70MHz |
100MHz |
150MHz |
|
Channels |
2CH+1EXT |
||
|
Real time sampling rate |
1GSa/s |
||
|
Equivalent sampling rate |
50GSa/s |
||
|
Memory depth |
2Mpts |
||
|
Rise time |
< 5ns |
< 3.5ns |
< 2.3ns |
|
Input impedance |
1MΩII17pF |
||
|
Time base range |
5.0ns/div-50s/div |
2.5ns/div-50s/div |
|
|
Scan: 100ms-50s/div |
|||
|
Vertical sensitivity |
2mV-10V/div |
||
|
Vertical resolution |
8bit |
||
|
Trigger source |
CH1, CH2, Ext, Ext/5, AC Line |
||
|
Trigger types |
Edge, Pulse, Video, Slope, Alternative |
||
|
Math Operation |
+, -, Ãâ€? ÷, FFT |
||
|
Digital filter |
High pass, Low pass, Band pass, Band Stop |
||
|
Max input voltage |
±400V (DC+AC Pk-Pk), CAT I, CAT II |
||
|
Internal storage |
2 groups of reference waveform, 20 groups of setting, 10 groups of waveform |
||
|
External storage |
Bitmap save, CSV save, Waveform save, Setting save |
||
|
Language |
English, French, German, Russian, Spanish, Simplified Chinese, Traditional Chinese, Portuguese, Japanese, Korean, Italian, Arabic |
||
|
Interface |
USB Host, USB Device, RS-232, Pass/Fail out |
||
|
Display |
7 inches(178mm) color TFT(480*234) LCD |
||
|
Power |
AC 100-240V, 45Hz-440Hz, 50VA Max |
||
|
PC software |
Can through the computer remote control oscilloscope, extraction waveform analysis data |
||
|
Remark |
With original source seamless connection, form signal collection, produce integration system |
||
|
Detailed performance parameters and technical index please refer to SDS1000CML Series Datasheet |
|||

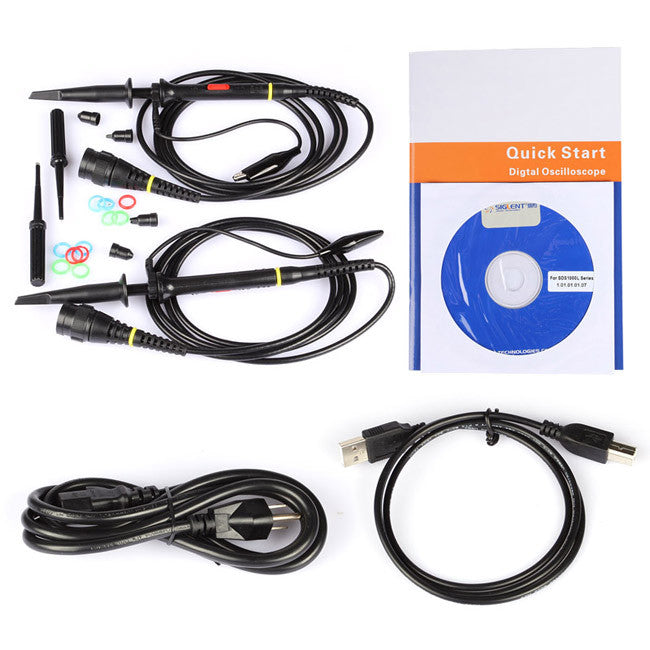

Standard Accessories:

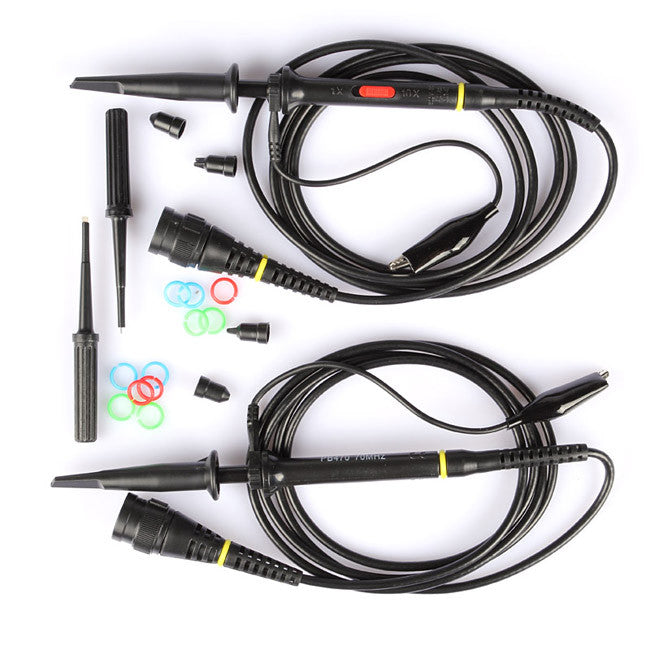

- 1:1/10:1 probe (2 PCS)
- Power Cable that fits the standard of destination country
- Qualified Certification
- Guaranty Card
- CD(including EasyScope computer software system)
- User Manual
- USB Cable
