SPECIFICATIONS

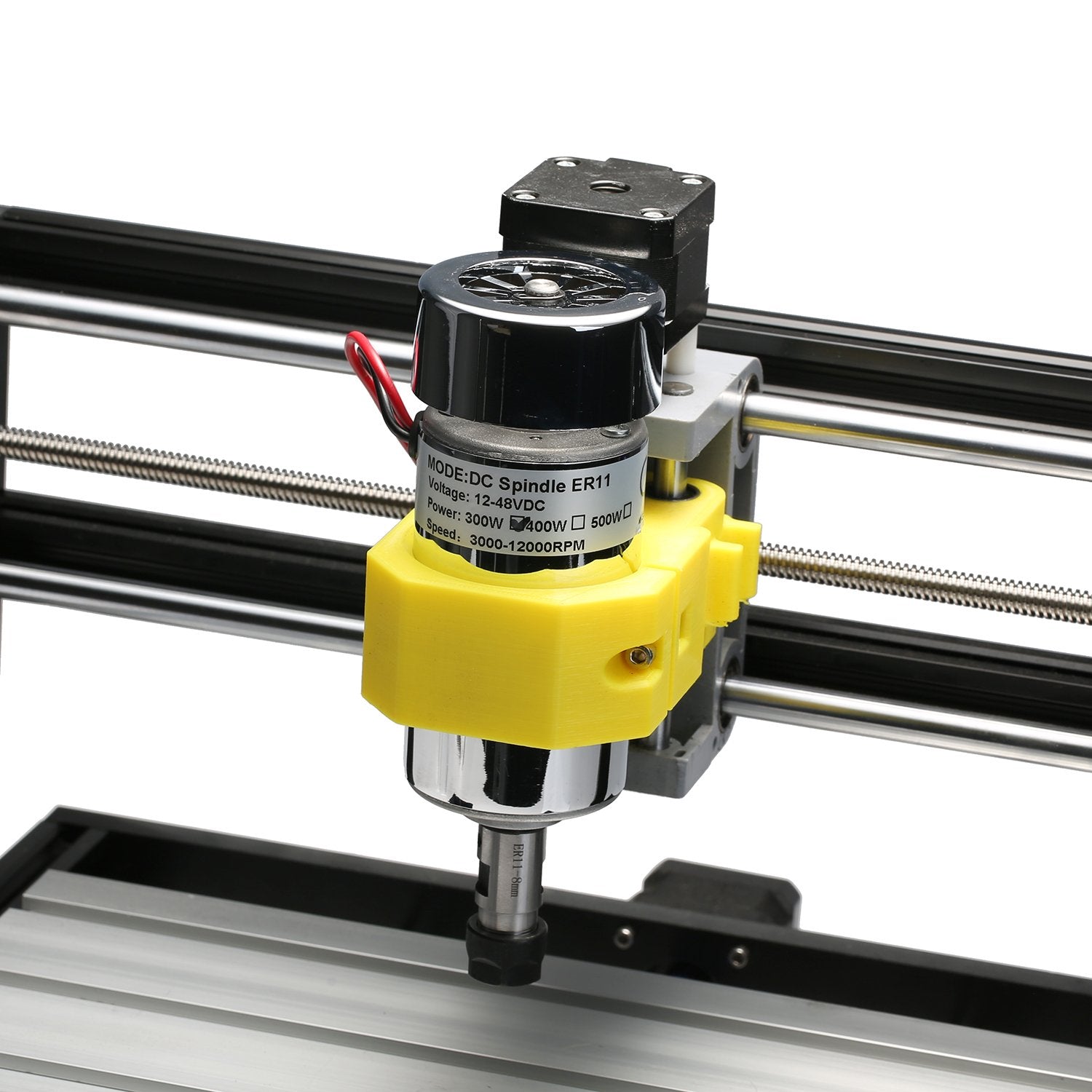

Air-cooled. If you would like to add it on 3018 series CNC machines, you need to add an extra motor mount. You can download the 3D model to print one.

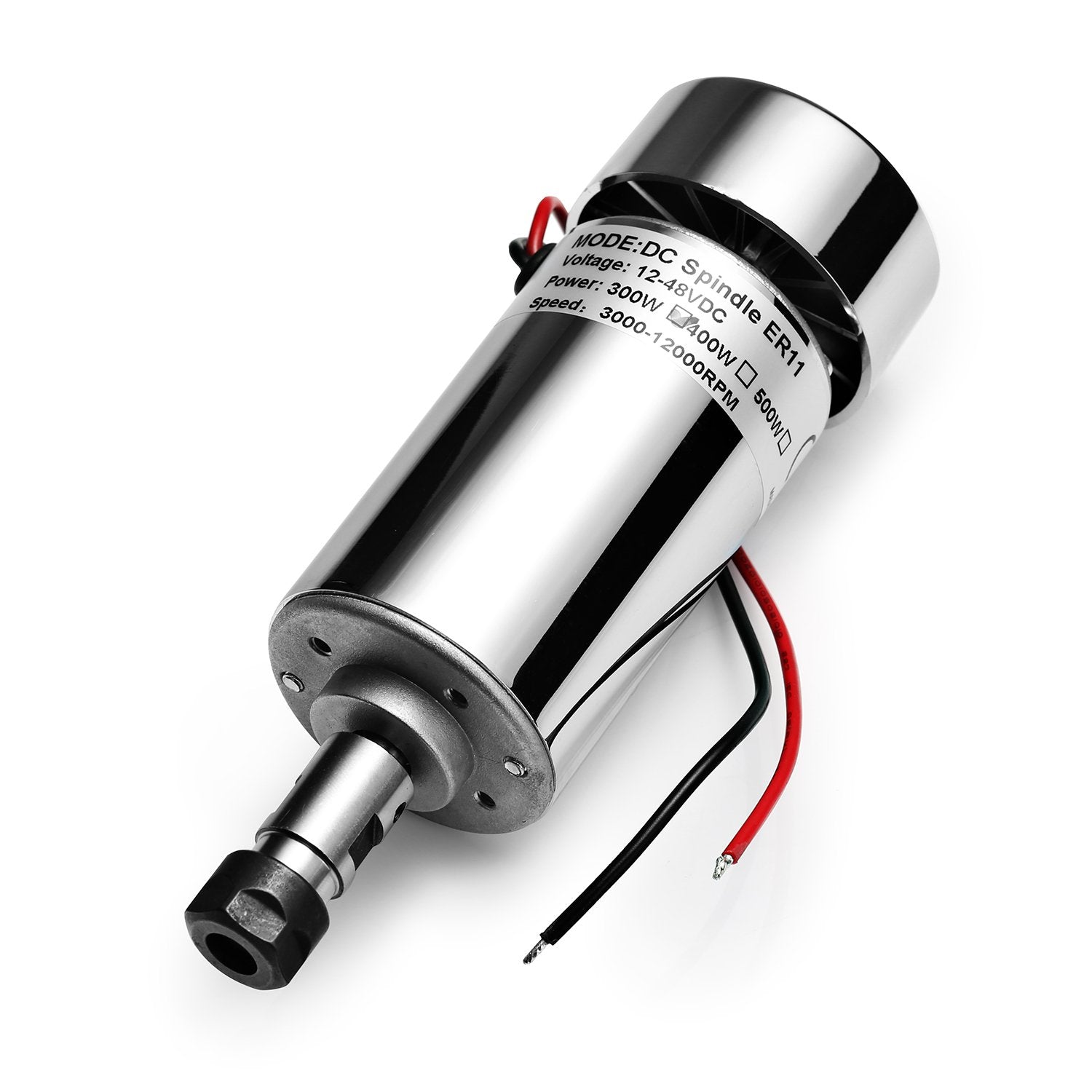

Spindle Motor
- Voltage: 12-48V DC
- Torque: 400mN.m
- Insulation Resistance: > 2 megohms
- Spindle Diameter: 52mm
- Dielectric Strength: 400V
- Motor length: 172mm

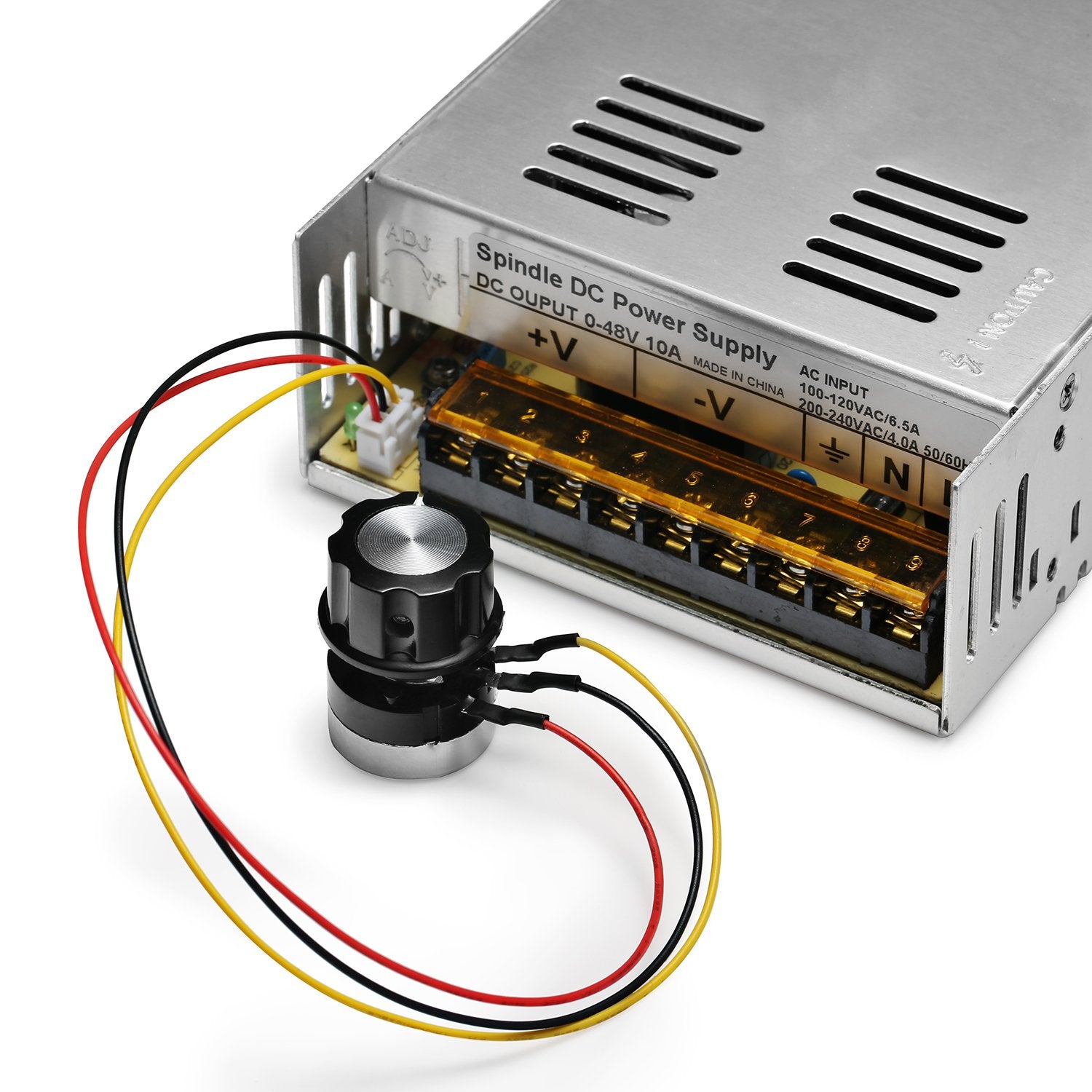

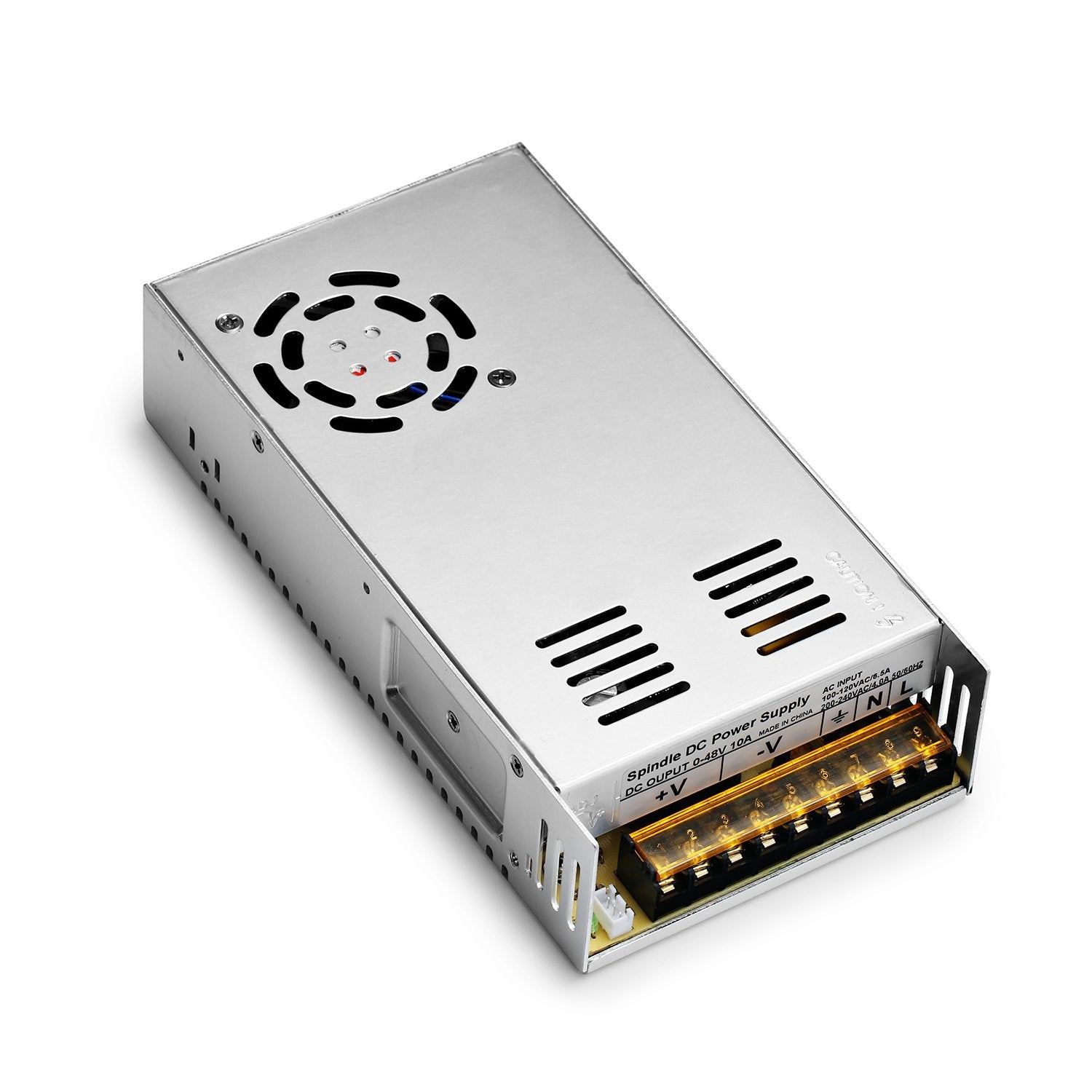

Power Converter
- Input Voltage: 110-220V ±15% AC
- Output Voltage: 0-48V DC
- Output Current: 10A (MAX)
- Output Voltage Regulation: External potentiometer adjustment
- Rated Power: 480W

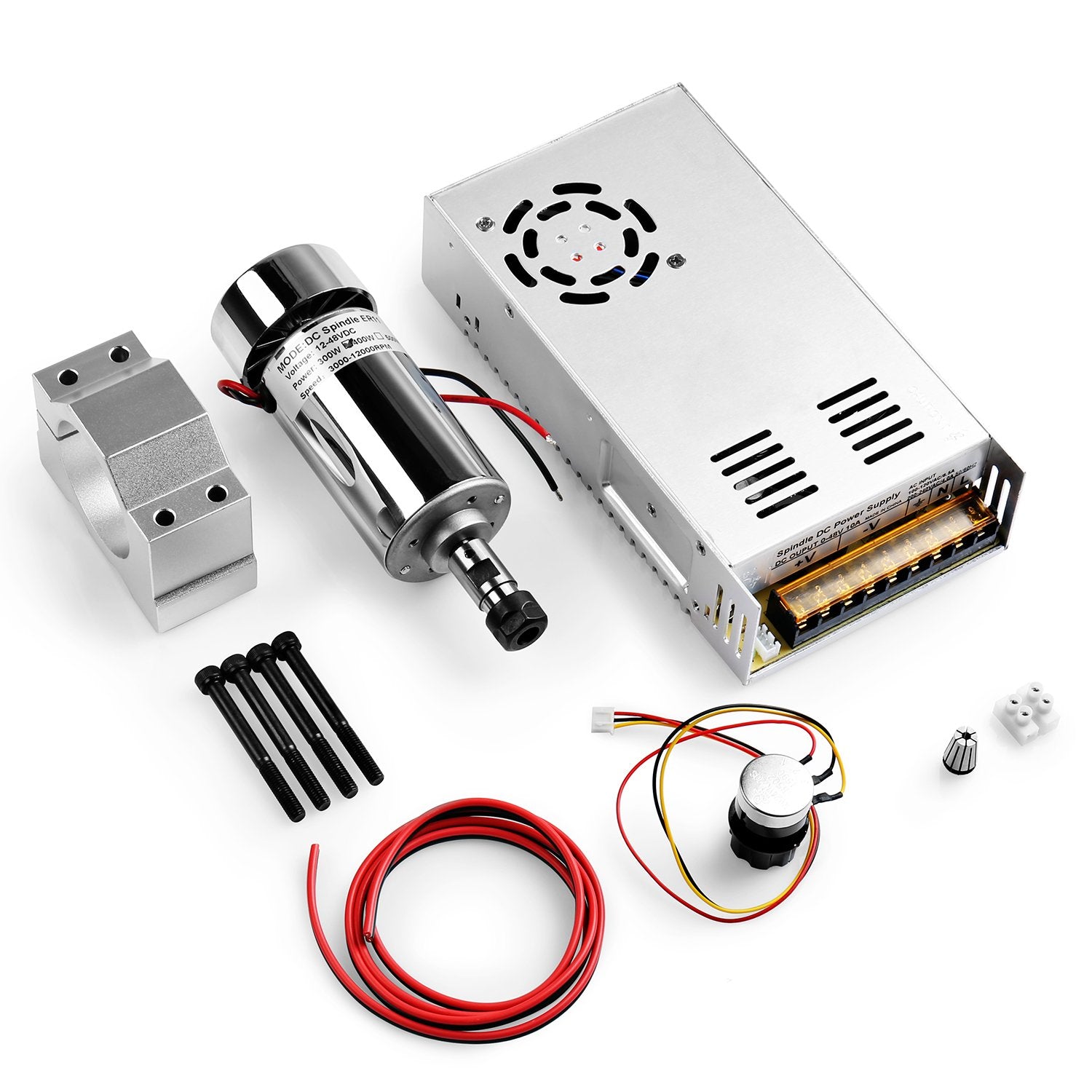

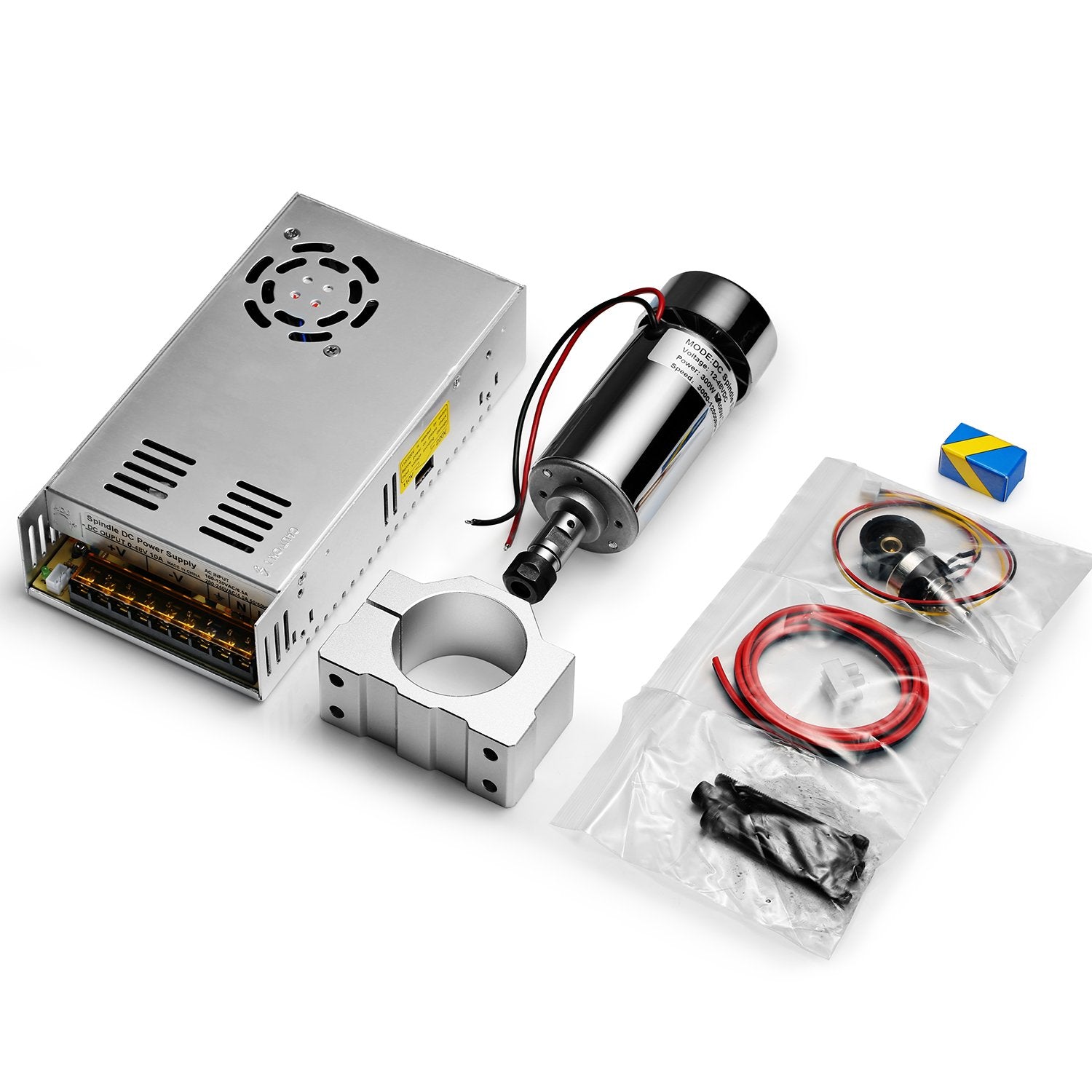

WHAT'S IN THE PACKAGE
- 1 x Spindle Set
- 1 x ER11 Collet
- 1 x Spindle Speed Power Converter
