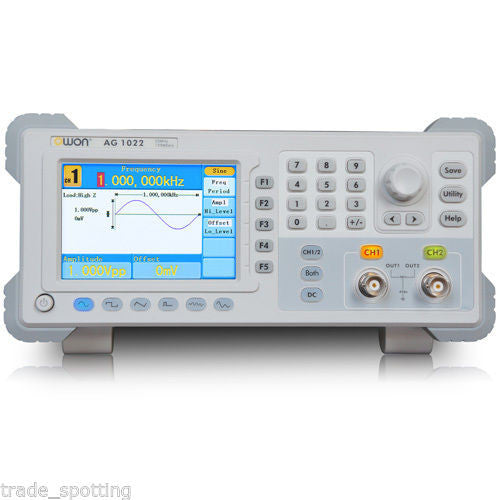

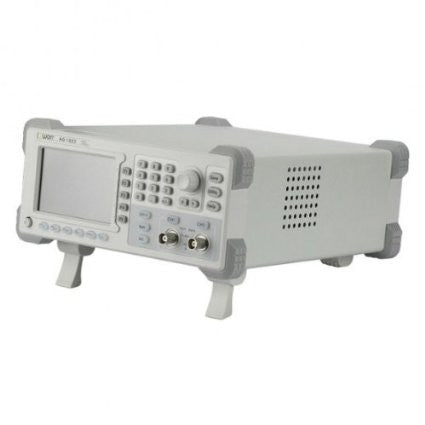

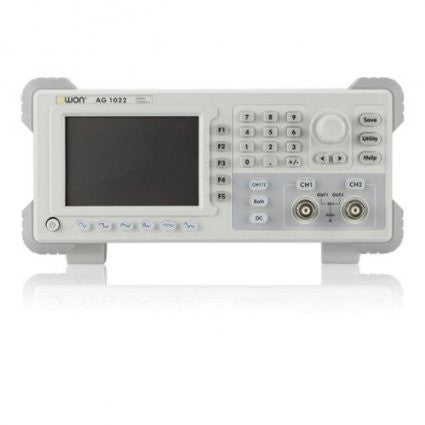

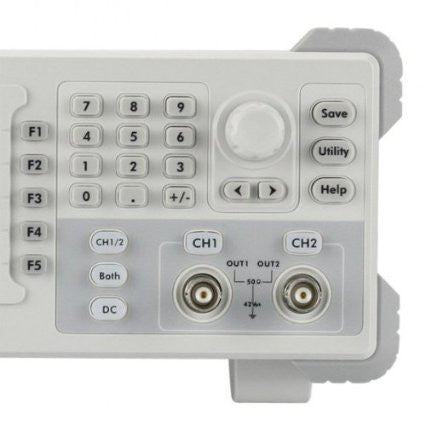

Description:
OWON AG series product is one multi-function waveform generator, working as arbitrary waveform generator, and function generator 2 in 1. OWON AG series waveform generator could provide stable, accurate, and pure DDS signal sources, its user-friendly UI, together with keyboard layout brings brand-new user experience into the current market. OWON AG series waveform generator supports USB storage via its USB device, and USB host communication interface, its LAN remote data-transmission gives users access to more solutions.
Feature:
- Advanced DDS technology, max 150MHz frequency output
- Up to 400MS/s sample rate, and 32 bits frequency resolution
- Vertical Resolution : 14 bits, up to 1M arb waveform length
- Comprehensive waveform output :
- 5 basic waveforms, and 26 built-in arbitrary waveforms
- 32 channels digital signal (optional)
- Comprehensive modulation functions :
- AM, FM, PM, FSK, PWM, Sweep, and Burst
- Newly supported SCPI ( excluding AG4151)
- 3.9 inch high resolution (480 × 320 pixels) TFT LCD display
Specification:
|
Bandwidth |
25MHz |
|
Sample rate |
125 MSa/s |
|
Frequency Resolution |
1μHz |
|
Channels |
2 |
|

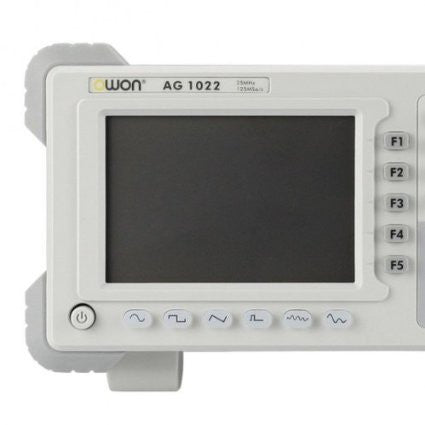

Display |
3.9-inch(480×320) TFT LCD |
|
Standard Waveform |
Sine, Square, Pulse, Ramp, Noise |
|
Arbitrary Waveform |
Sinc, Exponential Rise and Decay, DC, User defined |
|
Frequency Characteristics |
|
|
Sine |
1μHz - 25MHz |
|
Square |
1μHz - 10MHz |
|
Pulse |
1μHz - 10MHz |
|
Ramp |
1μHz - 1MHz |
|
Arb |
1μHz - 10MHz |
|
Arbitrary waveforms |
|
|
Wave length |
2 pts to 8Kpts |
|
Sample Rate |
125MSa/s |
|
Vertical Resolution |
14 bits |
|
Non-volatile memory |
4 waveforms |
|
Amplitude Characteristic |
|
|
Amplitude |
10mVPP-10VPP(50Ω) 20mVPP-20VPP(High Impedance) |
|
Resolution |
1mVPP or 14bits |
|
DC Offset Range (AD+DC) |
±5V(50Ω), ±10V(High Impedance) |
|
DC Offset Range Resolution |
1mV |
|
Load Impedance |
50Ω(typical) |
|

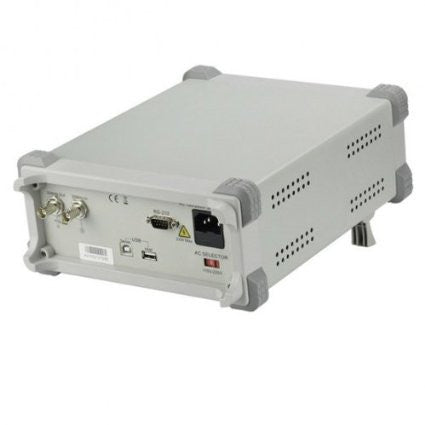

Input/Output |
|
|
Type |
external reference clock input/output |
|
Interface |
USB Host, USB Device, RS232 |

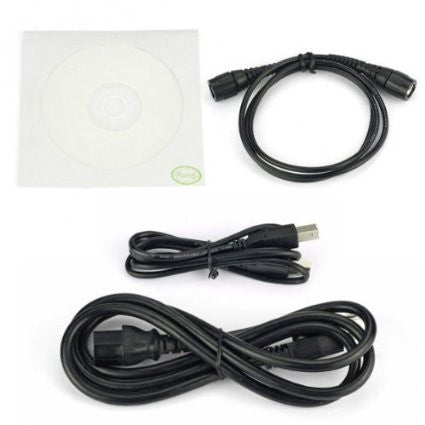

Package list:
- 1XPower cord
- 1X BNC male to BNC male patch cable (Q9)
- 1X USB data cable
- 1XCD-Rom
- 1X User's Manual
