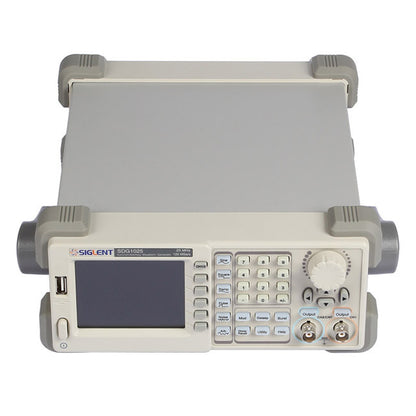

[Discontinued] Siglent 25MHz 125 MSa/s Signal Generator, SDG1025

Name: [Discontinued] Siglent 25MHz 125 MSa/s Signal Generator, SDG1025
Brand: SainSmart
SKU: 20-010-405
Price: 325.99 USD
Availability: OutOfStock

SKU: 20-010-405

$325.99

-Liquid error (snippets/price line 160): divided by 0 $325.99

Shipping calculated at checkout.

SainSmart Genmitsu Black Friday Flash Sale Up to 30% OFF

Product variants

20-010-405

Quantity

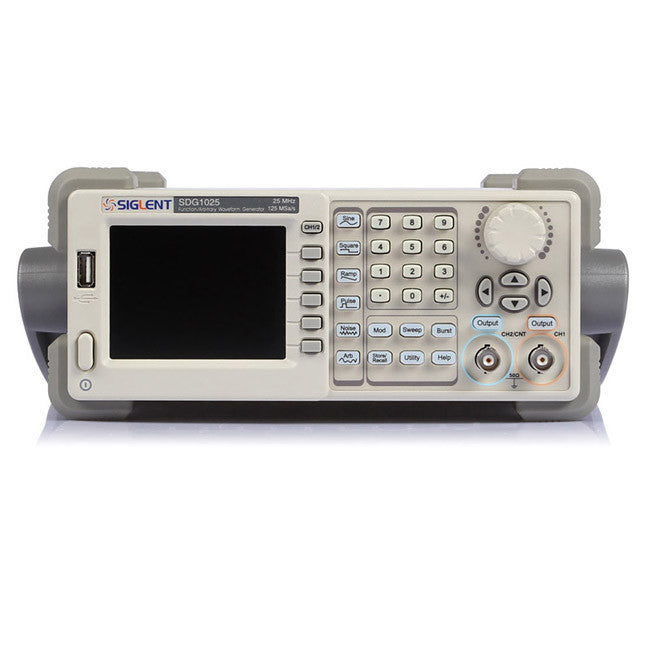

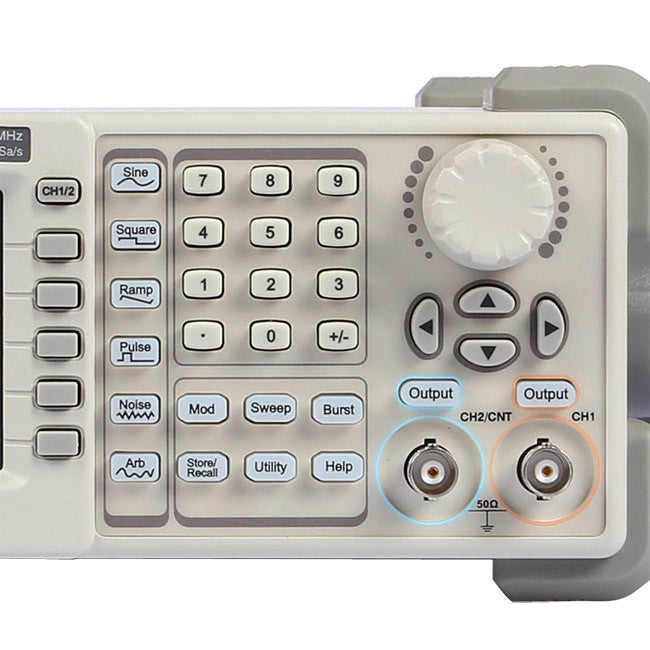

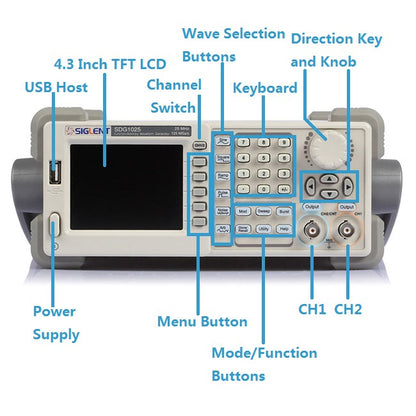

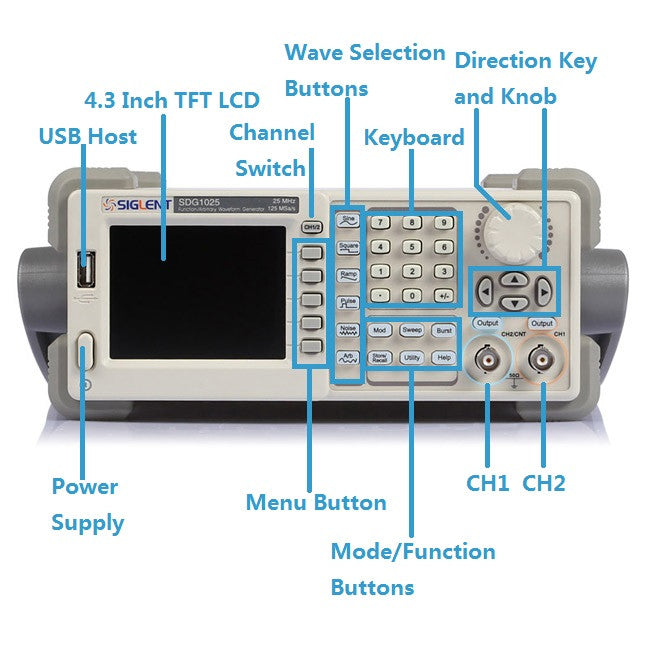

SDG1000 Series Function/Arbitrary Waveform Generator has a clear and simple front-panel. The built-in AM, FM, PM, ASK, and FSK modulation functions generate modulated waveforms at ease, without the help of a separate modulating source. USB I/O is a standard accessory, while LAN and GPIB are optional.

Output 5 types of standard waveform, internally installed 48 types of waveform;
Abundant modulation function, sweep-frequency output, pulse train output.

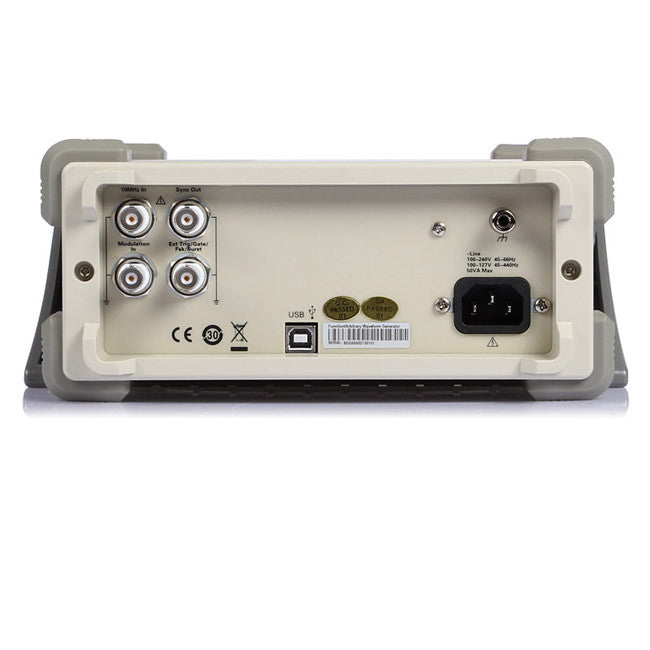

Standard collocation connection: USB Device, USB Host, support U Disk storage and software upgrading;GPIB and LAN port are optional.
Can connect to SDS1000 series digital oscilloscope perfectly, and support remote command control.

View full details

SPECIFICATION

Model	SDG1005	SDG1010	SDG1020	SDG1025	SDG1050
Maximum output frequency	5MHz	10MHz	20MHz	25MHz	50MHz
Output channels	2
Sampling rate	125 MSa/s
Wave length	16 kpts
Frequency resolution	1 μHz
Vertical resolution	14 bits
Waveform	Sine, Square, Ramp, Pulse, Gaussian white noise, 48 types of built-in arbitrary waveforms
Sine wave	1μHz ~ 5MHz	1μHz ~ 10MHz	1μHz ~20MHz	1μHz ~ 25MHz	1μHz ~ 50MHz
Square wave	1μHz ~ 5MHz	1μHz ~ 10MHz	1μHz ~20MHz	1μHz ~ 25MHz	1μHz ~ 25MHz
Pulse	500μHz ~ 5MHz	500μHz ~ 5MHz	500μHz ~5MHz	500μHz ~ 5MHz	500μHz ~ 5MHz
Ramp	1μHz ~ 300KHz	1μHz ~ 300KHz	1μHz ~ 300KHz	1μHz ~ 300KHz	1μHz ~ 300KHz
Gaussian white noise	5MHz bandwidth(-3dB)	10MHz bandwidth(-3dB)	20MHz bandwidth(-3dB)	25MHz bandwidth(-3dB)	50MHz bandwidth(-3dB)
Arbitrary wave	1μHz ~ 5MHz	1μHz ~ 5MHz	1μHz ~5MHz	1μHz ~5MHz	1μHz ~ 5MHz
Modulation function	AM, FM, PM, DSB-AM, FSK, ASK, PWM, Sweep, Burst
Other functions	Frequency counter: 100 mHz ~ 200 MHz
Standard configuration	USB Host & Device
Optional port	USB-GPIB adapter
Size	229mm×105mm×281mm

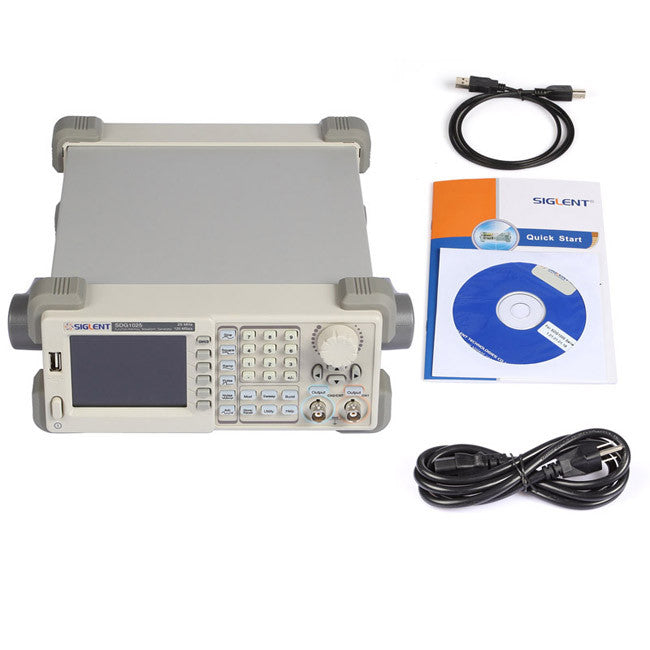

WHAT'S IN THE PACKAGE

1x User Manual
1x Certification
1x Guaranty Card
1x CD(including EasyWave1.0 computer software system)
1x Power Cord that fits the standard of destination country
1x USB Cable
