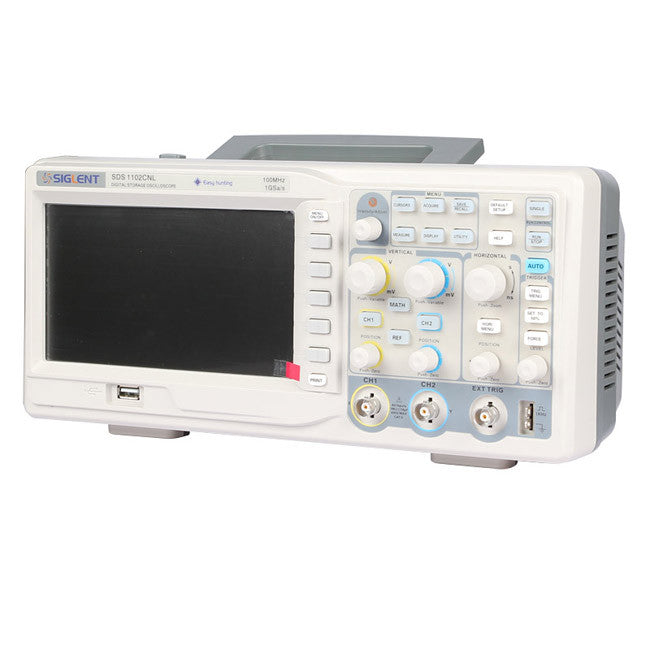

[Discontinued] Siglent SDS1102CNL 100MHz Dual-Chanel 7" TFT LCD Bench Oscilloscope

[Discontinued] Siglent SDS1102CNL 100MHz Dual-Chanel 7" TFT LCD Bench Oscilloscope

SKU:  20-010-402
$330.28
-Liquid error (snippets/price line 160): divided by 0 $330.28
Shipping calculated at checkout.
  • 20-010-402
View full details

Description:

SIGLENT SDS1102CML Digital Oscilloscope is a compact desktop dual-channel digital oscilloscope with a 100 MHz bandwidth. 7-inch TFT color liquid-crystal display of the oscilloscope ensures bright and vivid waveform representation and backlit buttons ensure user comfort. 2 Mpts memory allows storing up to 20 waveforms and 10 setups. SIGLENT SDS1102CML has a multi-language user interface and online help.
SIGLENT SDS1102CML Digital Oscilloscope is a good choice for industrial control and measurements, R&D, electronic circuit design and testing and all other applications involving testing and troubleshooting, as well as education and training.

Features:

  • Up to 100MHz bandwidth
  • 7 inch TFT-LCD display with 8 x 18 grids
  • 2 channels and 1 extension channel
  • Memory depth of 40Kpts
  • 6 digit hardware frequency counter with real time counting display
  • Supports SCPI programming command control
  • Multiple interface for USB devices and RS-232
  • Unique digital filter and data recording function
  • 12 language interface
  • Simple printing procedure
  • Real time sampling rate of 1GSa/s
  • Equivalent sampling rate of 50GSa/s
  • Rise time of less than 3.5ns
  • Multiple trigger types: Edge, Pulse, Video, Slope and Alternative



Specification:

  Model

SDS1072CNL

SDS1102CNL

SDS1202CNL

Bandwidth

70MHz

100MHz

200MHz

Channels

2CH+1EXT

Real time sampling rate

1GSa/s

1GSa/s (each channel)

Equivalent sampling rate

50GSa/s

Memory depth

40kpts

5kpts/CH

Rise time

< 5ns

< 3.5ns

< 1.7ns

Input impedance

1MΩ?17pF

1MΩ?14pF, 50Ω

Time base range

5.0ns/div-50s/div

2.5ns/div-50s/div

Scan: 100ms-50s/div

Vertical sensitivity

2mV-10V/div

2mV - 5V/div

Vertical resolution

8bit

Trigger source

CH1, CH2, Ext, Ext/5, AC Line

Trigger types

Edge, Pulse, Video, Slope, Alternative

Math Operation

+, -, ×, ÷, FFT

Digital filter

High pass, Low pass, Band pass, Band Stop

Max input voltage

±400V(DC+AC Pk-Pk), CAT I, CAT II

Internal storage

2 groups of reference waveform, 20 groups of settings, 10 groups of waveforms

2 groups of reference waveform, 20 groups of settings, 20 groups of waveforms

External storage

Bitmap save, CSV save, Waveform save, Setting save

Language

English, French, German, Russian, Spanish, Simplified Chinese, TraditionalChinese, Portuguese, Japanese, Korean, Italian, Arabic

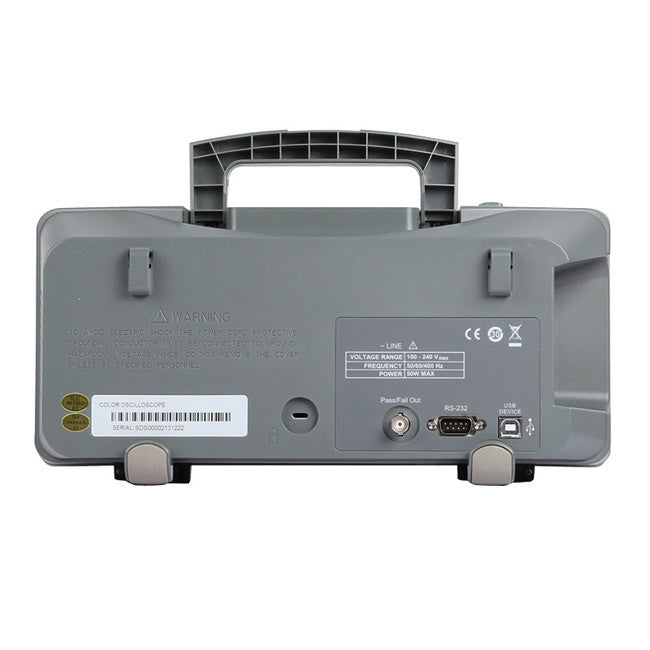

Interface

USB Host, USB Device, RS-232, Pass/Fail out

Display

7 inches(178mm) color TFT(480*234) LCD

Power

AC 100-240V, 45Hz-440Hz, 50VA Max

PC software

Can through the computer remote control oscilloscope, extraction waveform analysis data

Remark

With original source seamless connection, form signal collection, produce integration system



Application

  • 1.Electronic circuit design and debugging
  • 2.Electrical circuit function test
  • 3.Inspect instantaneous signal
  • 4.Industrial control and measuring
  • 5.Products quality control
  • 6.Education and training

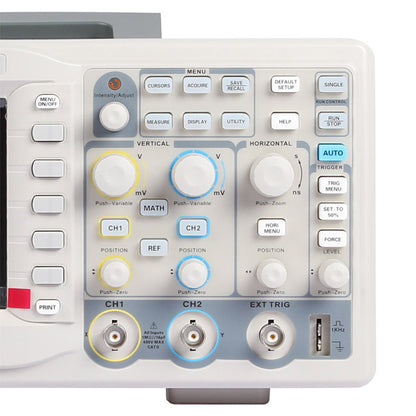

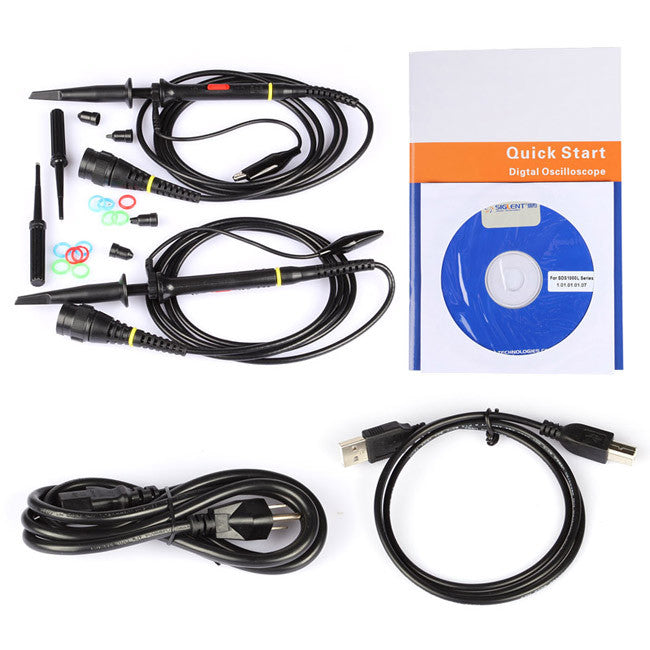

Product List:

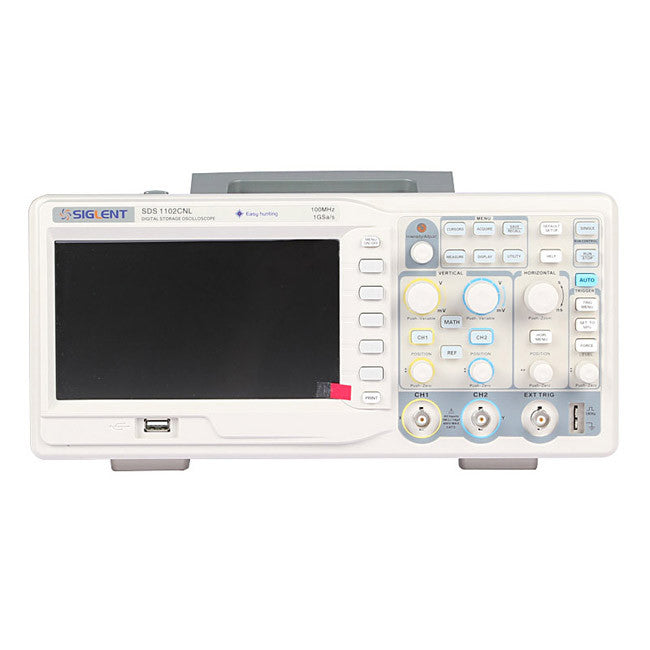

  • Siglent SDS1102CNL Digital Oscilloscope

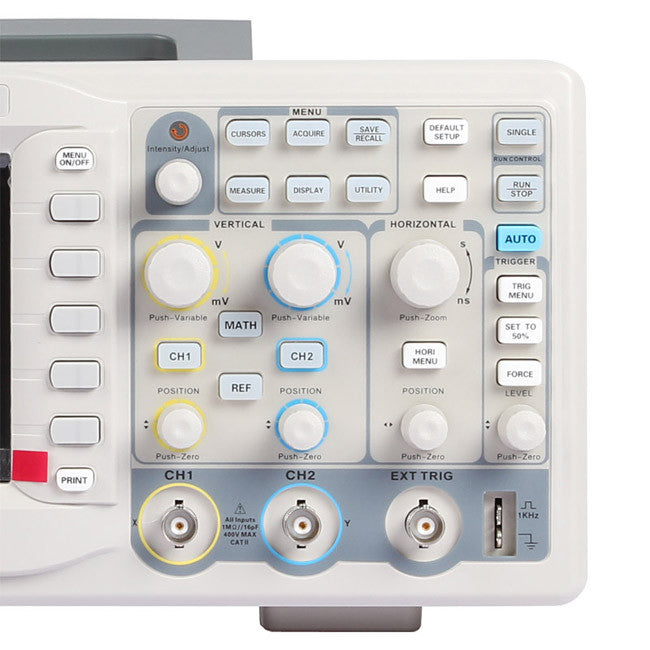

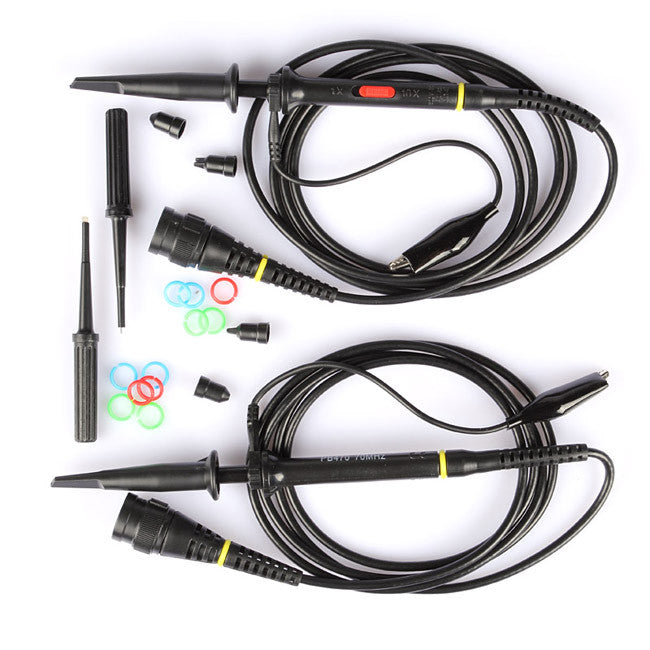

  • 1:1/10:1 Probe (2x)
  • Power cable
  • Qualified certification
  • Guarantee card
  • CD (including Easyscope computer software system)
  • User Manual
  • USB Cable
