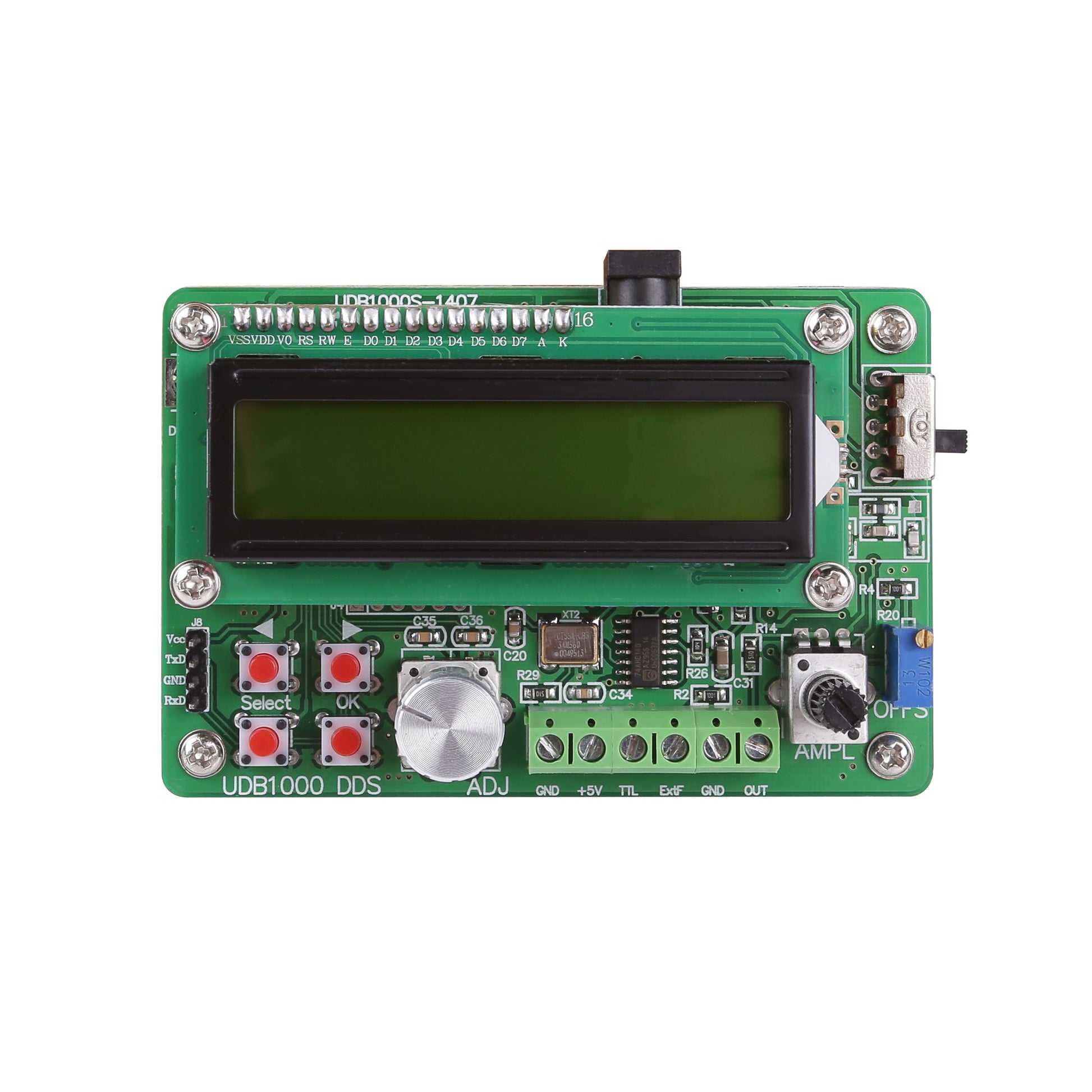

[Discontinued] UDB1002S Function Signal Generator Source Frequency Counter DDS Module Wave 2MHz
[Discontinued] UDB1002S Function Signal Generator Source Frequency Counter DDS Module Wave 2MHz
SKU:
101-10-112
1
Regular price
$30.99
-Liquid error (snippets/price line 160): divided by 0
Regular price
Sale price
$30.99
Unit price
per
Shipping calculated at checkout.
- 101-10-112
Couldn't load pickup availability
![[Discontinued] UDB1002S Function Signal Generator Source Frequency Counter DDS Module Wave 2MHz](http://www.sainsmart.com/cdn/shop/products/05_074d6147-7aa9-4089-9de4-792e1419b4c2.JPG?v=1517300090&width=1445)
![[Discontinued] UDB1002S Function Signal Generator Source Frequency Counter DDS Module Wave 2MHz](http://www.sainsmart.com/cdn/shop/products/01_fd899442-16d5-4634-9acc-6b9764e96e51.JPG?v=1517300090&width=1445)
SPECIFICATION
- Frequency range: 2MHz
- Resolution: 0.01Hz
- Output waveforms: Sine wave, Square wave and Triangle wave
- Output amplitude: ≥10Vp-p(signal output,no load)
- Output impedance: 50ω±10%(signal output)
- DC offset: ±2.5V(no load)
- Display: LCD1602
- Frequency Stability: ±1×10-6
- Frequency accuracy: ±5×10-6
- Sine wave distortion: ≤0.8% (reference frequency is 1kHz)
- Triangle linearity: ≥98% (0.01Hz~10kHz)
- Rise and fall time of square wave: ≤100ns
- Square Wave Duty range: 1%~99%
- Amplitude: >3Vp-p
- Fan Out: >20 TTL loads
- Counter Range: 0-4294967295
- Frequency Meter Range: 1Hz~60MHz
- Input Voltage Range: 0.5Vp-p~20Vp-p
- Save and Load Parameter: 0-9(0 is default load)

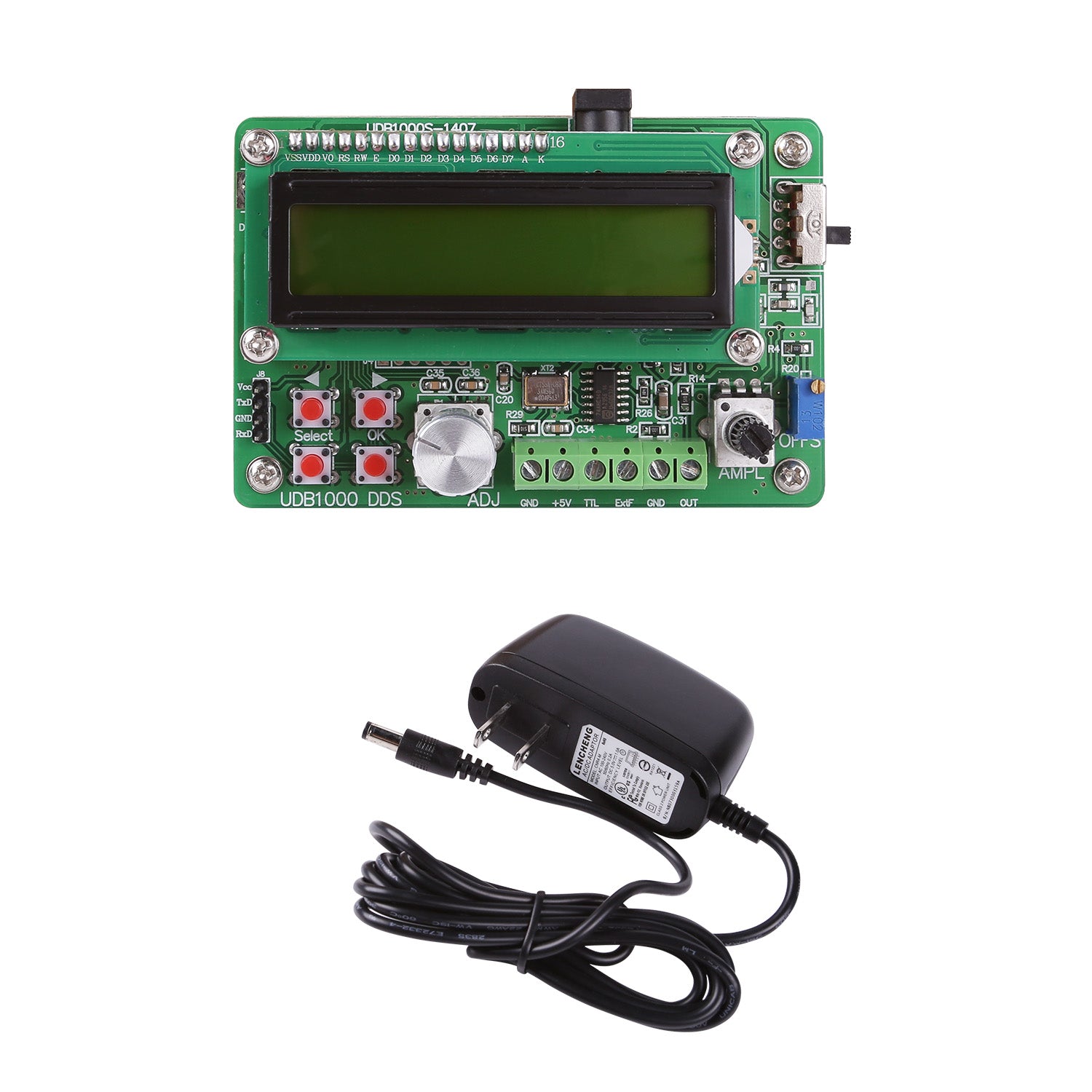

WHAT'S IN THE PACKAGE
- 1xUDB1002S Function Signal Generator Source Frequency Counter DDS Module Wave 2MHz
- 1Xpower adapter
