Brand: SainSmart

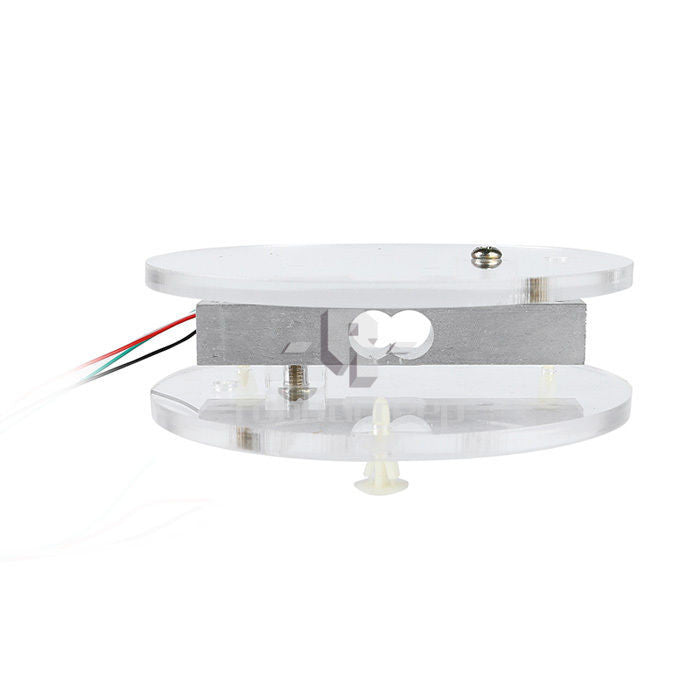

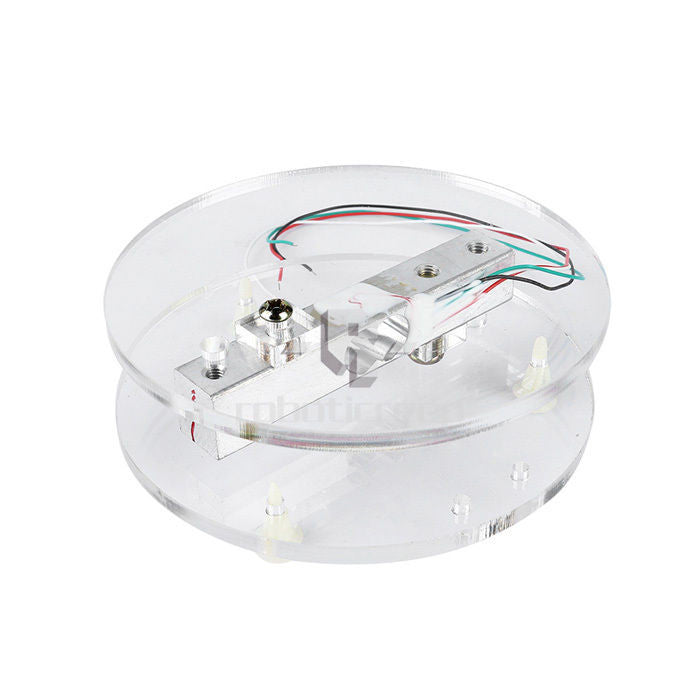

[Discontinued] 5KG Scale Load Weight Weighing Sensor HX711 AD Sensor with Base Tray for Aduino

[Discontinued] 5KG Scale Load Weight Weighing Sensor HX711 AD Sensor with Base Tray for Aduino

SKU:  101-30-378
Regular price $10.99
-Liquid error (snippets/price line 160): divided by 0 Regular price Sale price $10.99
Shipping calculated at checkout.
  • 101-30-378
View full details
SPECIFICATION


Scale Load Cell Sensor:

  • Rated Load: 5KG.
  • Size: 80x12.7x12.7mm.
  • Power input: Red+, Black-.
  • Signal ouput: Blue/Green+, White-.
  • Output sensitivity mv/v: 1.2±0.2.
  • Temperature effect on sensitivity %.f.s °C: 0.003.
  • Temperature effect on zero %.f.s °C: 0.02.
  • Input resistance. O: 1066±20.
  • Output resistance. O: 1000±10.
  • Insulation resistance. MO: 2000
  • Recommended excitation voltage: 5V.
  • Maximum excitation voltage: 10V.
  • Operating temperature range °C: -20 ~ +65.
  • Safe overload %.f.s: 120.
  • Ulitimate overload %.f.s: 150.


HX711 AD Module:


BHX711 is a precision 24-bit analog-to-digital converter (ADC) designed for weigh scales and industrial control applications to interface directly with a bridge sensor.
  • Two selectable differential input channels.
  • On-chip active low noise PGA with selectable gain of 32, 64 and 128.
  • On-chip power supply regulator for load-cell and ADC analog power supply.
  • On-chip oscillator requiring no external component with optional external crystal.
  • On-chip power-on-reset.
  • Simple digital control and serial interface: pin-driven controls, no programming needed.
  • Selectable 10SPS or 80SPS output data rate.
  • Simultaneous 50 and 60Hz supply rejection.
  • Current consumption including on-chip analog power supply regulator: normal operation < 1.5mA, power down < 1µA.
  • Operation supply voltage range: 2.6 ~ 5.5V.
  • Operation temperature range: -40 ~ +85 °C.
  • 16 pin SOP-16 package.


Wiring:

  • E+: Red wire of the scale load cell
  • E-: Black wire of the scale load cell
  • A+: Green wire of the scale load cell
  • A-: White wire of the scale load cell
  • GND: GND
  • VCC: +5V
  • DT (Data output): CPU_IO, to MCU.
  • SCK (Serial clock input): CUP_IO, from MCU.

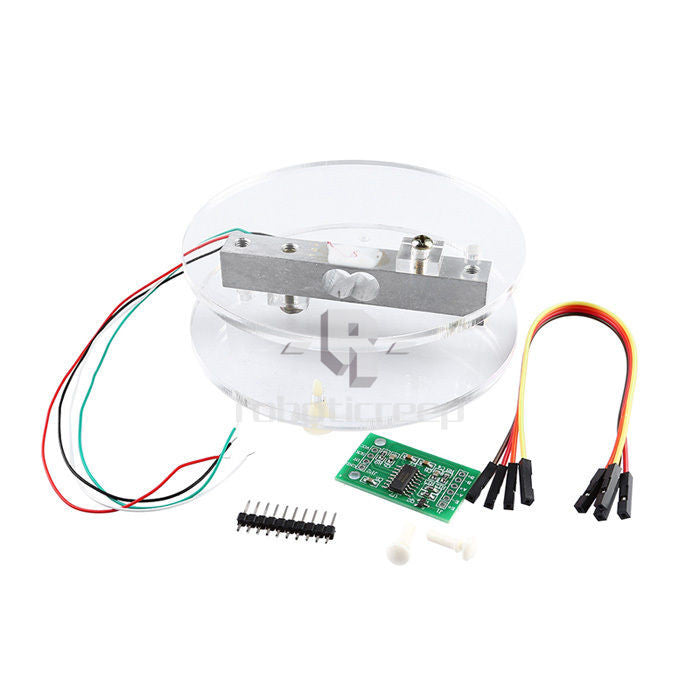

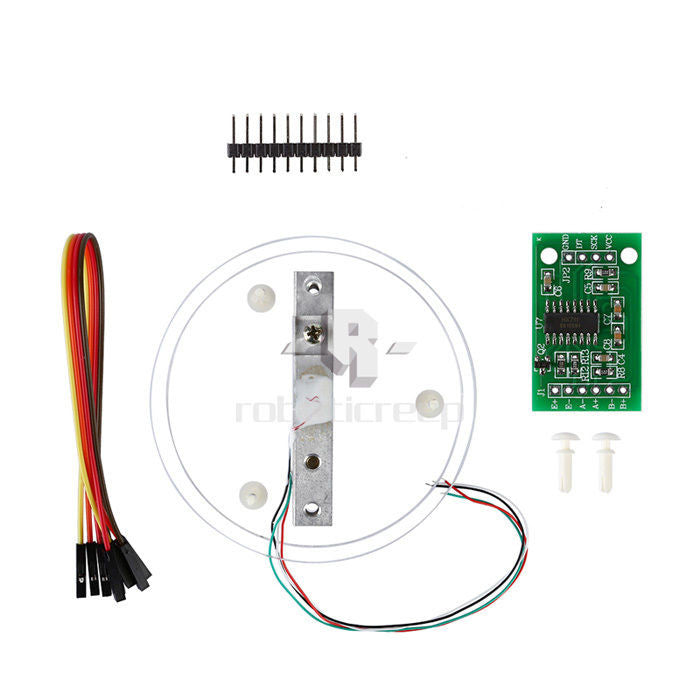

WHAT'S IN THE PACKAGE
  • 1x Scale load cell sensor
  • 1x HX711 AD module
