No clamps are required when engraving so you avoid clamp/mount scratches and bumps that may be created by improper operations. Also, you could save your engraving material since you don’t need to set aside space for installing the clamps.

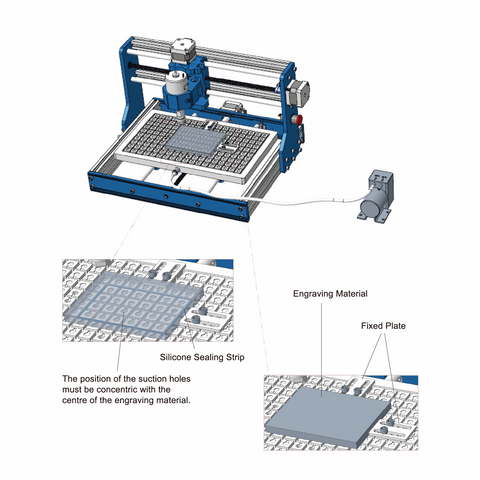

Very easy to use, apply the suction tape to accommodate your stock material. We suggest you lay pieces of paper to cover the unused portion, then turn on the vacuum pump.

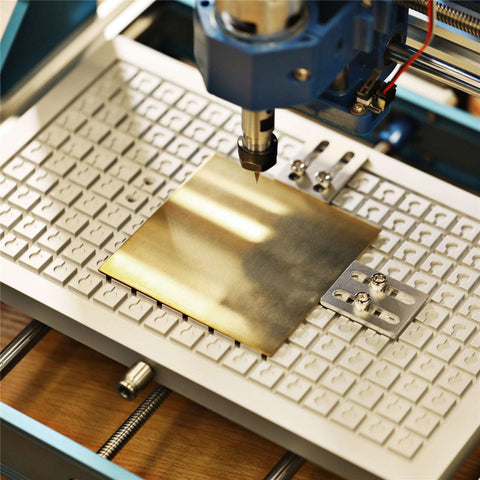

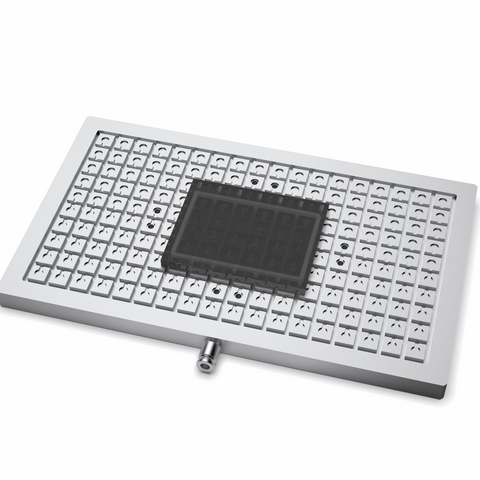

After the vacuum mode is turned on, the engraving object will be firmly vacuumed on the table, which is better than the clamping force and achieves better engraving stability.

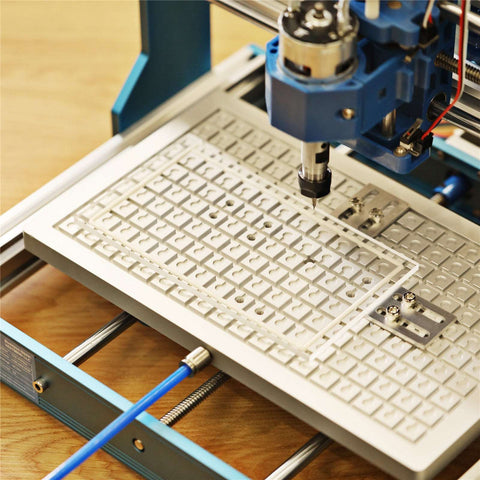

Perfectly compatible with Genmitsu 3018PROVer; 3018-PROVer mach3. You can use it to replace the original spoilboard of the machine.

• Material: A6061 Aluminum
• Weight: 1.9KG ( 4.19 LBS)
• Recommended adsorption size range: minimum 33mm*33mm, maximum 153mm*273mm
• Compatible CNC Machine: 3018PROver
• Work with Vaccum pump & Extra 24V 2A Power Supply

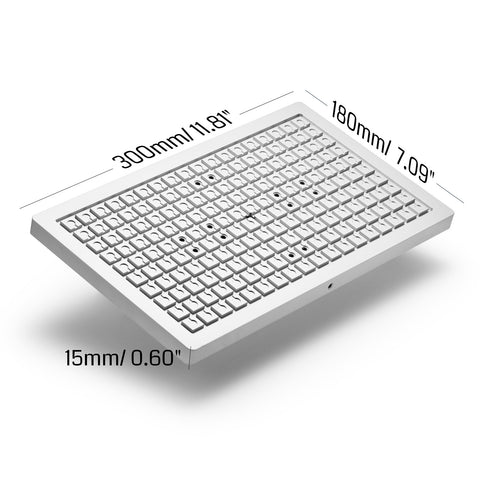

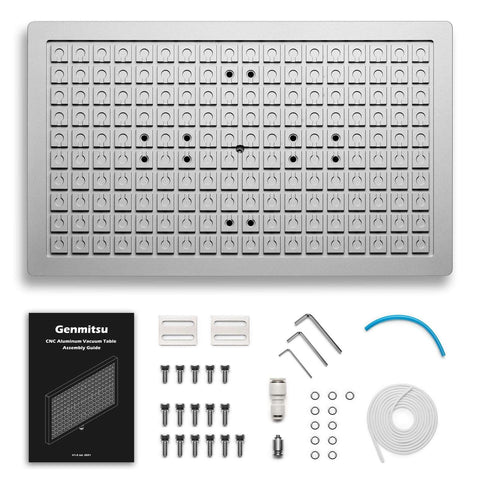

• 1x Vaccum Table, 300x180x15mm

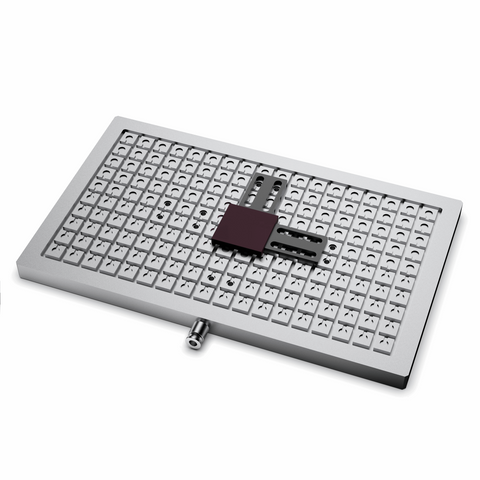

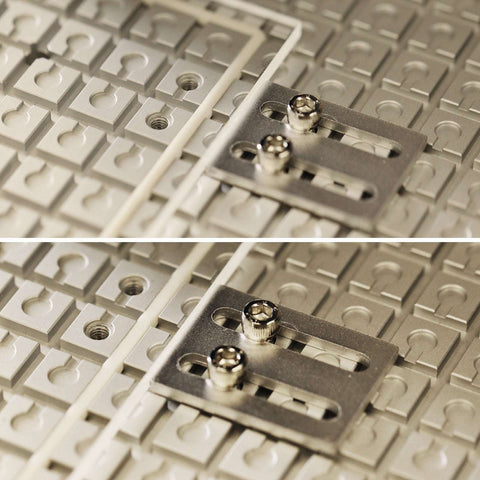

• 1x Fixed Plates,42x32x3mm

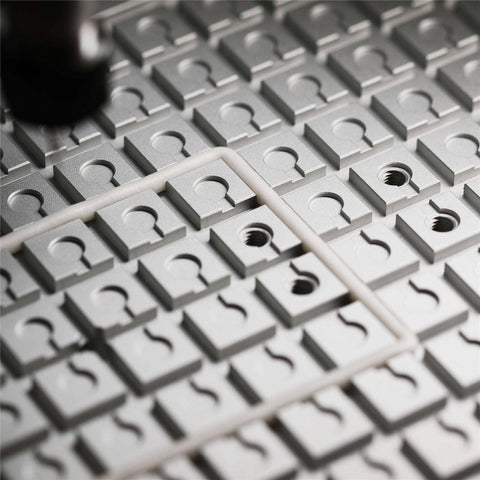

• 1x Silicone Sealing Strip, Φ3.5, 200cm
• 1x Internal Hexagonal Wrench, 2.5mm, 4mm, 5mm
• 12x Socket Cap Screw, M5
• 12x Socket Cap Screw, M6
• 1x Tube Coupling, C6-M5
• 1x Reducing Union Connector, PG10-6
• 1x Assembly Guide
