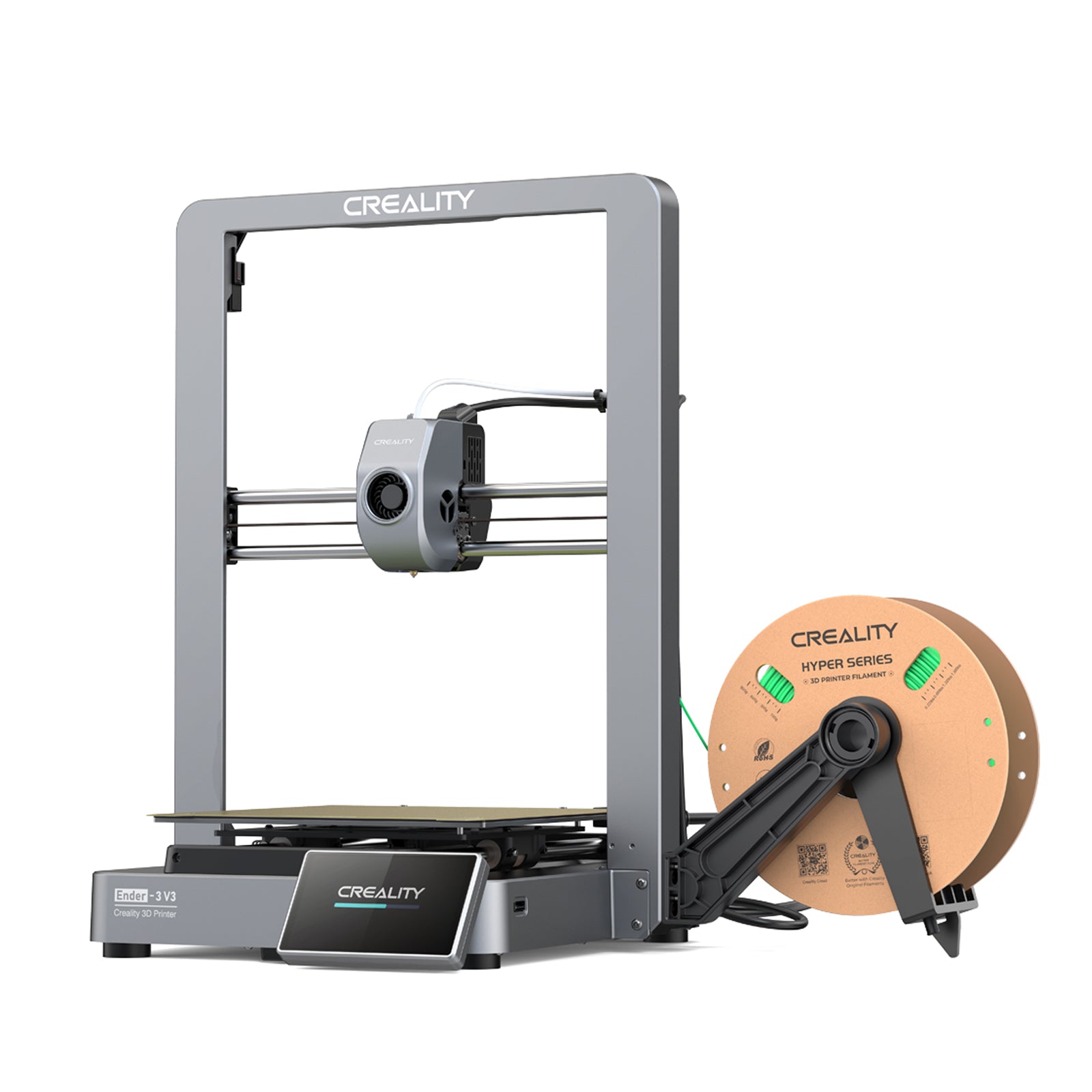

Creality Ender-3 V3 Speedy 600mm/s CoreXZ 3D Printer, 220*220*250mm
Creality Ender-3 V3 Speedy 600mm/s CoreXZ 3D Printer, 220*220*250mm
- 101-91-EN3V3-A
- 101-91-EN3V3-A
Couldn't load pickup availability

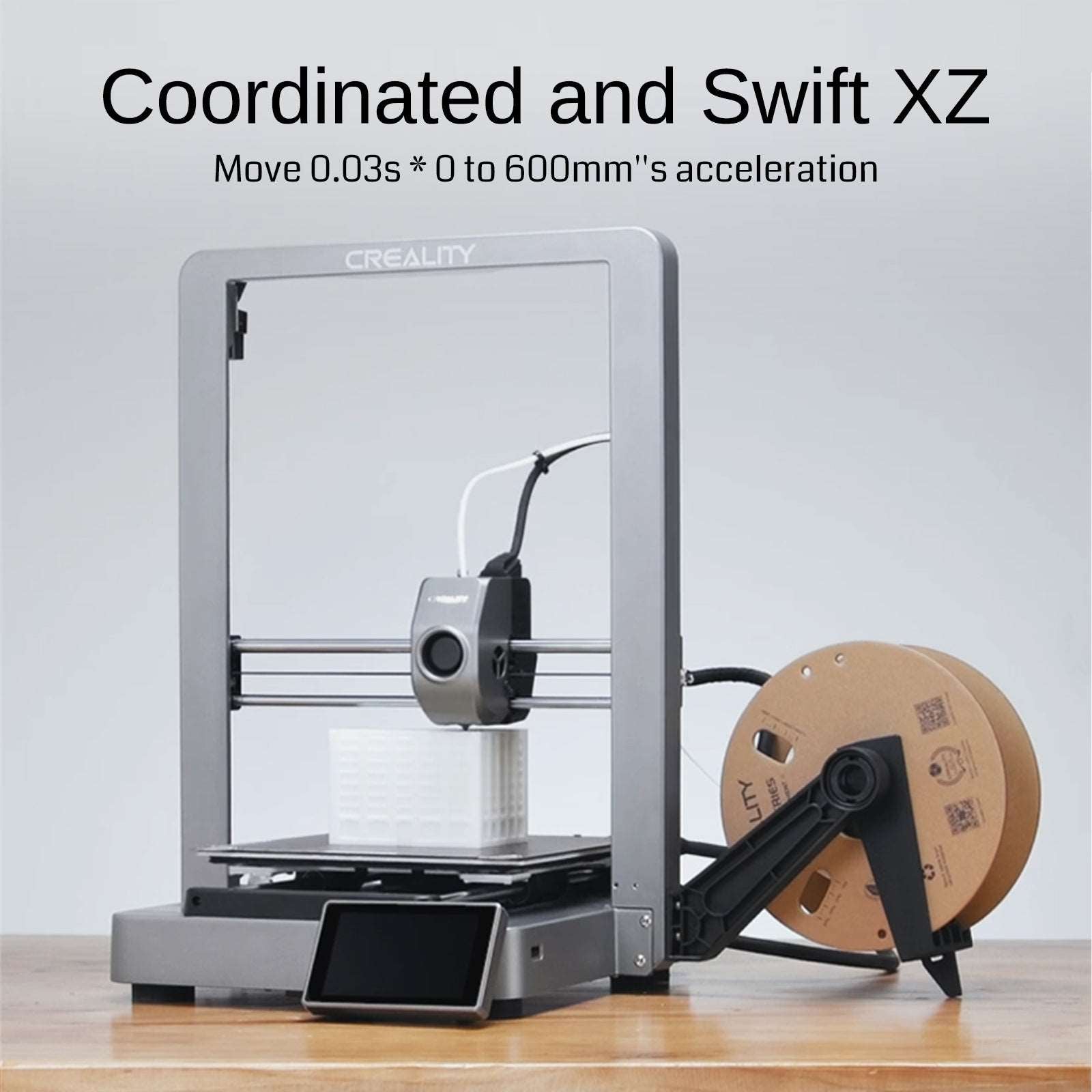

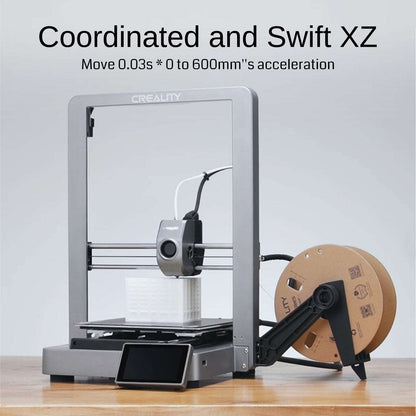

Game-changing CoreXZ System
XZ axes are co-driven by two motors attached to the base. No sweat to realize a 600mm/s max speed, a new benchmark for bed slingers. CoreXZ also improves the Z-axis positioning accuracy and enables automatic belt tensioning.

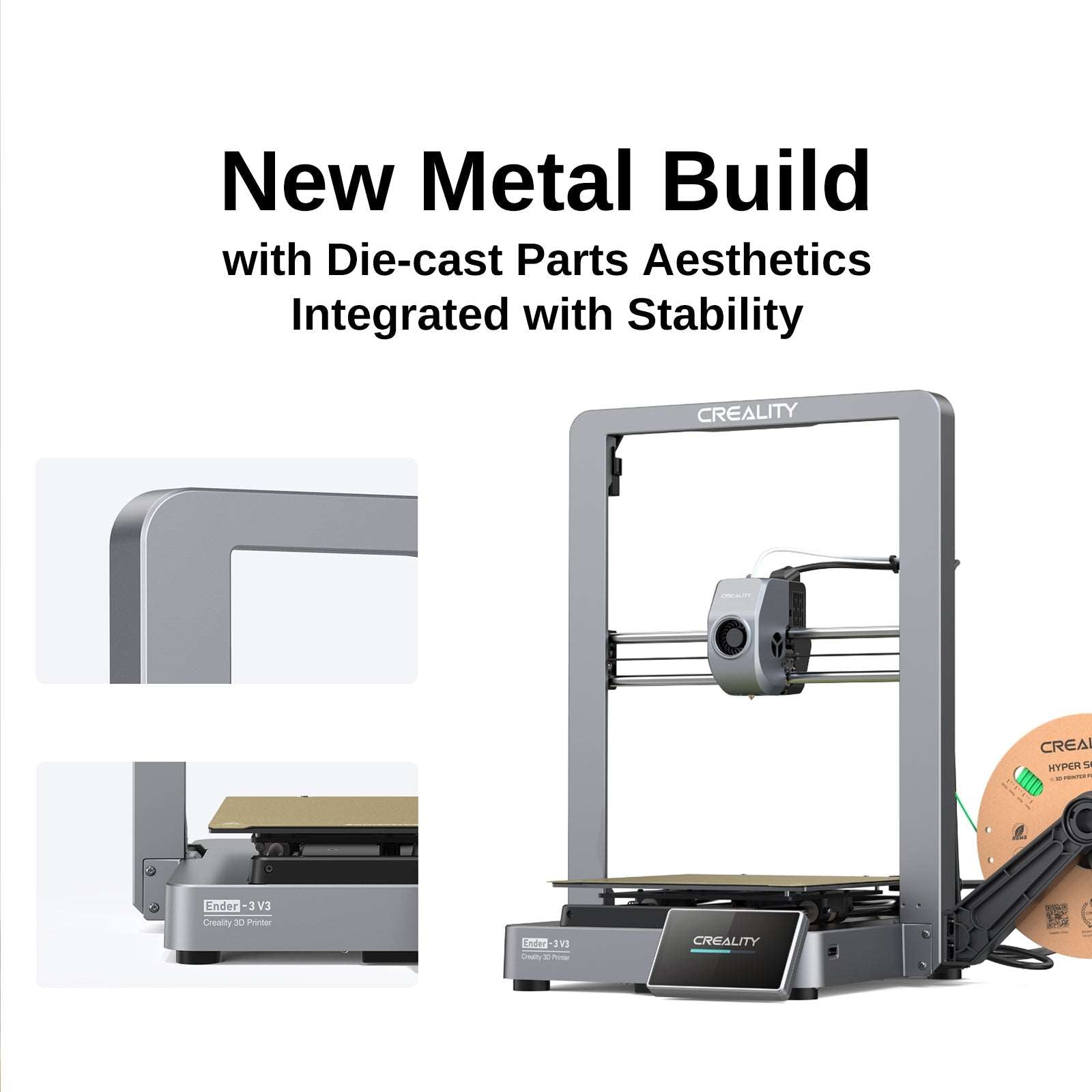

Integrated metal Design, Built to Last
The gantry and base are each a single piece made by integrated die-casting of space-grade aluminum alloy (ADC12). With fewer bolts and seams, the printer is incredibly solid and stable.

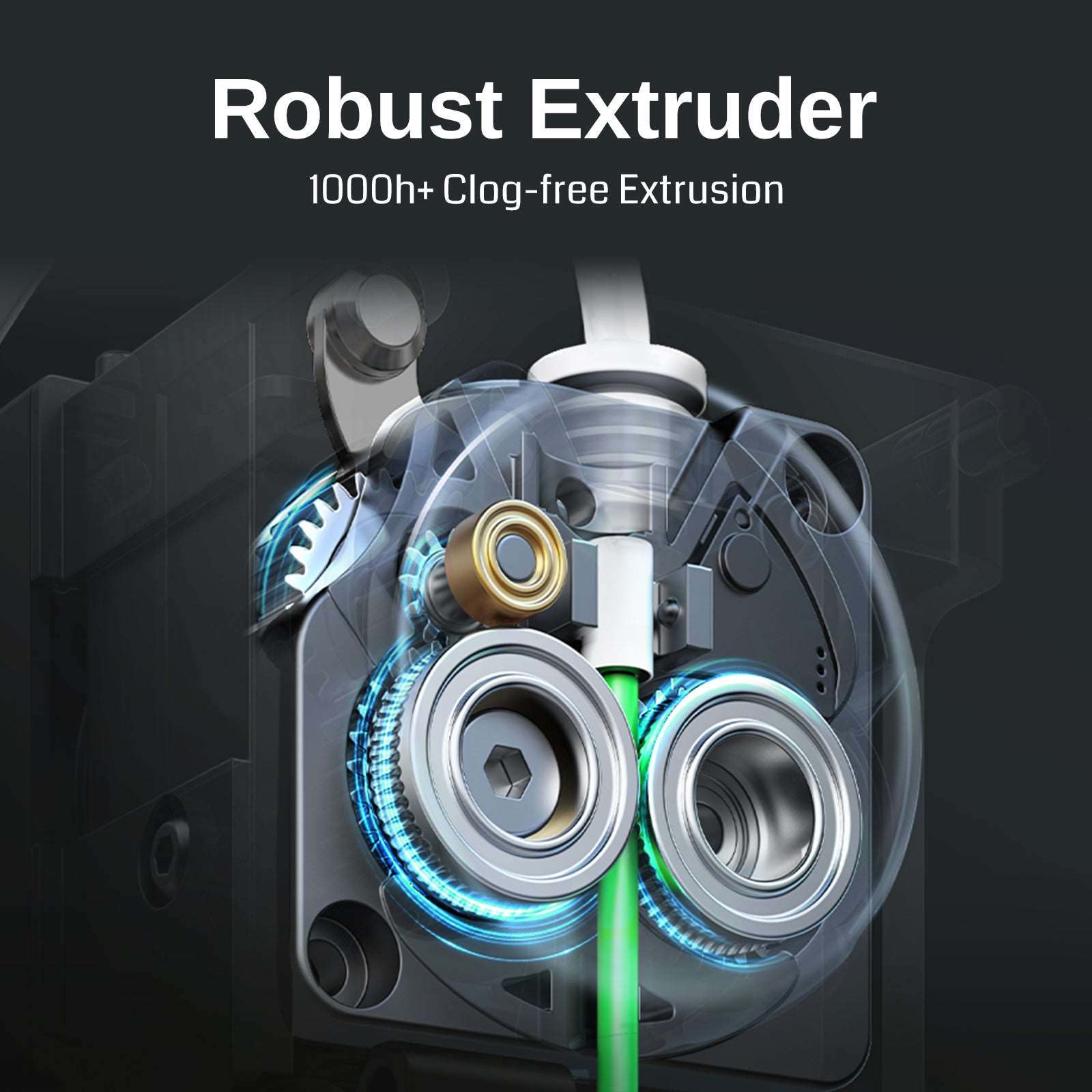

1000h+ Zero Clog
The direct extruder is fully upgraded. It can grip on filament tightly without slackening off. The steel-tipped copper nozzle is integrated with a titanium alloy heatbreak to block heatcreep and enable quick swap.

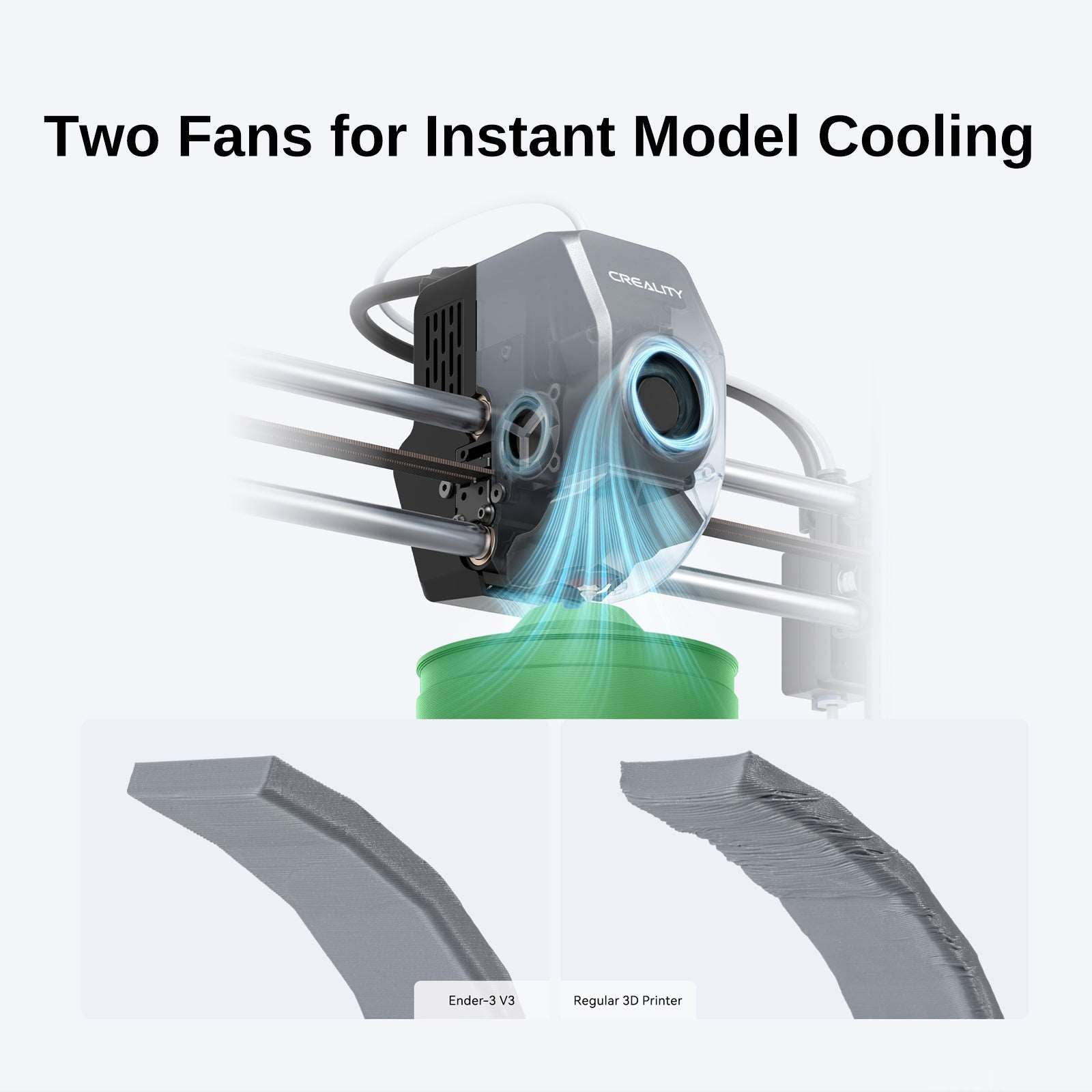

Two Fans for Rapid Part Cooling
Cooling fans on the printhead, front and back, their strong and even wind keeps your prints in good shape. Gone is drooping, warping, or stringing. And, dynamic balancing is adopted for reduced vibrations.
Auto Calibration, No Paper Test
Give it a tap and walk away. The auto-calibration gets leveling, Z offset and input shaping vibration test ready for you. Bid farewell to the frustrating leveling test with paper.
Flexible PEI Build Plate
Ender-3 V3 features a PEI spring steel build plate. It has good adhesion and is compatible with multiple filaments. After printing, you can bend it slightly to pop your print right off.
Specifications
| Feature |
Ender-3 V3 |
Ender-3 V3 KE |
Ender-3 V3 SE |
| Price | $389 | $279 | $199 |
| Build Volume (mm) | 220 x 220 x 250mm | 220 x 220 x 240mm | 220 x 220 x 250mm |
| Product Dimensions (mm) | 358 x 374 x 498mm | 433 x 366 x 490mm | 349 x 364 x 490mm |
| Package Dimensions (mm) | 541 x 418 x 245mm | 502 x 409 x 280mm | 575 x 390 x 235mm |
| Net Weight (kg) | 7.83kg | 7.8kg | 7.12kg |
| Gross Weight (kg) | 10kg | 9.9kg | 9.14kg |
| Extruder | New high-speed Direct Drive extruder | Direct Drive Extruder | Direct Drive Extruder |
| Supported Filaments | PLA, TPU, PETG, ABS, PLA-CF, PETG-CF, CR-carbon | PLA, PETG, ABS, TPU(95A), ASA | PLA/PETG/TPU(95A) |
| Build Surface | PEI flexible build plate | PC Spring Steel Sheet | PC Spring Steel Sheet |
| Display Screen | 4.3" HD color touch screen | 4.3" Color Touch Screen | 3.2" Color Knob Screen |
| Power Loss Recovery | Yes | Yes | Yes |
| Filament Runout Sensor | Yes | Yes | No |
| Dual Z-axis | Yes | Yes | Yes |
| Auto Leveling | Yes | Yes | Yes |
| Data Bus Width | 32-bit | 32-bit | 32-bit |
| Silent Mainboard | Yes | Yes | Yes |
| File Transfer | USB drive / WLAN / Creality Cloud | Memory Card/WLAN | Memory Card |
| Max. Heatbed Temperature | ≤110°C | ≤100°C | ≤100°C |
| Max. Nozzle Temperature | ≤300°C | ≤300°C | ≤260°C |
| Rated Voltage | 100-120V~, 200-240V~, 50/60Hz | 100-120V~, 200-240V~, 50/60Hz | 100-120V~, 200-240V~, 50/60Hz |
| Rated Power | 350W | 350W | 350W |
| Max. Printing Speed | 600mm/s | 500mm/s | 250mm/s * |
| Acceleration | ≤20000mm/s² | ≤8000mm/s² | ≤2500mm/s² |
| Printing Technology | FDM | FDM | FDM |
| Nozzle Diameter | 0.4mm | 0.4mm | 0.4mm |
| Layer Height | 0.1-0.35mm | 0.1-0.35mm | 0.1-0.35mm |
| Printing Accuracy | ≤0.1mm | ≤0.1mm | ≤0.1mm |
| Filament Diameter | 1.75mm | 1.75mm | 1.75mm |
| File Formats | STL/OBJ/3MF | STL/OBJ/3MF/AMF | STL/OBJ/3MF/AMF |
