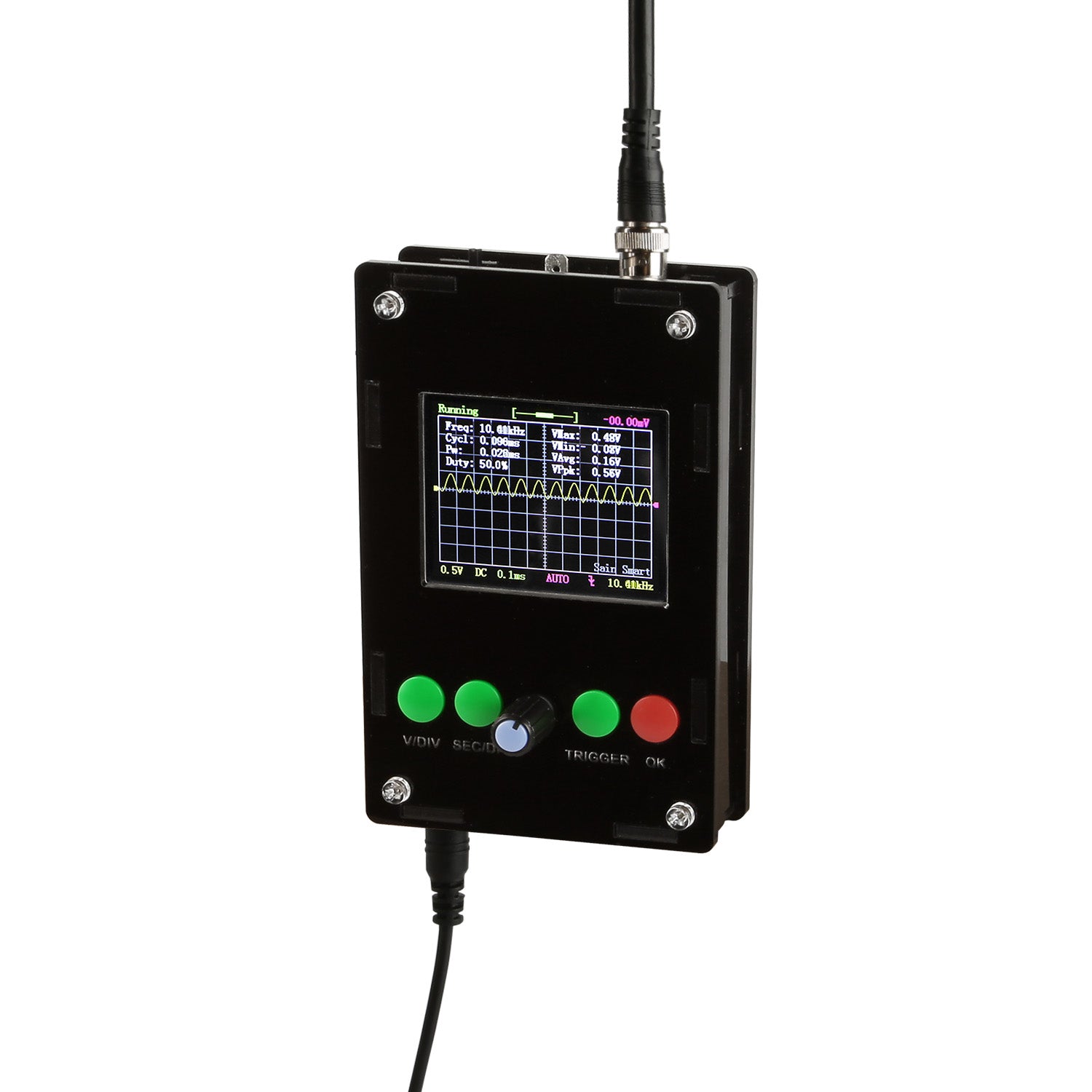

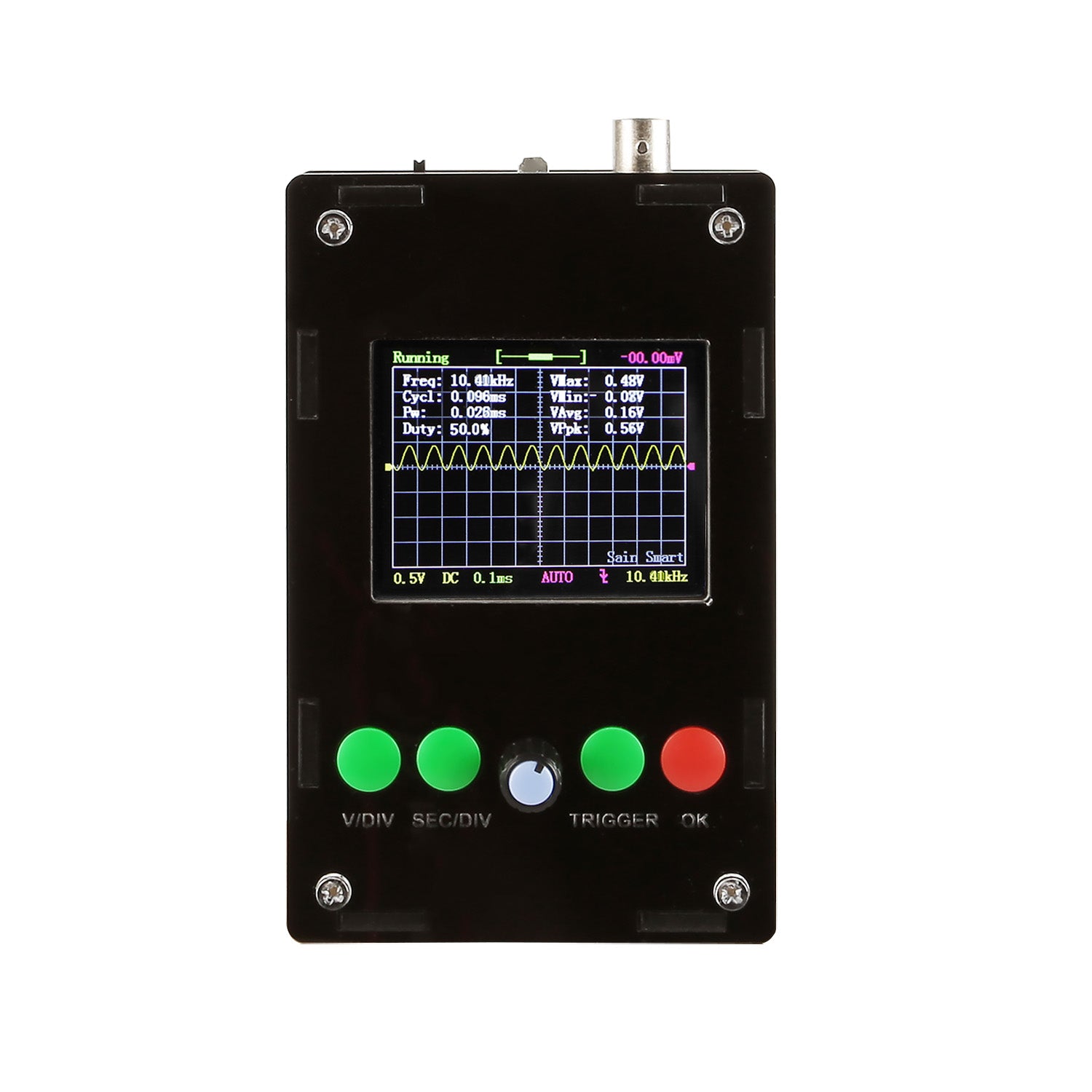

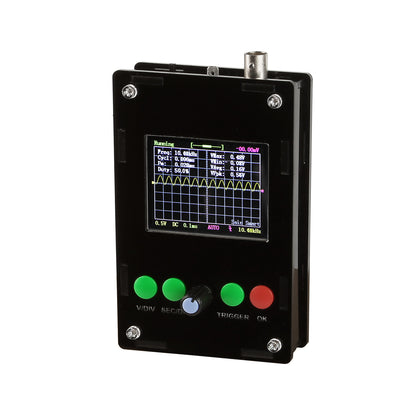

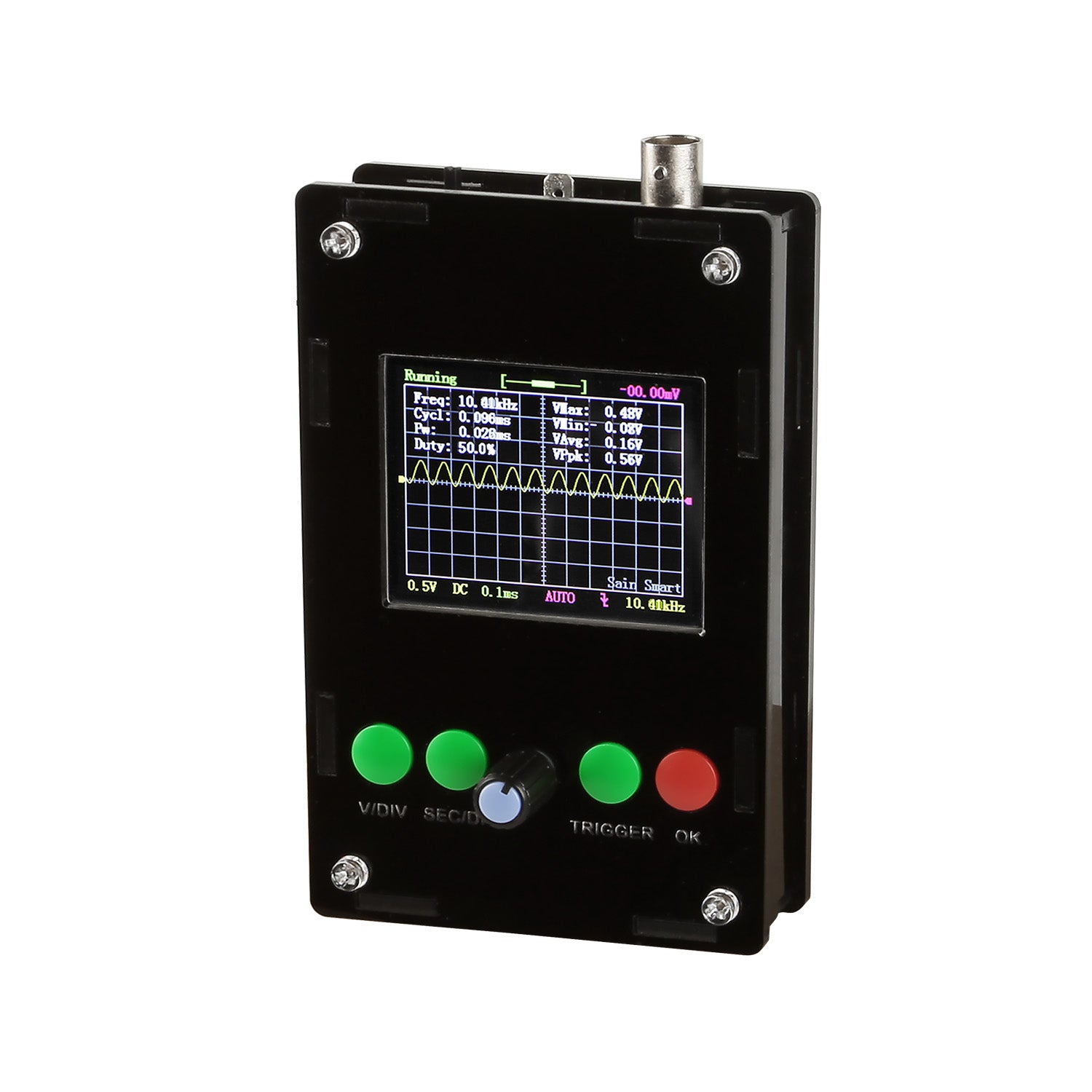

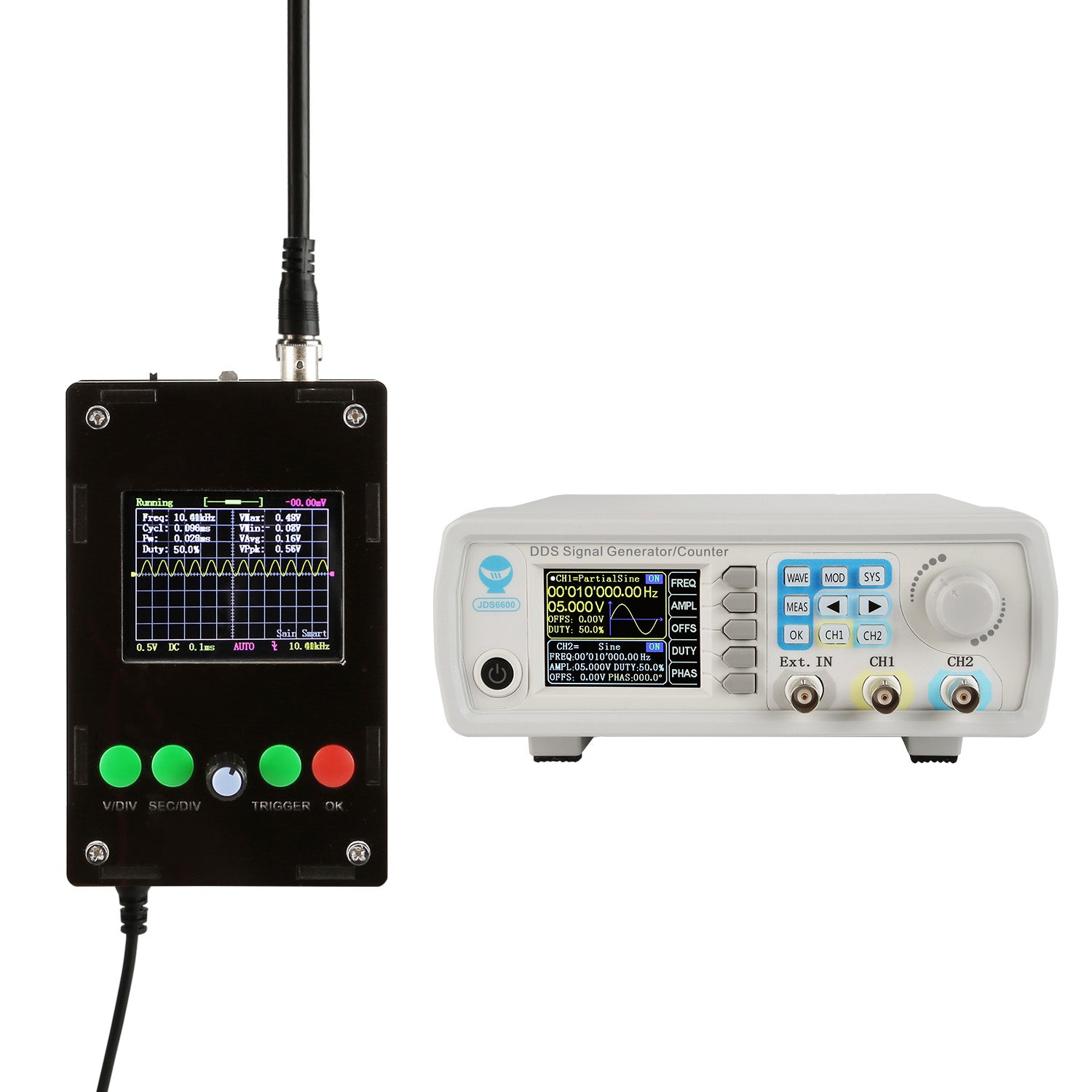

[Discontinued] DSO320 1-Channel Mini Oscilloscope DIY kit

[Discontinued] DSO320 1-Channel Mini Oscilloscope DIY kit

SKU:  101-10-186
1 review
$32.99
-Liquid error (snippets/price line 160): divided by 0 $32.99
Shipping calculated at checkout.
  • 101-10-186

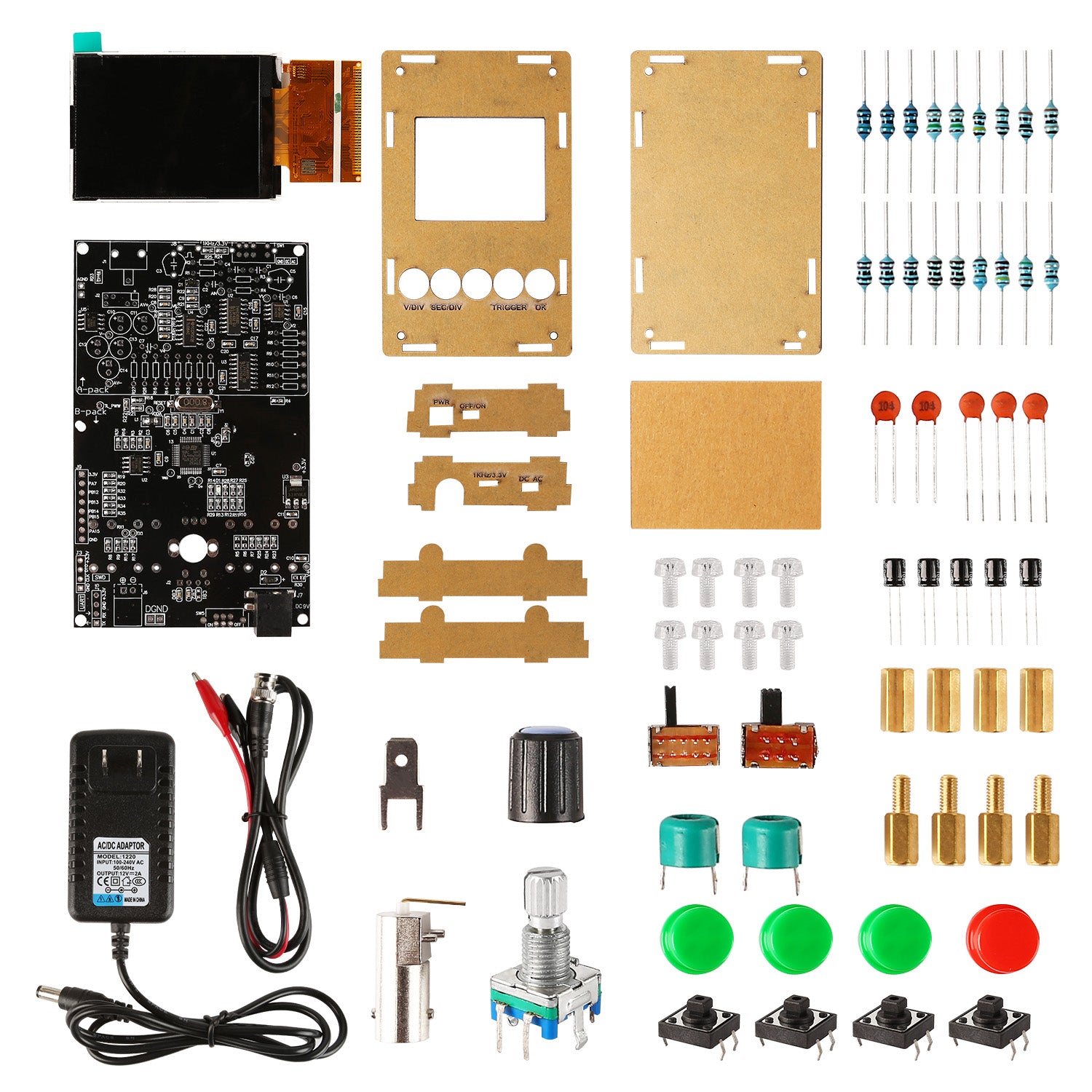

This mini oscilloscope is designed for electronic hobbyists to learn about electronics, soldering, programming and STM32. It contains main controller board, TFT LCD and other electronic components to DIY a functional mini digital oscilloscope.

Features:

  • Use STM32 Chip. It runs faster than DSO138 and a good handle of data.
  • Pre-programmed. The controller board is programmed and tested before leaving factory. It is high quality and safe to use.
  • Full of Fun. It is a DIY kit and fun to make your own oscilloscope. Especially suitable for who are interested in soldering andSTM32.
  • With Cool Black Case. Unlike DSO138, SainSmart DSO320 is with a cool black case, which makes it convenient to use in teaching and testing.
View full details



Notice: This oscilloscope requires DC 9V 200mA power supply (no more than 10V, or it may be burned)

SPECIFICATION
  • Model: DSO320
  • Input impedance: 1MΩ
  • Analog Bandwidth: 0 â€?200 KHz
  • Maximum input voltage: 50Vpp (1: 1 probe), 400Vpp (10: 1 probe)
  • Maximum real-time sampling rate: 1Msps
  • Comes 1Hz /3.3V square wave test signal source
  • Accuracy: 12Bit
  • Sampling buffer depth: 1024 bytes
  • Vertical Sensitivity: 5mV/Div â€?20V/Div
  • Adjustable vertical displacement, and with instructions

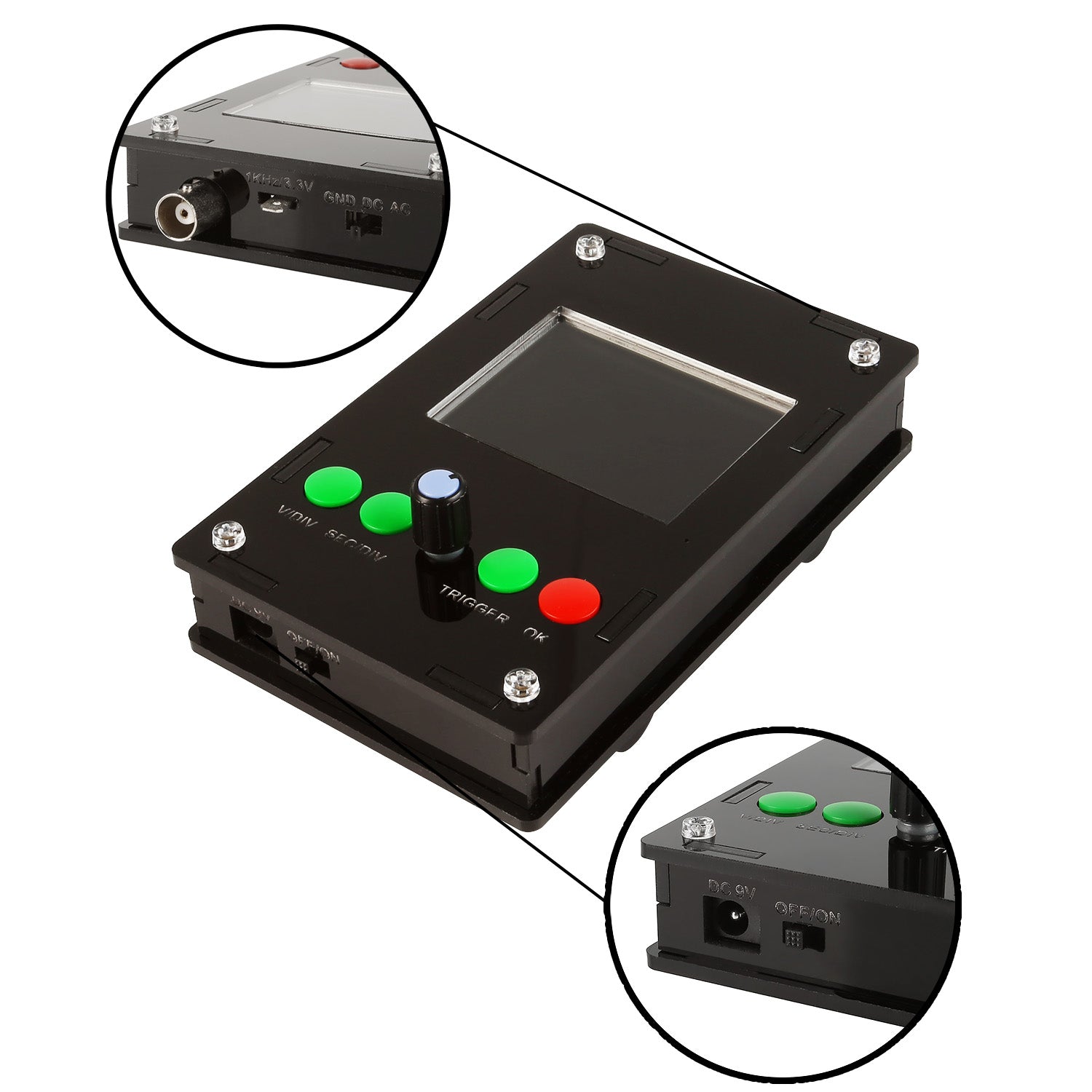

  • Coupling modes: DC / AC / GND
  • The horizontal time base range: 10μs / Div - 50s / Div (1-2-5 progressive manner)
  • With automatic, regular and one-shot mode, easy to capture the moment waveform
  • Available rising or falling edge trigger
  • Adjustable trigger level position, and with instructions
  • Observable previous trigger waveform (negative delay)
  • Can freeze at any time waveform display (HOLD function)

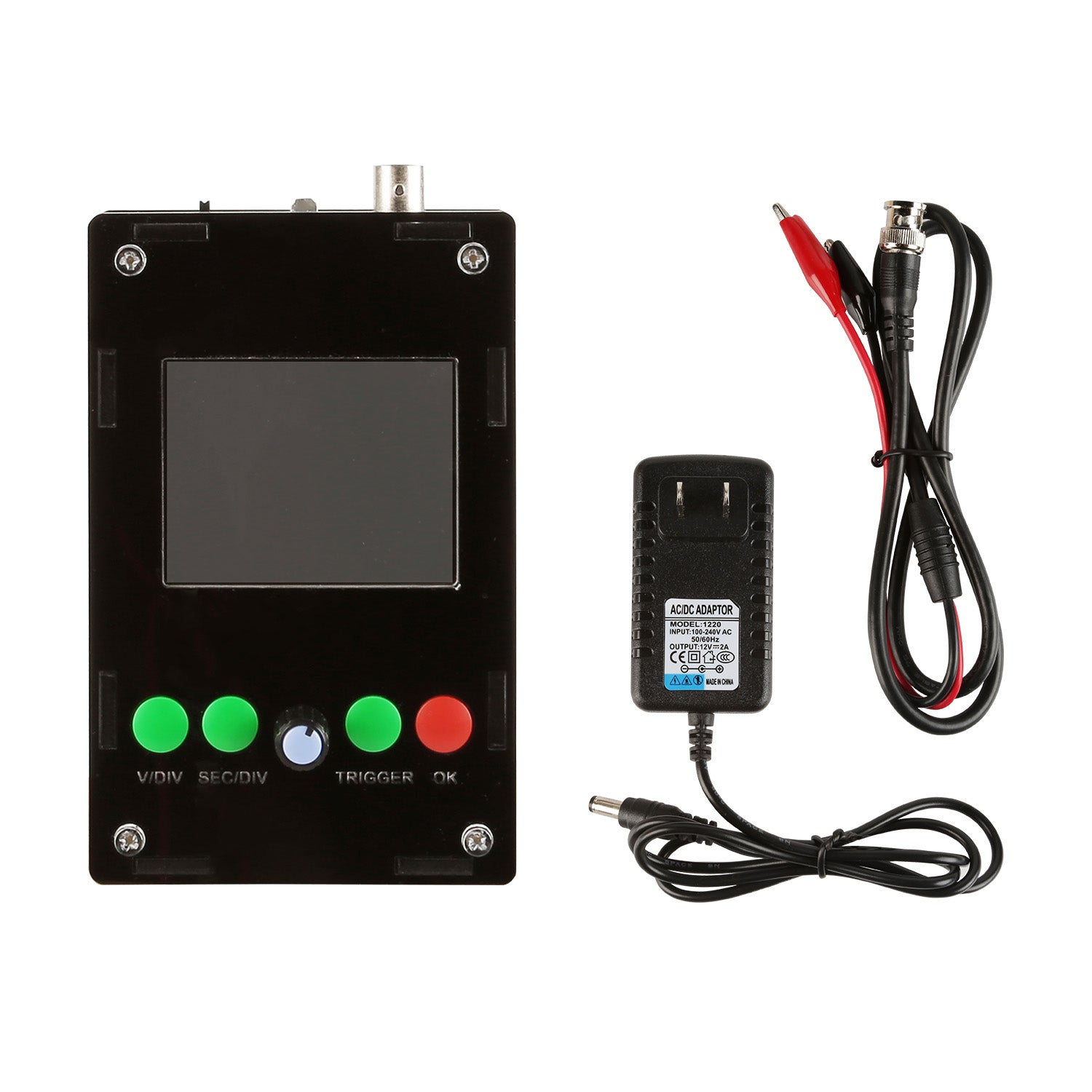

WHAT'S IN THE PACKAGE
  • 1x DSO320 Oscilloscope DIY Kit

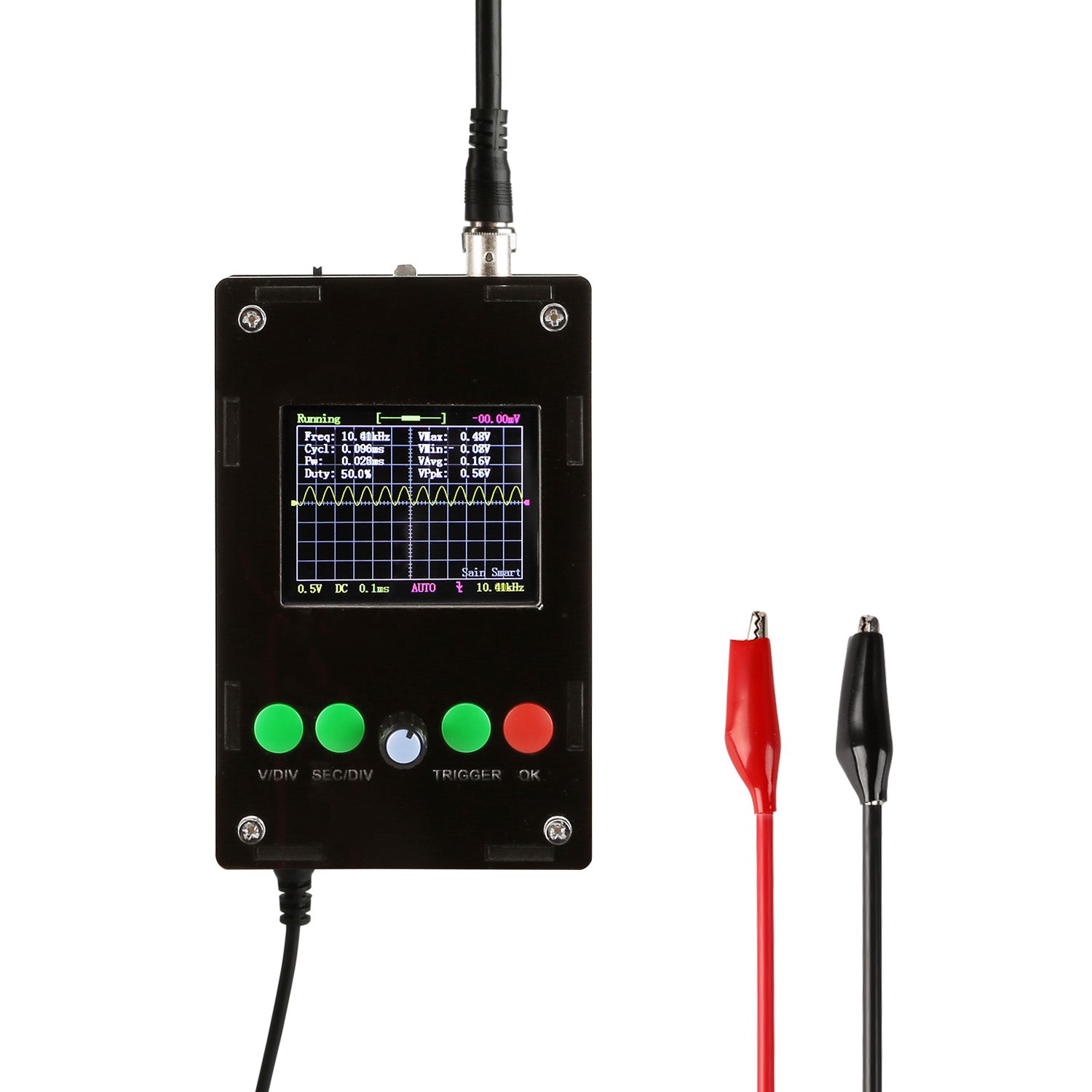

  • 1x Probe
  • 1x Power Supply
