Brand: Genmitsu

PD30A, 1/8" Shank, PCB Drill Bits Set, 0.1mm-3.0mm, 30pcs

PD30A, 1/8" Shank, PCB Drill Bits Set, 0.1mm-3.0mm, 30pcs

SKU:  101-61S-PD30A
12 reviews
Regular price $13.99
-12% Regular price $15.99 Sale price $13.99
Save $2.00
Shipping calculated at checkout.
Ship to
  • 101-61S-PD30A
  • 101-61S-PD30A
  • 101-61S-PD30A
  • 101-61S-PD30A
  • 101-61S-PD30A
  • High Quality: The PCB drill bits set are made of high-quality tungsten carbide steel alloy, which is high wear resistance, high hardness, anti-impairment. Seismic design on the blade edge enables it to stay stable during engraving.

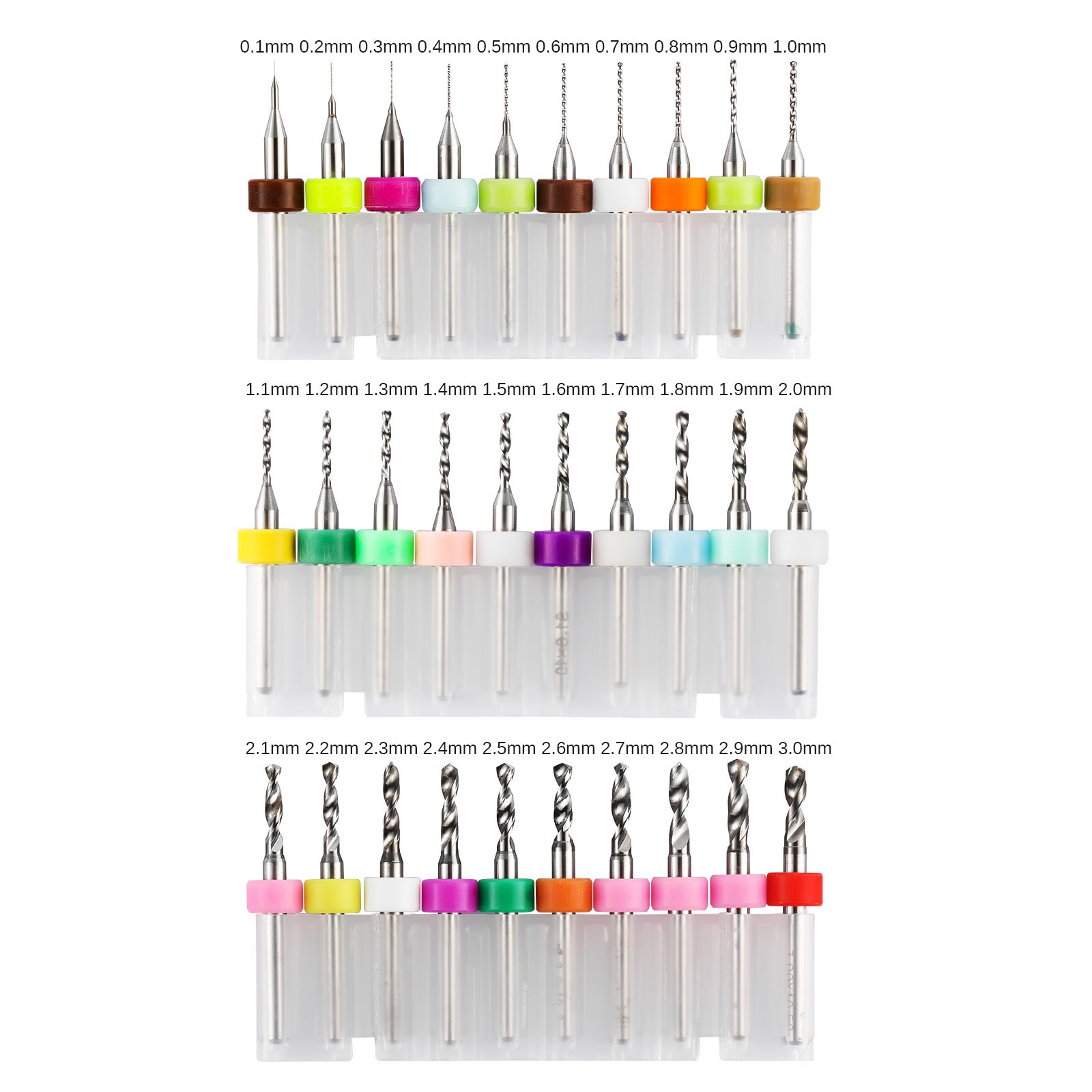

  • Various Sizes: 1/8'' shank; bits diameter: 0.1mm, 0.2mm, 0.3mm, 0.4mm, 0.5mm, 0.6mm, 0.7mm, 0.8mm, 0.9mm, 1.0mm, 1.1mm, 1.2mm, 1.3mm, 1.4mm, 1.5m, 1.6mm, 1.7mm, 1.8mm, 1.9mm, 2.0mm, 2.1mm, 2.2mm, 2.3mm, 2.4mm, 2.5mm, 2.6mm, 2.7mm, 2.8mm, 2.9mm, 3.0mm. This Set contains 30 different size drill bits diameter, each size having 1 pcs.
  • Advantage: With spiral flute cutting edge, these PCB drill bits can reduce cutting force and prevent the drill from broken and improve accuracy. They work quickly and cleanly, with no glitches or scrap left.
  • Application: Suitable for amber beeswax, printed circuit boards, 3D printer nozzle cleaning, plexiglass, bakelite, CNC engraving, jewelry, plastic, and other precise drilling.
  • 30-piece Combo Set: There are 3 sets of drill bits (Set A: 0.1mm-1.0mm; Set B: 1.1mm-2.0mm; Set C: 2.1mm-3.0mm), each of 10 pieces, and each set has a protective box. It's easy to store and carry.
View full details

Genmitsu PD30A PCB Drill Bits Set

Genmitsu PD30A PCB Drill Bits Set

Cutting Diameter

  • 0.1/0.2/0.3/0.4/0.5/0.6/0.7/0.8/0.9/1.0/1.1/1.2/1.3/1.4/1.5/1.6/
    1.7/1.8/1.9/2.0/2.1/2.3/2.4/2.5/2.6/2.7/2.8/2.9/3.0mm, total 30pcs

Package List (Total 30 pieces, 10 pieces per set):

  • 1 set of PCB Drill Bits (0.1mm-1.0mm)
  • 1 set of PCB Drill Bits (1.1mm-2.0mm)
  • 1 set of PCB Drill Bits (2.1mm-3.0mm)

Specifications

  • Material: Tungsten Carbide Steel Alloy
  • Shank Diameter: 1/8" (3.175mm)
  • Cutting Diameter: 0.1mm to 3.0mm
  • Overall Length: 1.5" (38mm)

Wide Application

Suitable for drilling precision parts such as PCB, MDF, ABS, PVC, wood, plastic, copper, amber, beeswax, and circuit boards.

High Precision

These tools feature sharp cutting edges, milling grooves, and clean surfaces, ensuring quick and clean drilling without glitches or scrap.

High Quality

Made from high-quality tungsten carbide steel alloy, these drill bits have a seismic design on the blade edge for stability during engraving.
