[Discontinued] SD06A, 1/8" Shank, 2 Flute, Spiral Down Cut, Milling Cutter Bit Set, 6-PCS

Genmitsu SD06A

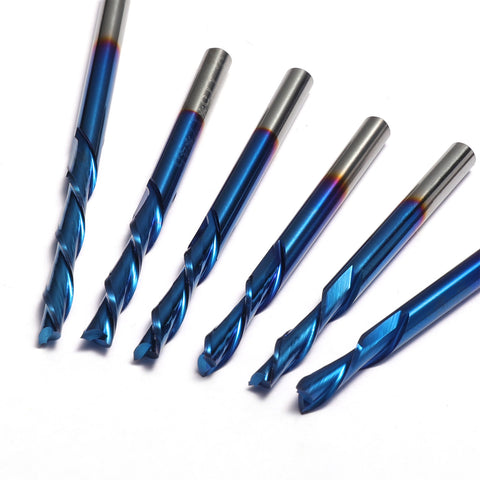

6pcs Nano Blue Coat End Mill CNC Router Bits

• Material: Tungsten Carbide Steel Alloy
• Surface: Nano Blue Coating
• Shank Diameter: 1/8'' (3.175mm)
• Cutting Diameter: 1/8” (3.175mm)
• Cutting Length: 8-22mm (8/10/12/15/17/22mm)
• Overall Length: 40-55mm (40/40/40/45/45/55mm)

• What project are you undertaking?
• What are you cutting? Is it hard or soft wood? Is it stainless steel, fiberglass, MDF, acrylic, or aluminum?

Down Cut Advantage

Downcutting bits press the chips and the material back into the cut, thus leaving a nice finish on the top surface of your material. Generally used for smoothly downcut groove and slots, mortises, cycles and dados, plunge cut leave with clean edge and top surface, better than straight bits.

Wide Application

Perfect for cutting thin, flexible materials including aluminum, wood, plastic, laminated materials, and thin & flexible sheets, etc. The SD06A down-cut spiral bits are compatible with most desktop CNC machines, such as the Genmitsu 3018 Series, as well as other industrial CNC machines.

High Quality

The end mills are made of ultra-fine 0.2μm Tungsten Carbide Steel Alloy that can keep continuous machining for 800 minutes. Moreover, its Nano Blue Coating with high hardness and heat resistance enables the tool's cutting edge to retain crucial sharpness and lubricity. This provides longevity and produces cutting results of the highest quality.

SPECIFICATIONS

Material: Tungsten Carbide Steel Alloy

Surface: Nano Blue Coating

Shank Diameter: 3.175mm

Cutting Diameter: 3.175mm

Cutting Length: 8-22mm (8/10/12/15/17/22mm)

Overall Length: 40-55mm (40/40/40/45/45/55mm)

What's in the package

1 x Genmitsu 2 Flute Down-Cut Spiral Bits (Cutting Length: 8mm; Overall Length: 40mm)

1 x Genmitsu 2 Flute Down-Cut Spiral Bits (Cutting Length: 10mm; Overall Length: 40mm)

1 x Genmitsu 2 Flute Down-Cut Spiral Bits (Cutting Length: 12mm; Overall Length: 40mm)

1 x Genmitsu 2 Flute Down-Cut Spiral Bits (Cutting Length: 15mm; Overall Length: 45mm)

1 x Genmitsu 2 Flute Down-Cut Spiral Bits (Cutting Length: 17mm; Overall Length: 45mm)

1 x Genmitsu 2 Flute Down-Cut Spiral Bits (Cutting Length: 22mm; Overall Length: 55mm)
