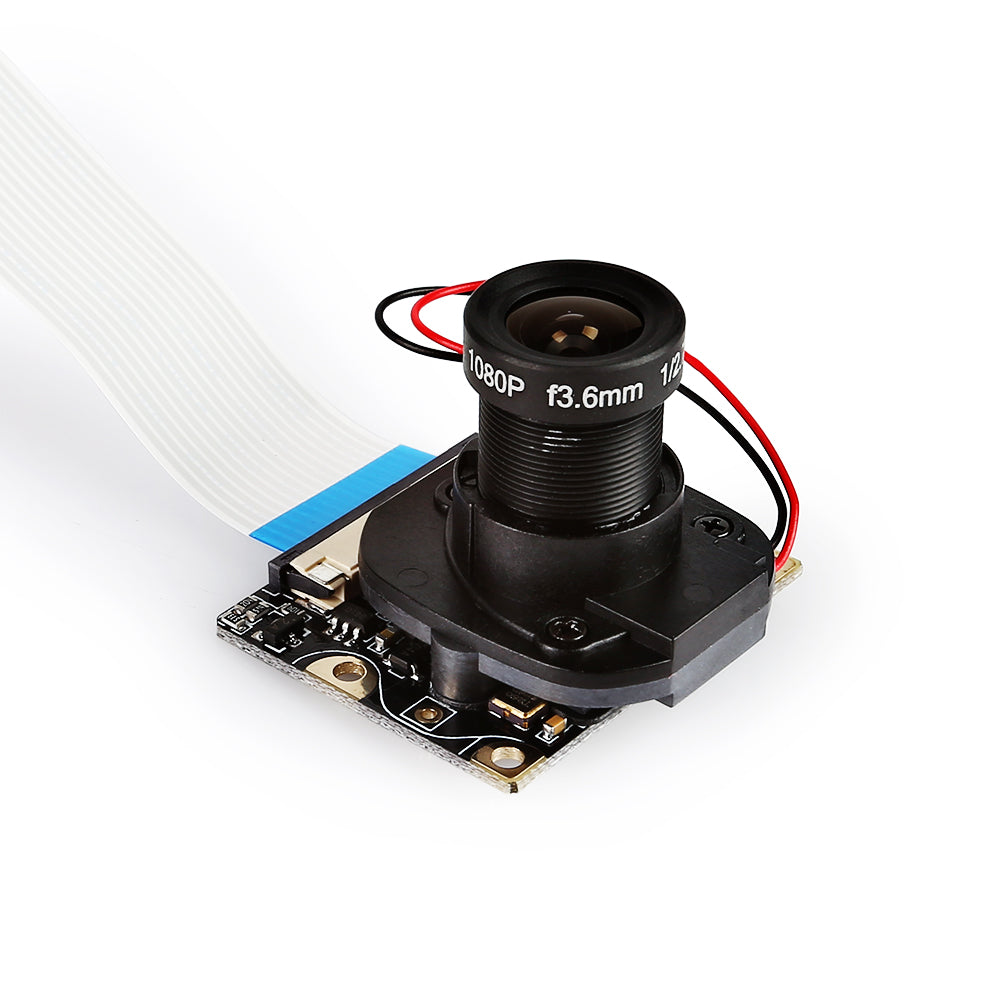

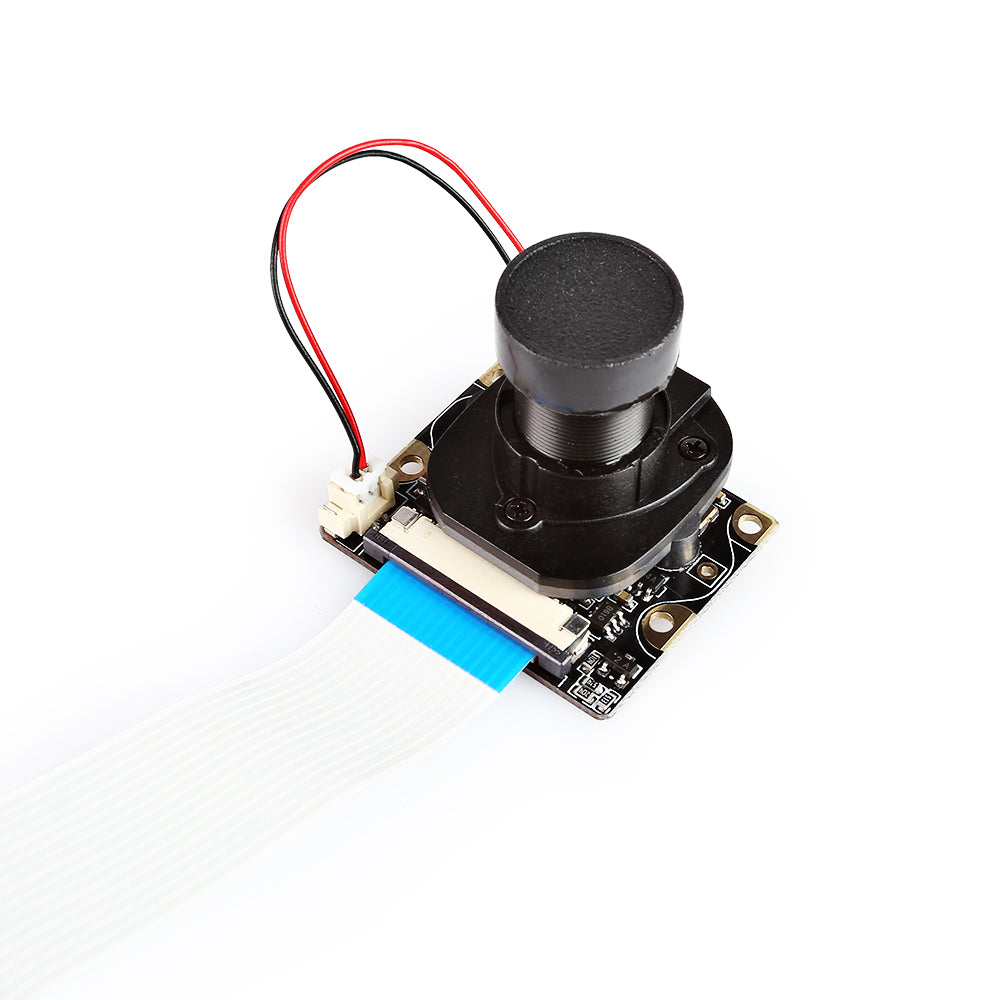

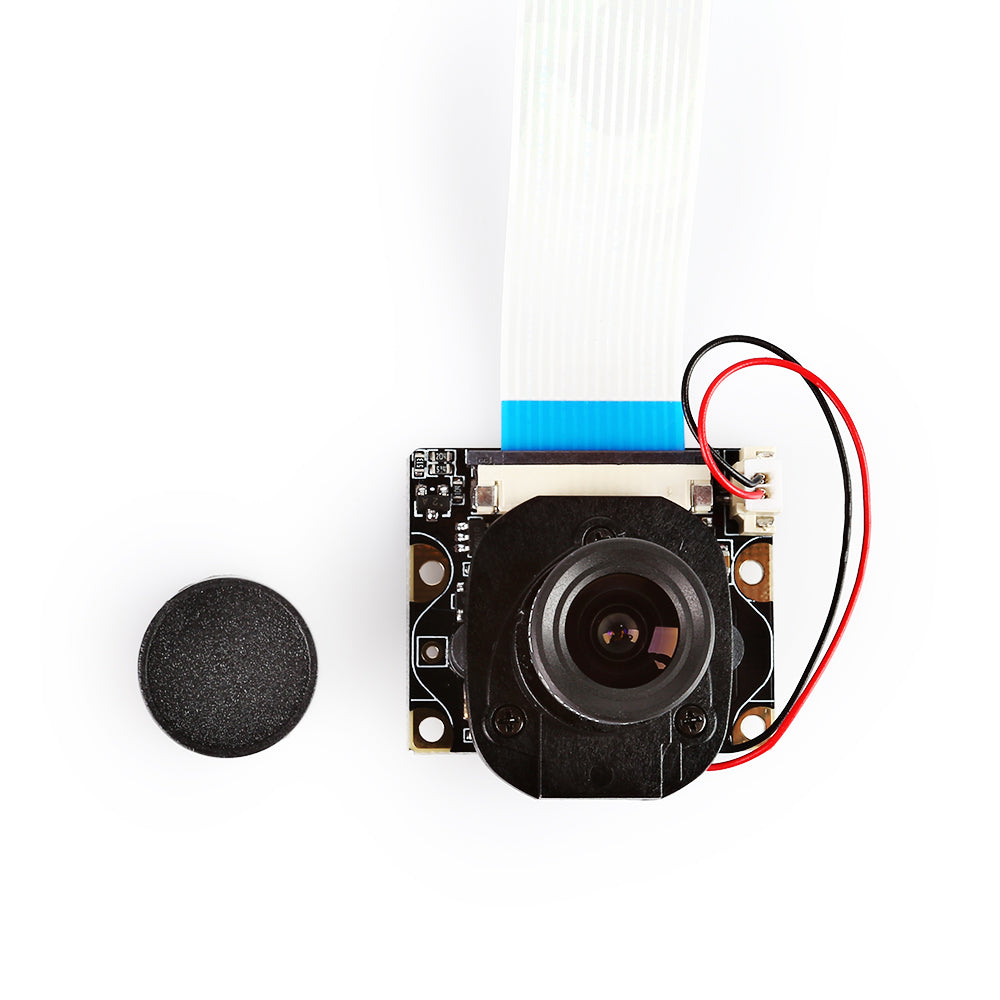

[Discontinued] IR-CUT 5-Megapixel Camera Module Supports Day and Night Vision

[Discontinued] IR-CUT 5-Megapixel Camera Module Supports Day and Night Vision

SKU:  101-40-204
$20.99
-Liquid error (snippets/price line 160): divided by 0 $20.99
Shipping calculated at checkout.
  • 101-40-204

This day and night camera delivers colour images during the day. As light diminishes below a certain level, it can automatically switch to night mode to make use of near infrared (IR) light to deliver high-quality, black and white images.

  • SainSmart Raspberry Pi Camera, supports all revisions of the Raspberry Pi.
  • Embedded removable IR-CUT filter, eliminating color distortion in the daylight.
  • Supports night vision.
  • 5 megapixel OV5647 sensor.
View full details
All SainSmart Cameras for Raspberry Pi:

Model

Support

Resolution

Sensor

Adjustable Focus

IR

Support Light

Field Angle  (Degree)

Size (mm)

73° Ordinary

Raspberry Pi/ Pi2 /Pi3 Model A/ B/ B+

5MP

OV5647

×

×

×

73

25x24

73° Night Vision

Raspberry Pi/ Pi2 /Pi3 Model A/ B/ B+

5MP

OV5647

×

√

√

73

25x24

76° Night Vision

Raspberry Pi/ Pi2 /Pi3 Model A/ B/ B+

5MP

OV5647

√

√

√

76

25x24

160° Ordinary

Raspberry Pi/ Pi2 /Pi3 Model A/ B/ B+

5MP

OV5647

√

×

 √

160

25x24

160° Night Vision

Raspberry Pi/ Pi2 /Pi3 Model A/ B/ B+

5MP

OV5647

√

√

√

160

25x24

175° Ordinary

Raspberry Pi/ Pi2 /Pi3 Model A/ B/ B+

5MP

OV5647

√

×

√

175

25x24

175° Night Vision

Raspberry Pi/ Pi2 /Pi3 Model A/ B/ B+

5MP

OV5647

√

√

√

175

25x24

76° IR-CUT Camera

Raspberry Pi/ Pi2 /Pi3 Model A/ B/ B+

5MP

OV5647

 √ √

√

76

31x32

73° Pi Zero Ordinary

Raspberry Pi Zero , Pi Zero w

5MP

OV5647

×

×

×

73

60x8

73° Pi Zero Night Vision

Raspberry Pi Zero , Pi Zero w

5MP

OV5647

×

√

×

73

60x8
Effect of IR-CUT Filter in Day/Night





IR-CUT filter

SPECIFICATION
  • CCD size : 1/4inch
  • Aperture (F) : 1.8
  • Focal Length : 3.6mm adjustable
  • Field of View : 75.7 degree
  • Sensor best resolution : 1080p
  • Dimension: 31mm x 32mm   1.18" x 1.22"

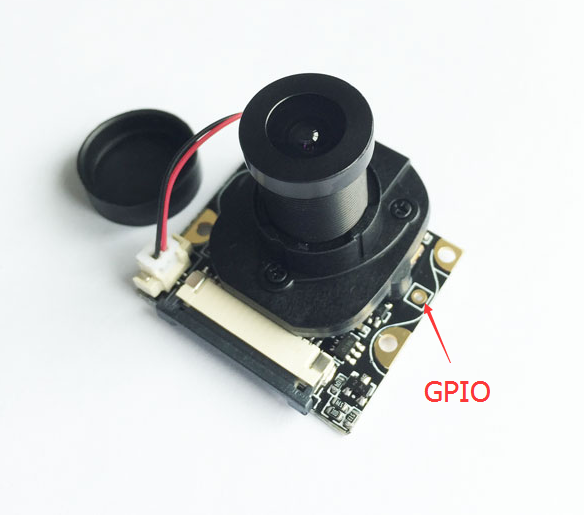

4 screw holes

  • Used for attachment
  • Provides 3.3V power output
  • Supports connecting infrared LED and/or fill flash LED


Note: to use the camera with Raspberry Zero v1.3, you need to buy a specific cable: Raspberry Pi Zero v1.3 Camera Cable



WHAT'S IN THE PACKAGE

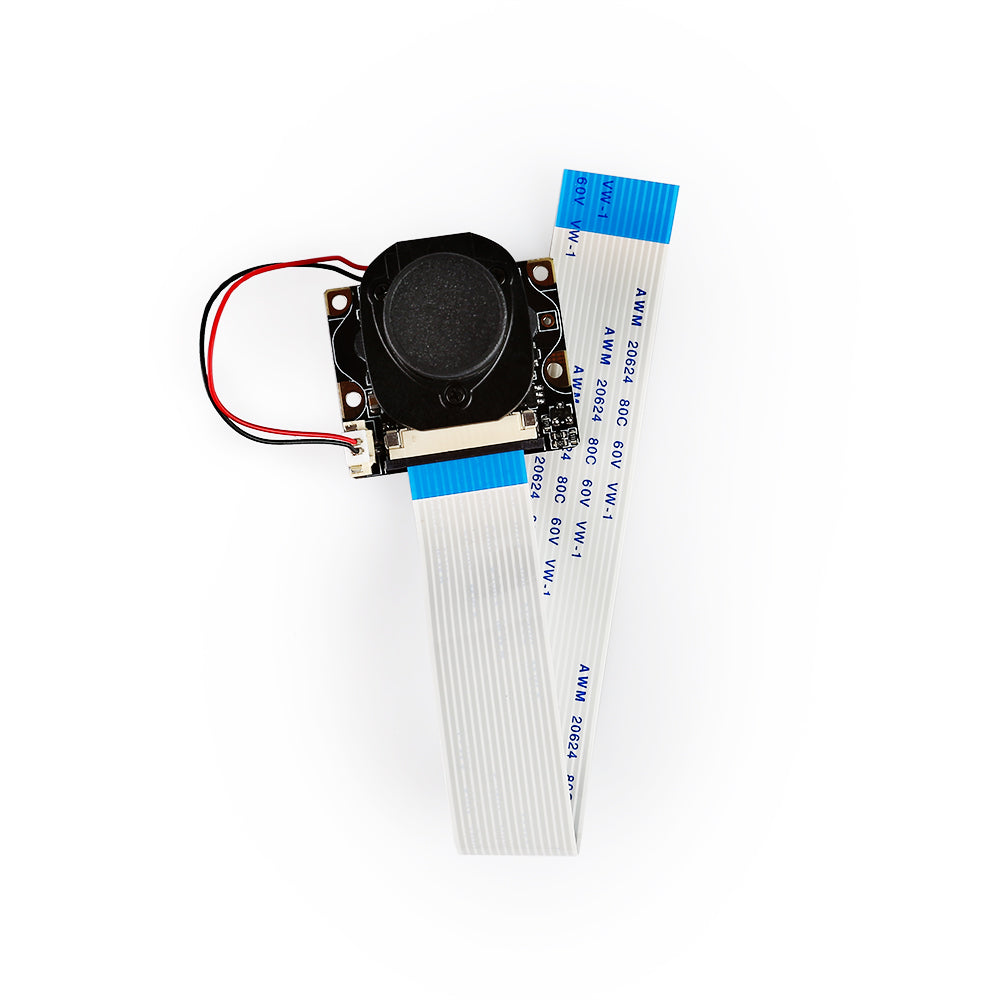

  • 1 x SainSmart IR-CUT Camera Module for Raspberry Pi (infrared LED not included)
  • 1 x 16-pin FFC (opposite sides contact)
