Brand: Micsig

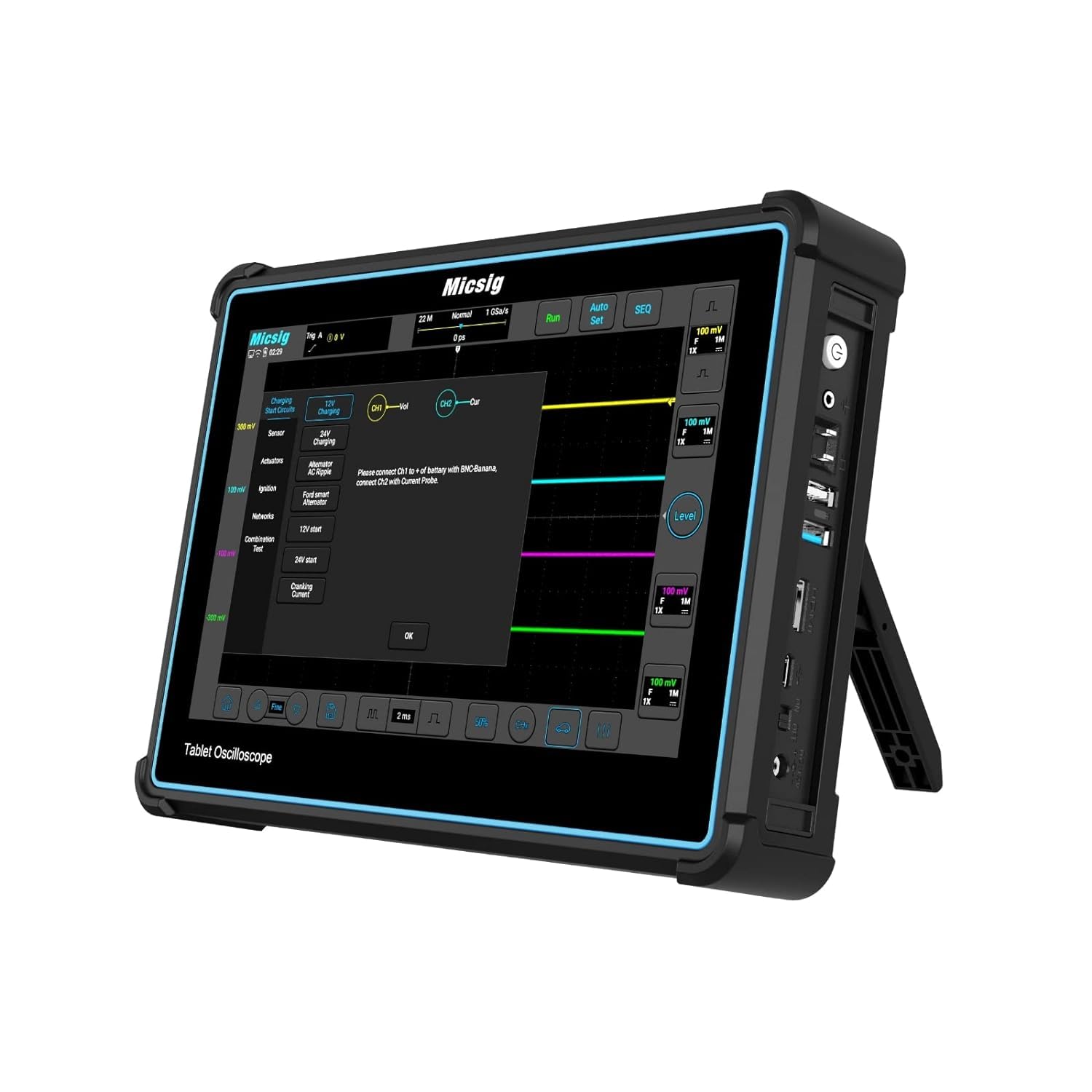

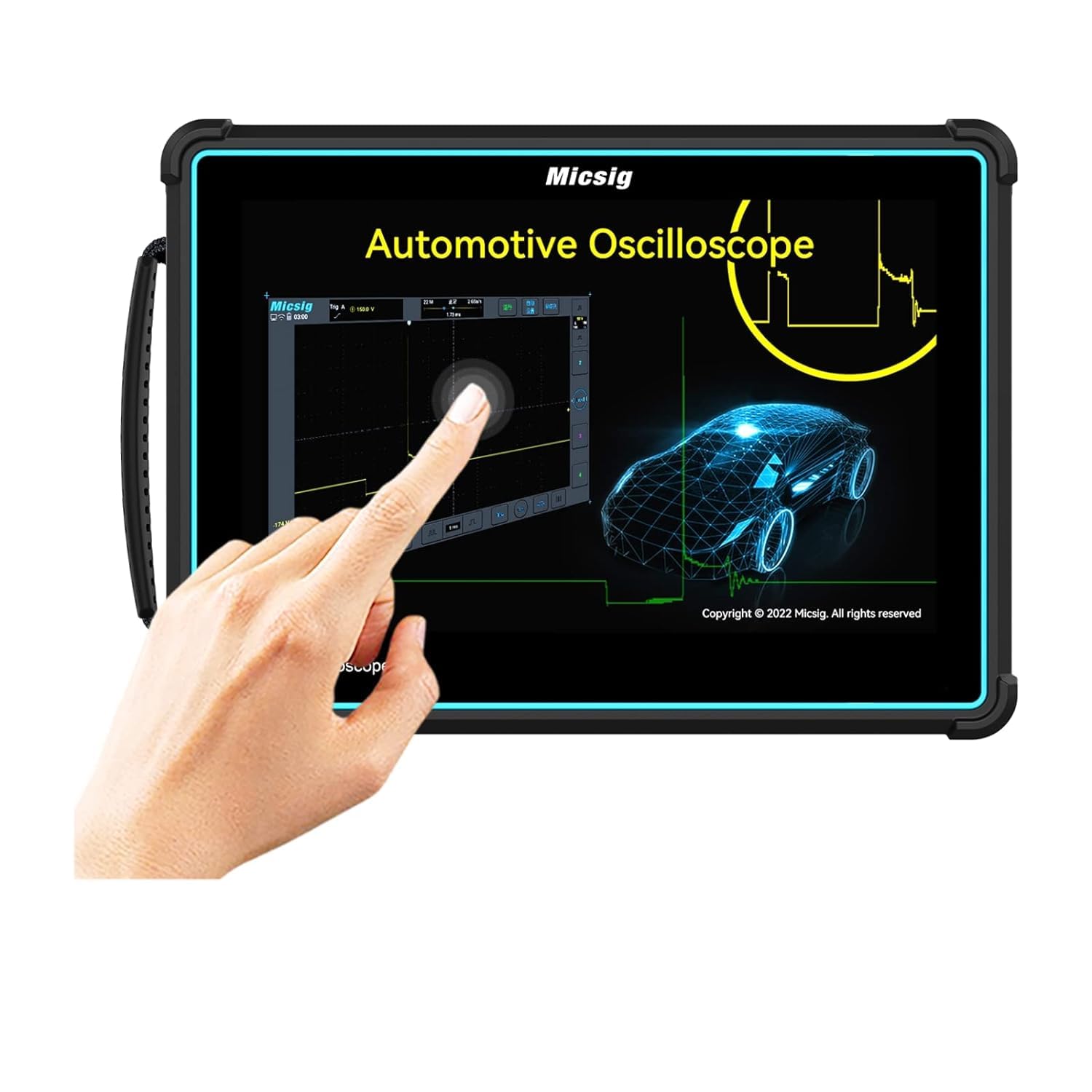

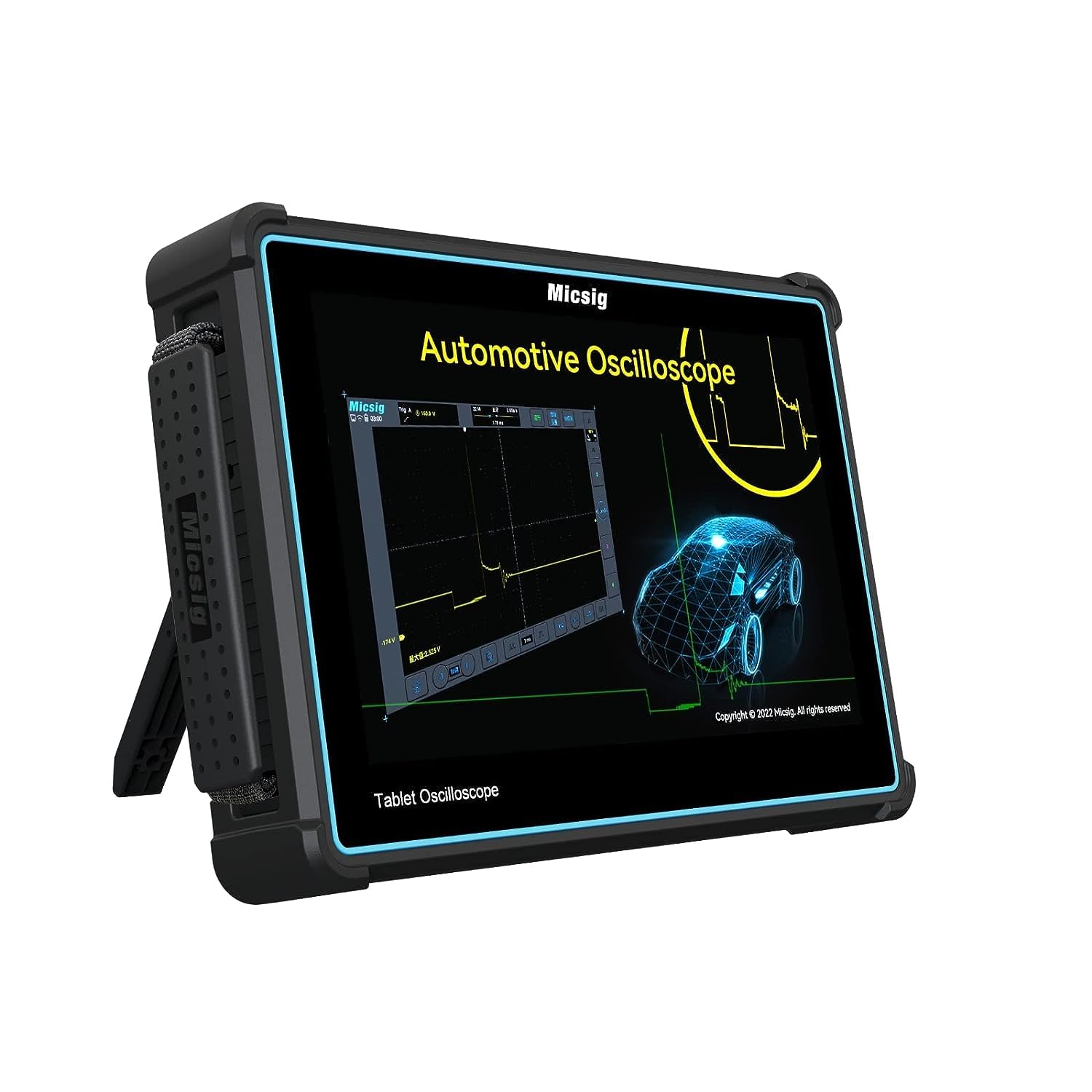

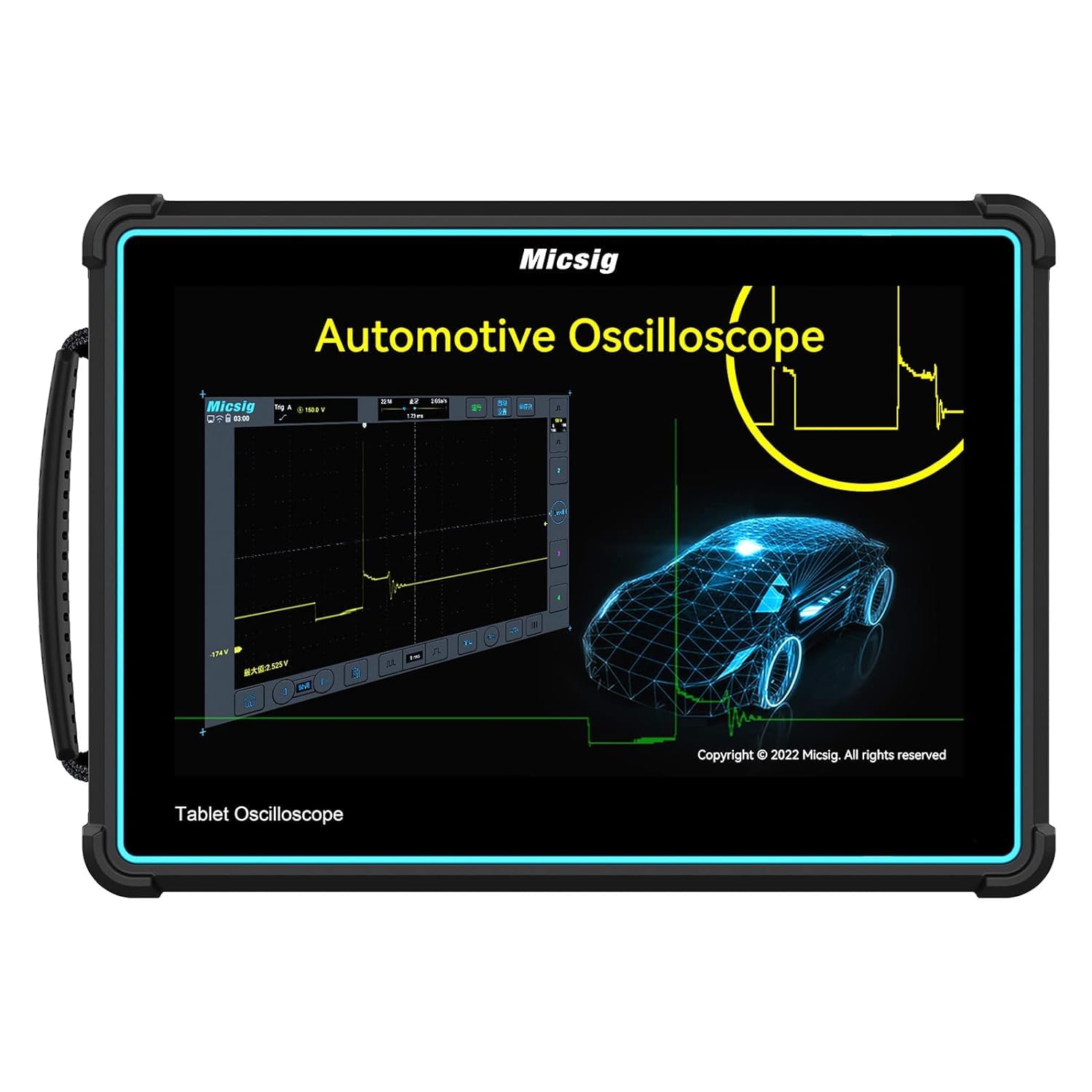

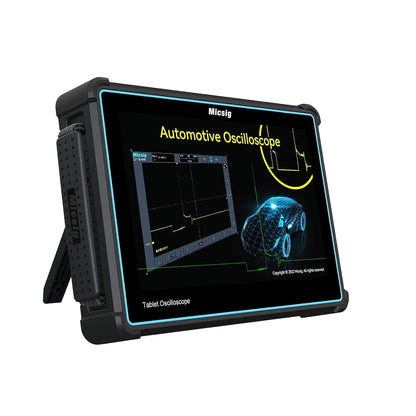

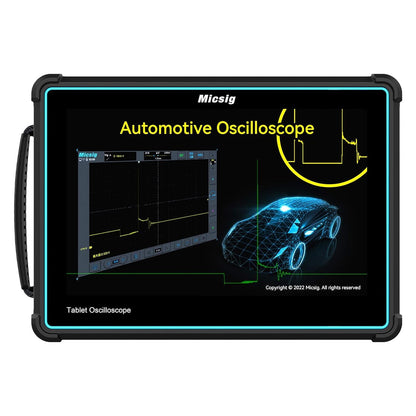

Micsig Automotive Tablet Oscilloscope ATO2002 2CH 200Mhz Bandwidth 1GSa/s Sampling Rate, 10" Touch Screen

Micsig Automotive Tablet Oscilloscope ATO2002 2CH 200Mhz Bandwidth 1GSa/s Sampling Rate, 10" Touch Screen

SKU:  101-10-ATO2002A
$749.00
-Liquid error (snippets/price line 160): divided by 0 $749.00
Free Shipping
Shipping calculated at checkout.
Ship to
  • 101-10-ATO2002A
  • High Performance: The ATO2002 features a 200MHz bandwidth, 2 analog channels, 1G Sa/s sampling rate for precise and fast signal analysis.
  • User-Friendly UI: This device combines durability, portable, a 7500mAh Li-ion battery for over 5h work time, and a 10.1-inch TFT-LCD touchscreen. It delivers a speedy Android experience with an upgraded UI design for seamless waveform control.
  • Convenient Storage: Easily store waveforms, pictures, and videos with ease, with a maximum 110Mpts storage depth.
  • Multiple I/O Ports: Includes Wi-Fi, Type-C, LAN, HDMI, USB Host/Device GND, and DC Power for easy connectivity to other devices.
  • Various Diagnostic Tests: The ATO2002A supports the various automotive diagnostic test: ignition, sensors, actuators, networks, charging circuits, starter circuits, and communication tests. (including CAN, LIN, FlexRay, K, etc.), and pressure test (cylinder pressure, intake, and exhaust pressure, fuel pressure, etc.)
View full details

Oscilloscope SATO2002



Charging / Start Circuit Tests

Support 12V & 24V charging/start, Charging Ripple, Cranking Current and other tests.



Various Sensor Tests

Supports testing of ABS, Accelerator Pedal, Throttle Position, Fuel Pressure, Air Flow meter, Crankshaft, Camshaft, Knock, MAP, etc.



Actuators

One-press to get signals, Fast and Easy.
Support various Actuator tests: multiple fuel injector voltages and currents, fan control signals, variable valve timing, carbon canister solenoid valves, EGR solenoid valves, etc.

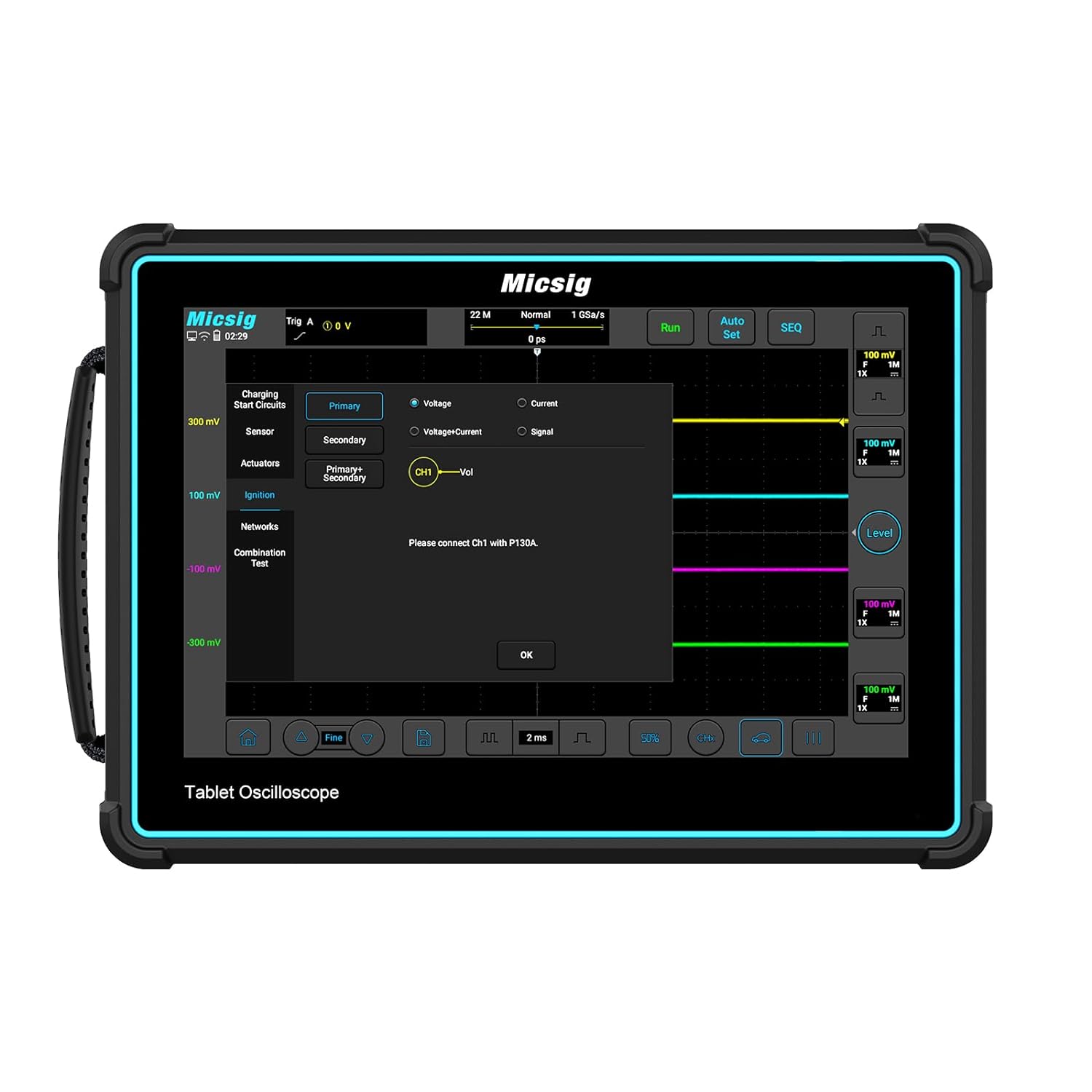

Ignition

Including Primary ignition, Secondary ignition, and combined Primary+Secondary ignition tests.



Combination Tests

Multiple channels of oscilloscope can be measured together to perform a variety of combined tests, such as the combined test of the Crankshaft and the Camshaft, or the combined test of the Primary Ignition and the Fuel Injector Voltage, etc.



Network

CAN (CAN High / CAN Low), CAN FD, LIN, FlexRay, and K line

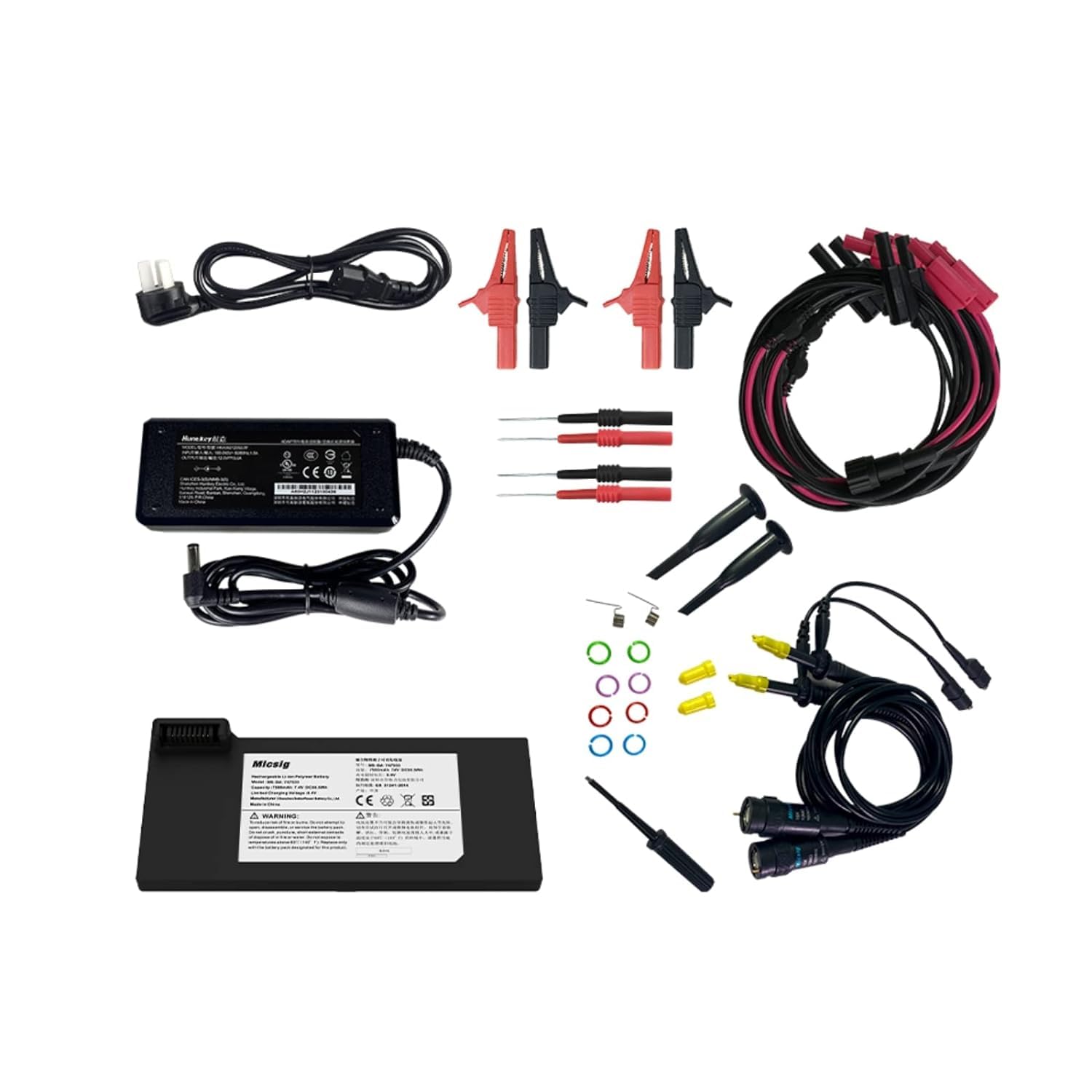

What Accessoires Inclued?

1) 2 pcs for 10X standard probes (incl. grounding nut, grounding crocodile clip, standard rubber plug)

2) 4 x BNC banana lines (4CH)

3) 4 x alligator clips (4CH)

4) 4 X Flexible needle (4CH)

5) Power adapter (12V DC, 4A)

6) Power cord

7) Smart calibration certificate

8) Smart packing list

ATO2002
