Brand: Micsig

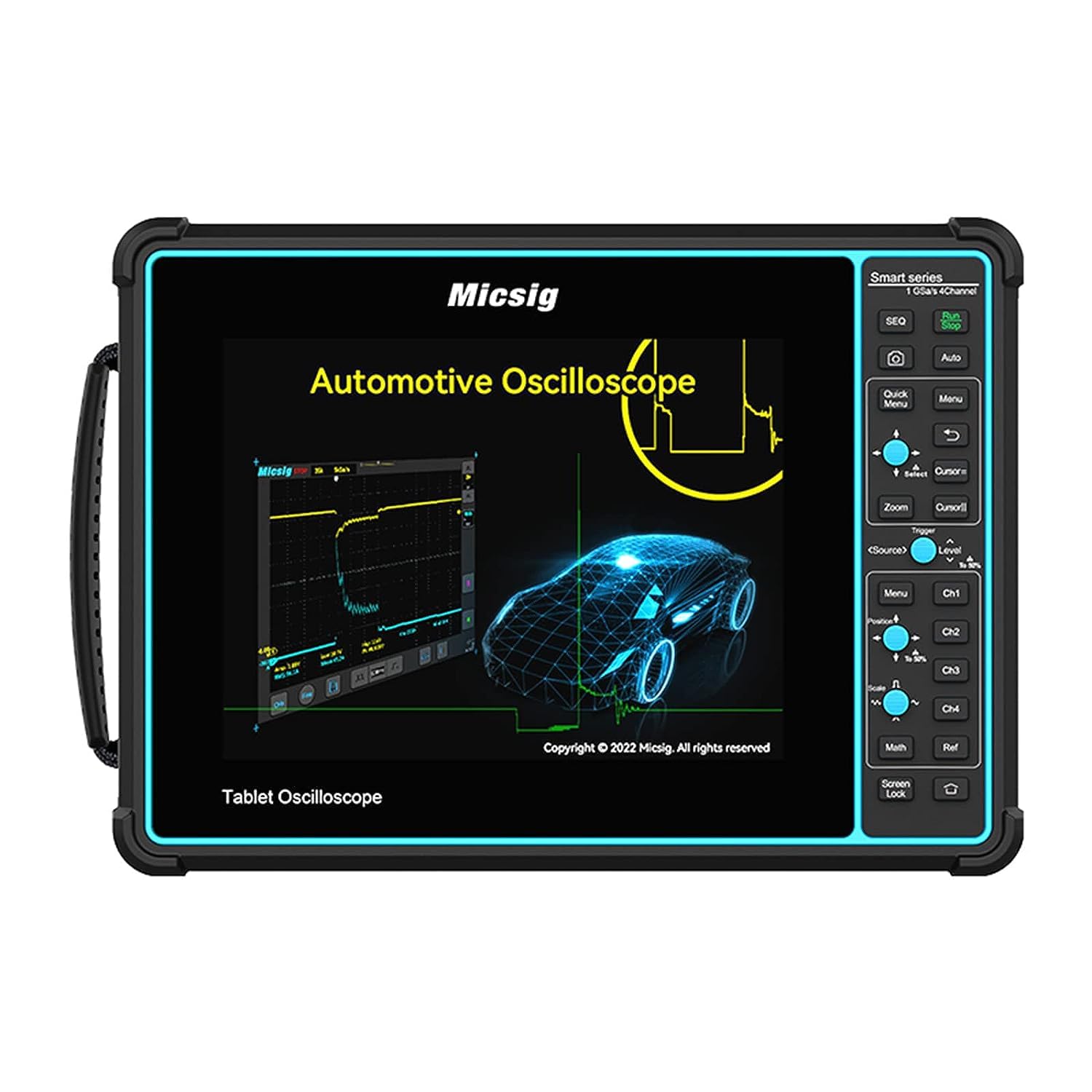

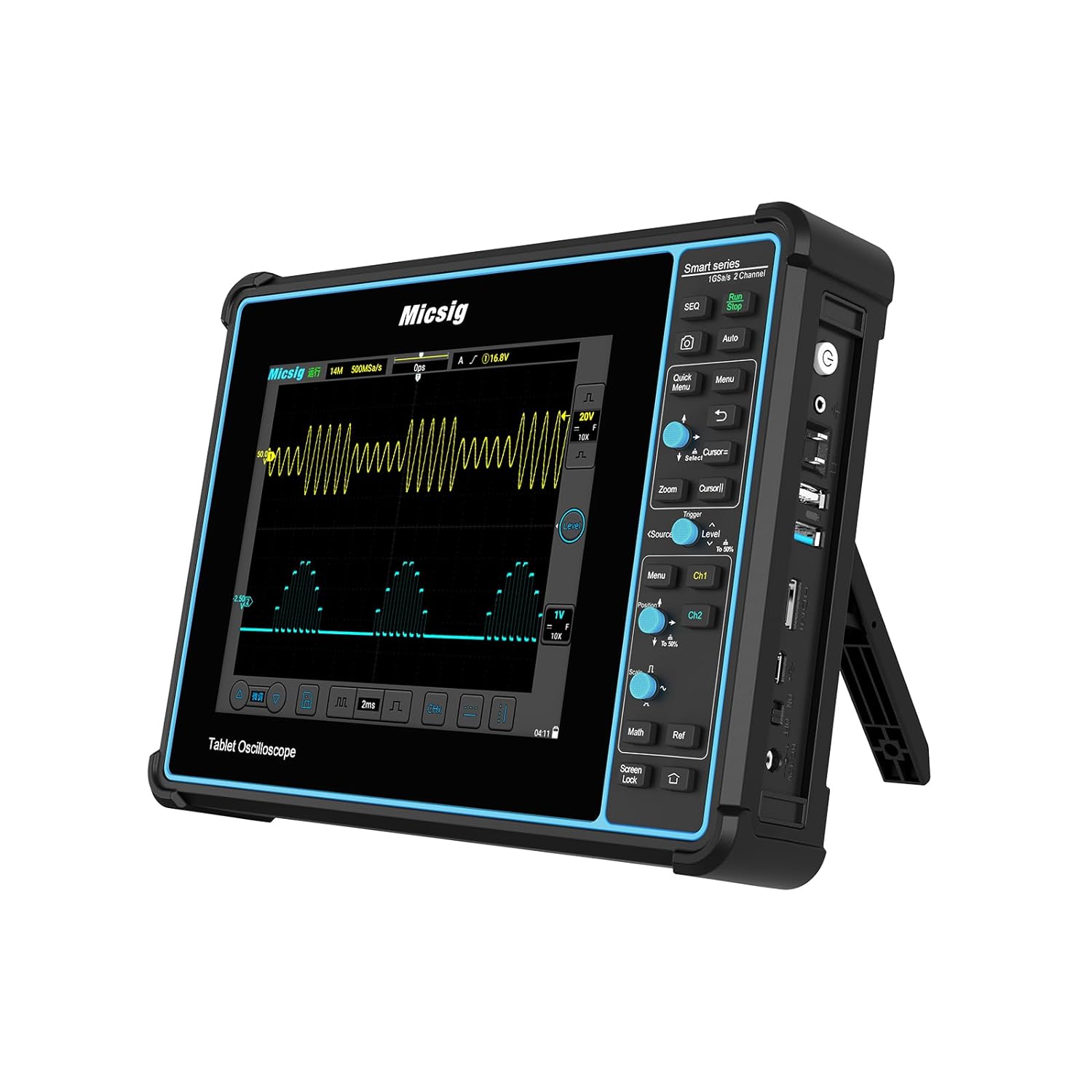

Micsig Automotive Oscilloscope SATO2002 2 CH 200Mhz Bandwidth 1GSa/s Sampling Rate, 8" Touch Screen

Micsig Automotive Oscilloscope SATO2002 2 CH 200Mhz Bandwidth 1GSa/s Sampling Rate, 8" Touch Screen

SKU:  101-10-SATO2002A
$769.00
-Liquid error (snippets/price line 160): divided by 0 $769.00
Free Shipping
Shipping calculated at checkout.
Ship to
  • 101-10-SATO2002A
  • High Performance: The SATO2002 features a 200MHz bandwidth, 2 analog channels, 1G Sa/s sampling rate for precise and fast signal analysis.
  • User-Friendly: Used Android operating system, added physical button control panel, optimized automotive diagnostic software, faster CPU, smoother screen touch experience, and maintenance efficiency is greatly improved.
  • Intelligent: Under the network environment, you can operate the oscilloscope remotely via connecting to the smartphone APP, which can help you observe the real-time waveform and data. If the Wi-Fi signal is stable, the waveform, and data transferring process make you work effectively.
  • Applications: The SATO1004 supports the various automotive diagnostic test: ignition, sensors, actuators, networks, charging circuit, starter circuit, communication test (including CAN, LIN, FlexRay, K, etc.), and pressure test (cylinder pressure, intake and exhaust pressure, fuel pressure, etc.)

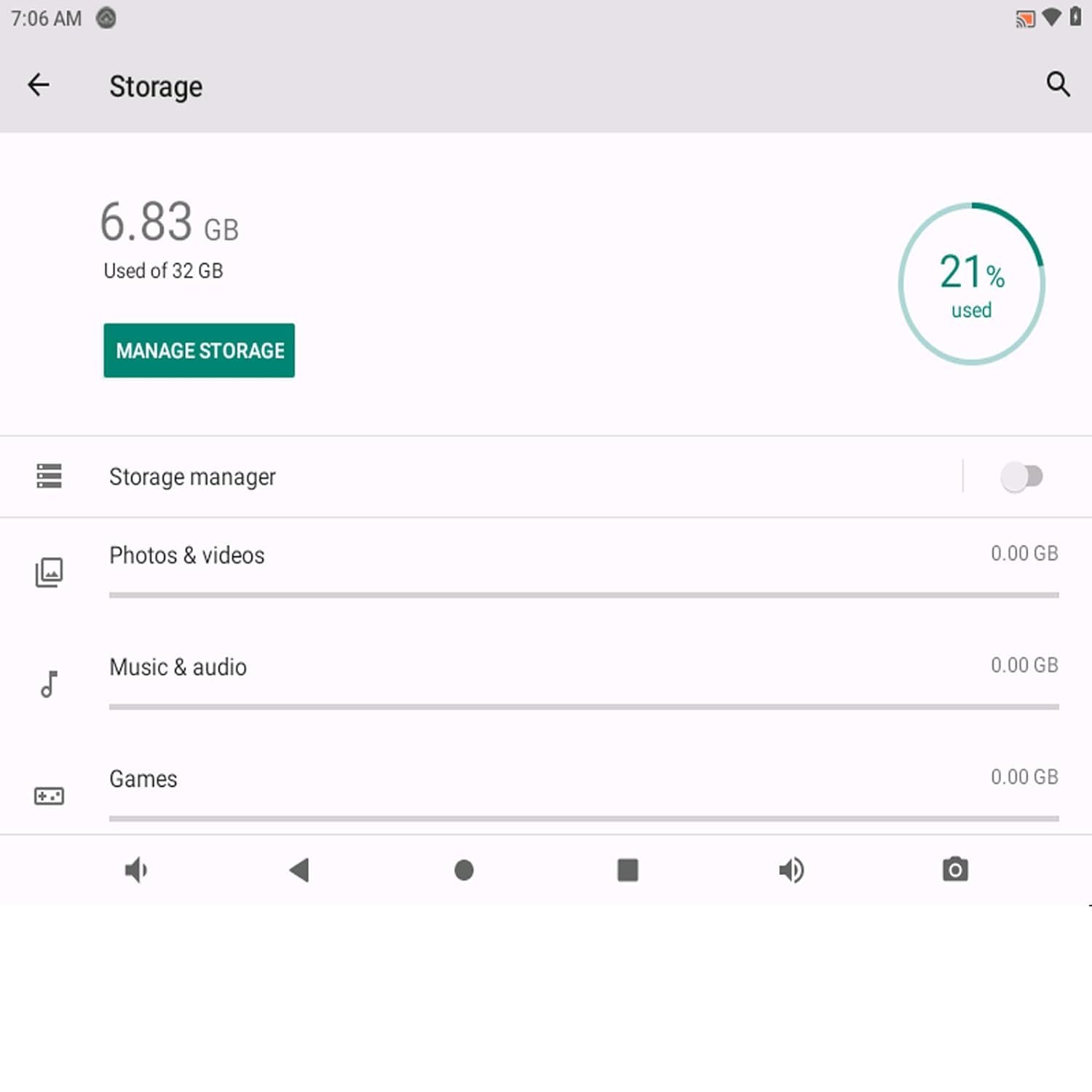

  • Storage & Port: Upgraded 32GB internal storage allows users to store and access bulk files such as waveforms, screenshots, and recorded video. I/O ports include Wi-Fi, Type-C, LAN, HDMI, USB Host, USB Device, GND, DC Power.
View full details

Oscilloscope SATO2002

Oscilloscope SATO2002

Various Actuator Tests

One-press to get signals, fast and easy.

Supports various actuator tests, including multiple fuel injector voltages and currents, fan control signals, variable valve timing, carbon canister solenoid valves, EGR solenoid valves, and more.

Combination Tests

Multiple channels of the oscilloscope can be measured together to perform a variety of combined tests, such as the combined test of the crankshaft and the camshaft, or the combined test of the primary ignition and the fuel injector voltage.

Ignition

Includes primary ignition, secondary ignition, and combined primary + secondary ignition tests.

Network

Supports CAN (CAN High / CAN Low), CAN FD, LIN, FlexRay, and K line protocols.

Charging / Start Circuit Tests

Supports 12V & 24V charging/start, charging ripple, cranking current, and other tests.

Various Sensor Tests

Supports testing of ABS, accelerator pedal, throttle position, fuel pressure, air flow meter, crankshaft, camshaft, knock, MAP, and more.

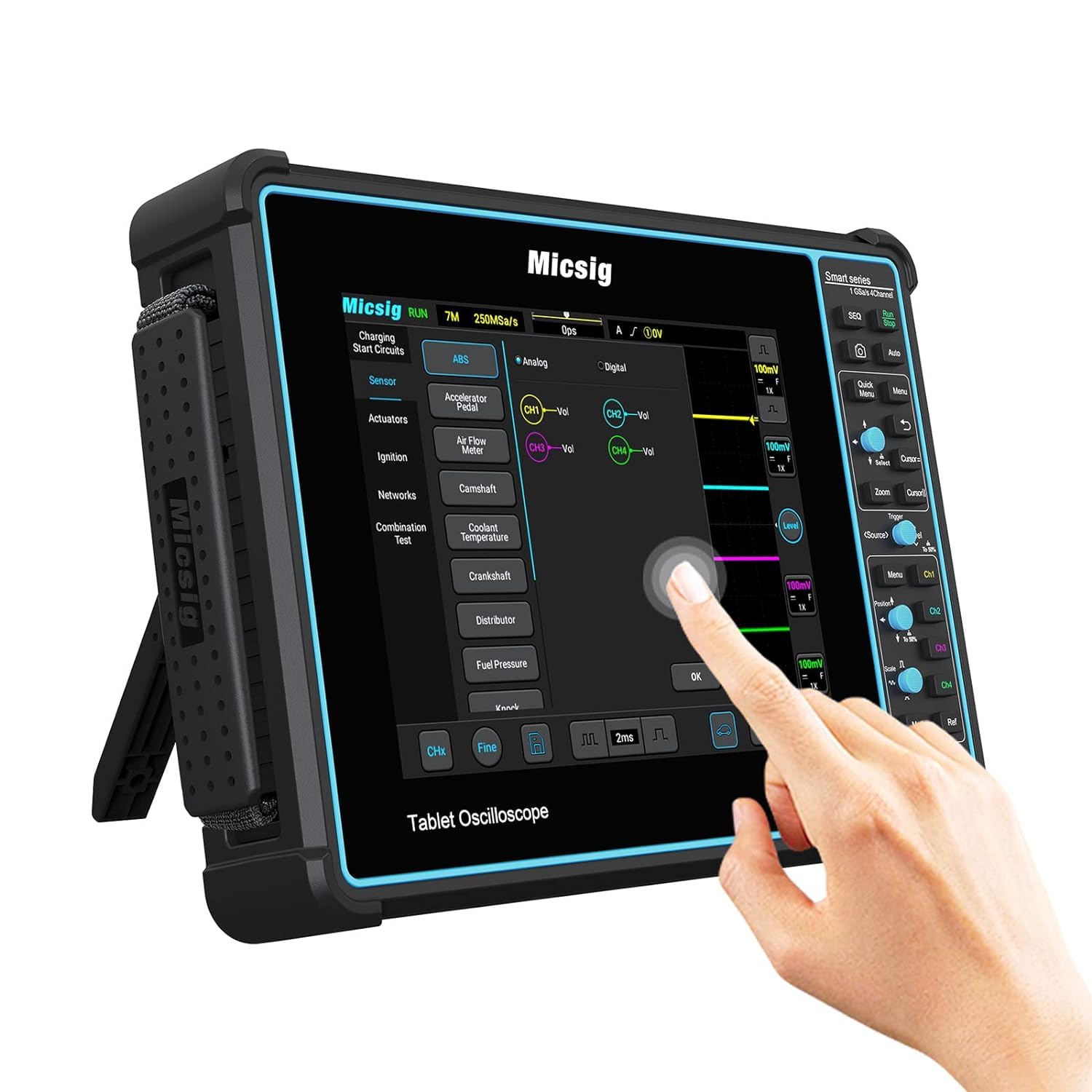

Unparalleled Operating Experience

8-inch TFT-LCD capacitive touch screen with 800 * 600 resolution, integrating a new generation of hardware & software technologies.

Professional Performance

High bandwidth, high sampling rate, large memory depth, and excellent signal capture performance.

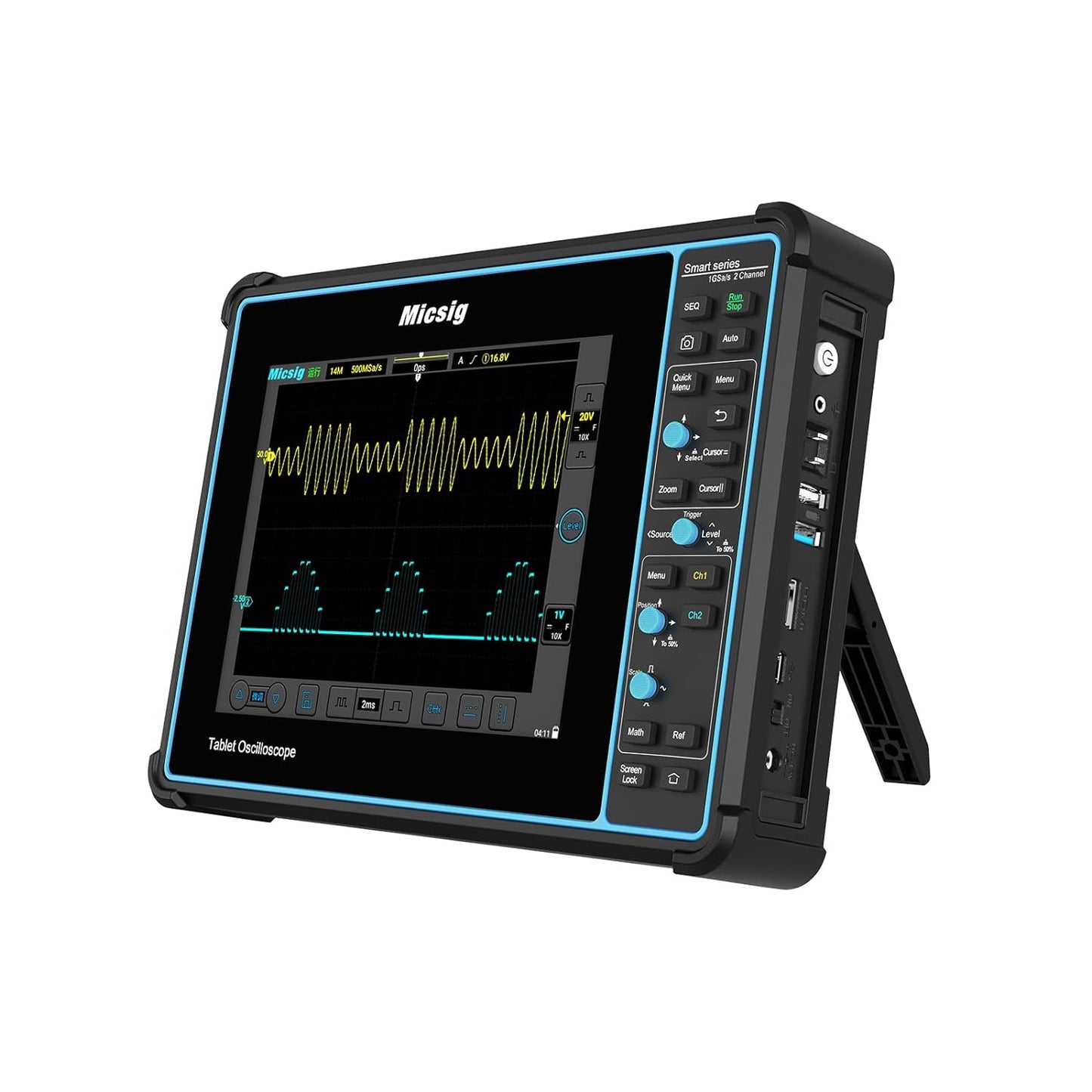

Portable & Benchtop

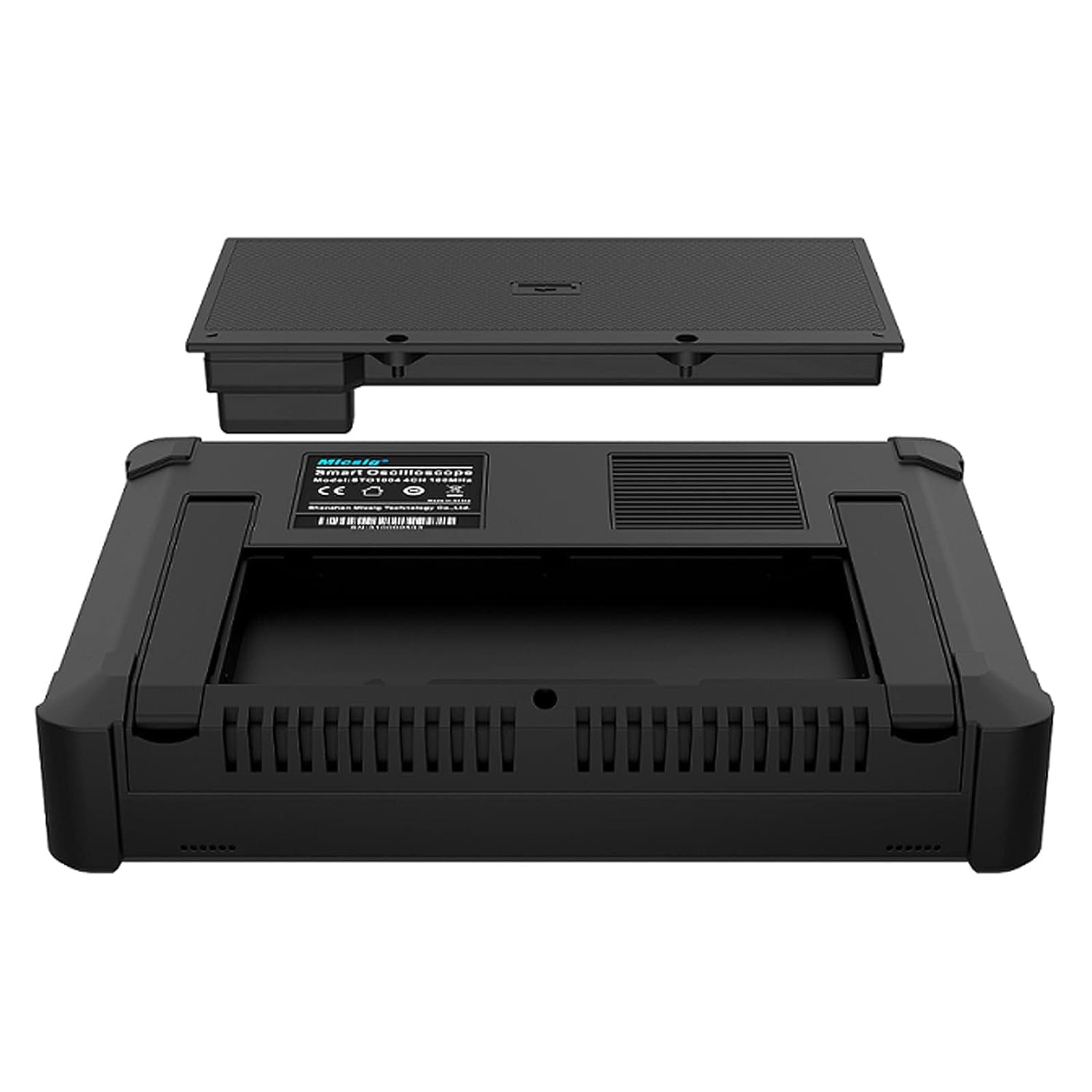

Built-in 7500mAh Li-ion battery supports 5 hours of long field work.

Power-off lock ensures safe transport and storage.

Triangle link rear stand ensures stability on the bench.

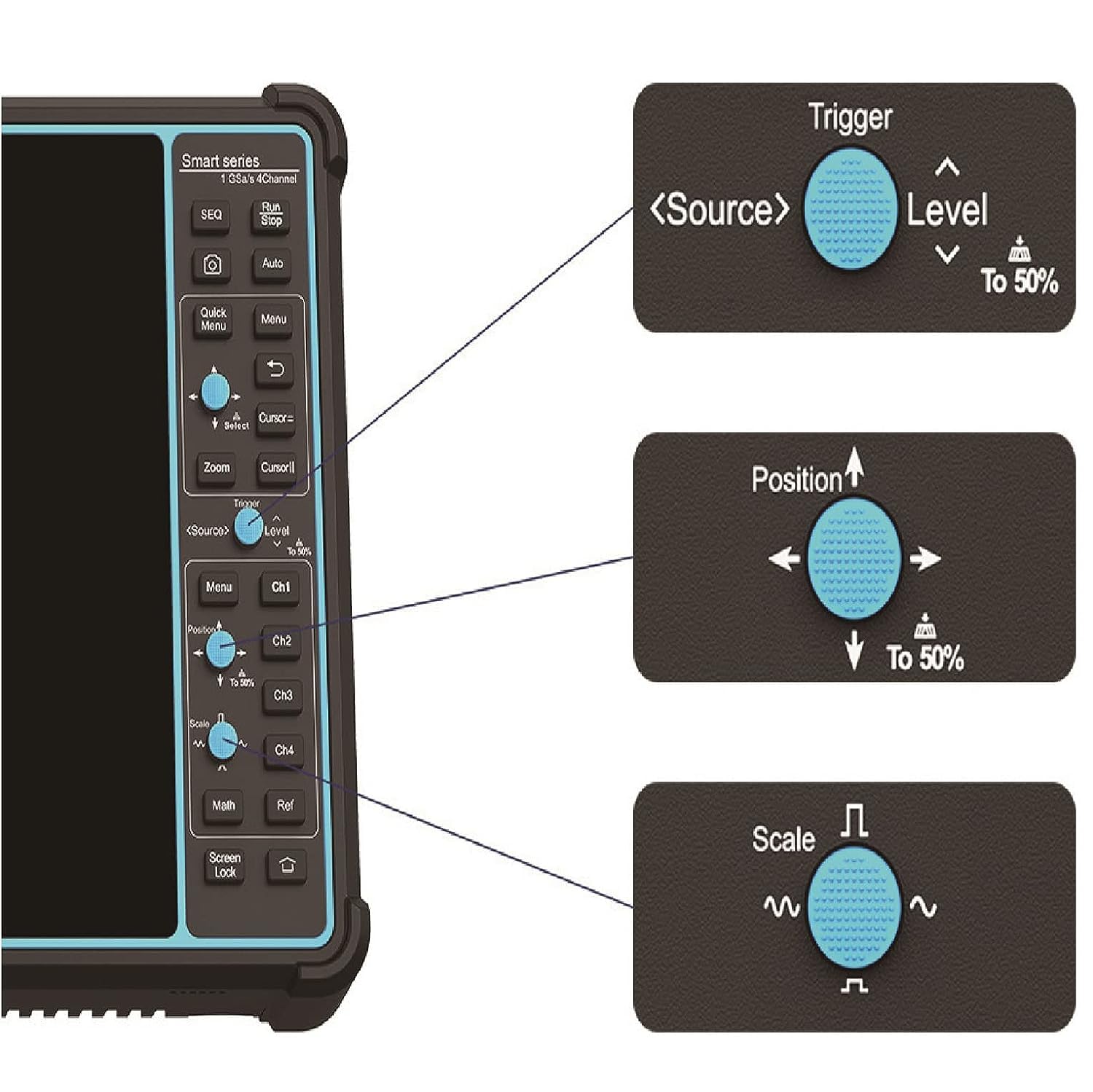

Multi-function Button Panel

Highly integrated multifunctional buttons and innovative 5-way navigation sticks deliver quick & accurate control for various operations.

SATO2002
