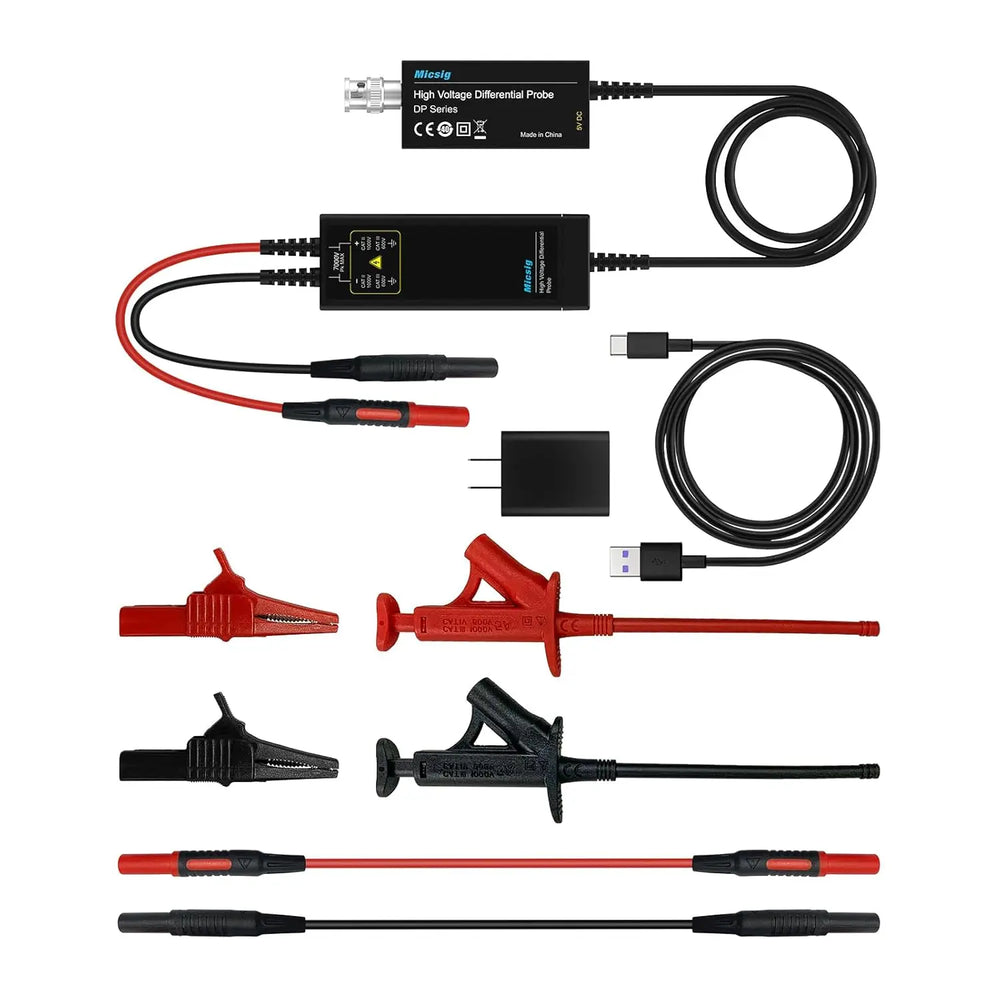

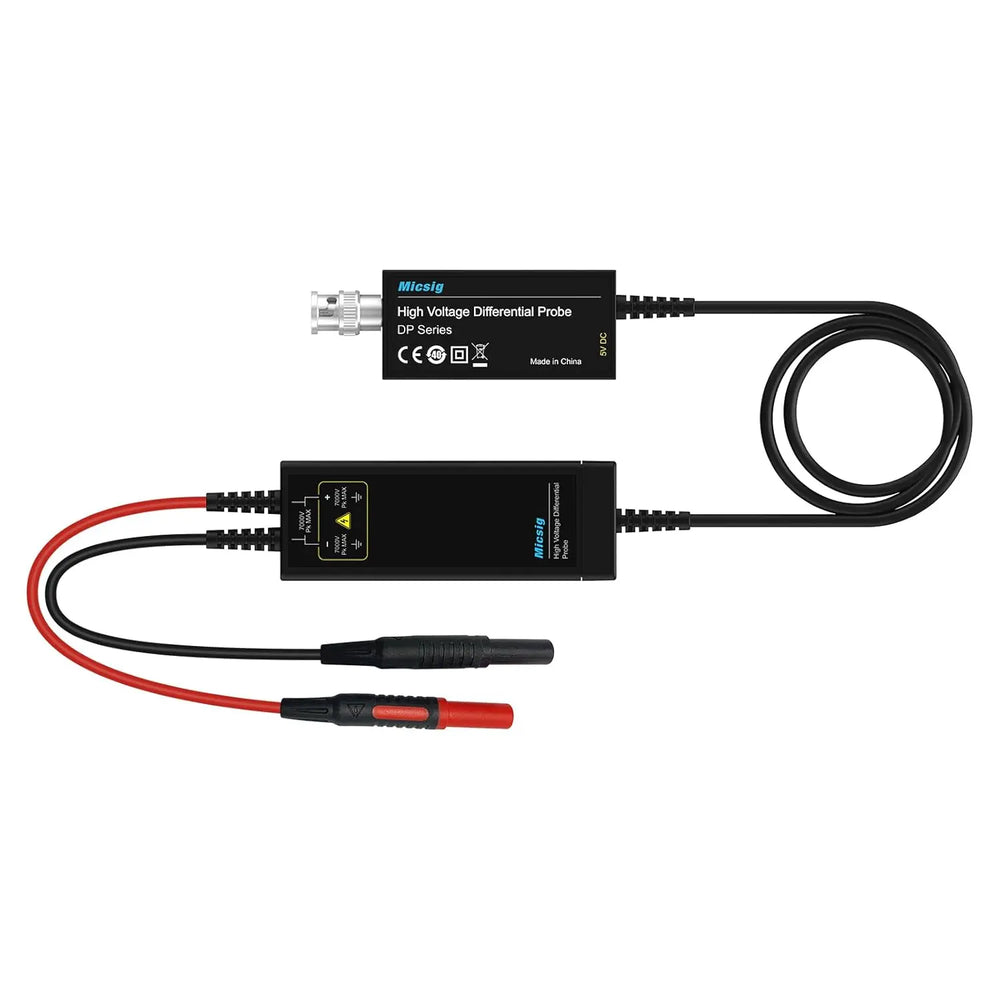

Micsig High Voltage Differential Probe kit DP7000, 7000V 100MHz, 3.5ns Rise Time, 100X/1000X Attenuation Rate, Oscilloscope Probe Kit Accessory

Micsig High Voltage Differential Probe kit DP7000, 7000V 100MHz, 3.5ns Rise Time, 100X/1000X Attenuation Rate, Oscilloscope Probe Kit Accessory

SKU:  101-10-DP7000
$599.99
-Liquid error (snippets/price line 160): divided by 0 $599.99
Free Shipping
Shipping calculated at checkout.
Ship to
  • 101-10-DP7000
  • 101-10-DP7000
  • 101-10-DP7000
  • 101-10-DP7000

Cutting-Edge Technology: Originating from Micsig’s advanced SigOFIT technology, this probe offers a very low noise floor, excellent amplitude-frequency characteristics, and an industry-leading common mode rejection capability.

High Accuracy: The MDP series probe has superior bandwidth flatness, with amplitude fluctuation less than 0.5dB within its half bandwidth range, ensuring high accuracy even in high frequency bands.

User-Friendly Features: With a 5MHz Bandwidth Limit, Quick Zero function, and Dual Range Selection feature, this probe is designed for user convenience and flexibility.

Versatile Compatibility: The standard BNC interface allows it to work with any oscilloscope, making it a versatile addition to your toolkit.

Compact Design & Over-Range Alert: Much smaller than other differential probes, this sleek device also includes an over-range alert with an LED indicator and buzzer for added safety.
View full details

Micsig High Voltage Differential Probe kit DP7000, 7000V 100MHz, 3.5ns Rise Time, 100X/1000X Attenuation Rate, Oscilloscope Probe Kit Accessory | SainSmart

Micsig High Voltage Differential Probe kit DP7000, 7000V 100MHz, 3.5ns Rise Time, 100X/1000X Attenuation Rate, Oscilloscope Probe Kit Accessory | SainSmart

Excellent Bandwidth Flatness

DP3000 has excellent bandwidth flatness, amplitude fluctuation less than 0.5dB within its half bandwidth range, even in high frequency bands can also maintain high accuracy.
Micsig High Voltage Differential Probe kit DP7000, 7000V 100MHz, 3.5ns Rise Time, 100X/1000X Attenuation Rate, Oscilloscope Probe Kit Accessory | SainSmart

High Accuracy, High CMRR

High Accuracy, High CMRR High input impedance and low input capacitance, minimized load effect, greatly improved the accuracy of the differential signal. High common mode rejection capability, able to meet floating measurements of large common mode voltage at high frequencies. CH1: @ 100KHz, 207.7V, output common mode signal amplitude 94.62mV, CMRR > -60dB
Micsig High Voltage Differential Probe kit DP7000, 7000V 100MHz, 3.5ns Rise Time, 100X/1000X Attenuation Rate, Oscilloscope Probe Kit Accessory | SainSmart

Low Noise

DP3000 test results: under 1000X, noise at full bandwidth is 254.8μVrms
Micsig High Voltage Differential Probe kit DP7000, 7000V 100MHz, 3.5ns Rise Time, 100X/1000X Attenuation Rate, Oscilloscope Probe Kit Accessory

Precautions

  • 5MHz Bandwidth Limit

(only available on 100MHz ~ 200MHz versions，except DP7000)

When measuring FET switching frequency in most switching power supplies, DP probe effectively eliminates high-frequency noise.

  • Quick Zero

Short-circuit the test leads, press Zero button, the probe can be zeroed very fast.

  • Dual Range Selection

Improves signal-to-noise ratio, meet more test requirements.

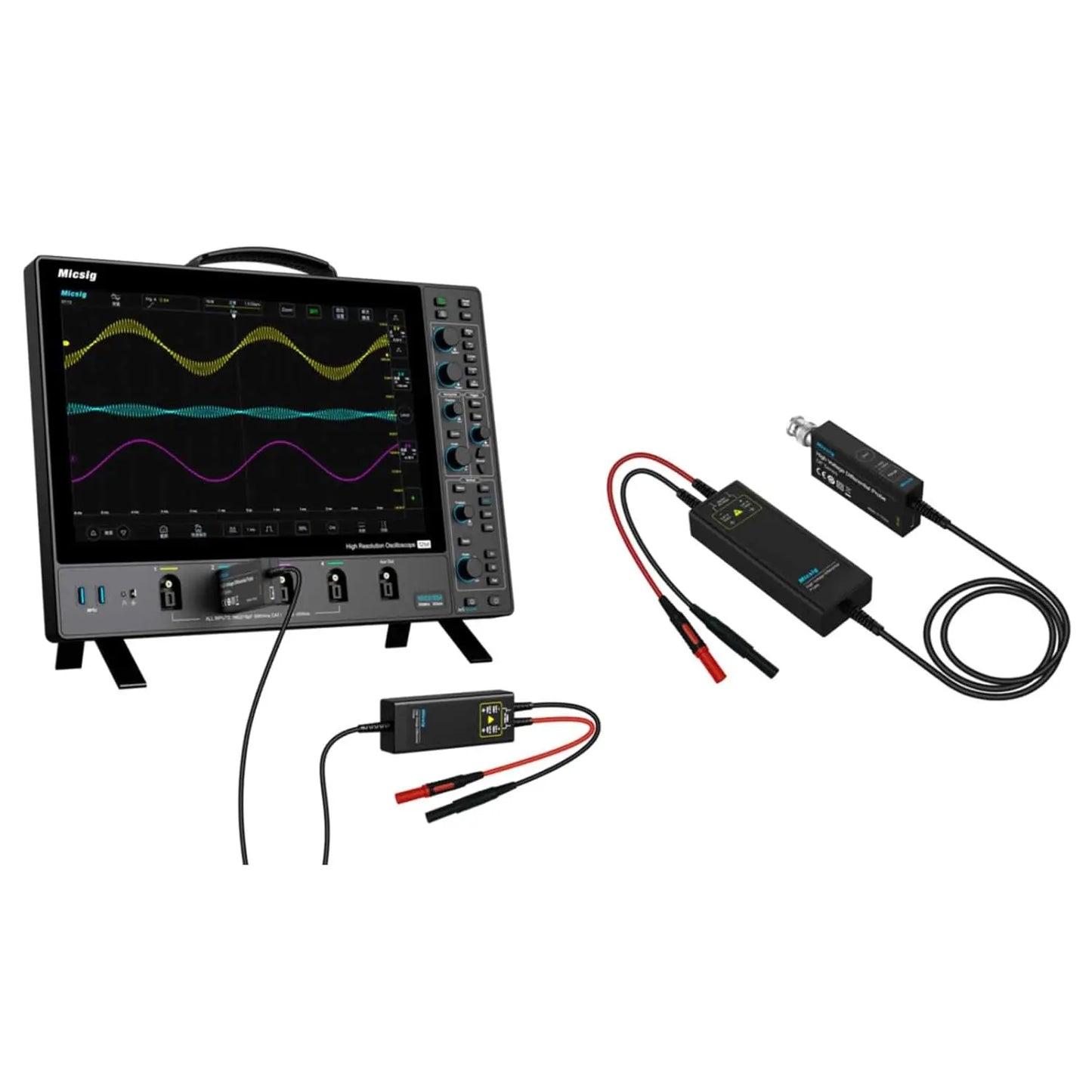

  • BNC Interface

Standard BNC interface, work with any oscilloscope.





Applications

Floating measurements, High voltage isolation measurements, Switching power supply design, Power converter design, Inverter, UPS power supply, Welding, electroplating power supply, Electronic ballast design, Motor drive design, Induction heating, induction cooker, CRT display design, Low-voltage electrical appliances, Electronic power and electric drive experiments



Specifications

Model MDP7000
Bandwidth 100MHz
Differential Voltage Max. 700V（100X） 7000V（1000X）
CMRR DC：>-80dB 100kHz: >-60dB 10MHz: >-30dB 100MHz: >-26dB
Input impedance 60MΩ / 0.78pF(differential) 30MΩ / 1.6pF (each input to ground)
