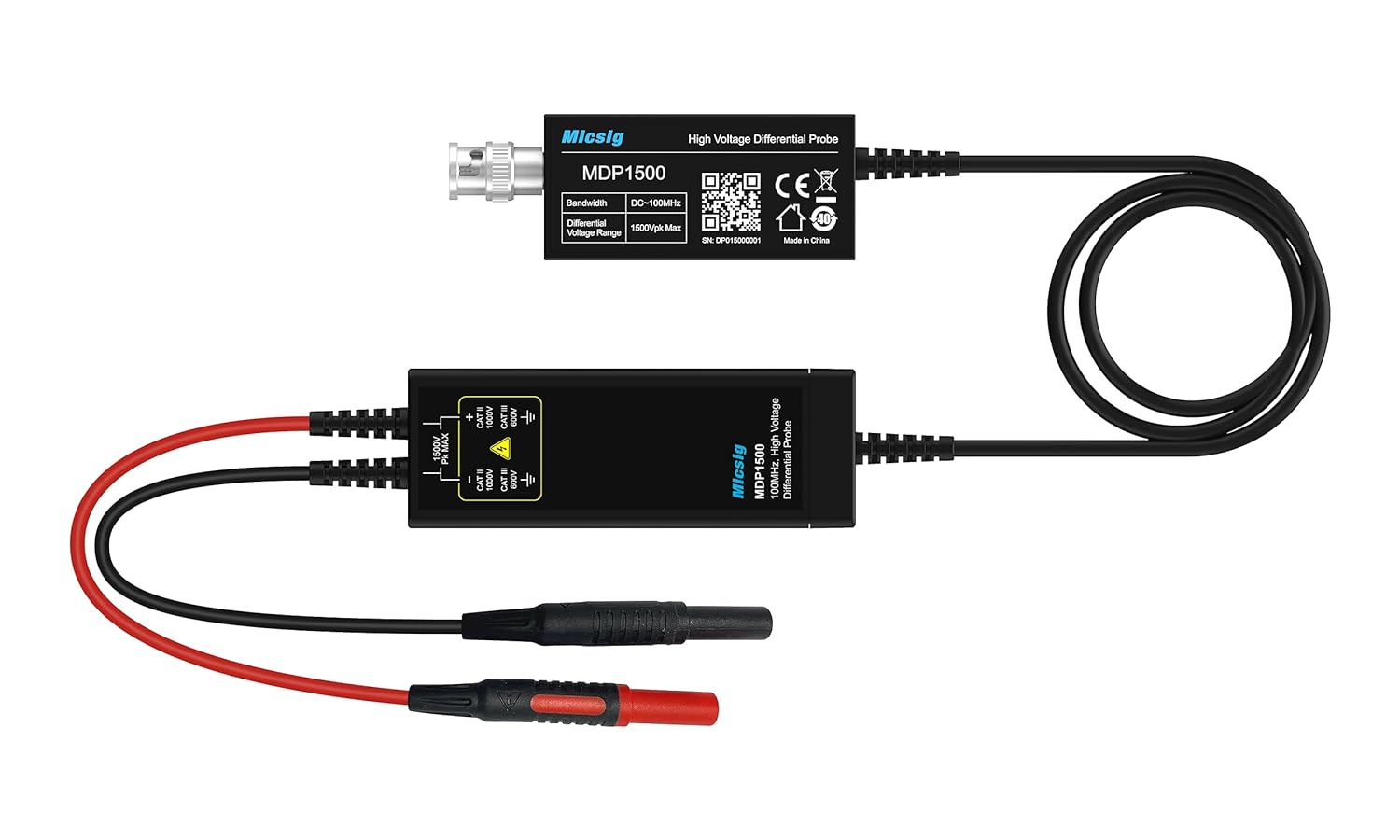

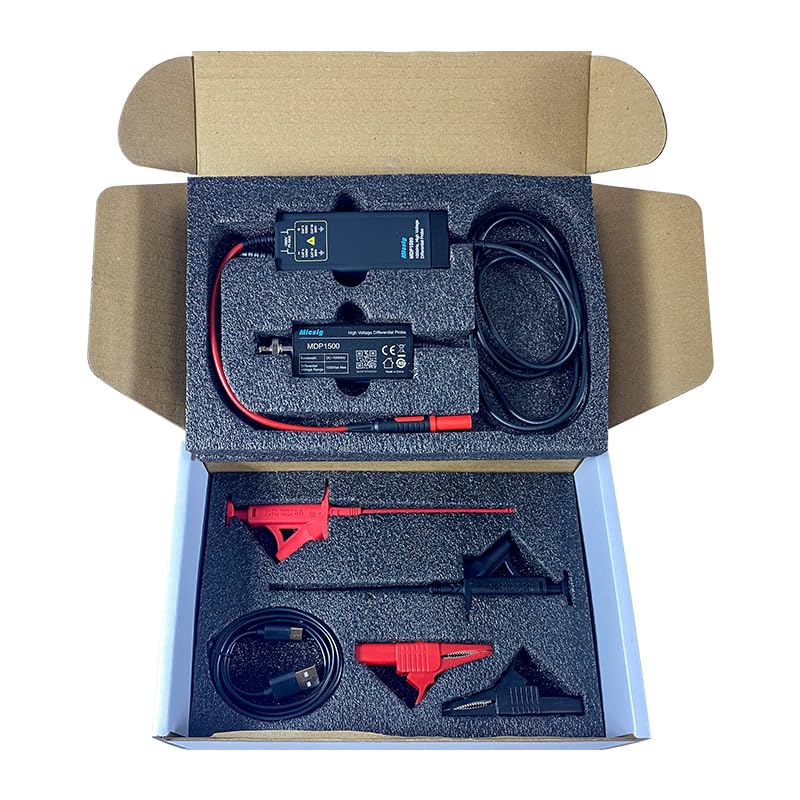

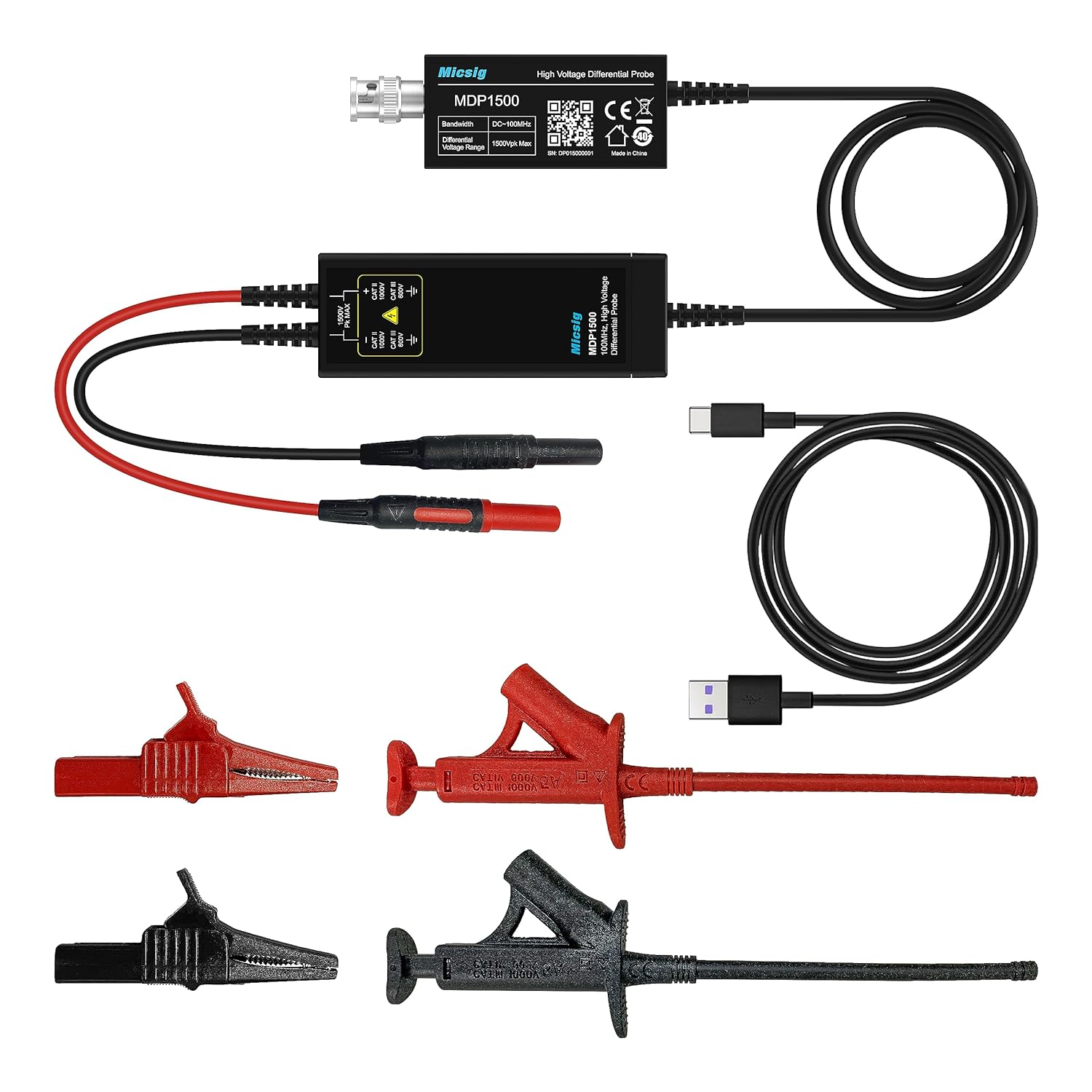

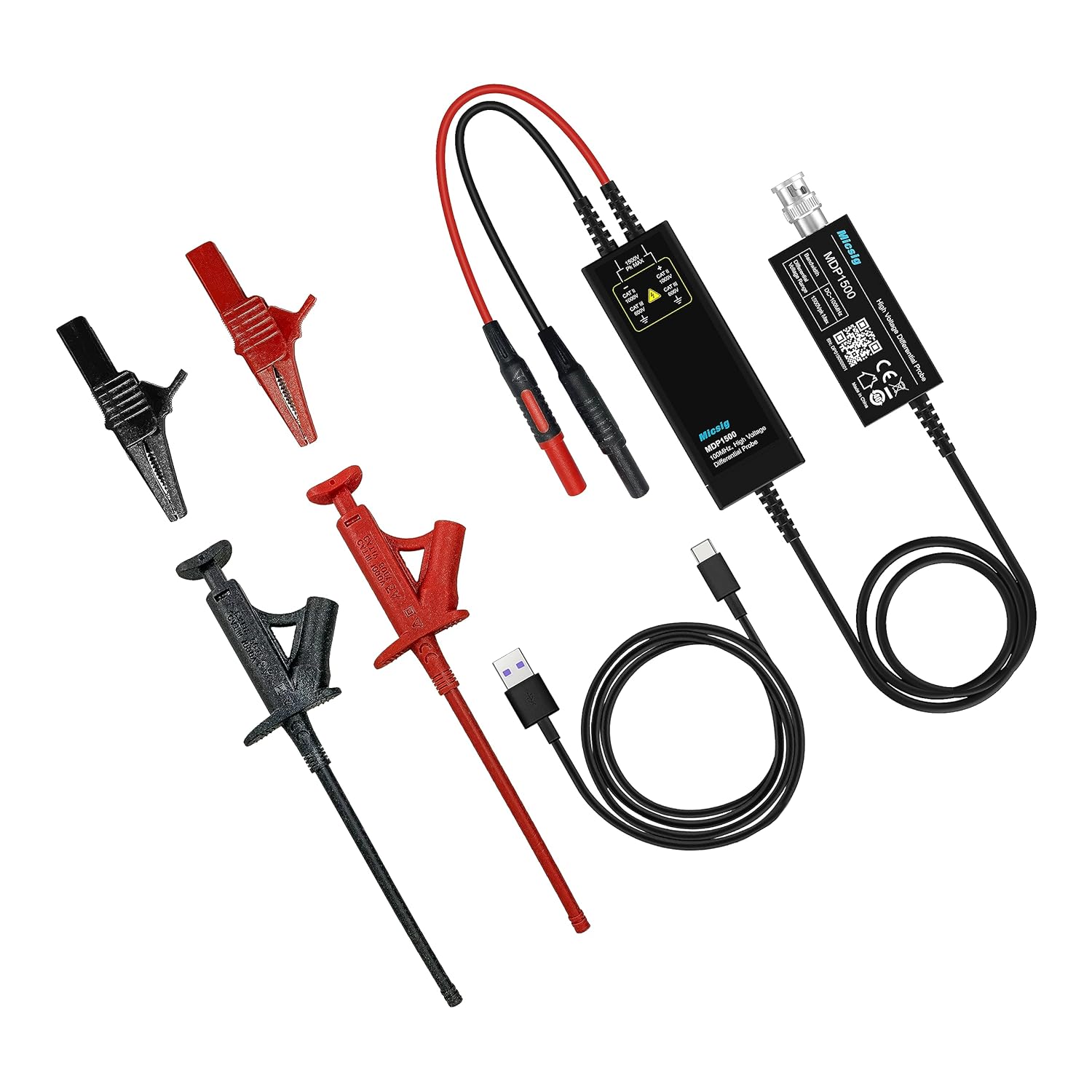

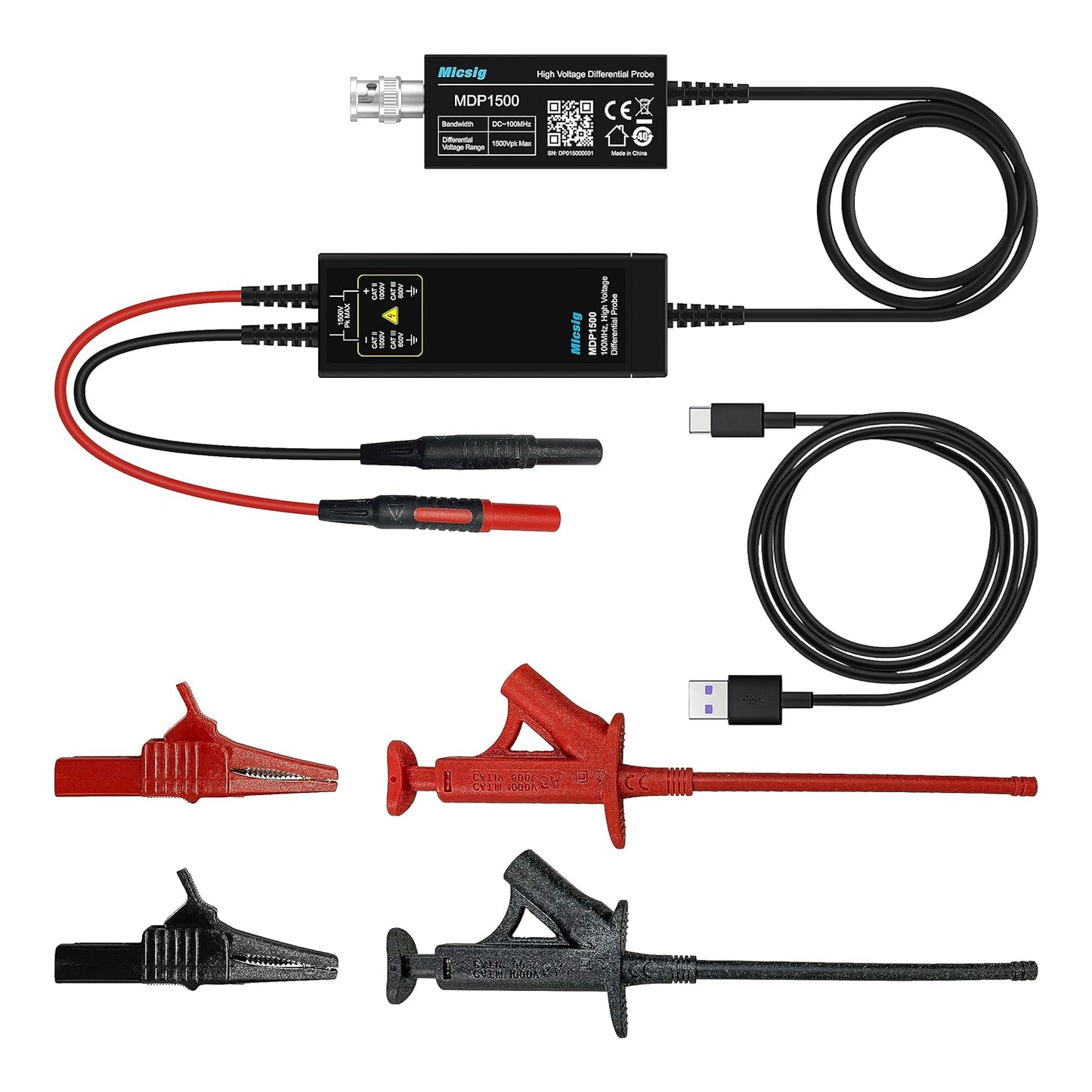

Micsig MDP1500 High Voltage Differential Probe Kit, 3.5ns Rise Time 10X/100X Attenuation Rate Oscilloscope Probe Kit Accessory, 1500V 100MHz
Micsig MDP1500 High Voltage Differential Probe Kit, 3.5ns Rise Time 10X/100X Attenuation Rate Oscilloscope Probe Kit Accessory, 1500V 100MHz
- 101-10-MDP1500
- 101-10-MDP1500
- 101-10-MDP1500
- 101-10-MDP1500
Couldn't load pickup availability

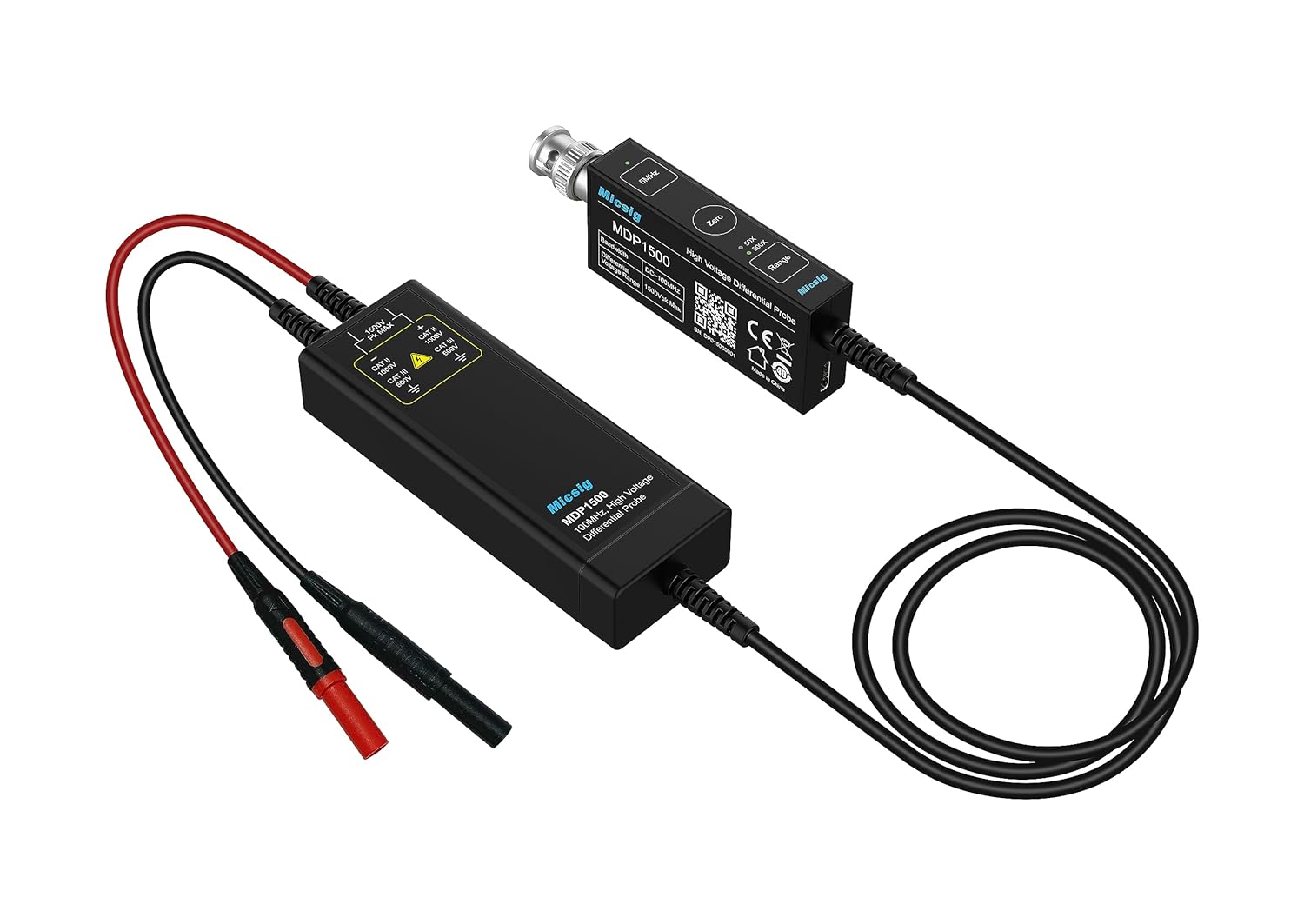

Compact & Exquisite Design
The Micsig MDP Series High-Voltage Differential Probe stands out with its compact and exquisite design. Significantly smaller than traditional differential probes, this device offers a sleek form factor without compromising on functionality. Its sophisticated design is a testament to the attention to detail and quality that goes into every Micsig product. This compact and stylish probe is not just a tool, but a statement of professionalism and efficiency.
High Accuracy & High CMRR
This device boasts high input impedance and low input capacitance, minimizing load effect and significantly improving the accuracy of the differential signal. Its high common mode rejection capability makes it ideal for floating measurements of large common mode voltage at high frequencies.
CH1: @ 100KHz, 207.7V, output common mode signal amplitude 94.62mV, CMRR > -60dB
Low Noise
his device is designed to minimize noise, ensuring clear and accurate readings every time. When the input ends are short-circuited and connected to CH1, with both attenuation ratios set at 50X, a vertical scale at 250mV/div, a time base at 1ms, and an input impedance of 1MΩ, the noise floor observed is remarkably low.
* Noise: 40.62mV (RMS) at full bandwidth
Precautions

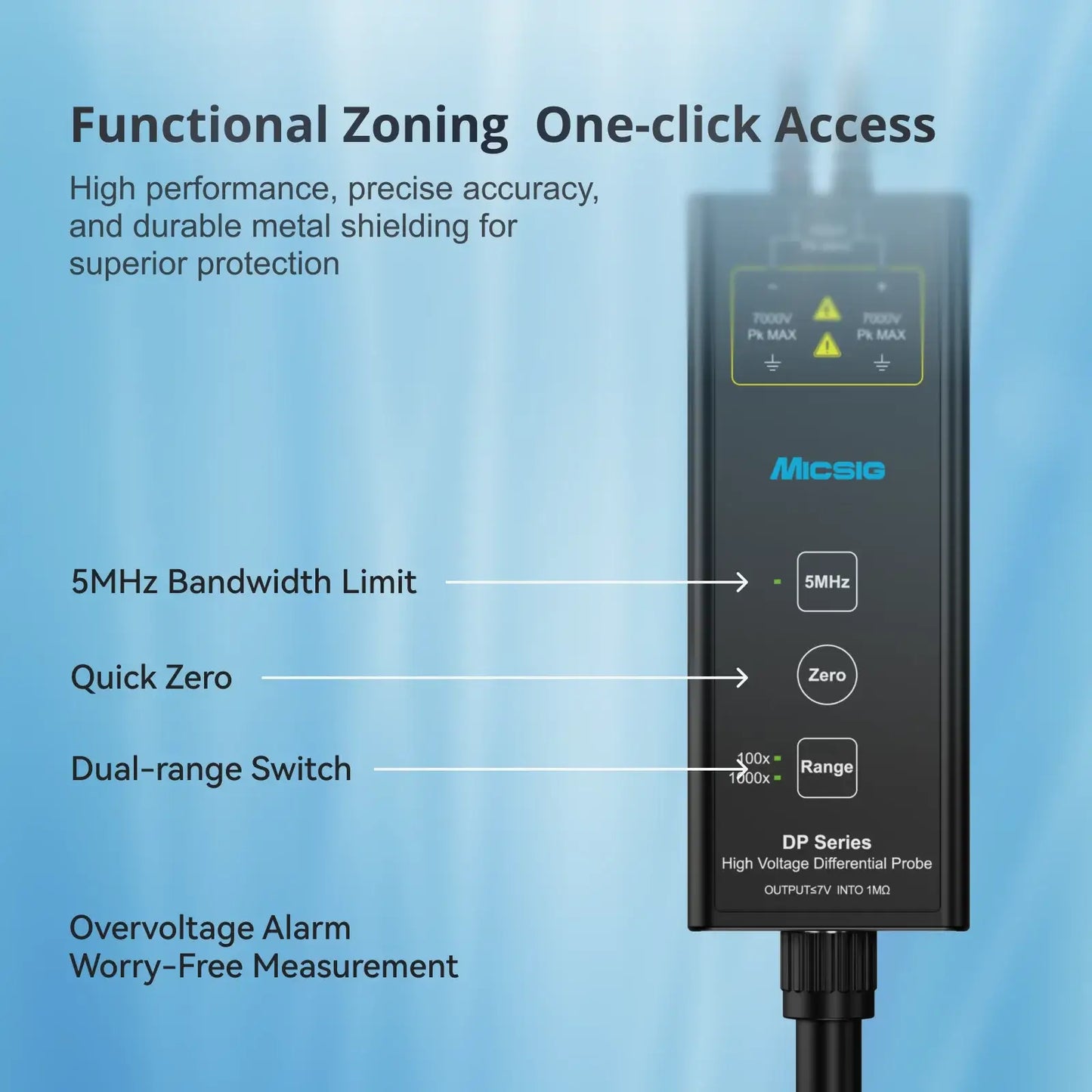

- Calibrate the probe before use: Short-circuit the input ends, power on, press the “Zero” button, and 5MHz LED light flashes, after hearing a “Di” sound, means calibration succeeded; if hearing a “Di Di Di” sound, means calibration failed and needs to be calibrated again;
- Recommend to use on ≥100MHz bandwidth oscilloscope, and input impedance≥1MΩ.
- Recommend use after 10 mins warm-up to get more accurate results.
- When the Range LED indicator flashes and beeps rapidly, indicating an Over voltage warning, please switch to a higher range.

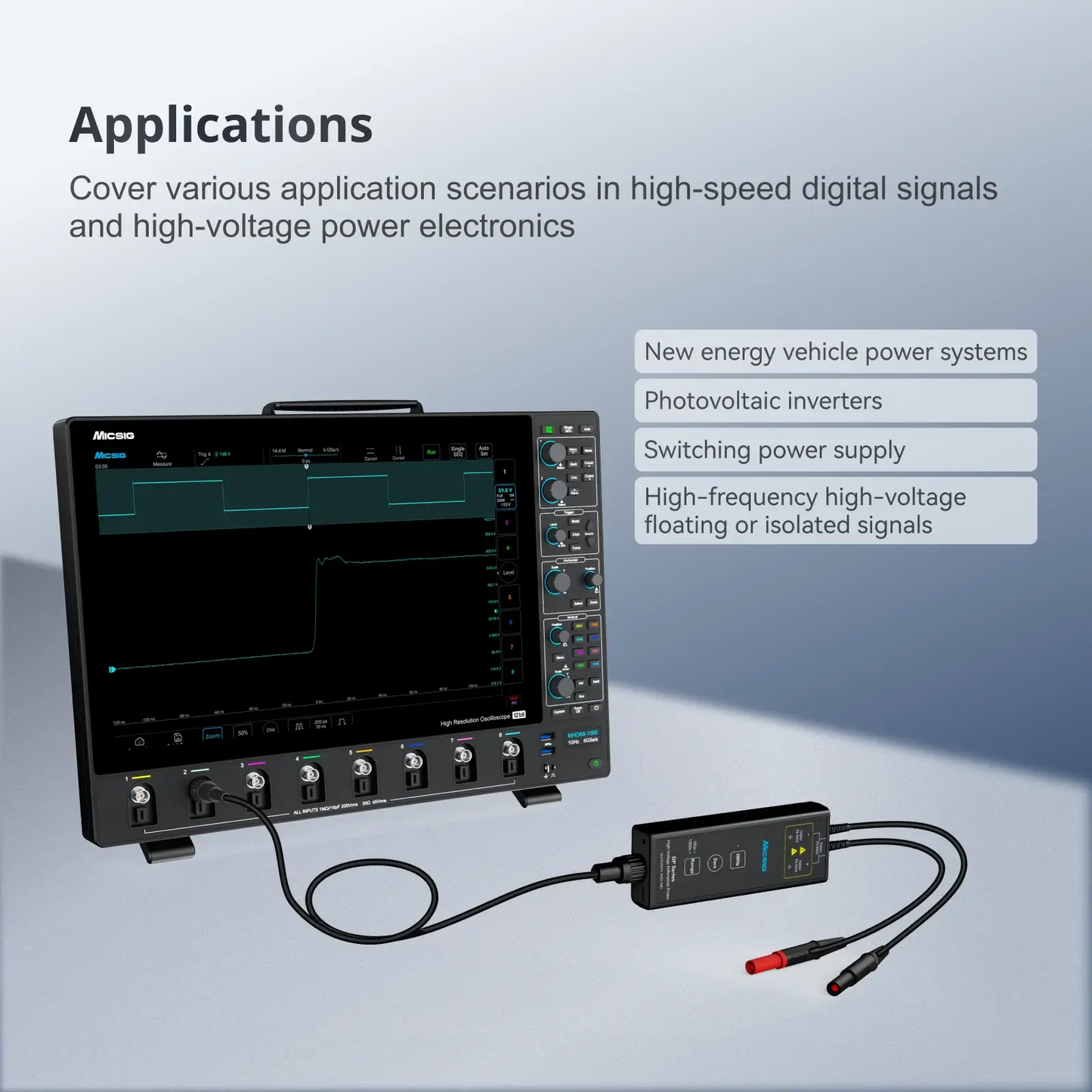

Applications
- Floating measurements
- High voltage isolation measurements
- Switching power supply design
- Power converter design
- Inverter, UPS power supply
- Welding, electroplating power supply
- Electronic ballast design
- Motor drive design
- Induction heating, induction cooker
SPECIFICATIONS
| Model | MDP1500 |
| Bandwidth | 100MHz |
| Differential Voltage Max | 150V (50X), 1500V (500X) |
| CMRR | DC: >-80dB; 100kHz: >-60dB; 10MHz: >-30dB; 100MHz: >-26dB |
| Input impedance | 16MΩ / 1.5pF( differential); 8MΩ / 3pF( each input to ground) |
