Micsig Oscilloscope Probe CP2100A AC/DC Current Probe 800KHz 10A/100A with Standard BNC Interface

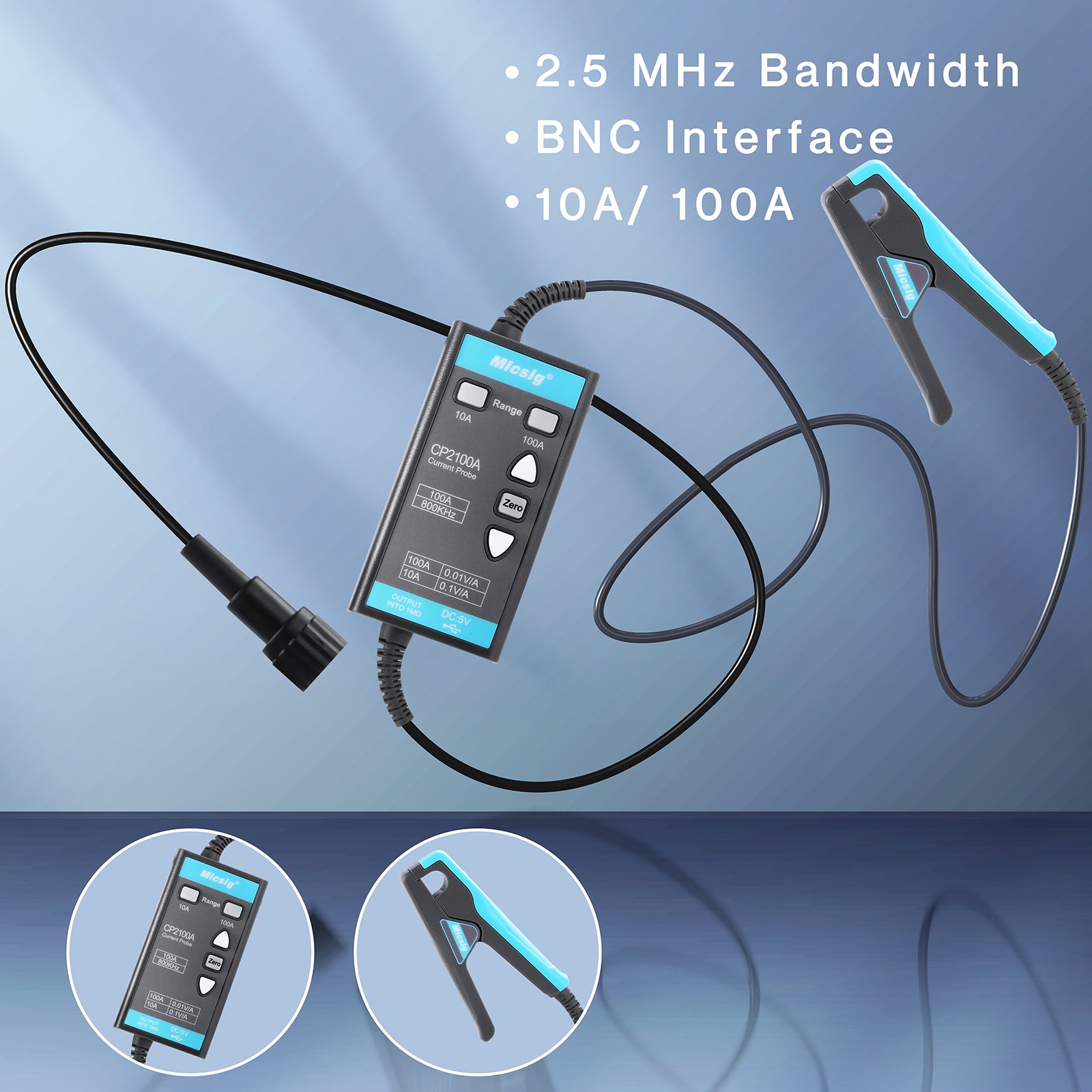

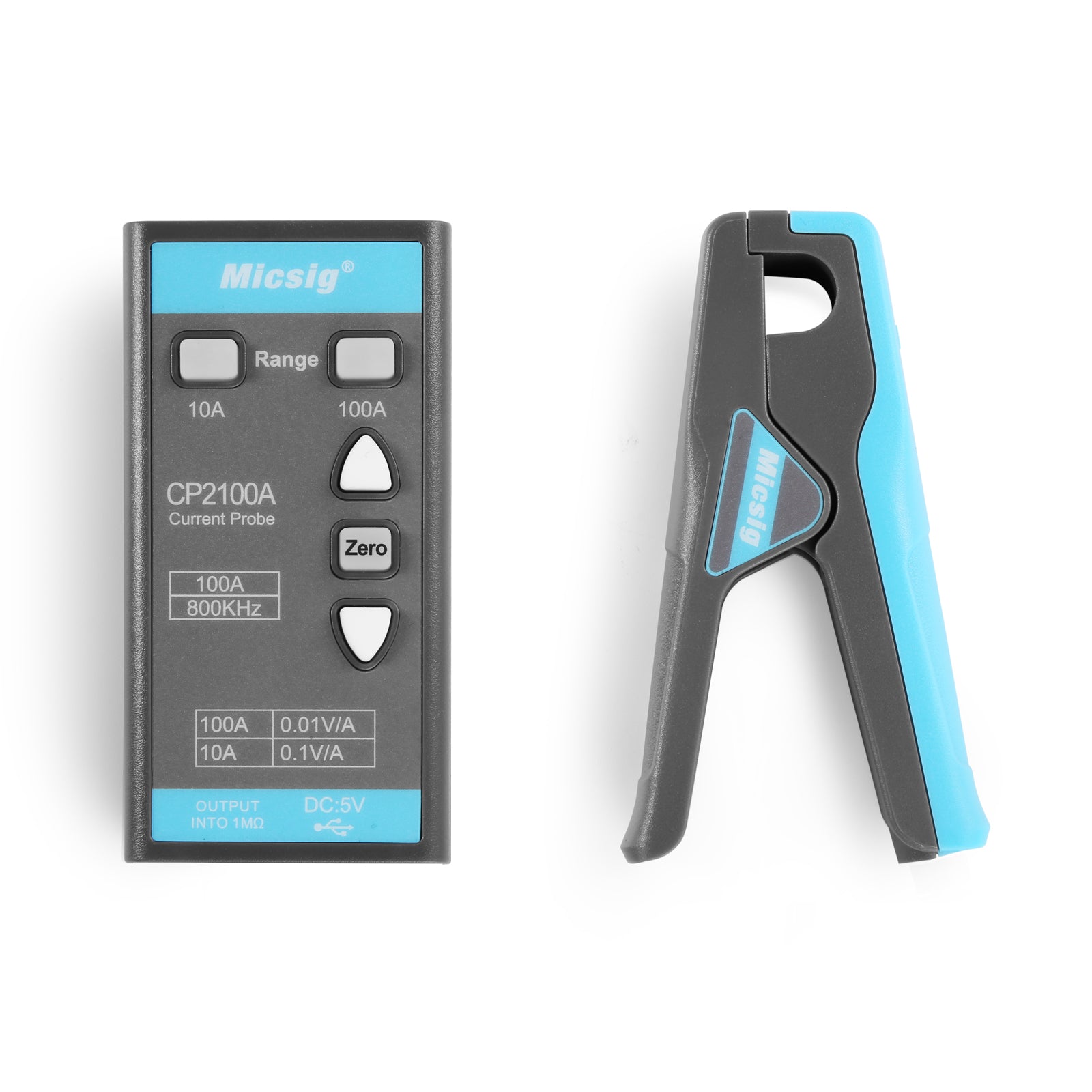

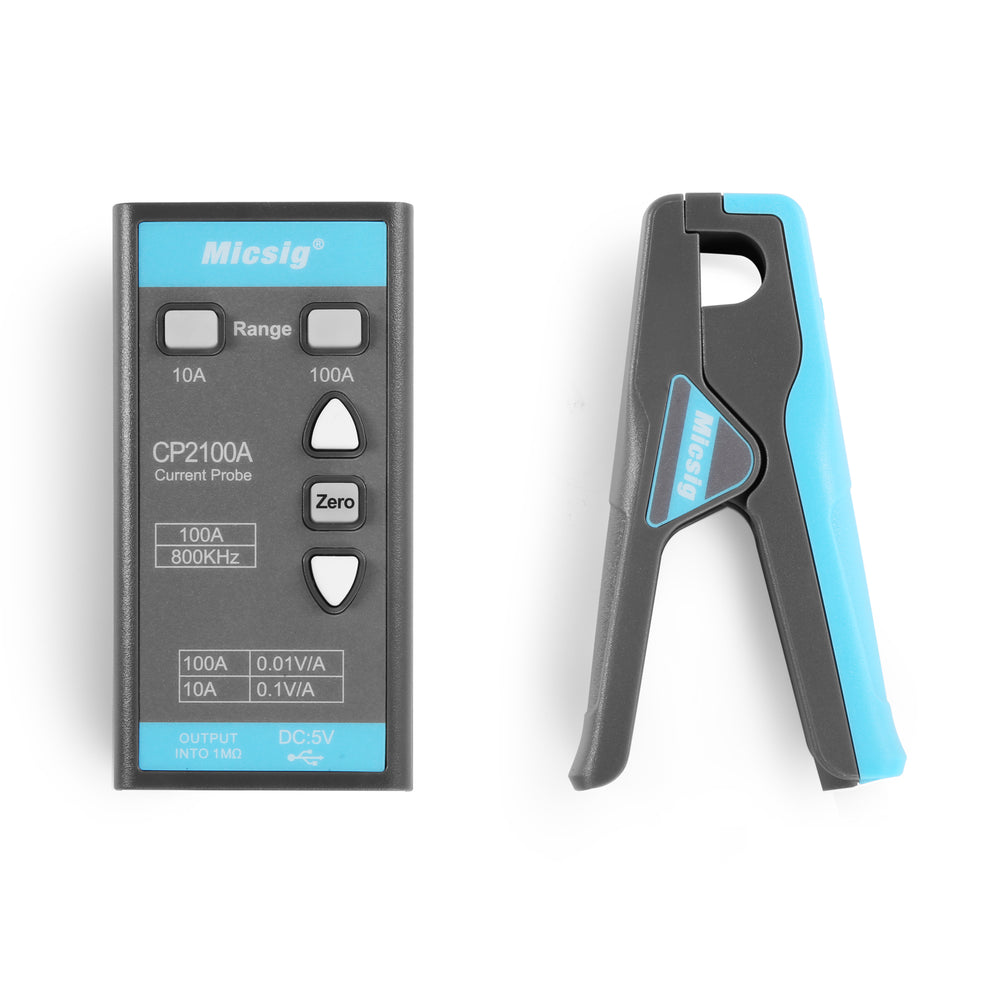

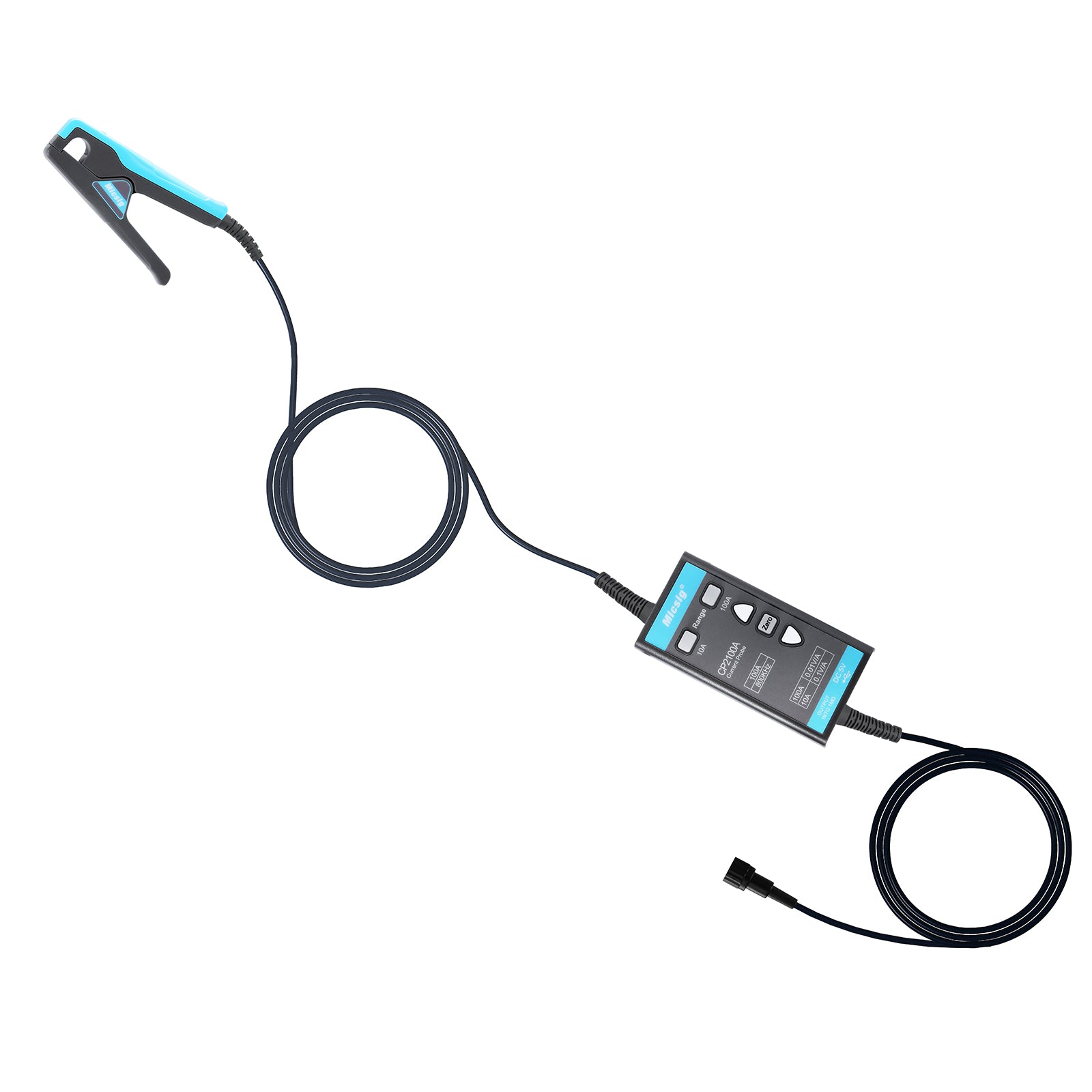

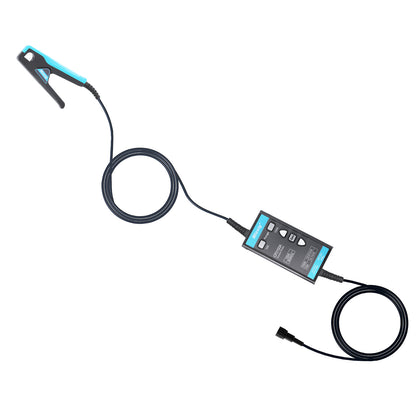

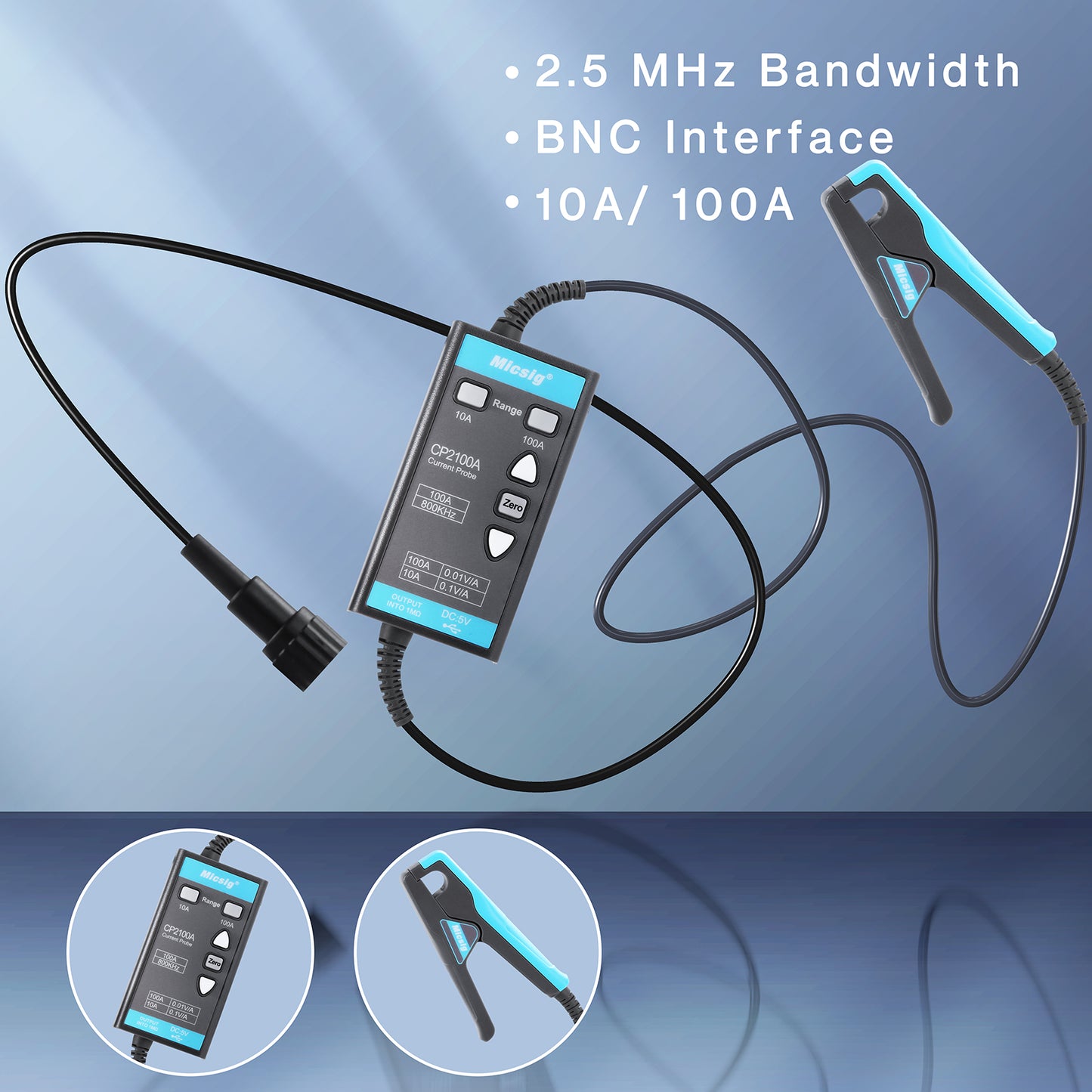

The Micsig CP2100A Oscilloscope Probe is a current probe that can measure both DC and AC. Its split design makes the appearance small and exquisite. It uses a standard BNC interface and is suitable for most brands of oscilloscopes. It can also be used for multimeters via a connector. The maximum current that can be measured is up to 100Apk (70Arms). Widely applicable in motor drives, industrial frequency, inverters, power supplies, avionics, and other fields.

The standard BNC interface makes this probe applicable to all BNC interface oscilloscopes. It also can be used on the multimeter after adding the suitable adapter. The maximum conductor diameter is 13mm.

Easy to use. The CP2100A Oscilloscope Probe has automatic and manual zero adjustment function, can achieve zeroing and demagnetization automatically and manually.

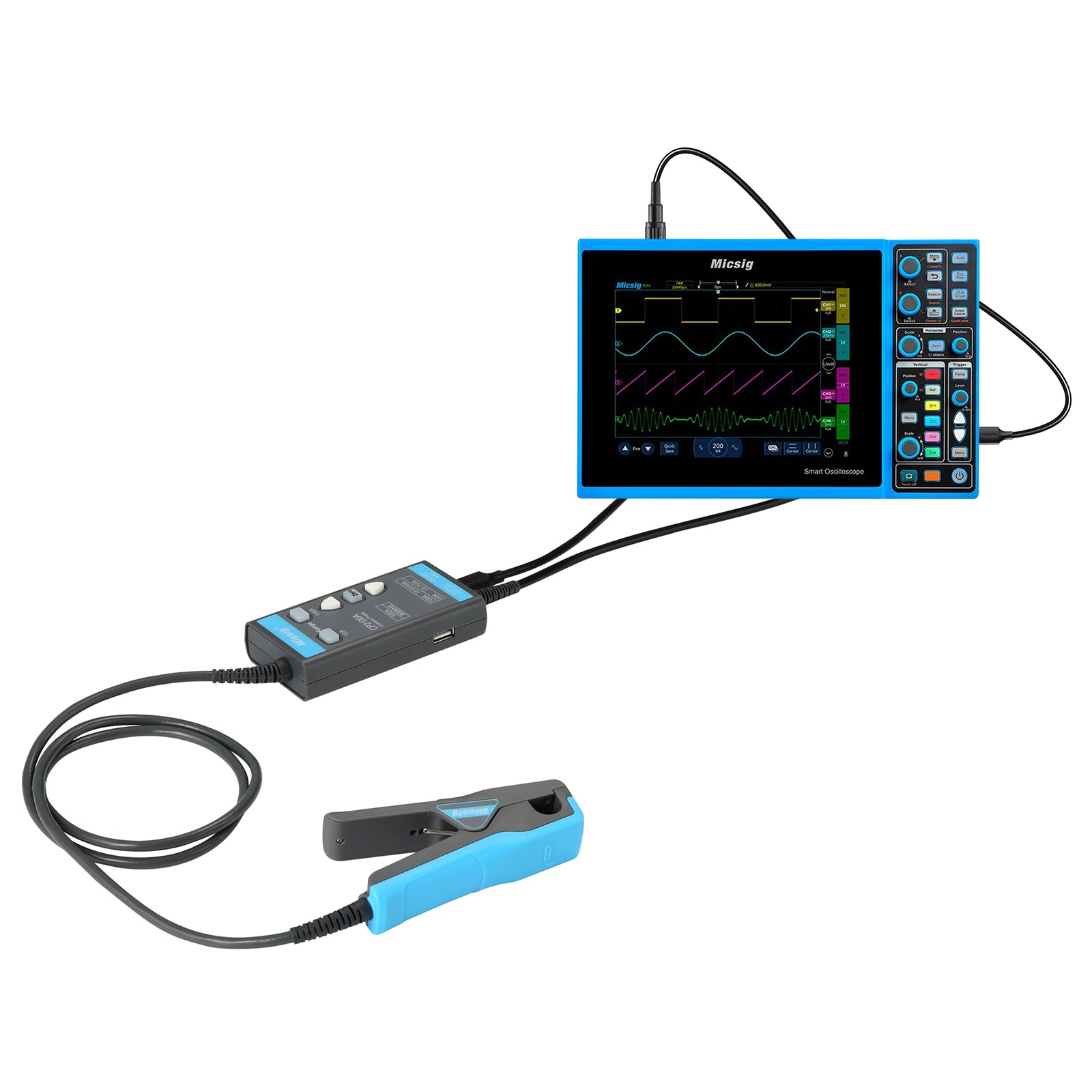

It can be powered by the USB port of the oscilloscope, and doesn't require any other extra power supply.

Widely applicable in motor drives, industrial frequency, inverters, power supplies, avionics and other fields.

Specifications:

Model Name:  CP2100A

Bandwidth: DC~800KHz

Rise Time: ≤ 583ns

Ranges: 10A/ 100A

Output Sensitivity: 0.1V/A (10A); 0.01V/A (100A)

DC Accuracy (typical): 3% ± 50mA (10A); 3% ± 50mA (100A, 500mA~40Apk); 15% (100A, 40Apk~100Apk)

Signal Delay: <150ns (10A); <200ns (100A)

Maximum Measurement Range: 50mA~10Apk (10A); 1A~100Apk (100A)

Maximum Measurable Current: 100Apk, 70.7Arms (DC+ACpk); 200Apk-pk, 70.7Arms (AC)

Maximum Working Voltage: CAT Ⅲ 300V CAT Ⅱ 600V

Maximum Float Voltage: CAT Ⅲ 300V CAT Ⅱ 600V

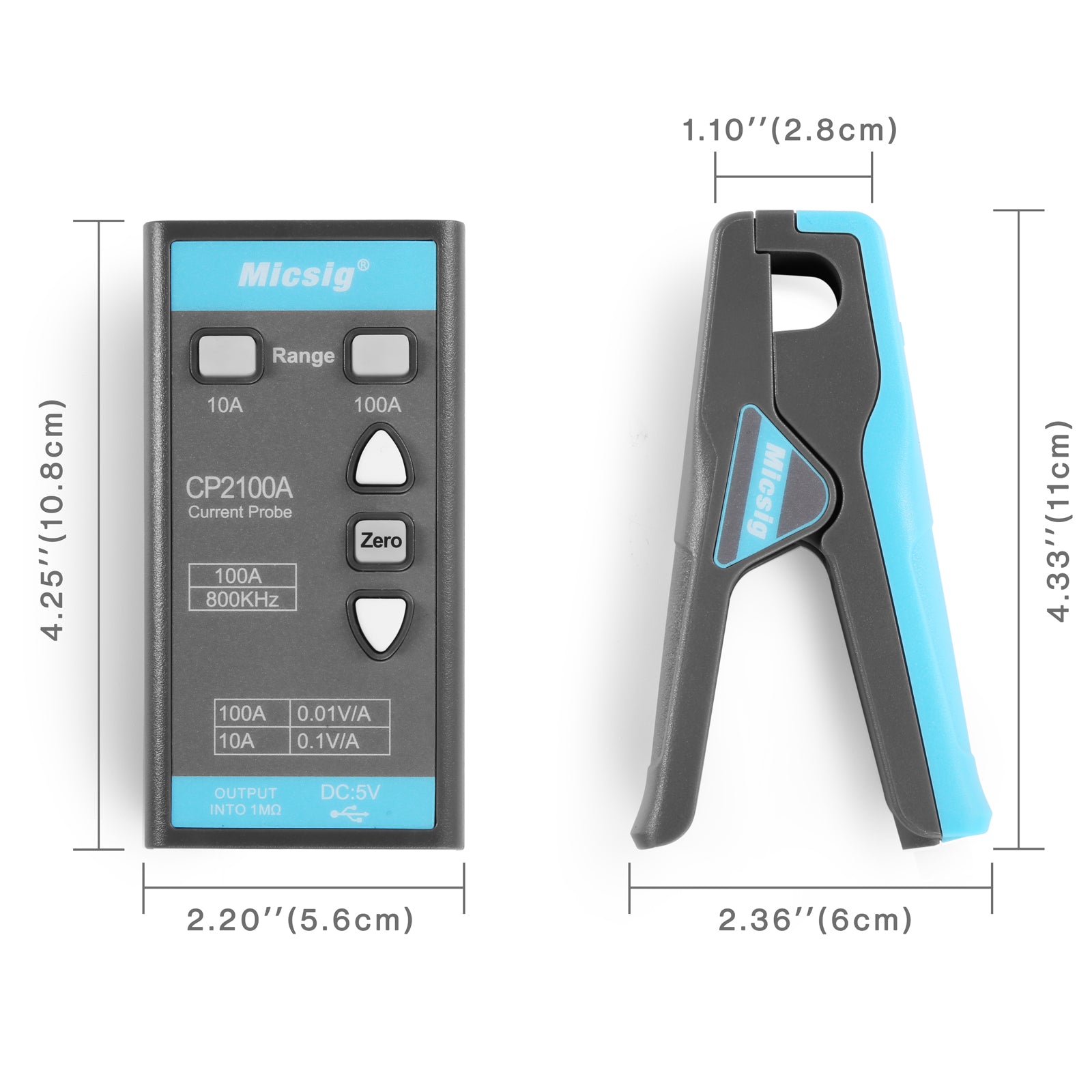

Maximum Conductor Diameter: 13mm

Overload Indication: The buzzer beeping, the button light flashing

Power Supply: DC 5V

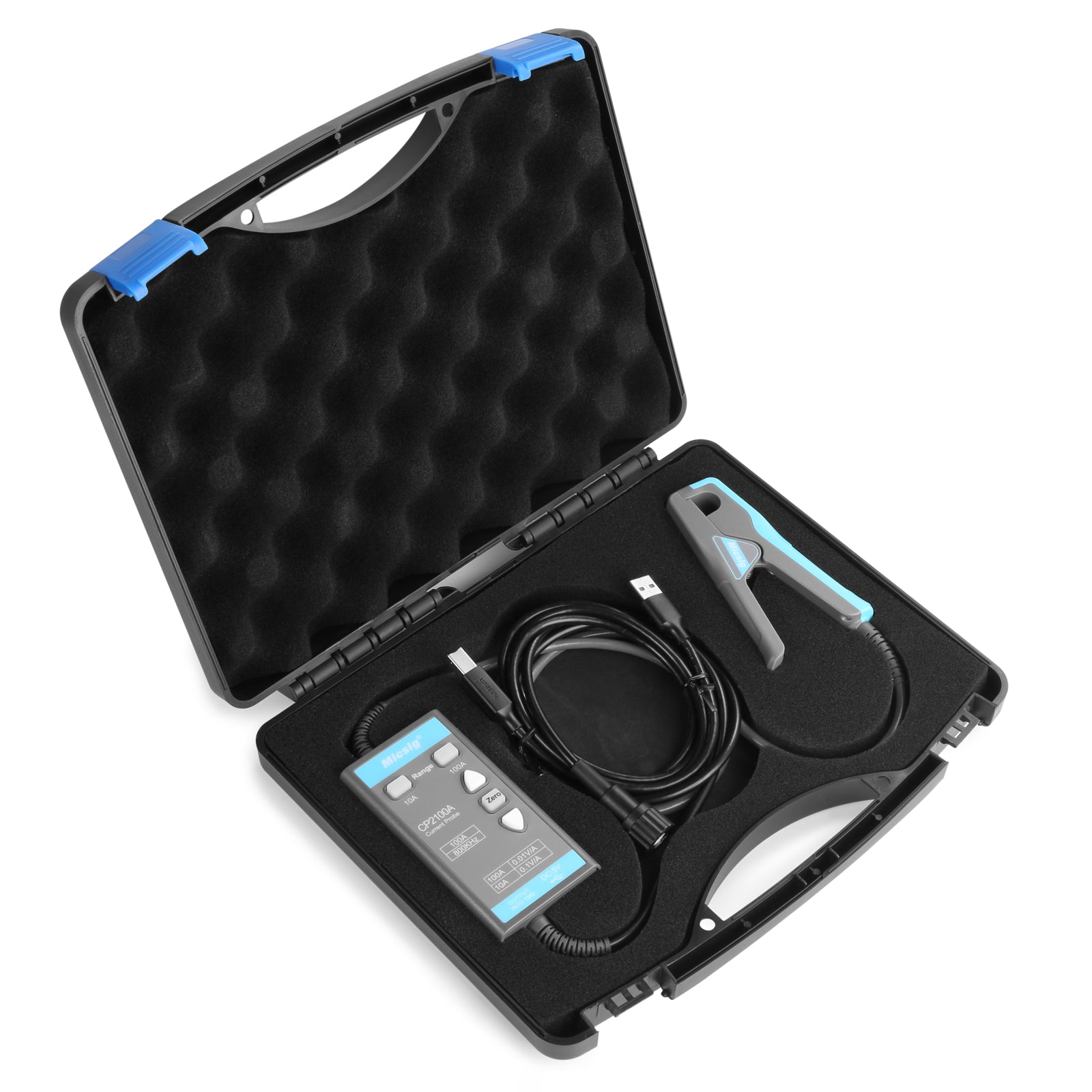

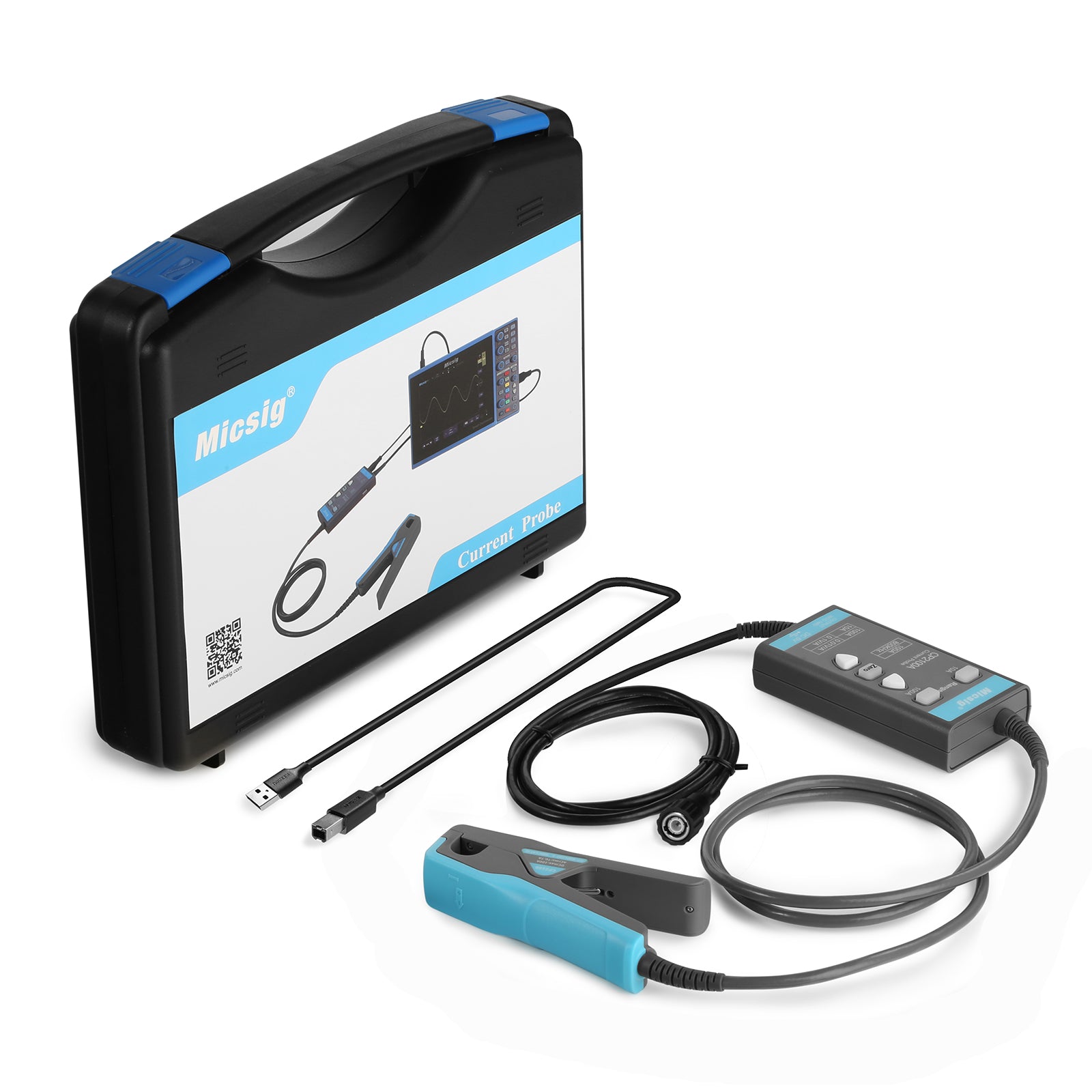

Package List:

1x CP2100A Probe

1x USB Cable

1x Carry Box
