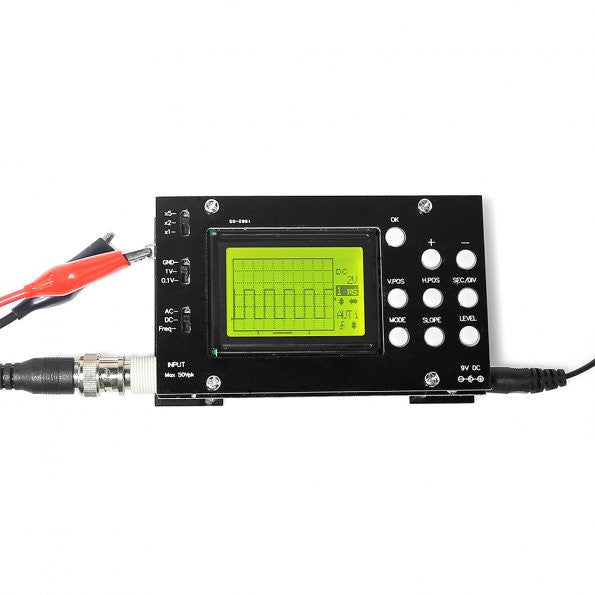

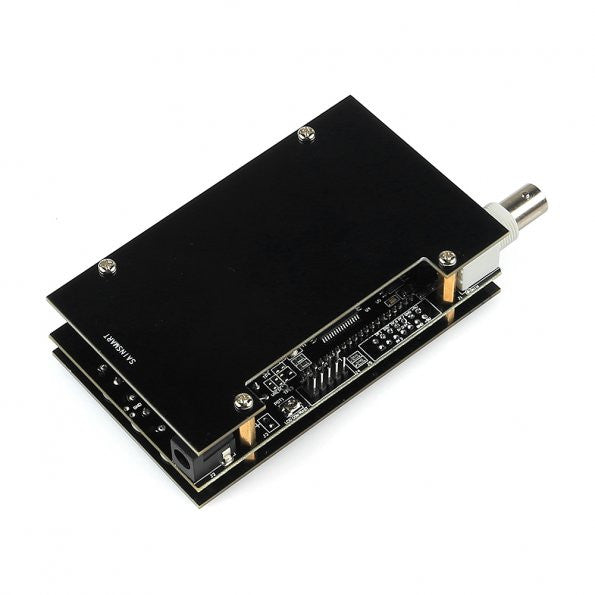

[Discontinued] DSO062 Mini Digital Oscilloscope 1MHz Analog Bandwidth 20MSa/s DIY Kit

DESCRIPTION

This kit includes everything you need to build your very own, fully functional, digital oscilloscope. Once you've got it up and running, the oscilloscope features up to 5M samples/second, 8-bit resolution, up to 50Vpp max input voltage, and more!

This kit includes a semi-populated PCB, with all of the surface mount components already soldered on for you. The components left for you to solder are all through-hole. This is on the higher end of difficulty as far as through-hole kits go.

SPECIFICATION

• Maximum equivalent-time sampling rate (repetitive signal) - 20MSa/s
• Maximum real-time sampling rate - 2MSa/s
• Resolution - 8 bits
• Record length - 256 bytes
• Analog bandwidth - 1MHz
• Vertical sensitivity - 100mV/Div - 5V/Div
• Vertical position adjustable with indicator
• Input impedance - 1M ohm
• Max input voltage - 50Vpk (1x probe) [500Vpk for 10x probe]
• DC/AC/GND coupling
• Horizontal - 0.5us/Div - 10m(minute)/Div
• Auto/Normal/Single trig modes
• Rising/Falling edge trigger
• External trig available
• Trigger output is available, which makes it possible to cascade scopes to do multi-channel capture.
• Trigger level adjustable with indicator
• Hold/run feature
• Save/recall up to 6 captures
• FFT function available - size of 256 points and 512 points selectable, sampling rate of 1Ksps to 2Msps selectable
• Transfer screen to PC as bitmap file via serial connection
• Built-in 500Hz/5Vpp test signal
• Frequency Meter (For TTL level input signal)
• Auto switching between Oscilloscope Mode and Frequency Meter Mode
• 9V DC power supply
• Dimension: 110mm X 65mm X 25mm (without case)
• Weight: 125 gram (not including probe and power adapter)

WHAT'S IN THE PACKAGE

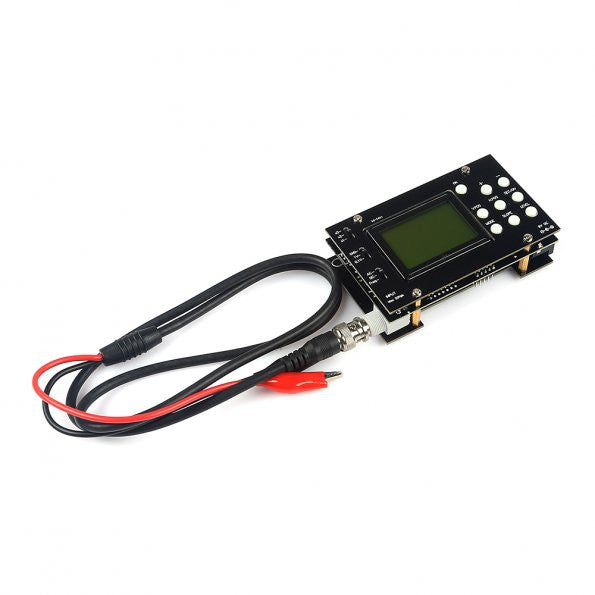

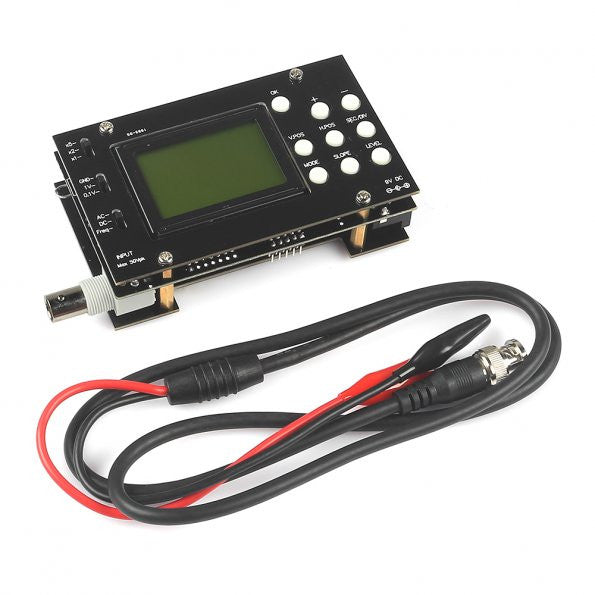

• 1x SainSmart DSO062 1MHz Analog Bandwidth 20MSa/s Oscilloscope DIY Kits
• 1x Probe

The item is DIY kits NOT SOLDERED. Very easy to solder. Thanks.

Documents Download Links:

• Operating Instructions [ 1.9M Bytes, updated 2010.12.15 ]
• Assembly Notes [ 2.1M Bytes, updated 2010.07.09 ]
• Firmware
• Schematic
• Part List
• Assembly Back
• Assembly Front
• Main PCB mechanical file
• Panel mechanical file
• Source Code (Learning Edition)
