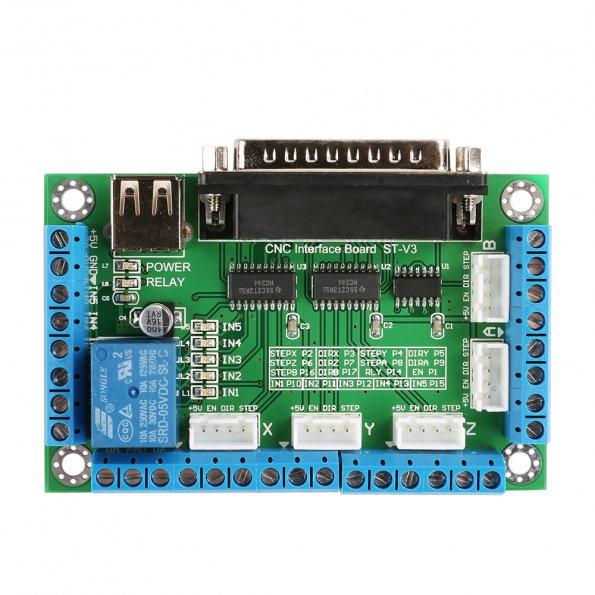

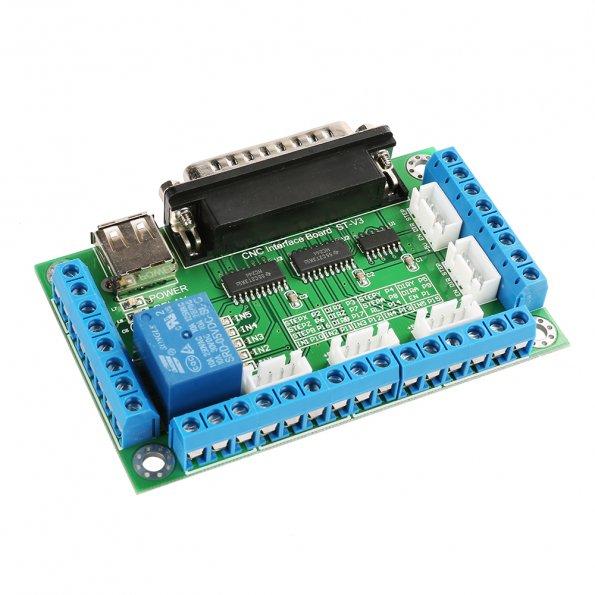

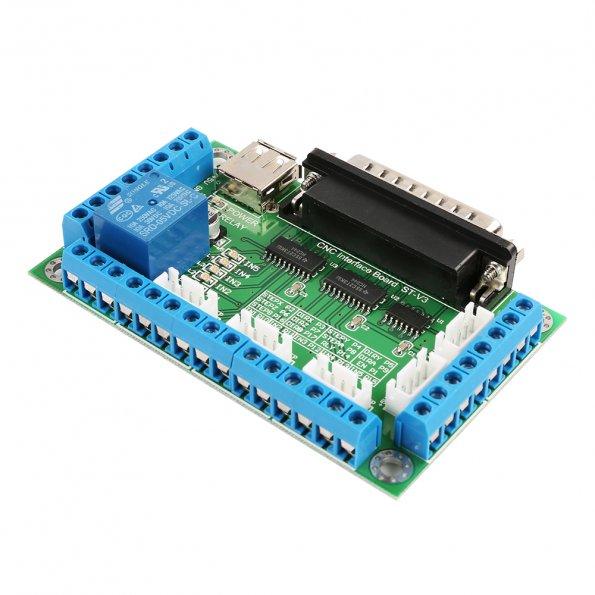

[Discontinued] [Open Box] 5-Axis CNC Breakout Board for Stepper Motor Driver
Brand: SainSmart SKU: 101-60-195*SEC

[Discontinued] [Open Box] 5-Axis CNC Breakout Board for Stepper Motor Driver

SKU: 101-60-195*SEC Variants ID: 39715210199119
$14.99 $21.99
Save $7.00
  • The maximum matching 5-axis stepper motor driver
  • The two-stage signal processing, signal transmission smooth, powerful anti-jamming
  • 5 input interface to define the emergency stop, limit, points in the knife, etc.
  • relay output control interface can be accessed by the spindle motor or the air pump, water pump, etc
  • five-axis job LED display, visual display products, working condition
Please check the necessary options first
I agree to the item is not eligible for exchange or return. Details
  • The maximum matching 5-axis stepper motor driver
  • The two-stage signal processing, signal transmission smooth, powerful anti-jamming
  • 5 input interface to define the emergency stop, limit, points in the knife, etc.
  • relay output control interface can be accessed by the spindle motor or the air pump, water pump, etc
  • five-axis job LED display, visual display products, working condition

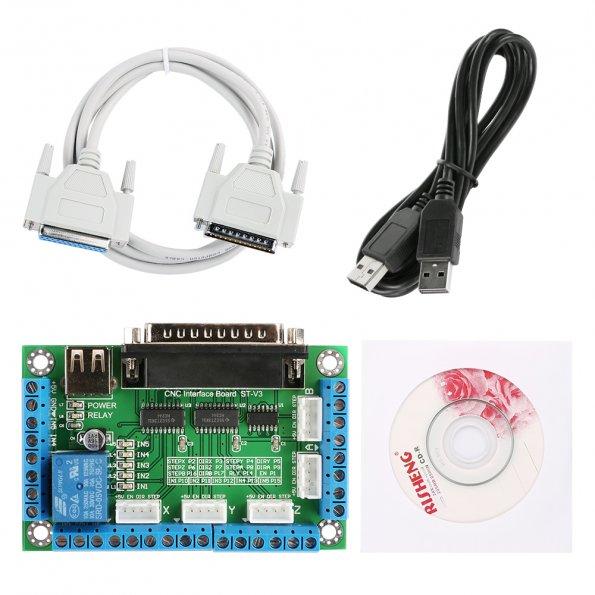

WHAT’S IN THE PACKAGE
  • 1 x 5-Axis CNC Breakout Board
  • 1 x DB25 parallel cable
  • 1 x USB cable
  • 1 x CD

Note:

  • This board has no PWM and 0-10V output.
  • It can control on five axis at the same time, please follow the instructions or import the CD configuration file mach3mill.XML.
  • Need to set the pin, you can not use the default configuration mach3, please follow instructions or CD for the software.
  • Please buy the compatible Mach3 software if your computer is Windows 64-bit system.
