SainSmart.com
Brand: SainSmart

[Open Box] Controller Board for Genmitsu CNC Router 3018, 3018-PRO, 1810-RPO

[Open Box] Controller Board for Genmitsu CNC Router 3018, 3018-PRO, 1810-RPO

SKU:  101-60-284*SEC
1 review
$29.99
-40% $39.99 $29.99
Save $10.00
Shipping calculated at checkout.
Option
  • 101-60-284*SEC
  • 101-60-283*SEC
Please check the necessary options first
I agree to the item is not eligible for exchange or return. Details

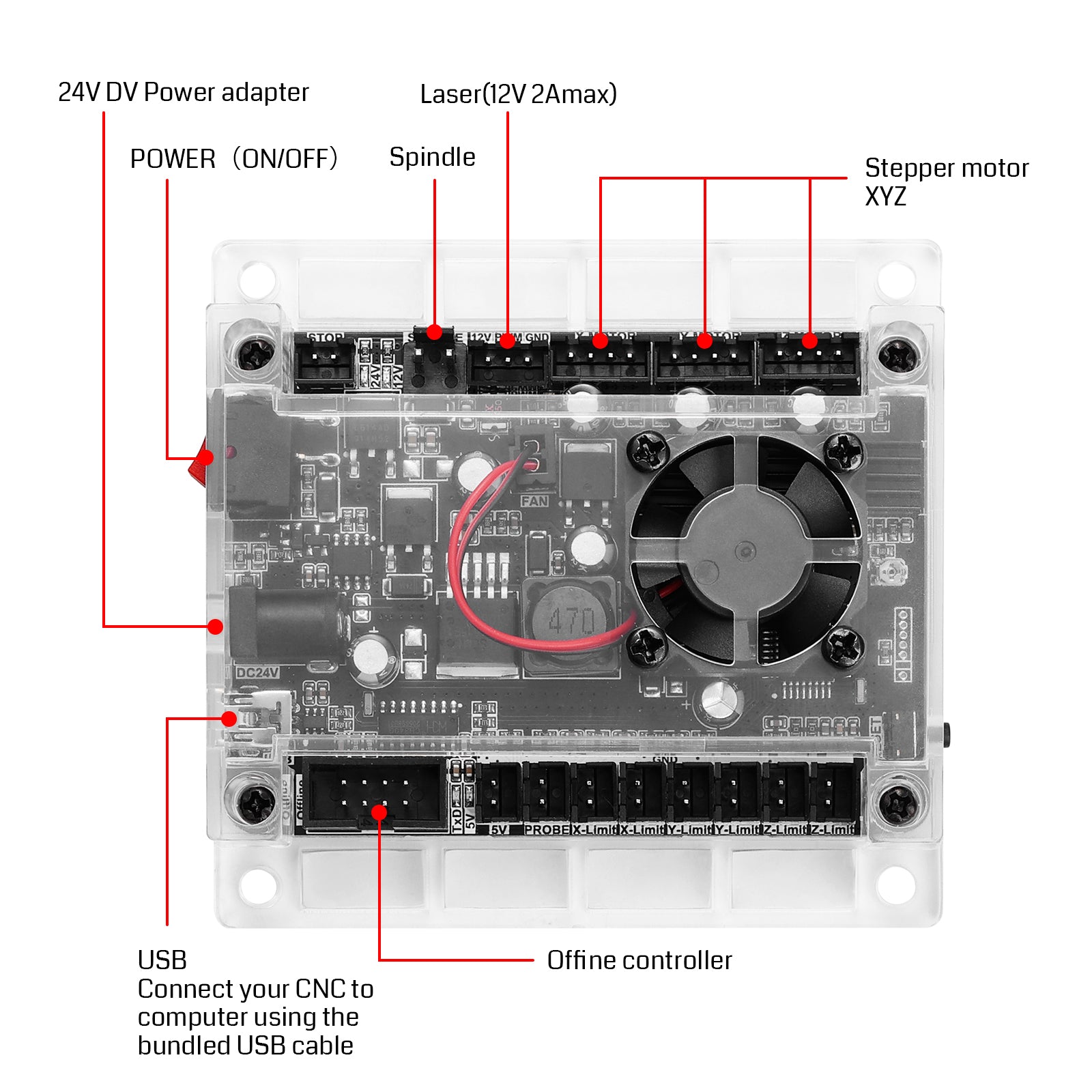

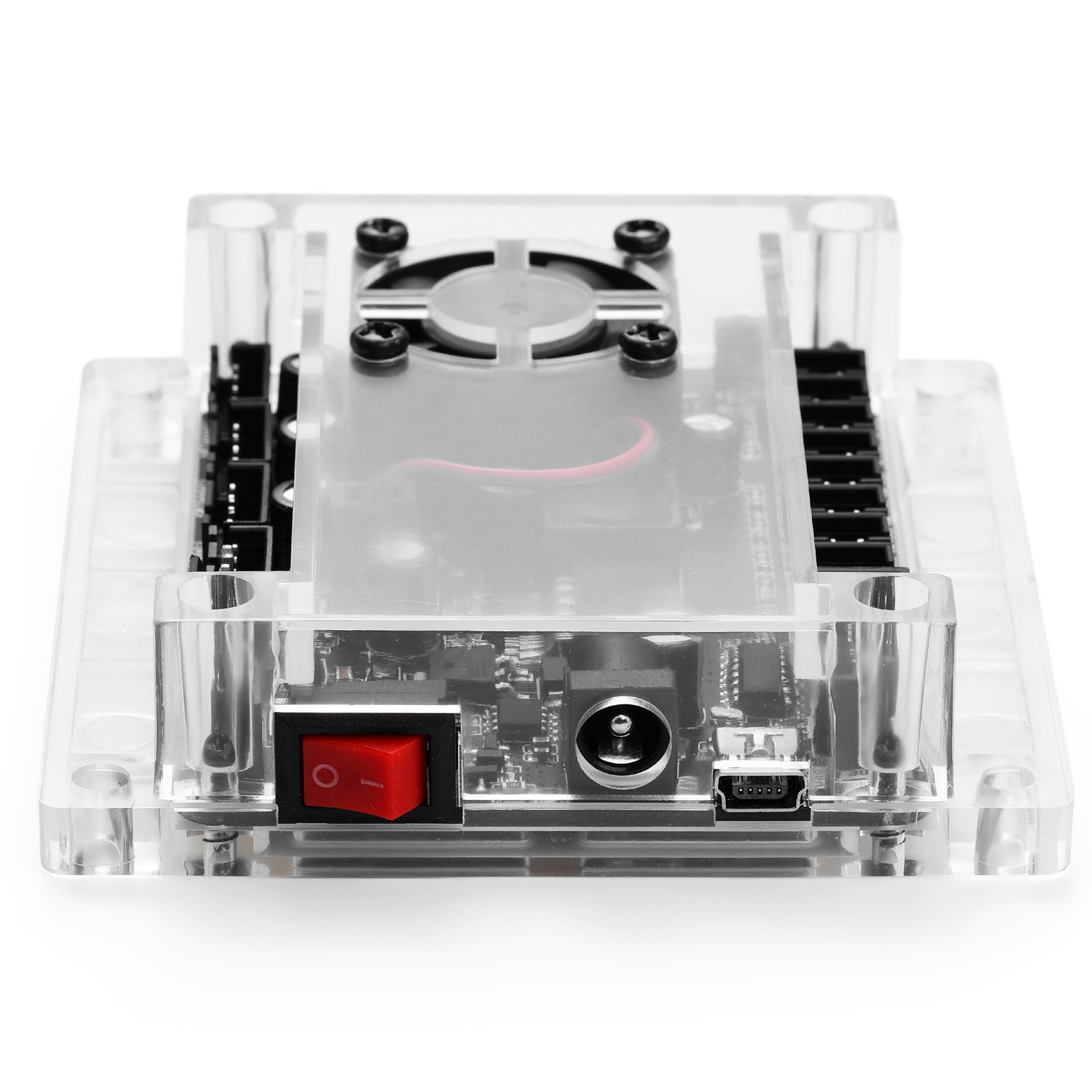

This controller board is designed for Genmitsu CNC Router 3018, 3018-PRO and 1810 PRO. It can perfectly compatible with SainSmart Blue Laser Module.

  • Input voltage: 24V (12-24V).
  • Software: GRBL controller, UniversalGcodeSender.
  • Stepper motor drive: DRV8825 ，Spindle power: 150W.
  • Support XYZ three-axis control, spindle, laser head. Support 3 pin and 2 pin lasers (the 2 pin lasers: please connect the white interface " + s-").
  • Support stepper motor: 12V, the maximum current within 2A, recommended within 1.5A and additional heat. (Any stepper motor 42, 57).
View full details
FEATURE
  • Support Laser engraving.
  • Support spindle PWM speed control.
  • Support XYZ triaxial control, spindle, laser head.
  • Spindle drive chip 1: MOSFET (recommended input voltage within 12-24V, current 10A).Can be connected to high-power spindle motor or the laser head.
  • Spindle drive chip 2: MOSFET (current maximum 2A !!).Can only be connected within the 2A head of the laser, the voltage 0-12V can be adjustable.

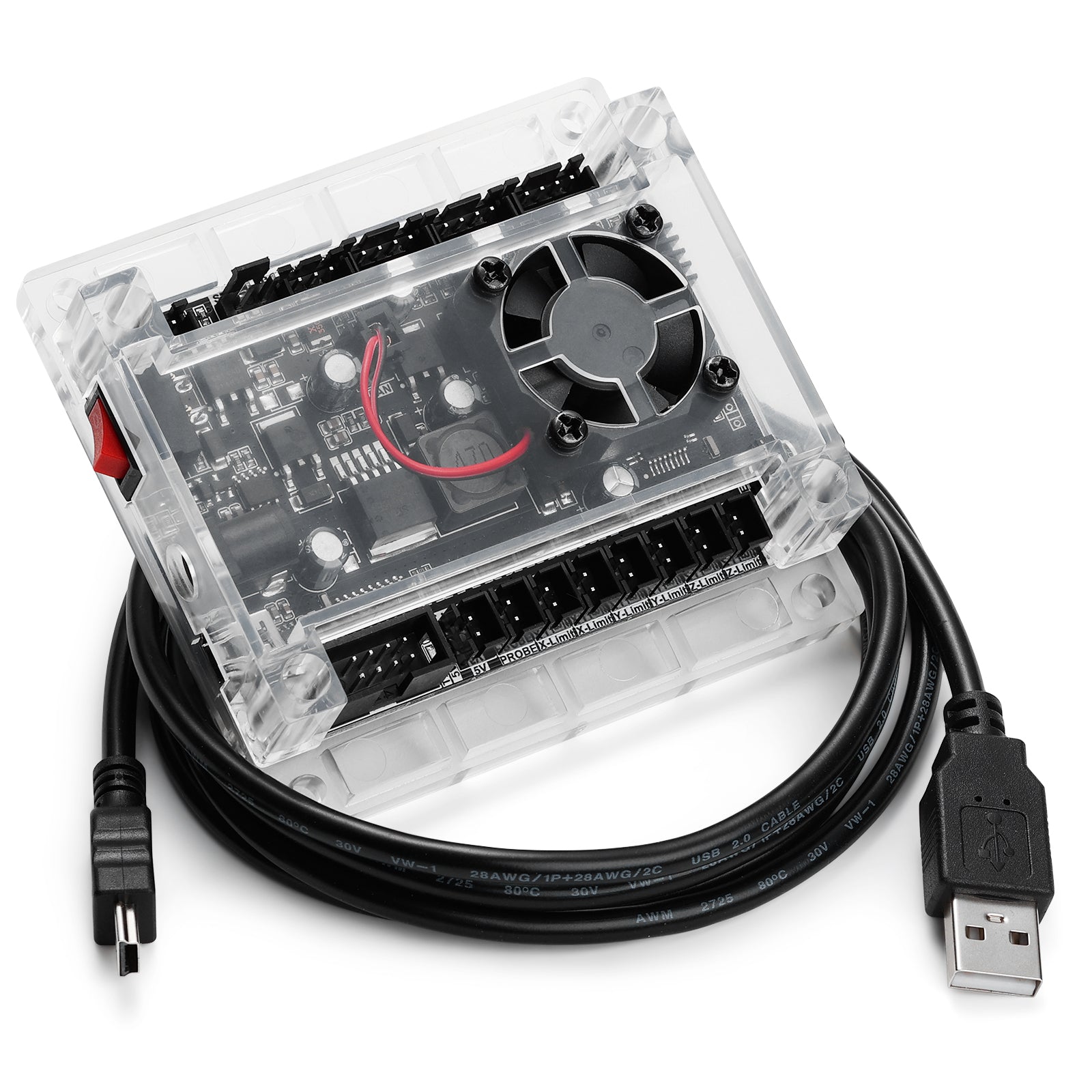

WHAT'S IN THE PACKAGE
  • 1 x Controller Board
  • 1 x USB line
