Brand: Genmitsu

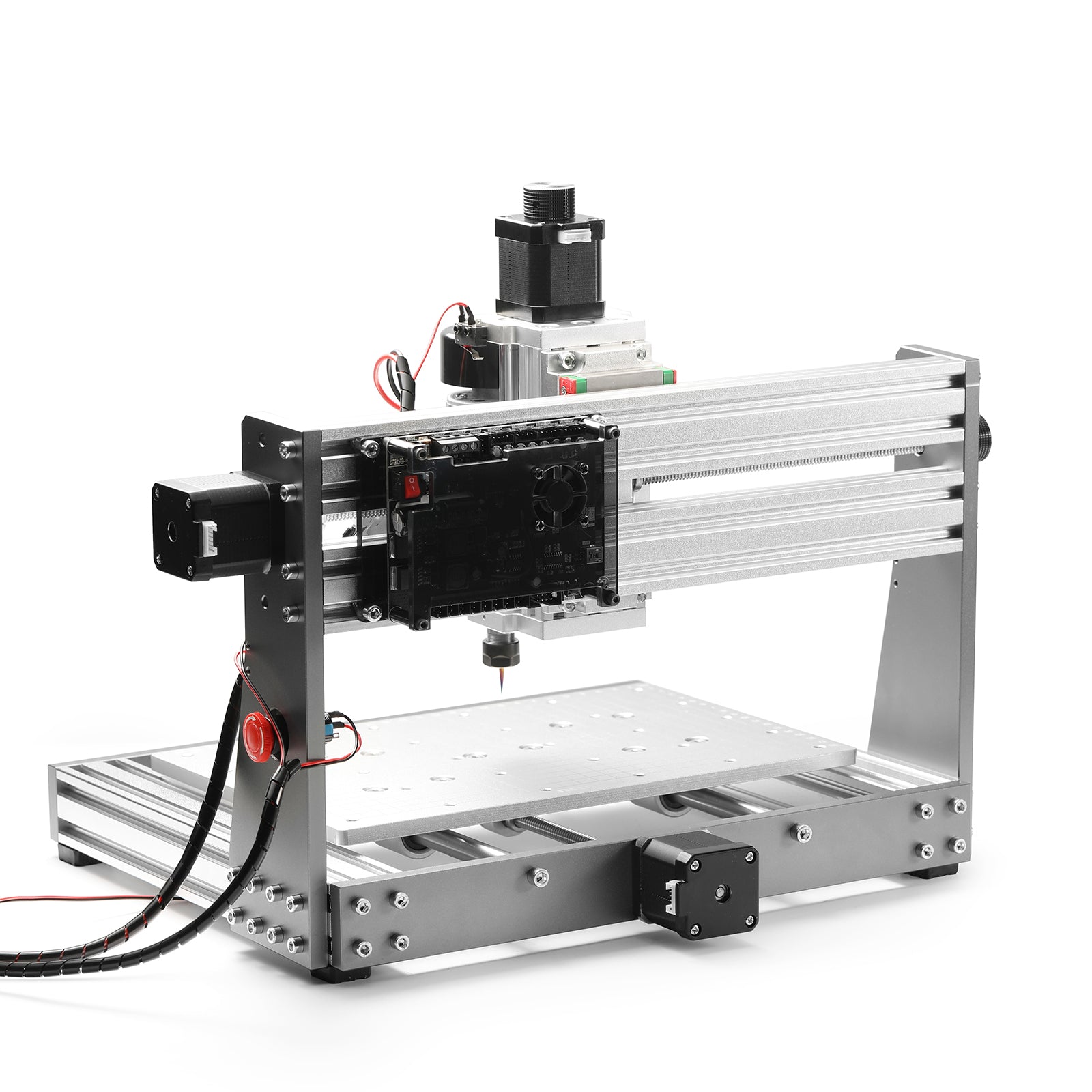

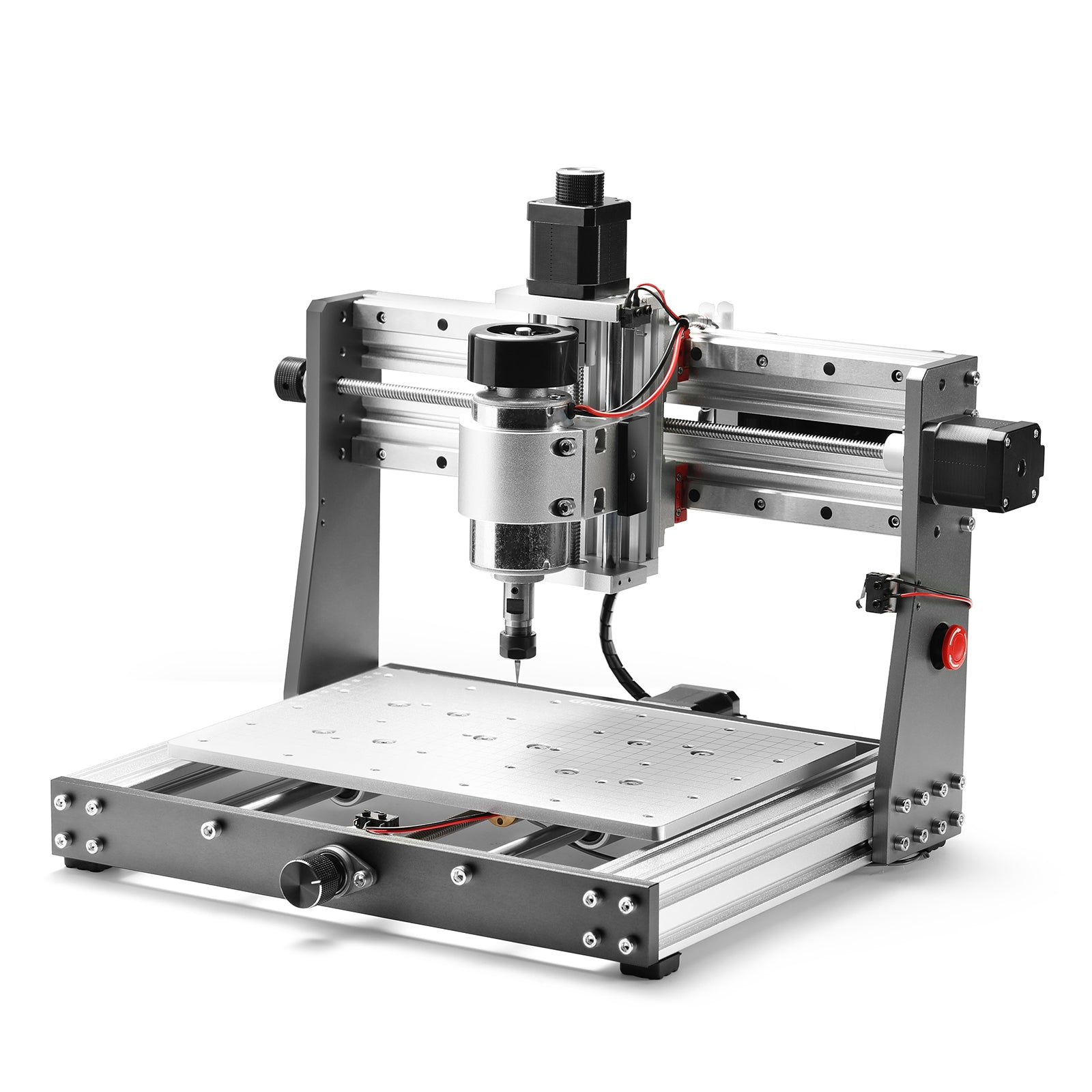

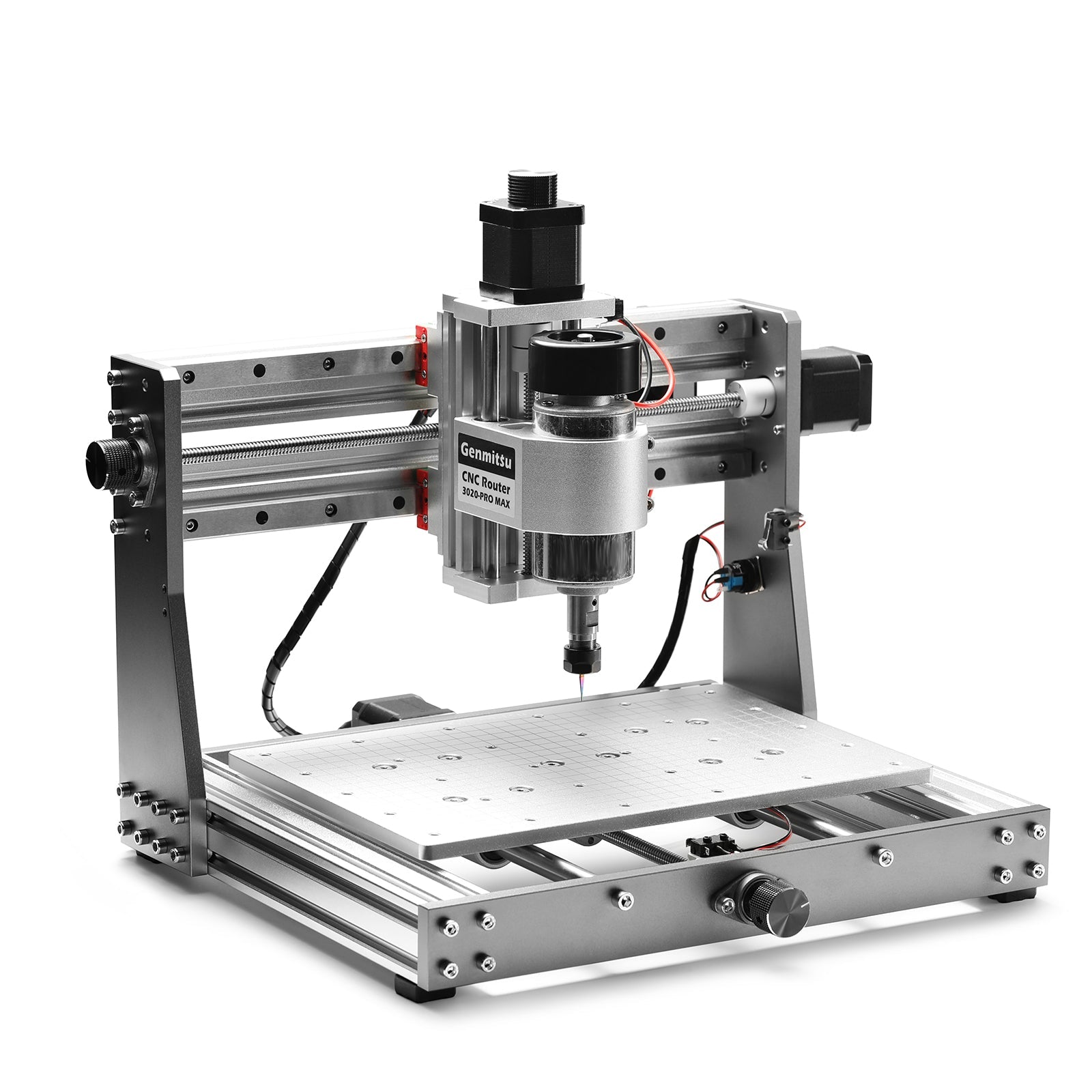

[Open Box] Genmitsu 3020-PRO MAX CNC Router Machine for Metal Carving and More

Name: [Open Box] Genmitsu 3020-PRO MAX CNC Router Machine for Metal Carving and More
Brand: Genmitsu
SKU: 101-60-3020PROMAX-A*SEC
Price: 349.0 USD
Availability: OutOfStock

SKU: 101-60-3020PROMAX-A*SEC

$349.00

-36% ~~$549.00~~ $349.00

Free Shipping

Save $200.00

Shipping calculated at checkout.

Product variants

101-60-3020PROMAX-A*SEC

Quantity

Please check the necessary options first

I agree to the item is not eligible for exchange or return. Details

View full details

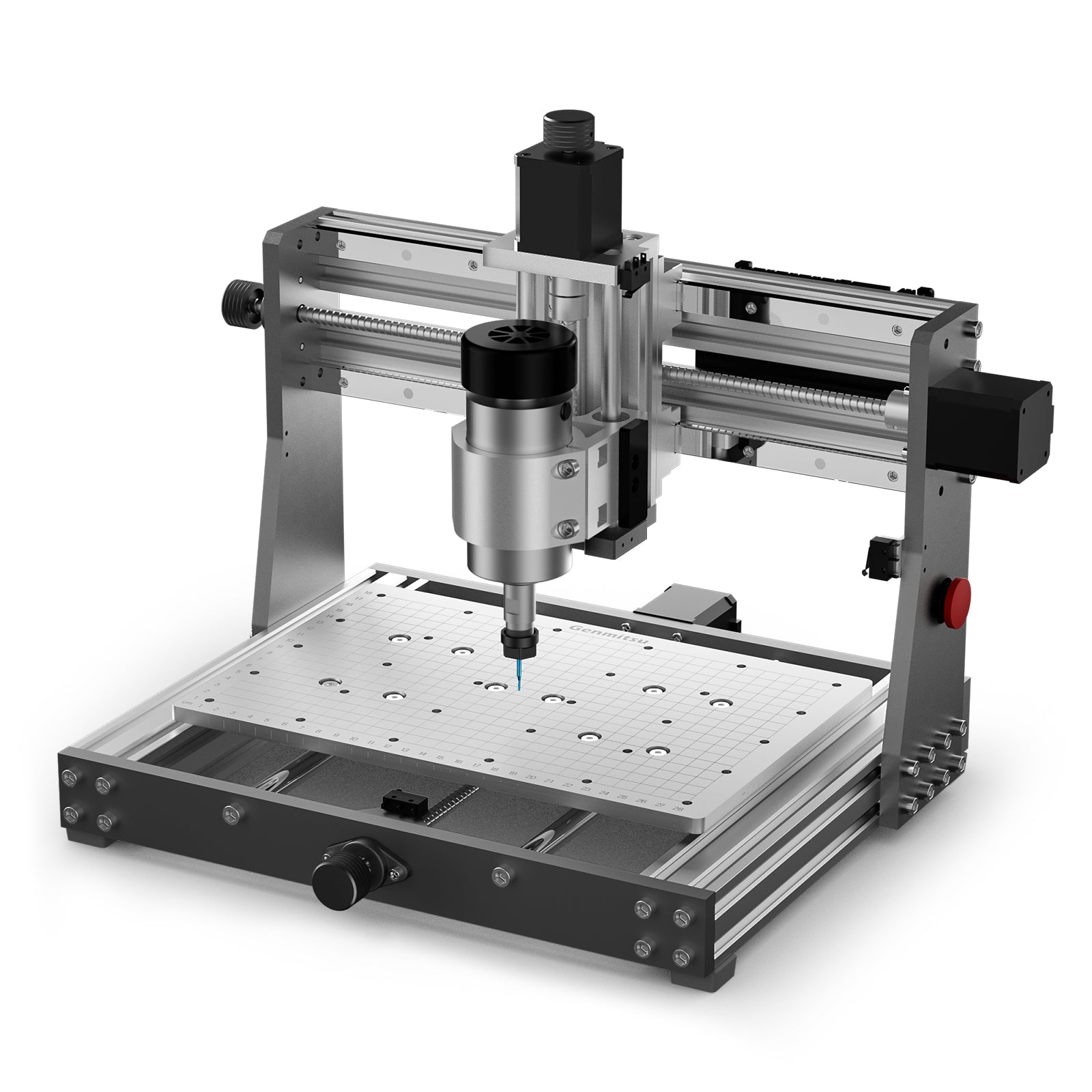

Design for Metal Carving and more

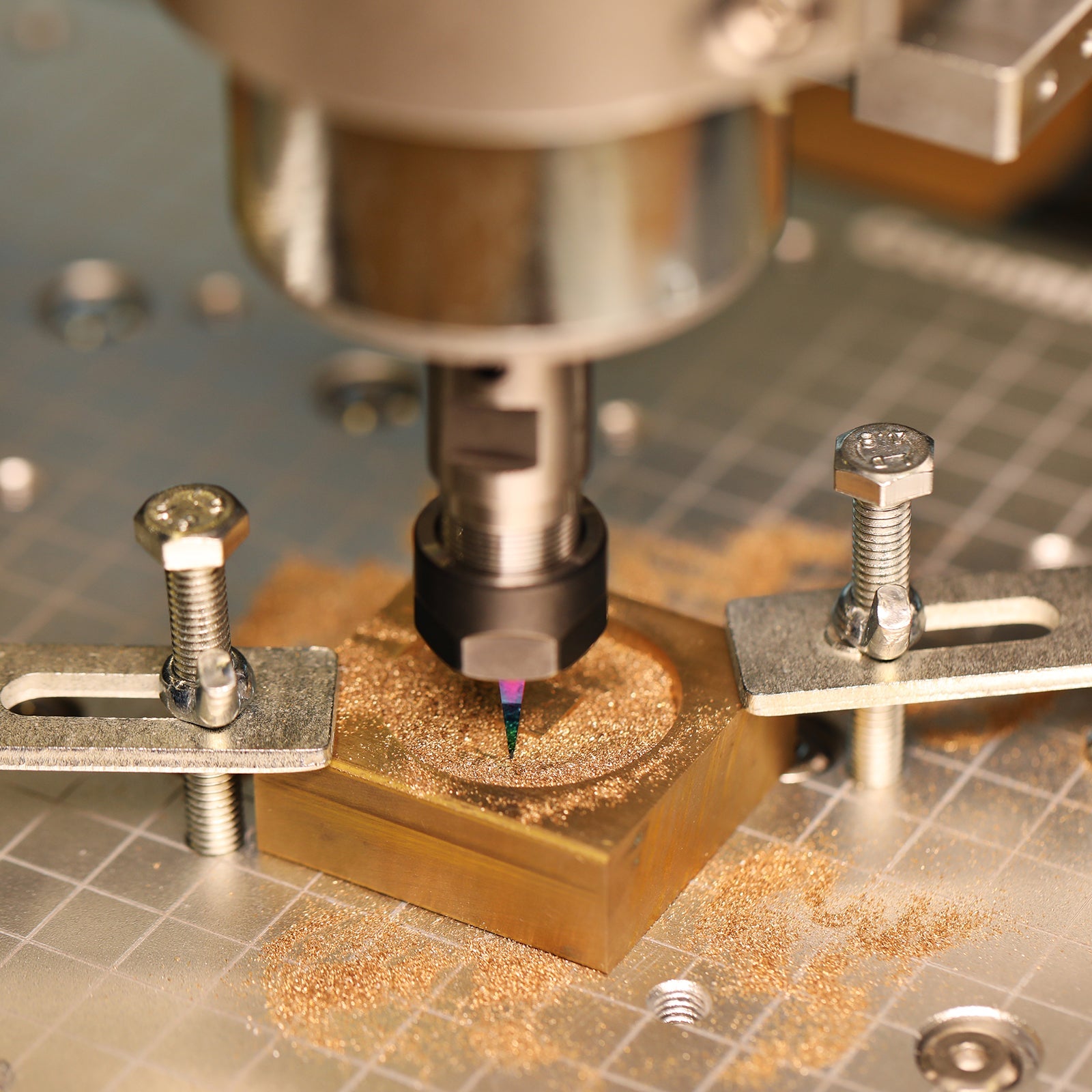

Enhanced design and increased Z Height of 72mm with the Genmitsu 3020PRO MAX. The all metal spindle holder and 300W spindle makes metal carving easier, ideal for an endless variety of drilling, and carving operations on various metals

Genmitsu 3020-PRO MAX CNC Router Kit, for Metal & Wood Engraving | SainSmart

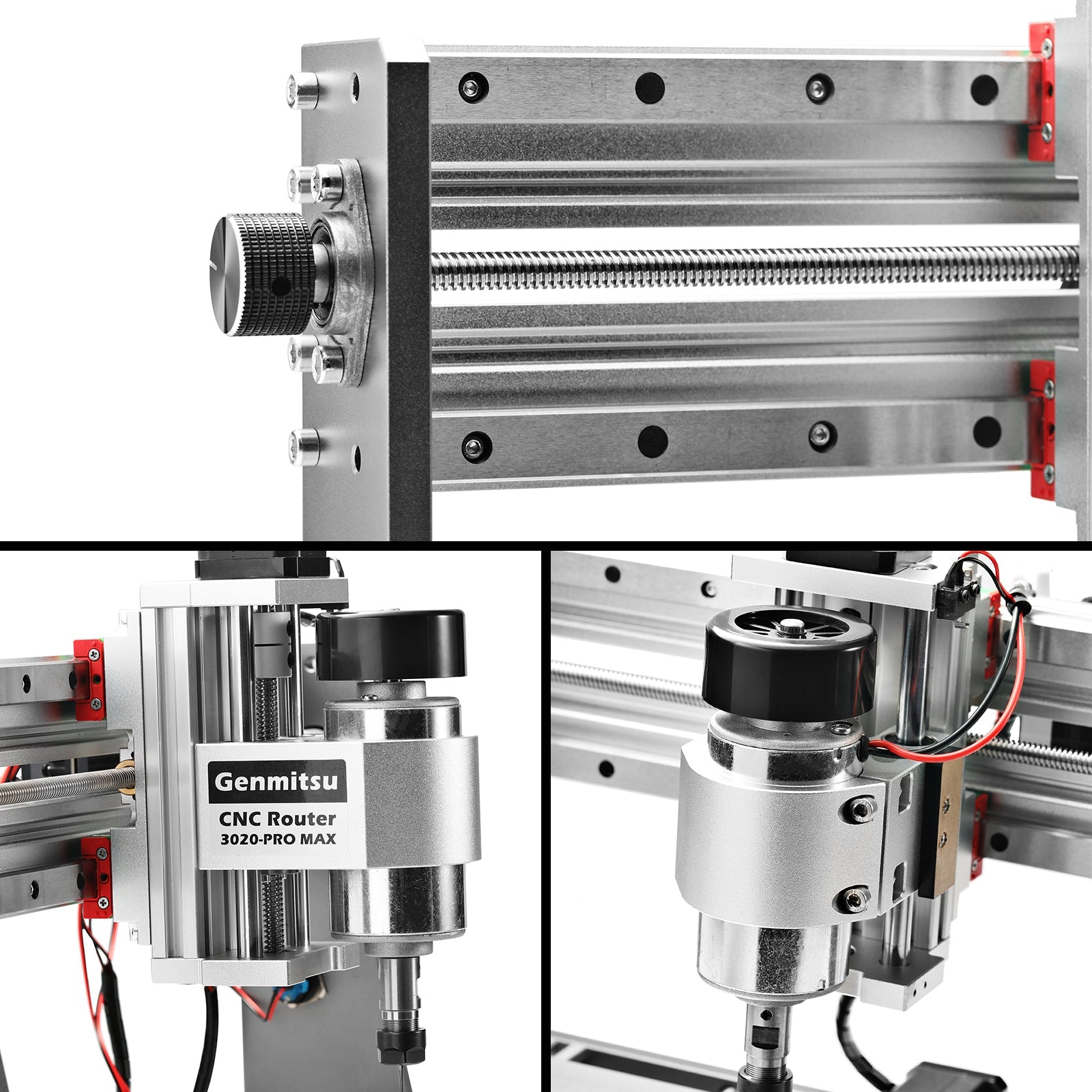

High Strength

With the all-aluminum body, high rigidity spindle holder and new linear guide structure, the 3020PRO MAX can easily mill on a wider range of materials with high precision, the increased speed would not compromise the carve.

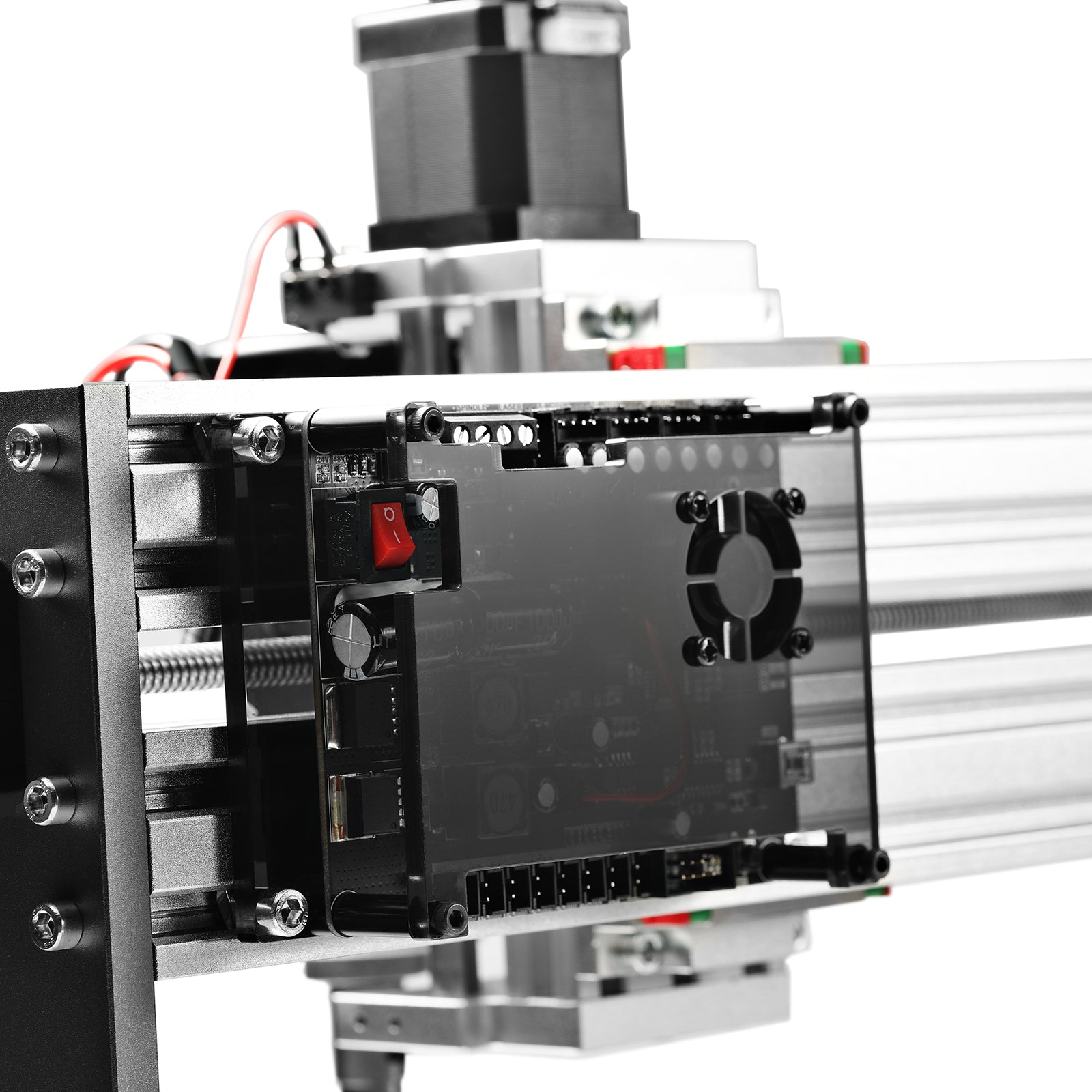

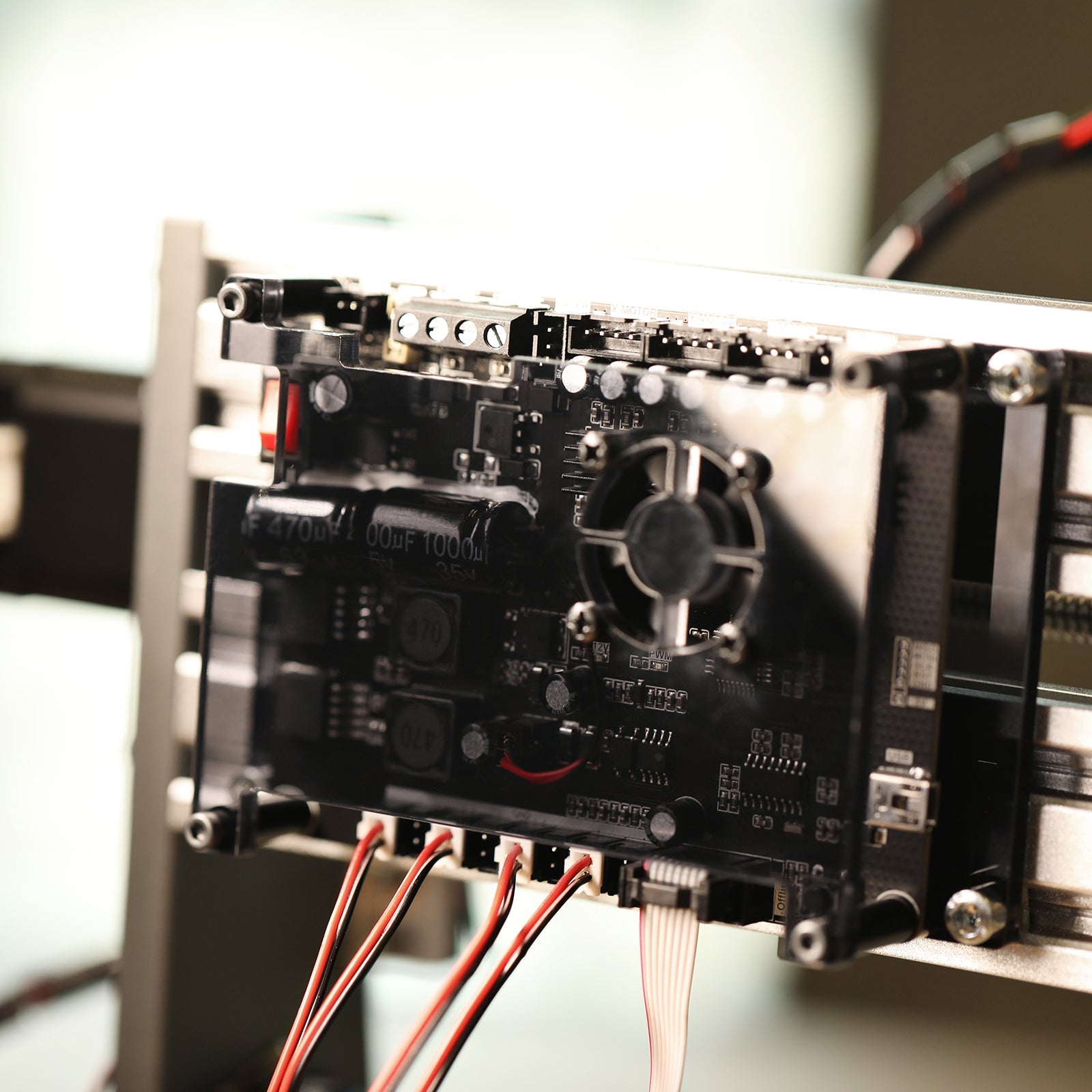

Redesigned Control Board

Still based on open-source Grbl v1.1, the redesigned control board provides more operational capability and extensibility for the 3020PRO MAX CNC machine. It integrates the interface for offline controller, XYZ axis limit switches, emergency stop switches, Z-probe and more. Also, it supports the laser engraving (Need to order the laser module separately).

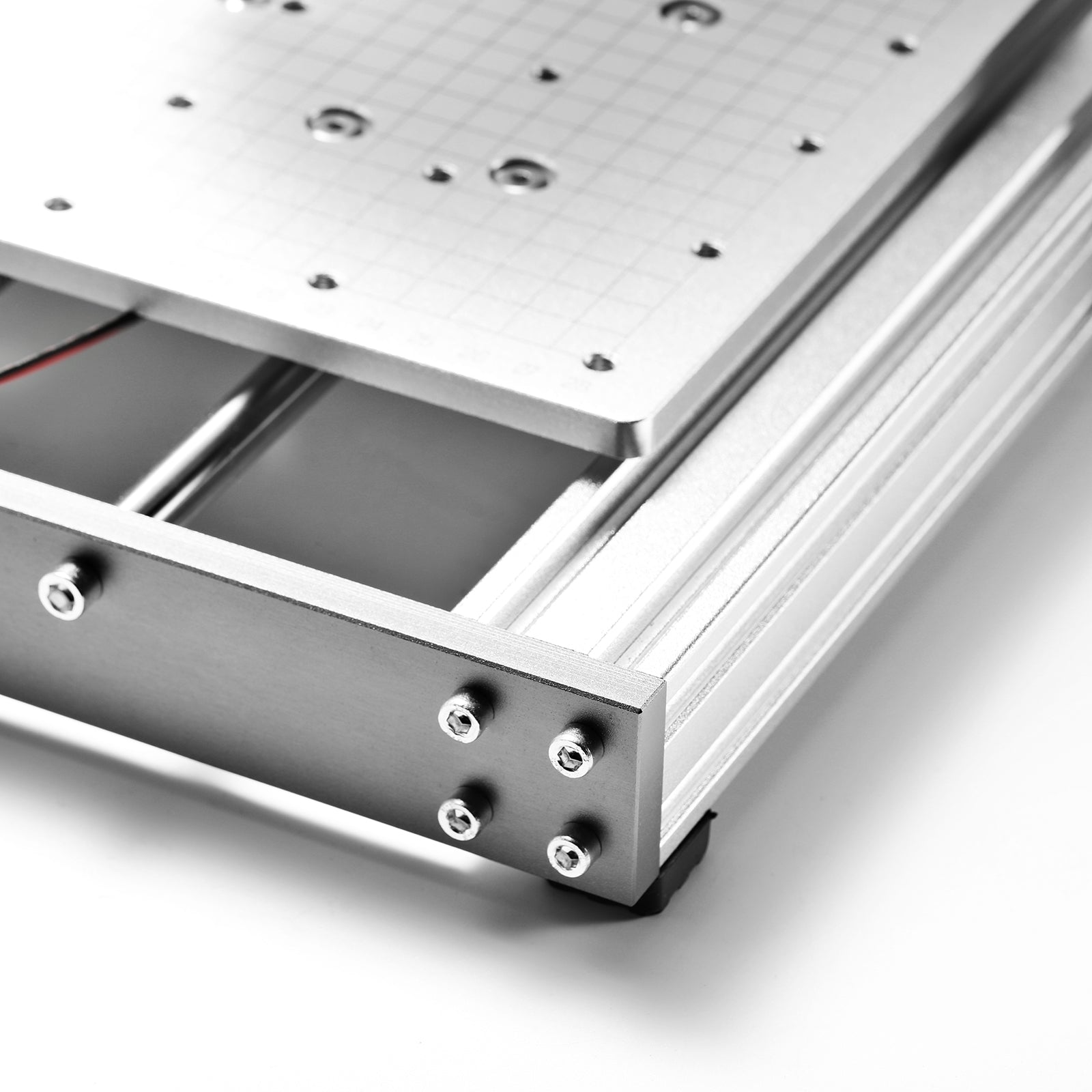

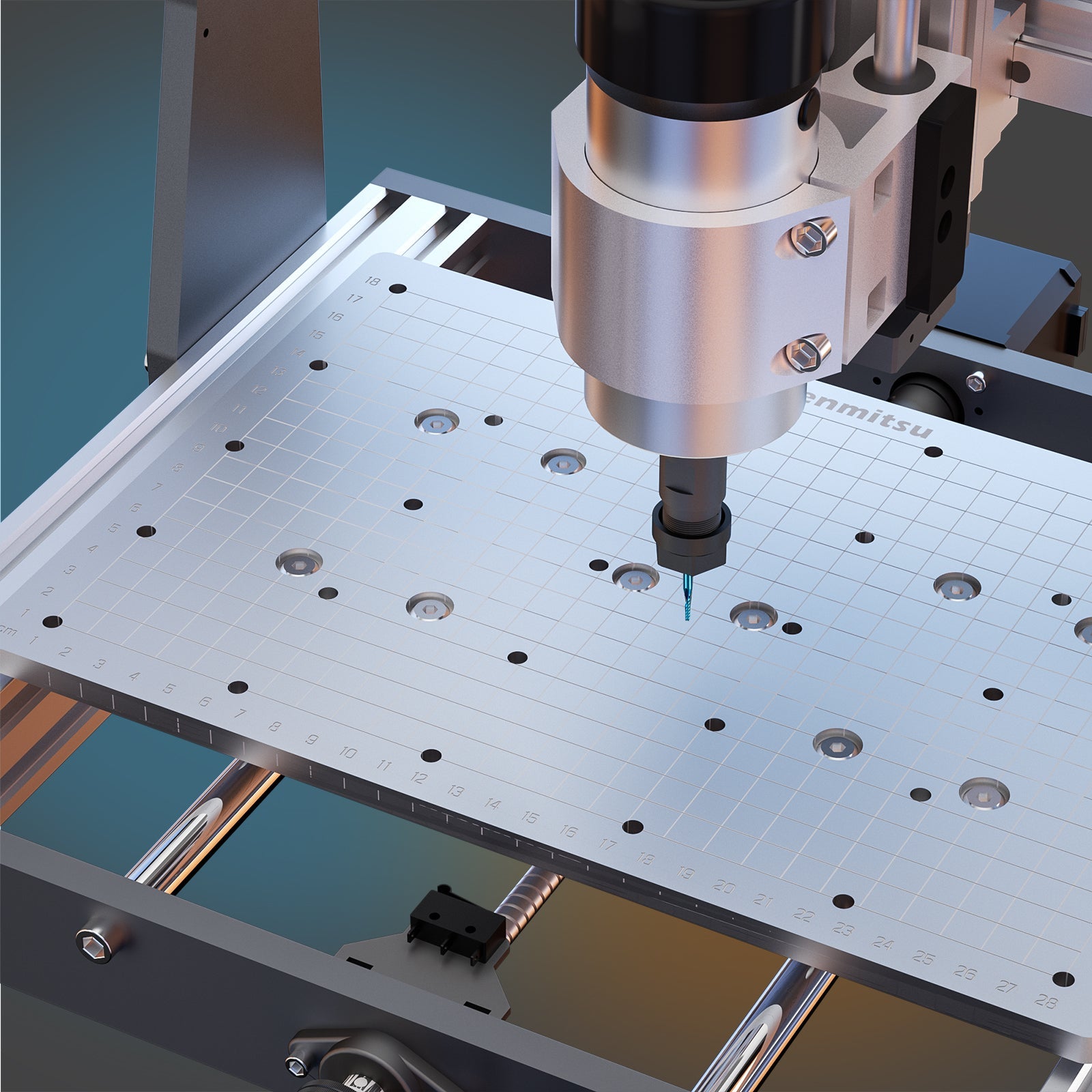

Integrated Scale Aluminum Platform

One-piece machined and molded aluminum design ensures flatness and strength of the platform. integrated scale design is convenient for material positioning. The platform compatible with most of the CNC clamps on the market.

Chromatic Coating End Mills

We are offering three individual packings of router bits. High strength and durability give a great ability to carve metal and more materials.

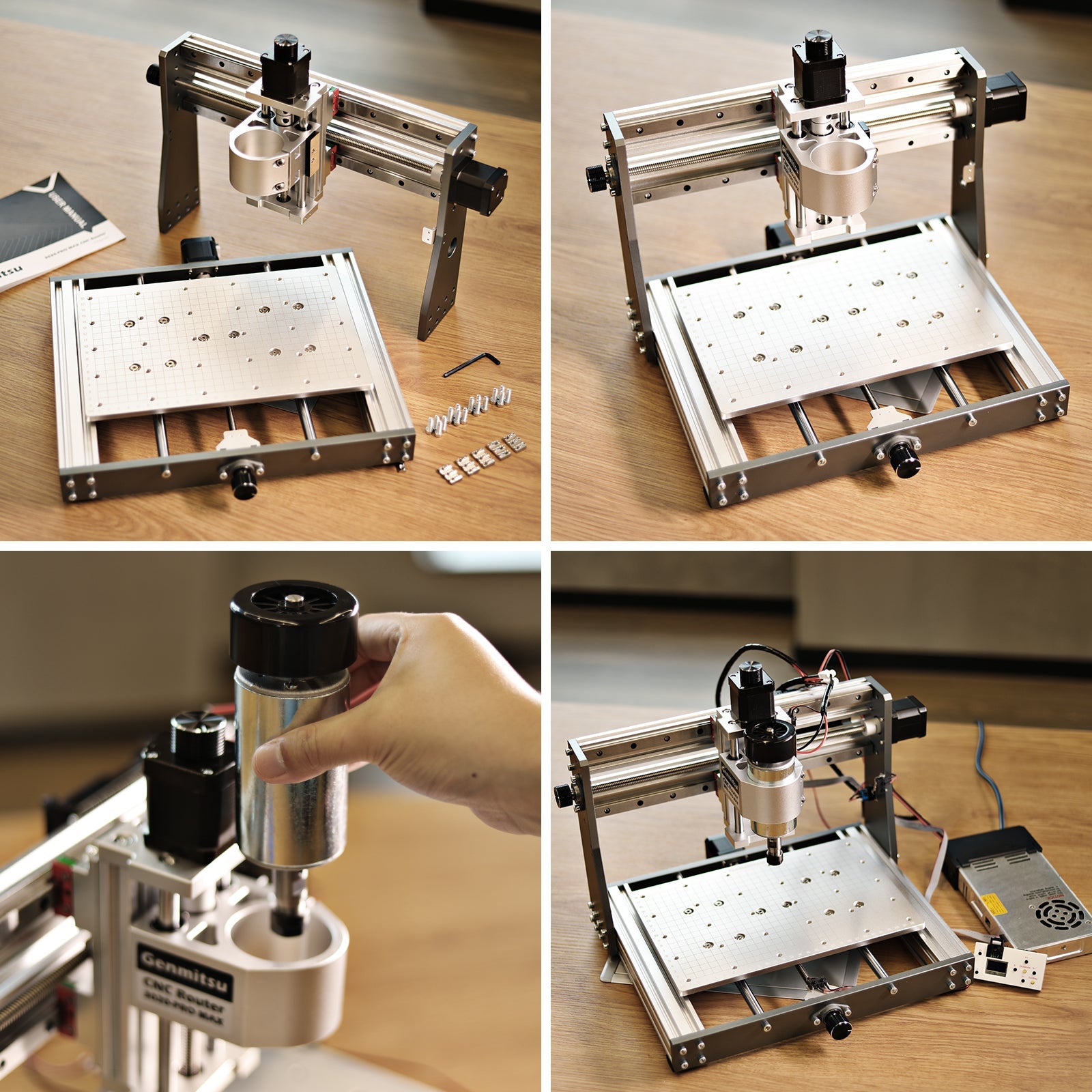

Easy to Upgrade

Although our standard spindle can already meet the requirements of most projects, the control board and spindle holder still support the upgrade to 600W spindle, making the 3020-PRO MAX more powerful. Also, more and more upgrade accessories will come soon!

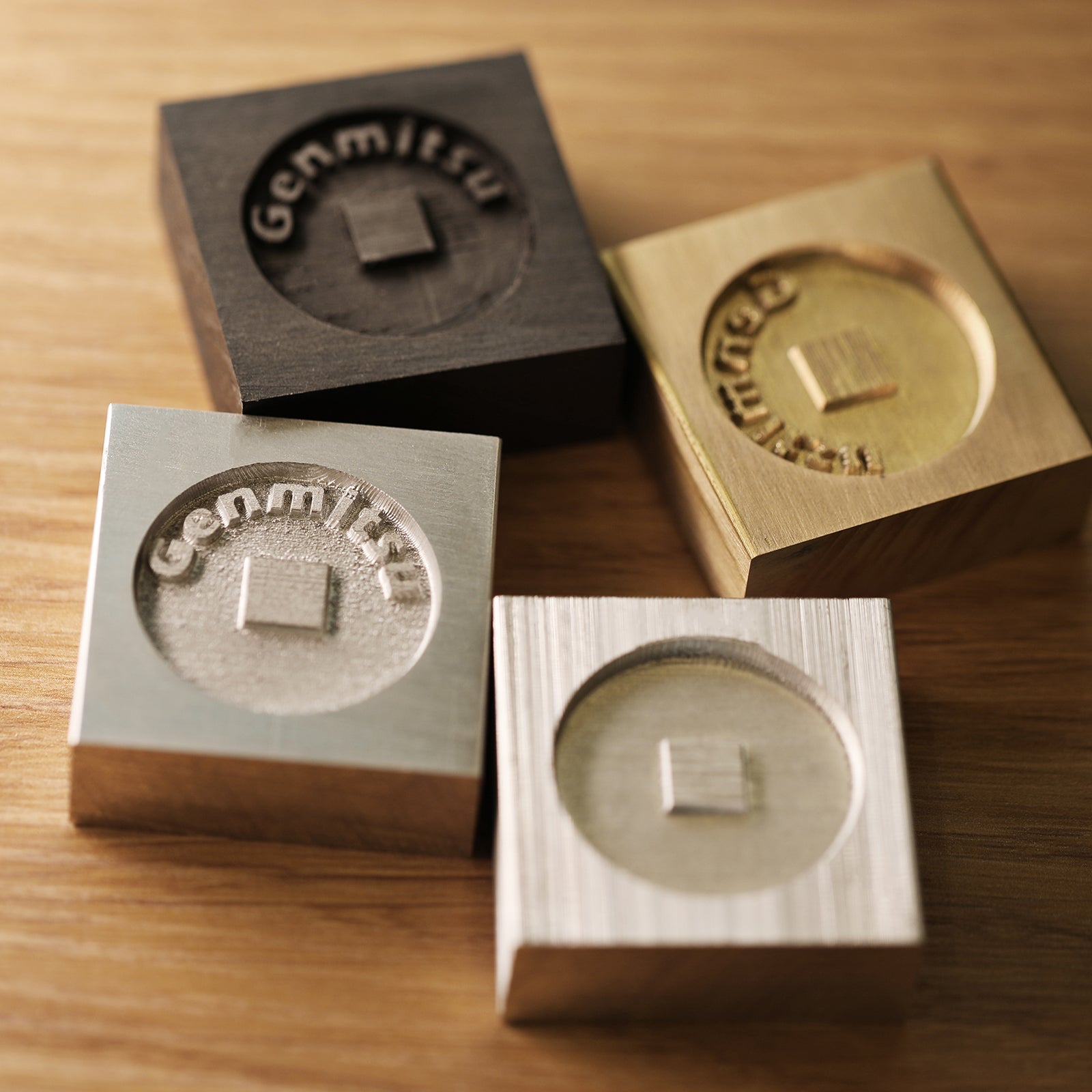

Made By 3020-PRO MAX

Specifications

Test & Review

Specification

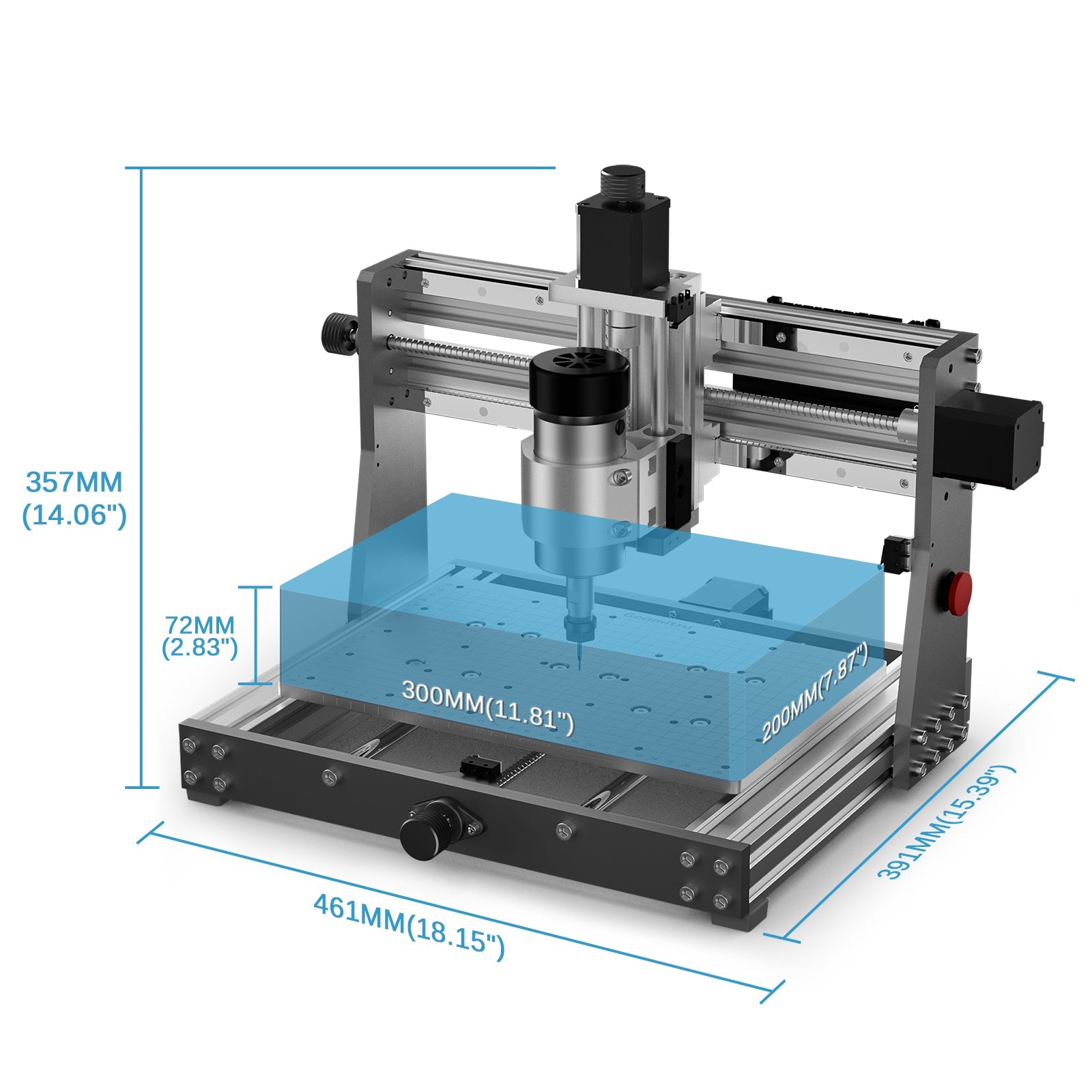

Work Area	300 x 200 x 72mm (11.81 x 7.87 x 2.83inch)
Drive System	Liner guide & T-nut screw
Control Board Compatibility	GRBL 1.1h
Stepper Driver	A4988
Stepper Motors	42x48mm
Spindle	300W/12000RPM
Accuracy	±0.1mm
Power Supply	48V/7.3A
CAM Software	Candle, Carveco Maker, Easel
Limit Switches	Yes
Emergency Stop	Yes
Offline Controller	Yes
Overall machine size	391 x 461 x 357mm(15.39" x 18.15" x 14.06")
Machine Weight	10.8kg
Rotary 4th Axis	Coming Soon
Laser Module	Support laser module with 33mm width.
Support OS	Windows XP/7/8/10, Linux, Mac OS

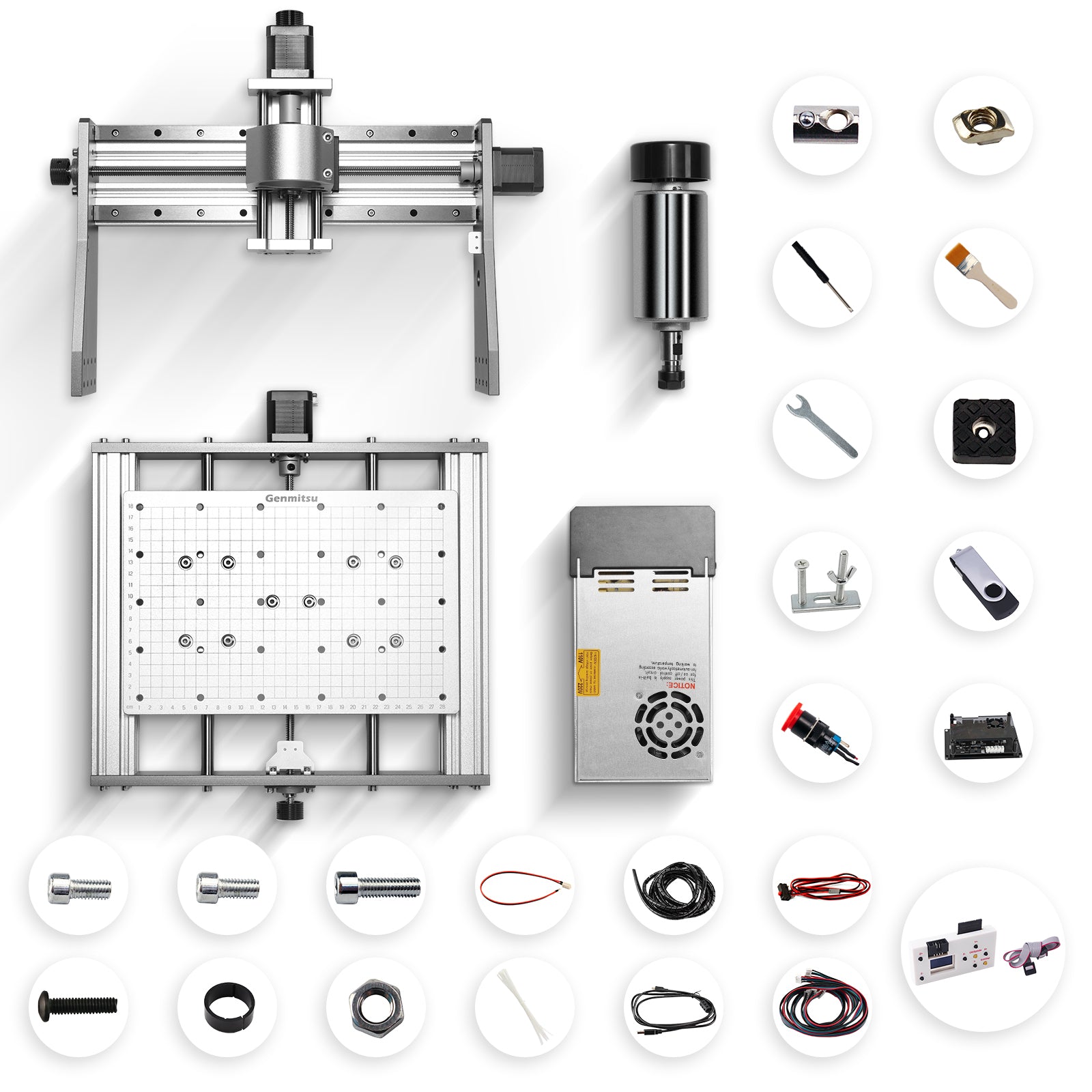

What's included
1x 3020-PRO MAX CNC Router Kit	1x English Manual
1x Extension Rod with ER11 Collet (3.175mm)	1x Offline Controller
4x Plate Clamps	1x Emergency Stop
10x 20 Degree Engraving V-Bit	1x Z-Axis Touch Probe

Recommended Materials
6061 Aluminum	Leather
Copper	Plexiglass
Brass	Vinyl
Graphite Blocks	Resin
Sterling Silver	Nylon
Gold	PCB
POM	PVC
Wood	Chipboard
MDF	Laminated Veneers
Cast Acrylic	Carbon Fiber
Resin Wood

Which CNC is right for you?

3018-PRO

SHOP NOW

300 x 180 x 45mm

11.8 x 7.1 x 1.8in

Working Area

＜2h

Assembly Time

Bakelite & Aluminum

Frame

V-slot Linear Rails

Structure

T-track

Spoilboard

DRV8825

Driver Chip

775motor 9kRPM

Spindle Motor

1.3A

Stepper Motor

3018-PROVer

SHOP NOW

300 x 180 x 45mm

11.8 x 7.1 x 1.8in

Working Area

＜1h

Assembly Time

All Aluminum

Frame

V-slot Linear Rails

Structure

T-track

Spoilboard

TB67S109

Driver Chip

775motor 10kRPM

Spindle Motor

1.3A

Stepper Motor

3020-PRO MAX^NEW

SHOP NOW

300 x 200 x 72mm

11.81 x 7.87 x 2.83in

Working Area

15-30min

Assembly Time

Aluminum and Steel

Frame

Dual Steel X Axis Guide Rails

Structure

Scale Grid

Spoilboard

A4988

Driver Chip

300W 12kRPM

Spindle Motor

XY-1.5A
Z-1.8A

Stepper Motor

PROVerXL 4030

SHOP NOW

400 x 300 x 110mm

15.75 x 11.81 x 4.33in

Working Area

＜1h

Assembly Time

All Aluminum

Frame

C Beam Structure & Linear Rails

Structure

MDF

Spoilboard

TB6560

Driver Chip

300W 12kRPM

Spindle Motor

2Phase 3A

Stepper Motor
