Brand: SainSmart

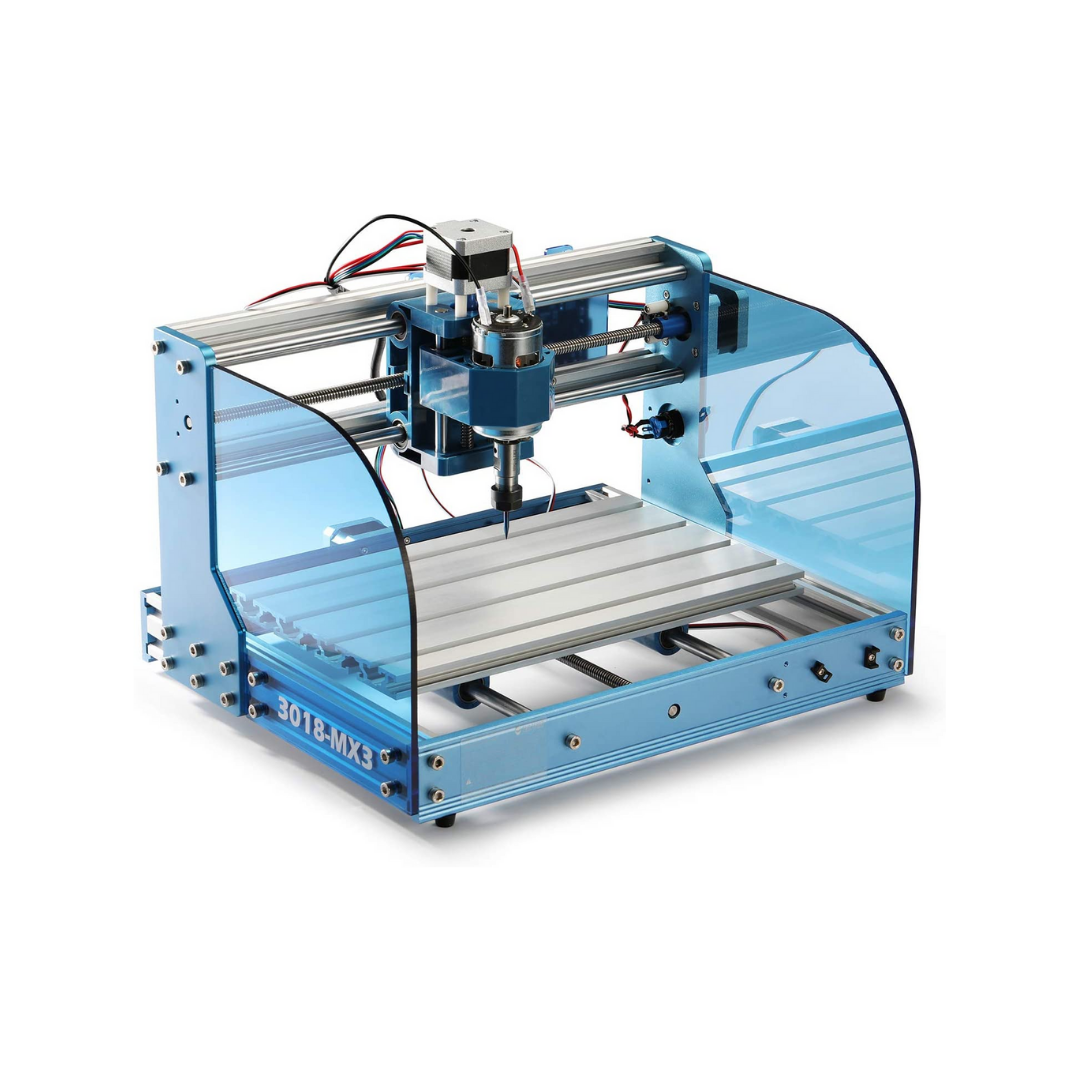

[Open Box] Genmitsu CNC Router 3018-PROVer Mach3 Kit

[Open Box] Genmitsu CNC Router 3018-PROVer Mach3 Kit

SKU:  101-60-3018MX3*SEC
$249.00
-28% $349.00 $249.00
Free Shipping
Save $100.00
Shipping calculated at checkout.
Ship to
  • 101-60-3018MX3*SEC
  • 101-60-3018MX3*SEC
Please check the necessary options first
I agree to the item is not eligible for exchange or return. Details

Compatible With Mach3: Mach3 is professional software that can turn a PC into a CNC machine controller. 3018-PROVer Mach3 is the only budget-friendly and home CNC alternative to high-end industrial machines that allows you to learn Mach3 software and grow your CNC skills.

Semi-Assembled: It is mostly pre-assembled and no fuss with basic setup taking less than 15 minutes out of the box. Upgraded with the all-aluminum body and take advantage of the added stability for milling a wider range of materials while also making clean up even easier with acrylic safety baffles to help contain dust and provide a safety barrier.

Auto Tool Zero: With one mouse click, 3018-PROVer Mach3 will automatically return to a predefined position, allowing you to easily change and calibrate your tools.

Versatile: Capable of cutting all types of plastics, soft aluminum, woods, acrylics, PVCs, and PCBs, 3018-PROVer Mach3 can be used on a wide range of projects and materials. The open design with an effective engraving area of 260 x 155 x 35mm (10.2 x 6.1 x 1.4'') allows you to work on even larger pieces with fewer limits.
View full details

Genmitsu CNC Router 3018-PROVer Mach3 Kit | SainSmart

Genmitsu CNC Router 3018-PROVer Mach3 Kit | SainSmart

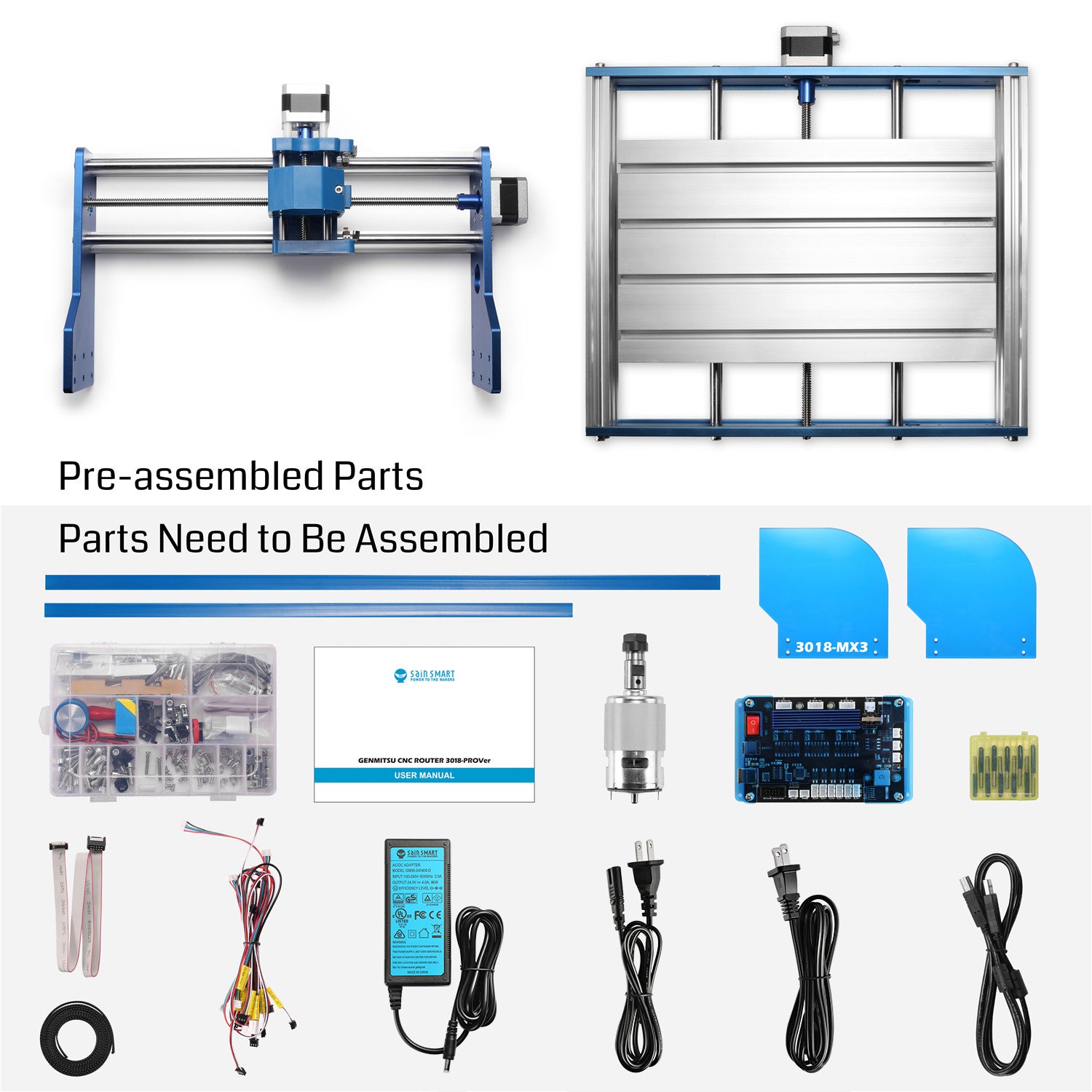

Efficient Pre-assembly

The upgraded 3018-PROVer Mach3 desktop CNC machine is pre-assembled, which allows you to be up and running in 15 minutes instead of 2 hours, saving more time to engrave.
Genmitsu CNC Router 3018-PROVer Mach3 Kit | SainSmart

High-quality Material

Boasts an all-aluminum body with an oxide blue look, the 3018-PROVer Mach3 gives you a premium look and feel for your machine.
Genmitsu CNC Router 3018-PROVer Mach3 Kit | SainSmart

Controller Board

It's suitable for Mach3 and DrufelCNC, and supports the Windows system. The spindle motor interface can be connected to DC motors which can up to 100W, also suitable for 775 spindle motors.
Genmitsu CNC Router 3018-PROVer Mach3 Kit | SainSmart

Safety Design

The 5mm acrylic baffles can block the 'flying' pieces of wood/other cutaway materials so that you can safely monitor the engraving process
Genmitsu CNC Router 3018-PROVer Mach3 Kit | SainSmart

Compatible With Mach3

3018-PROVer Mach3 is the only budget-friendly and home CNC alternative to high-end industrial machines that allows you to learn Mach3 software and grow your CNC skills.
Genmitsu CNC Router 3018-PROVer Mach3 Kit | SainSmart

Wide Application

With its powerful 9000 RPM spindle and sturdy frame, 3018-PROVer Mach3 can easily carve through wood, plastic, PVBs, PCBs, acrylics, and soft aluminum.

Note:
3018-PROVer Mach3 also compatible with DrufelCNC, a free software. You can also switch to our PROVer controller board if you want to use GRBL software with 3018PROVer Mach3.

*Laser is not supported on 3018-PROVer Mach3.

Specification:
Effective Engraving Area 260 x 155 x 35mm(10.2 x 6.1 x 1.4'')
Frame Size 400 x 330 x 240mm(15.7 x 13.0 x 9.4'')
Frame Material Aluminum
Z-Axis Component Material ABS
Spindle 775 motor 12V; 24V 9000 RPM
Rated Power 60W
Maximum Power 120W
Step Motor 1.3 A 12V; 0.25 Nm torque (2.2 in-lb)
Drill Bits Tip 0.2 mm; 20 degrees; Diameter 3.175 mm
Supported OS Windows XP; Windows 7 32/64 bits; Windows 8; Windows 10
Software Mach3
Power Supply 24V/4.75A




Genmitsu CNC Router 3018-PROVer Mach3 Kit | SainSmart
Genmitsu CNC Router 3018-PROVer Mach3 Kit | SainSmart
Genmitsu CNC Router 3018-PROVer Mach3 Kit | SainSmart


Genmitsu

3018-PROVer Mach3

Genmitsu

3018-MX3

Genmitsu

3018-PROVer
Control Software Mach3/DrufelCNC Mach3/DrufelCNC GrblControl(Candle)
Controller Board MC3D3-v3.3 MC3D3-v1.3 GC3D3-V2.1
Assembly Time 0.5 Hours 2 Hours 0.5 Hours
Frame Material Aluminum Bakelite Aluminum
Emergency-Stop ✓ X ✓
Z-Probe ✓ ✓ ✓
Laser Support X ✓ ✓
Offline Controller Included X X ✓
Home and Limit switches ✓ ✓ ✓
Working Area 260 x 155 x 35mm 260 x 155 x 35mm 260 x 155 x 35mm
Genmitsu CNC Router 3018-PROVer Mach3 Kit | SainSmart Genmitsu CNC Router 3018-PROVer Mach3 Kit | SainSmart Genmitsu CNC Router 3018-PROVer Mach3 Kit | SainSmart Genmitsu CNC Router 3018-PROVer Mach3 Kit | SainSmart Genmitsu CNC Router 3018-PROVer Mach3 Kit | SainSmart Genmitsu CNC Router 3018-PROVer Mach3 Kit | SainSmart
MPG Handy Manual Controller Emergency Stop Switch Z-Axis Tool Setting Touch Probe MPG Handwheel Controller Controller Board for 3018-PROVer Mach3 KABA CNC Enclosure

Specifications

Effective Engraving Area260 x 155 x 35mm(10.2 x 6.1 x 1.4'')
Frame Size400 x 330 x 240mm(15.7 x 13.0 x 9.4'')
Frame MaterialAluminum
Z-Axis Component MaterialABS
Spindle775 motor 12V; 24V 9000 RPM
Rated Power60W
Maximum Power120W
Step Motor1.3 A 12V; 0.25 Nm torque (2.2 in-lb)
Drill BitsTip 0.2 mm; 20 degrees; Diameter 3.175 mm
Supported OSWindows XP; Windows 7 32/64 bits; Windows 8; Windows 10
SoftwareMach3
Power Supply24V/4.75A




1
2
3


Genmitsu

3018-PROVer Mach3

Genmitsu

3018-MX3

Genmitsu

3018-PROVer

Control SoftwareMach3/DrufelCNCMach3/DrufelCNCGrblControl(Candle)
Controller BoardMC3D3-v3.3MC3D3-v1.3GC3D3-V2.1
Assembly Time0.5 Hours2 Hours0.5 Hours
Frame MaterialAluminumBakeliteAluminum
Emergency-Stop✓X✓
Z-Probe✓✓✓
Laser SupportX✓✓
Offline Controller IncludedXX✓
Home and Limit switches✓✓✓
Working Area260 x 155 x 35mm260 x 155 x 35mm260 x 155 x 35mm
