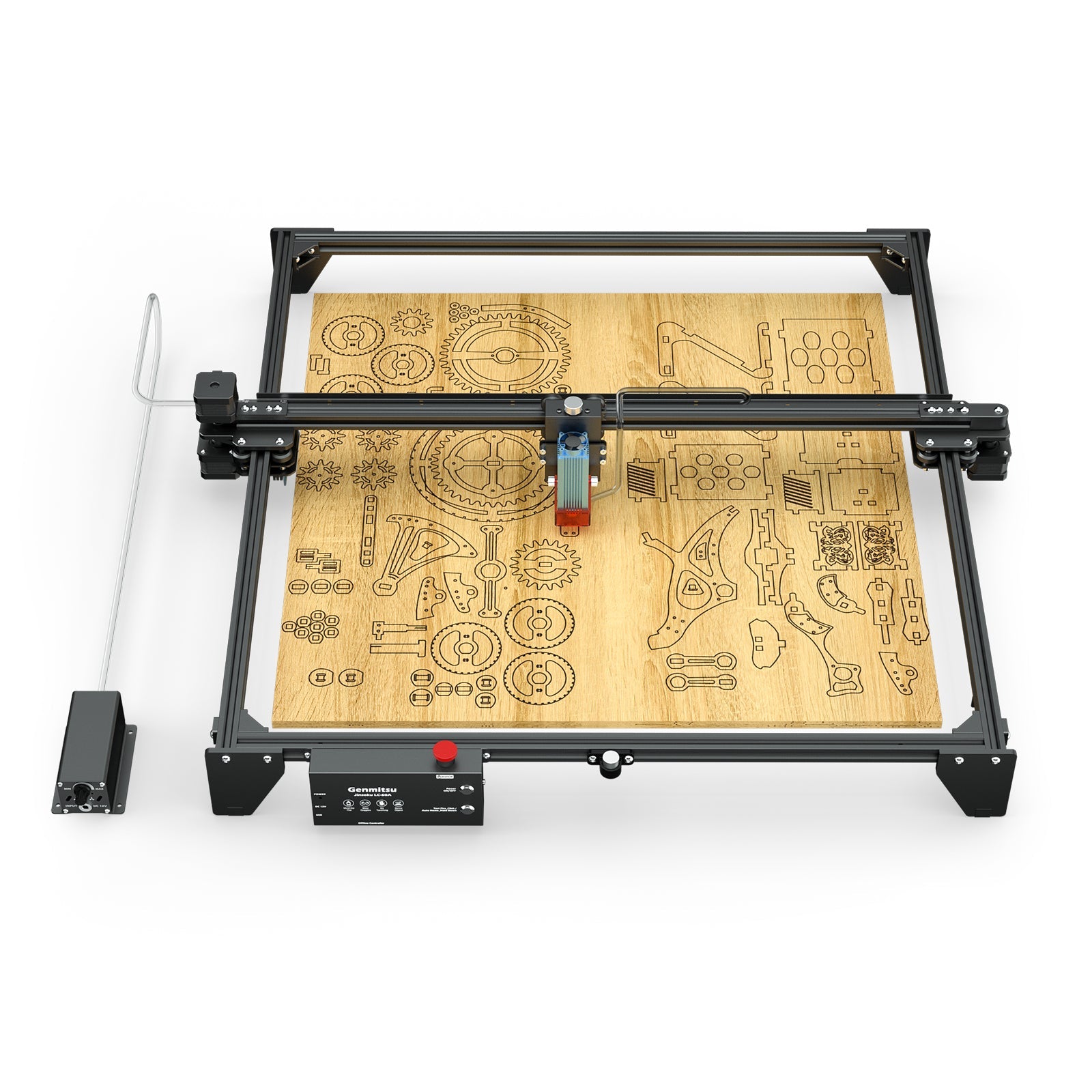

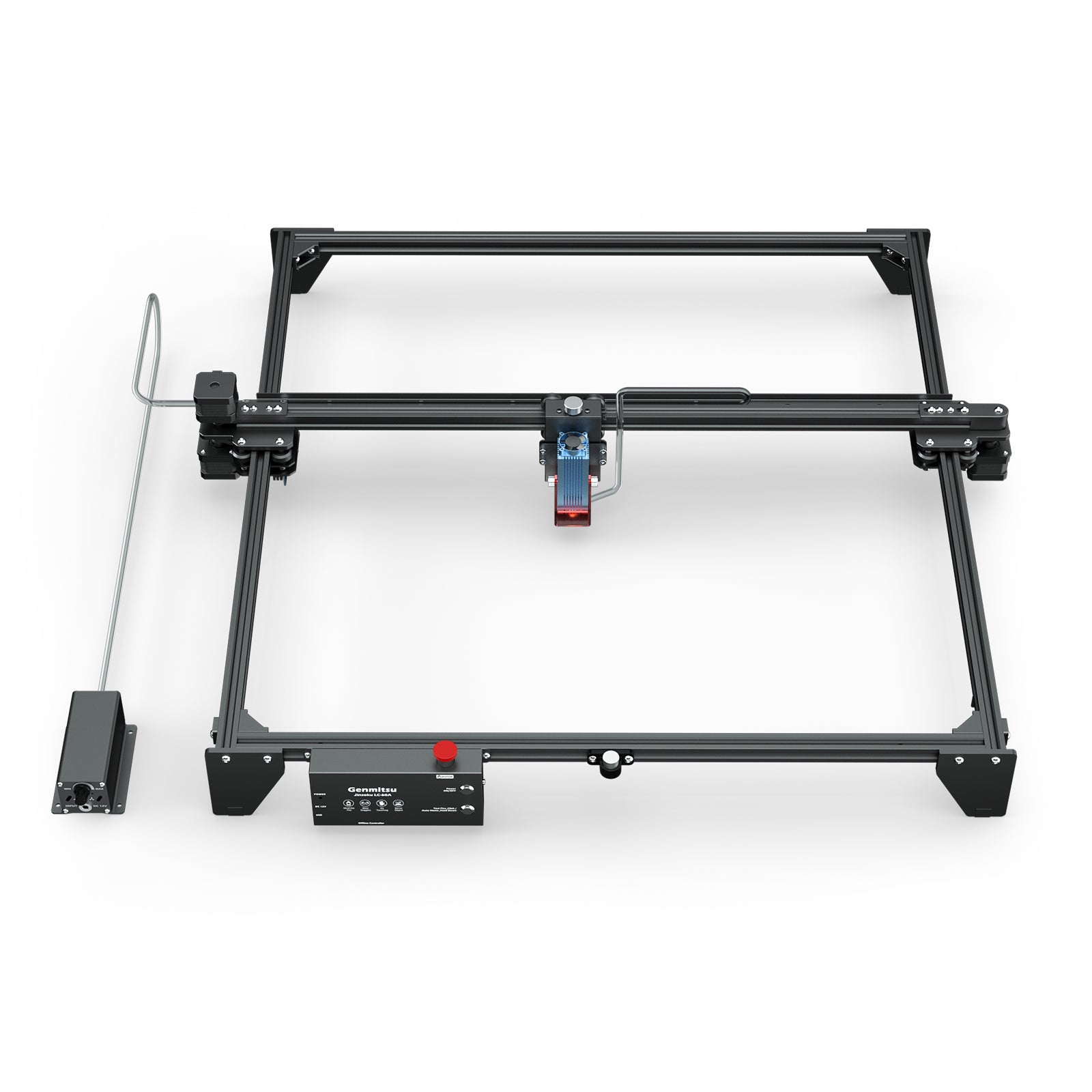

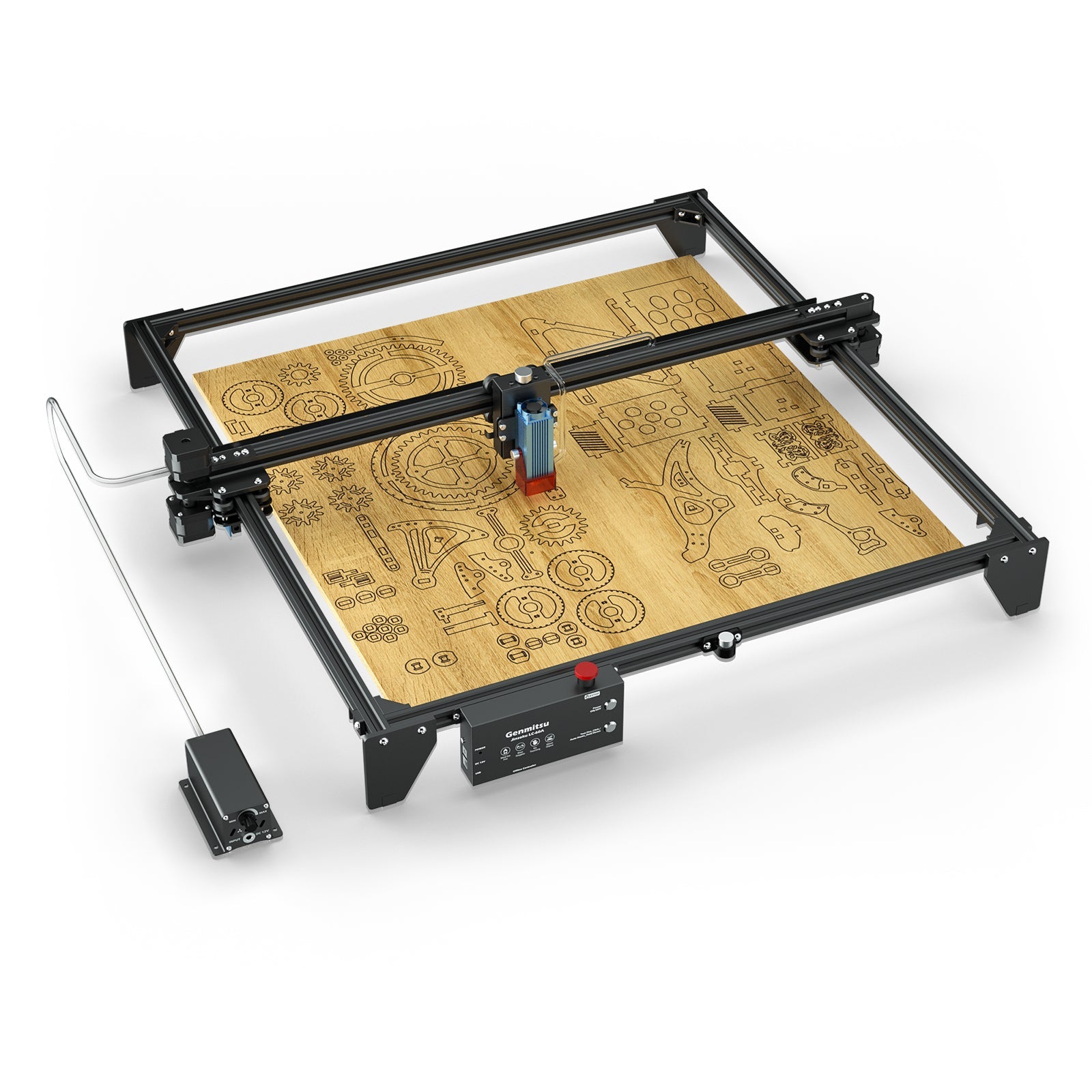

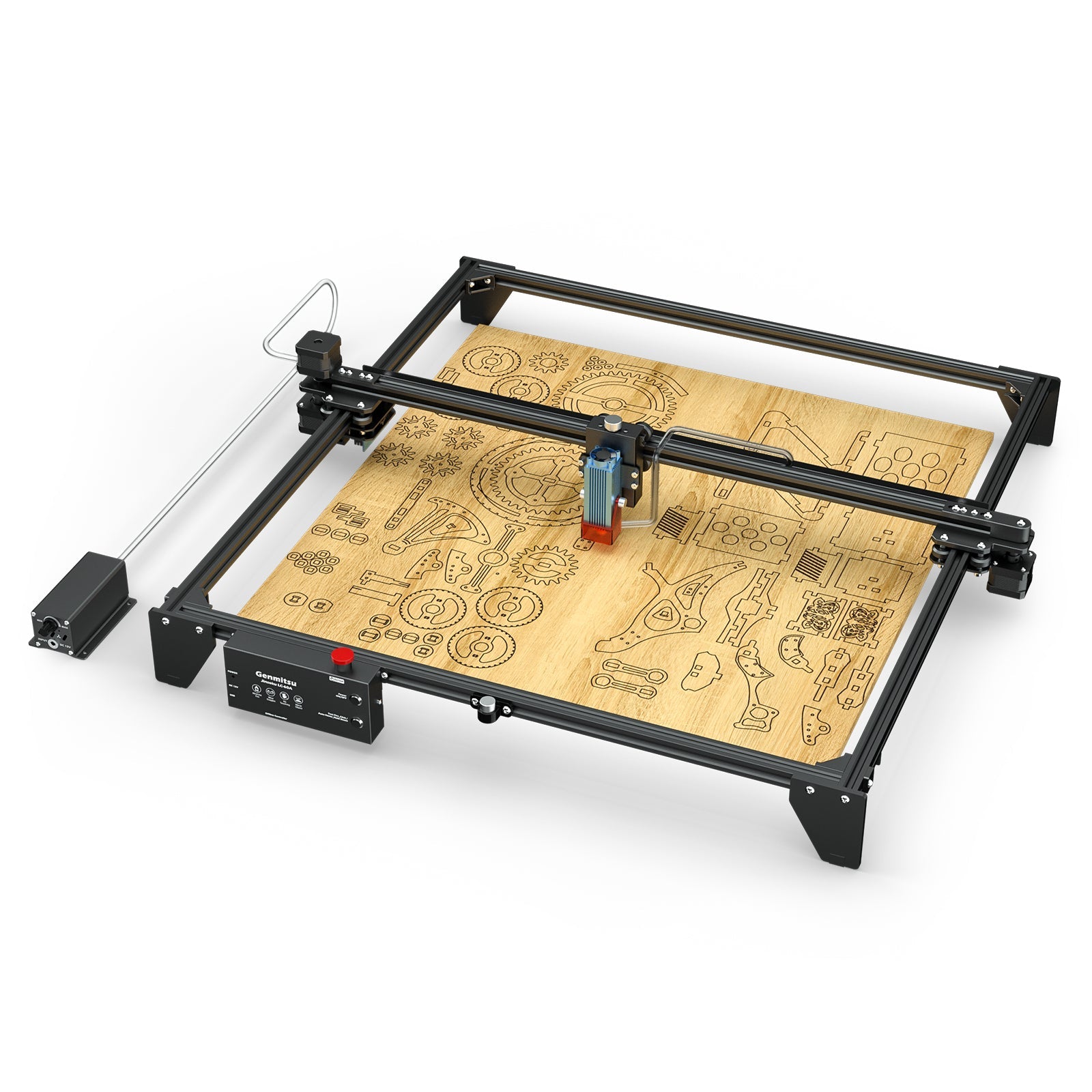

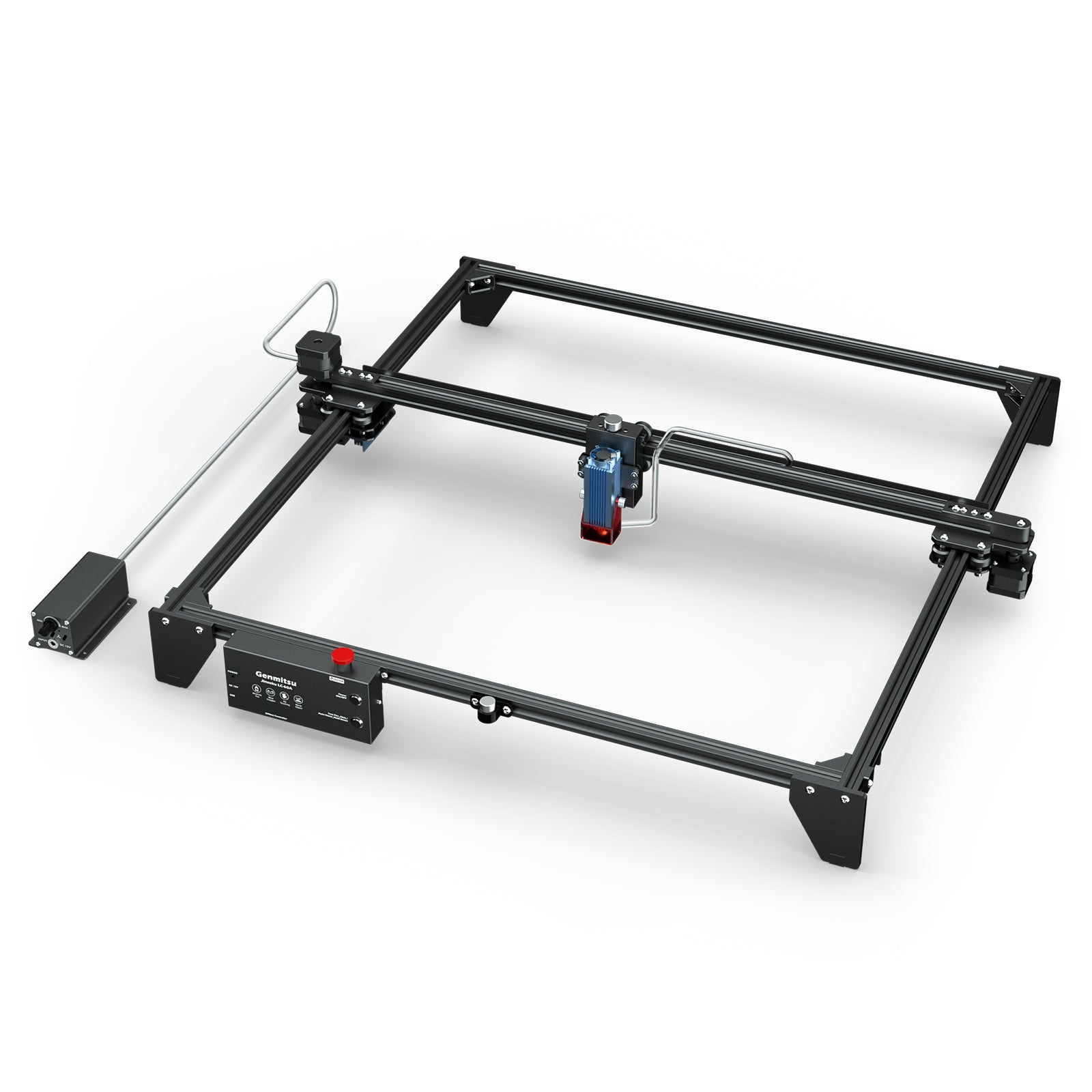

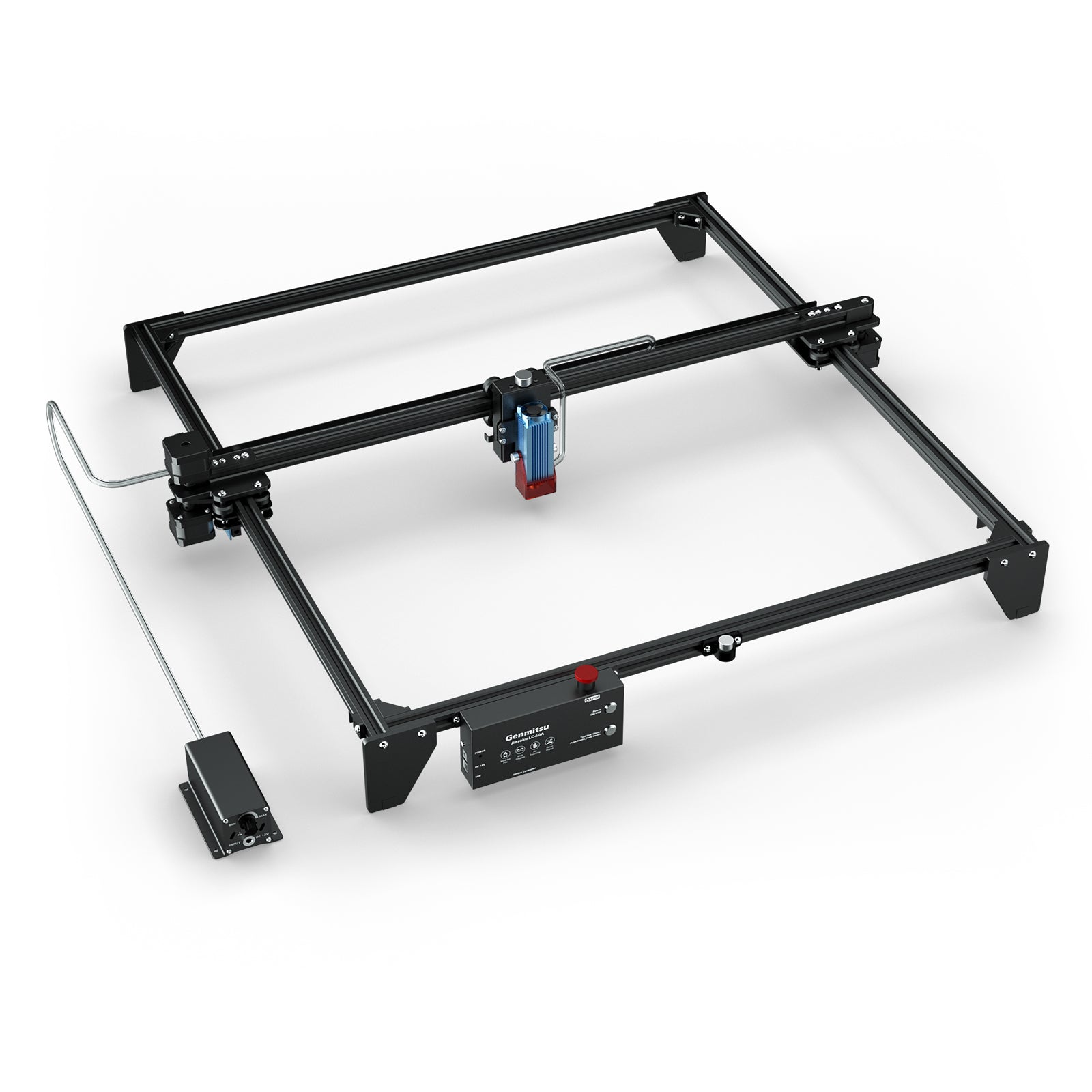

The LC-60A comes with an Air Assist System and supports a 600mm x 600mm engraving area. It is built with a Fixed Focus Laser, Emergency Stop Button, Dual Y-axis Motors, 32 Bit Board, Laser Shield, Honeycomb Working Table, and many more features!
Size & Quality

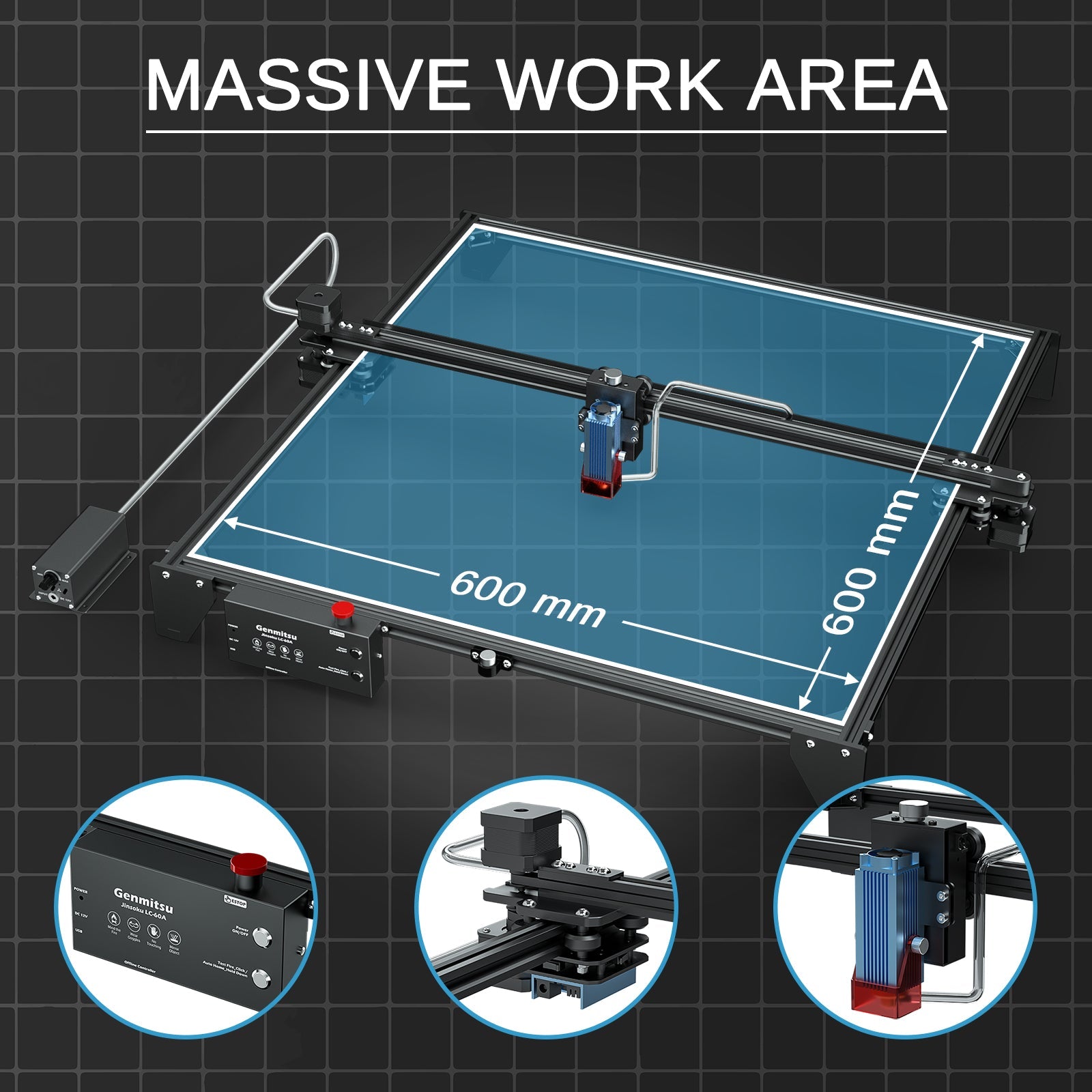

- Large Format Laser Engraver: 600mm x 600mm workspace allows for plenty of possibilities for large designs.

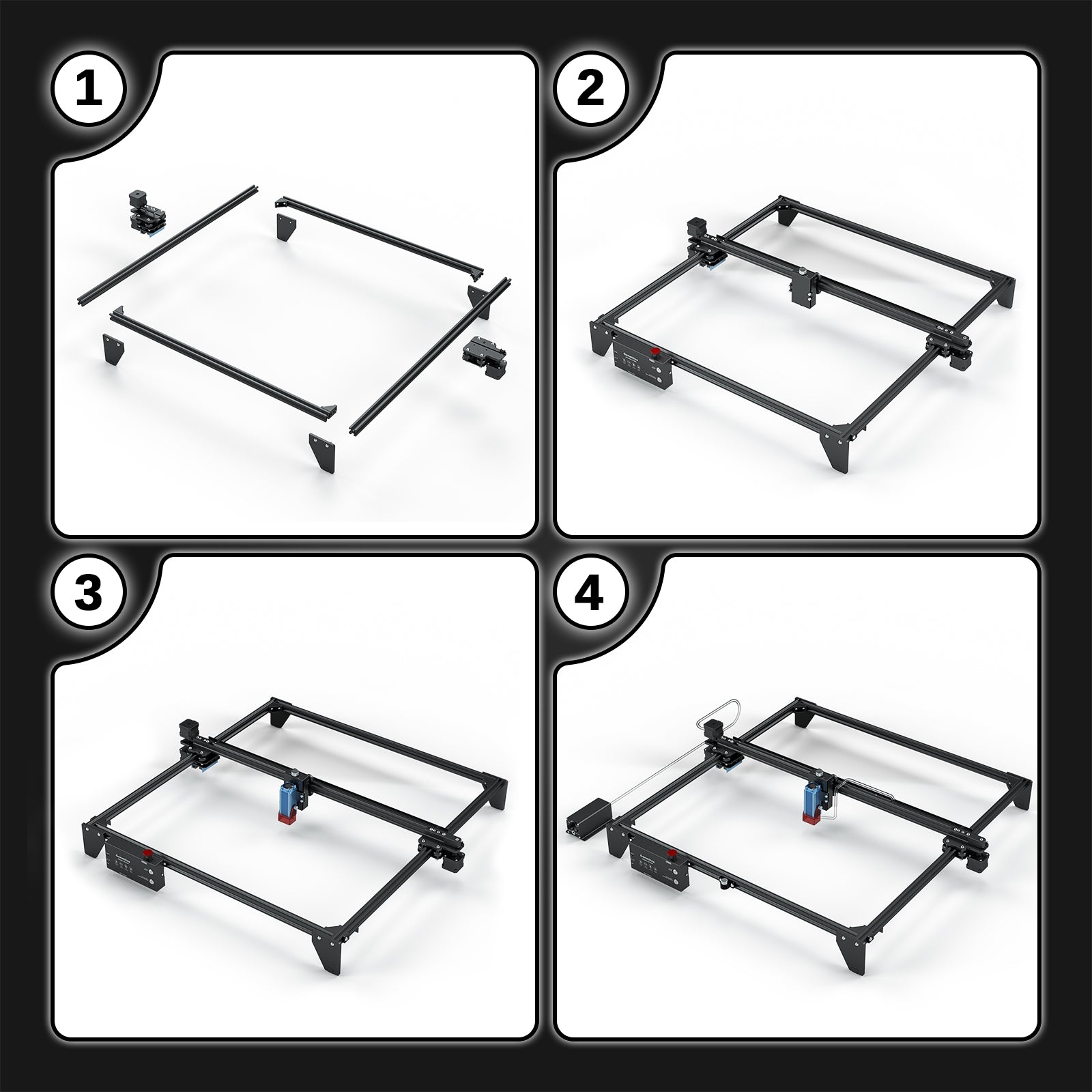

- Easy Setup: 20-minute assembly and easy laser focusing design provide a smooth out-of-box experience.
- Fine Finish: Air assist nozzle + compressor delivers smooth cutting results.

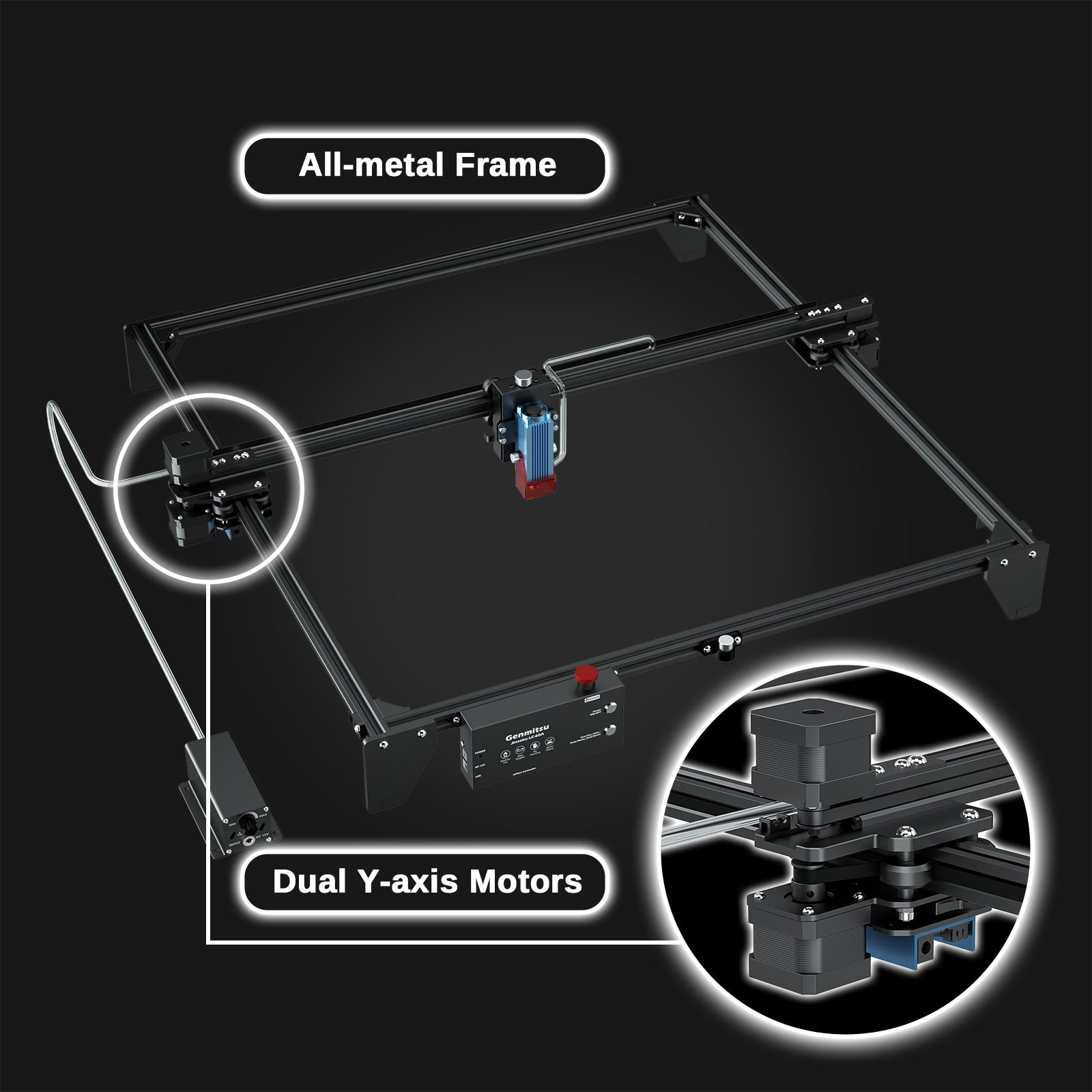

- Improved Accuracy: Dual Y-axis motors for better synchronization and more stable movement; quality aluminum frame enhances stability.
Quality of Life Features
- 32 Bit Board: Fast response for quick and smooth material operation.

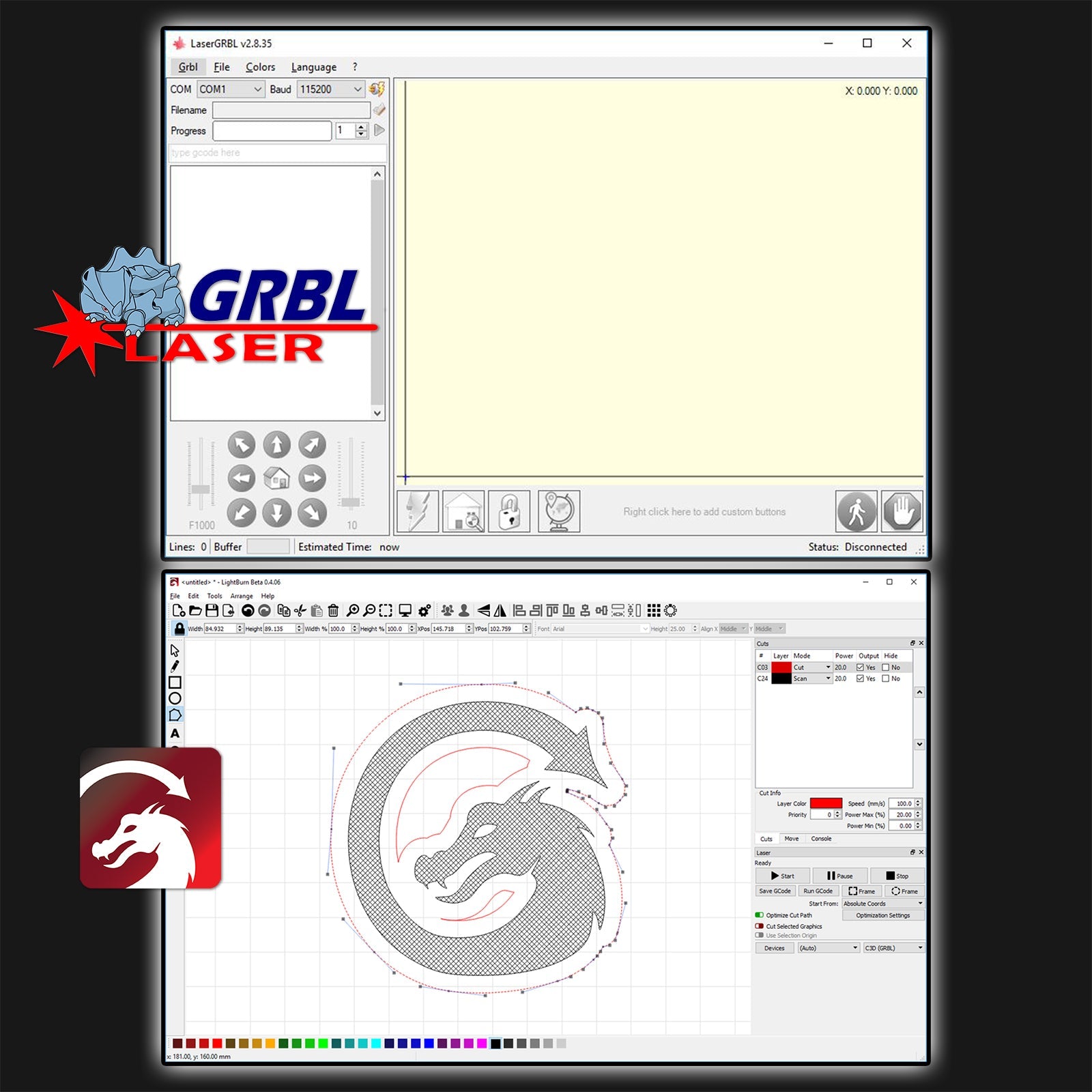

- LaserGRBL and LightBurn Compatibility: Use basic to advanced software as needed.

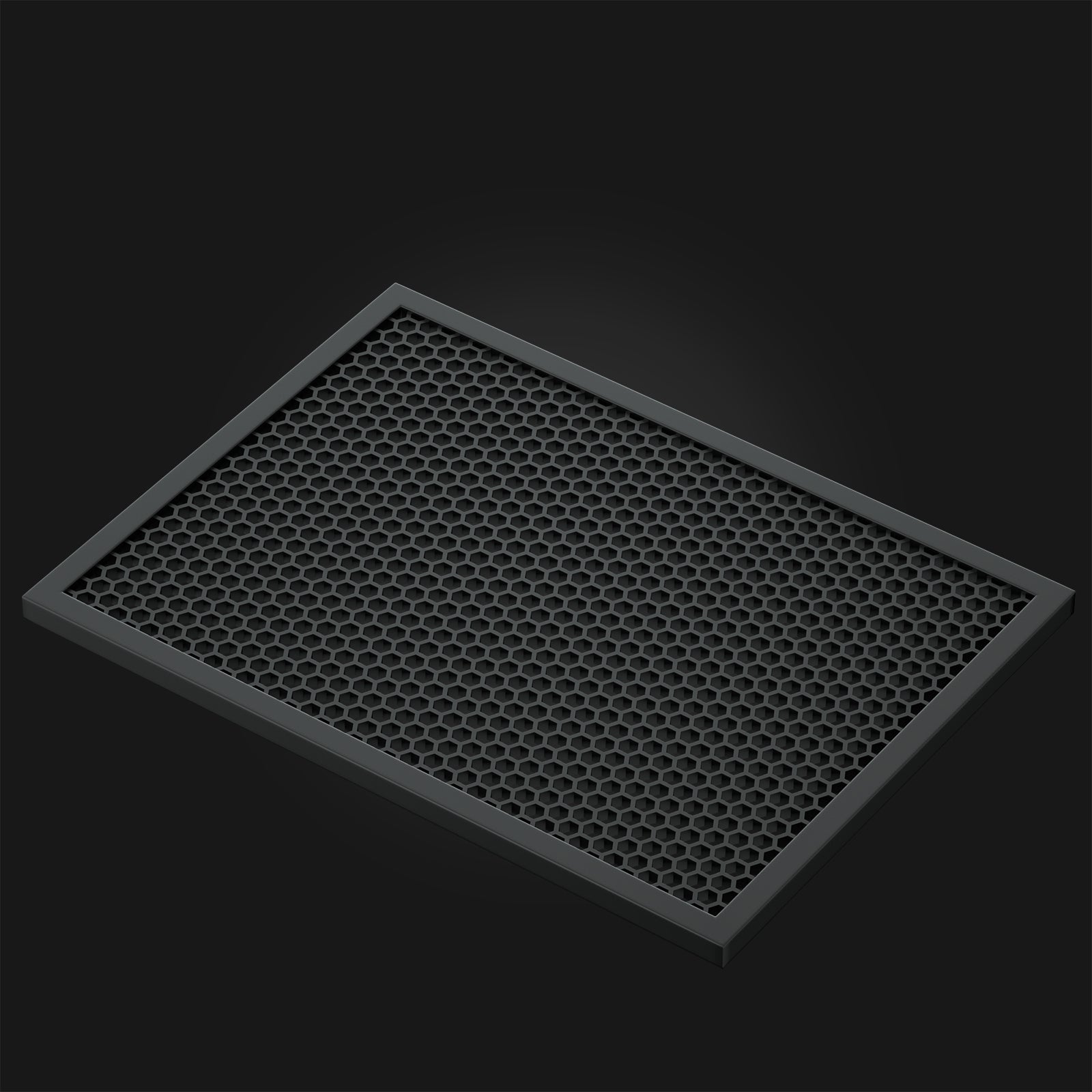

- Honeycomb Working Table: Supports parts being cut, absorbs excessive laser power to avoid flashback and backside burning.
- One Click Test Fire Button for easy positioning.
- Scale Ruler for quick measurement and alignment.
- Focus Spacer Holder for convenient storage.
Safety Design

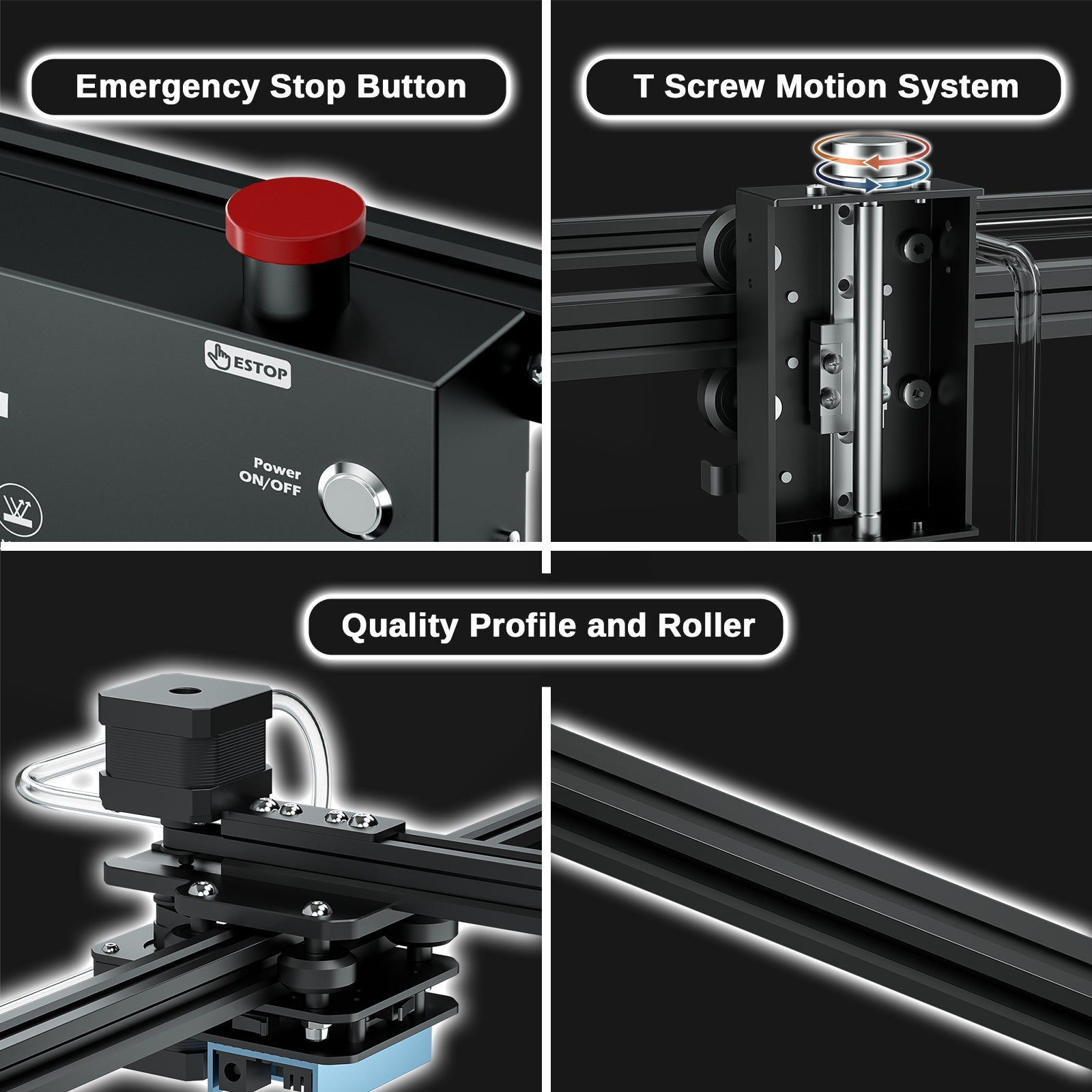

- Emergency Stop Button: Immediately halts the laser in case of an emergency.

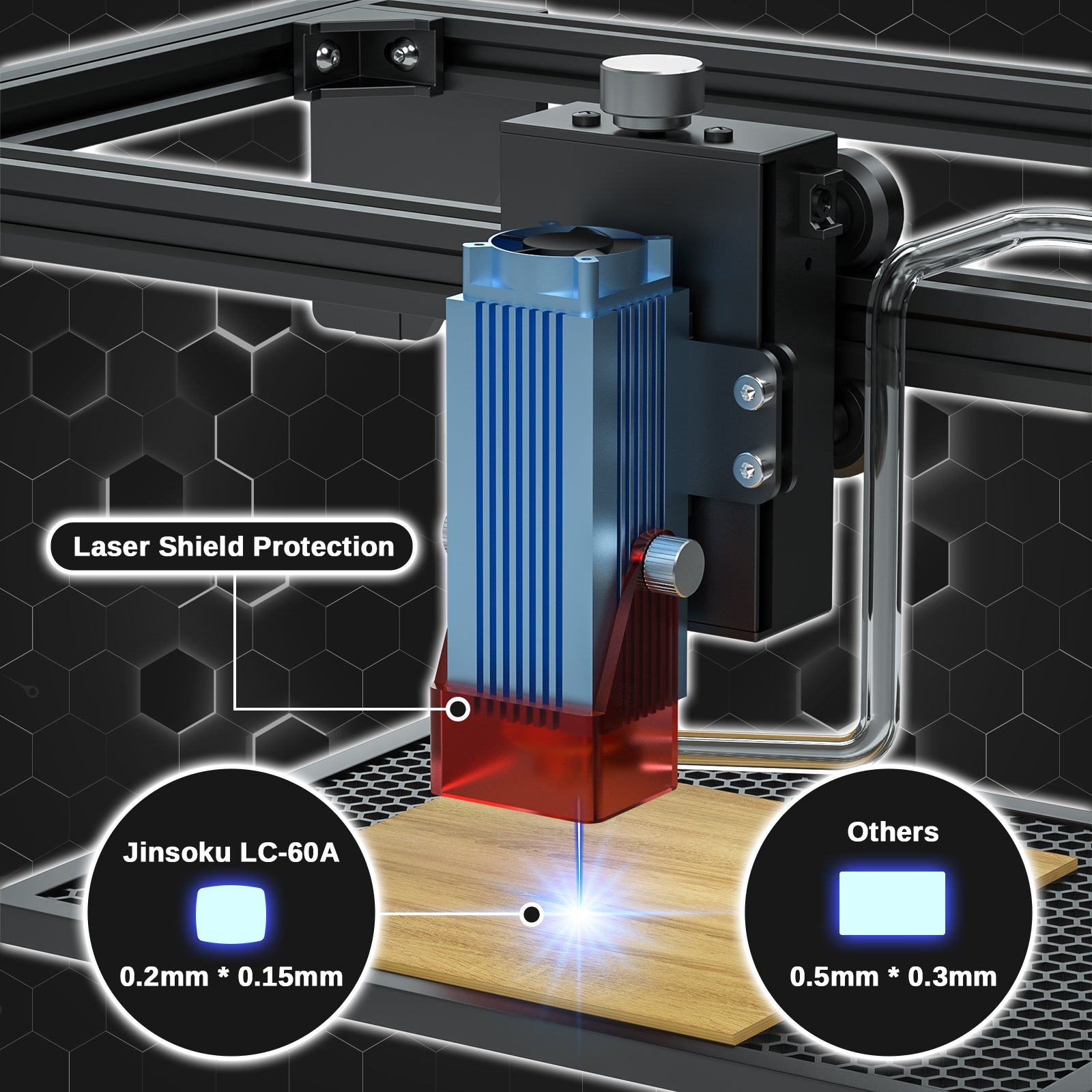

- Laser Shield Protection: Prevents accidental laser beam exposure for better safety. (Note: goggles should always be worn when operating the machine.)
- UL Certified Power Supply: Ensures safe and stable performance during engraving and cutting jobs.
Specifications
| Work area | 600 x 600 mm (23.62 x 23.62 inch) |
| Frame dimensions | 900mm x 850mm x 165mm |

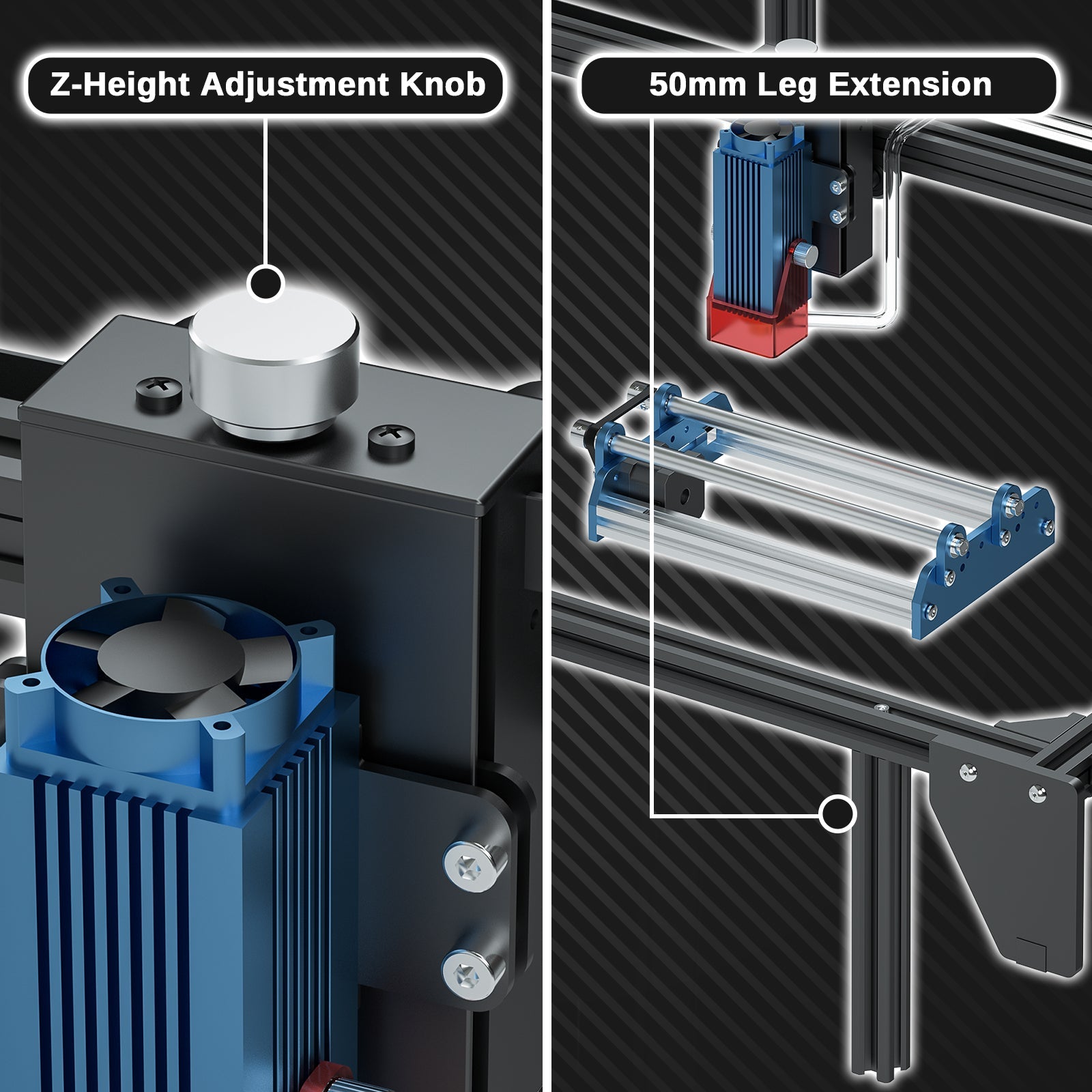

| Leg Extension | 50mm |
| Weight | 6KG |
| Plug Type | US / EU plug, UK plug not included. |
| Laser type | Diode |
| Wattage input | 20W |
| Wattage output | 5.5W |
| Fixed Focus | Yes |
| Focal Length | 20mm |
| Max. moving speed | 10000mm/min |
| Manual Z Movement Range | 0-50mm |
| Max. Material Height | 50mm, (Leg Extended 135mm) |
| Engraving materials | Leather, Wood, Acrylic, MDF, Fabric, Cardboard, Anodized Aluminum, Painted Metals |
| Cutting materials | Leather, wood, Acrylic, MDF, Fabric, Cardboard |

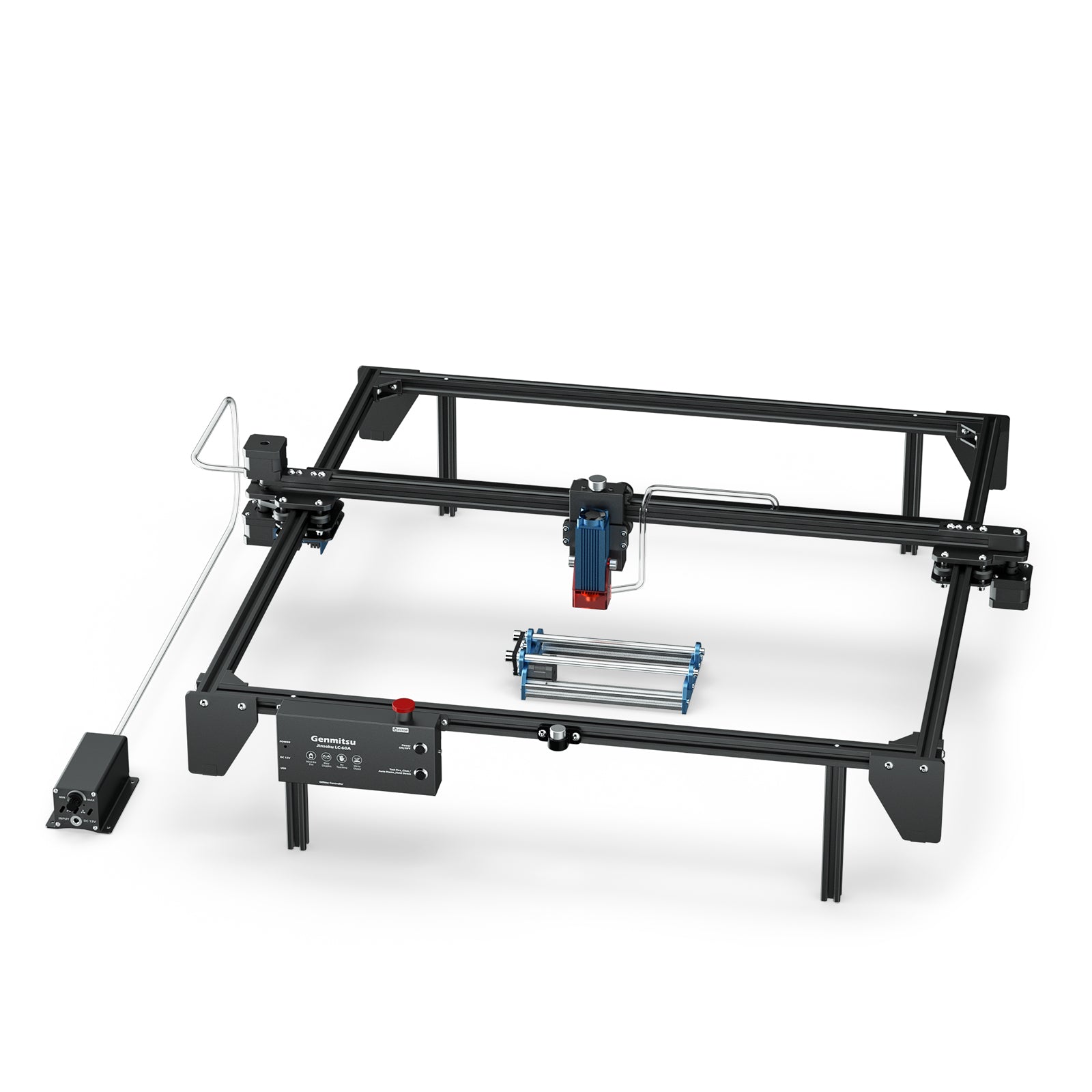

| Rotary roller support | Yes |
| Recommended control software | LaserGRBL (WIN), LightBurn (WIN / Mac OS / Linux) |
| File types | NC, BMP, JPG, PNG, DXF, etc. |
| Connectivity | USB |
| User Guide | Driver, Software, Test Code, User Manual (Click to download) |
| File types | NC, BMP, JPG, PNG, DXF, etc. |
 | |
Which Laser Machine is right for you?
Jinsoku LC-60A
600 x 600mm
23.6 x 23.6in
Working Area
5.5W Fixed Focus
Laser Power
50mm Adjustable
(Leg Extended 135mm)
Z-Axis Height
Laser Shield & Goggles
Safety
Yes
Air-Assit
Yes
Test Fire
Yes
Auto Home
-
Limit Switch
Jinsoku LC-40
400 x 400mm
15.7 x 15.7in
Working Area
5.5W Fixed Focus
Laser Power
76mm Adjustable
Z-Axis Height
Laser Shield & Goggles
Safety
-
Air-Assit
Yes
Test Fire
Yes
Auto Home
Yes
Limit Switch
Jinsoku LE-1620
200 x 160mm
7.9 x 6.3in
Working Area
5.5W Fixed Focus
Laser Power
50mm Adjustable
Z-Axis Height
Goggles
Safety
-
Air-Assit
Yes
Test Fire
Yes
Auto Home
Yes
Limit Switch
LE5040
500 x 400mm
19.7 x 15.7in
Working Area
5.5W Fixed Focus
Laser Power
-
Z-Axis Height
Goggles
Safety
-
Air-Assit
-
Test Fire
-
Auto Home
-
Limit Switch
