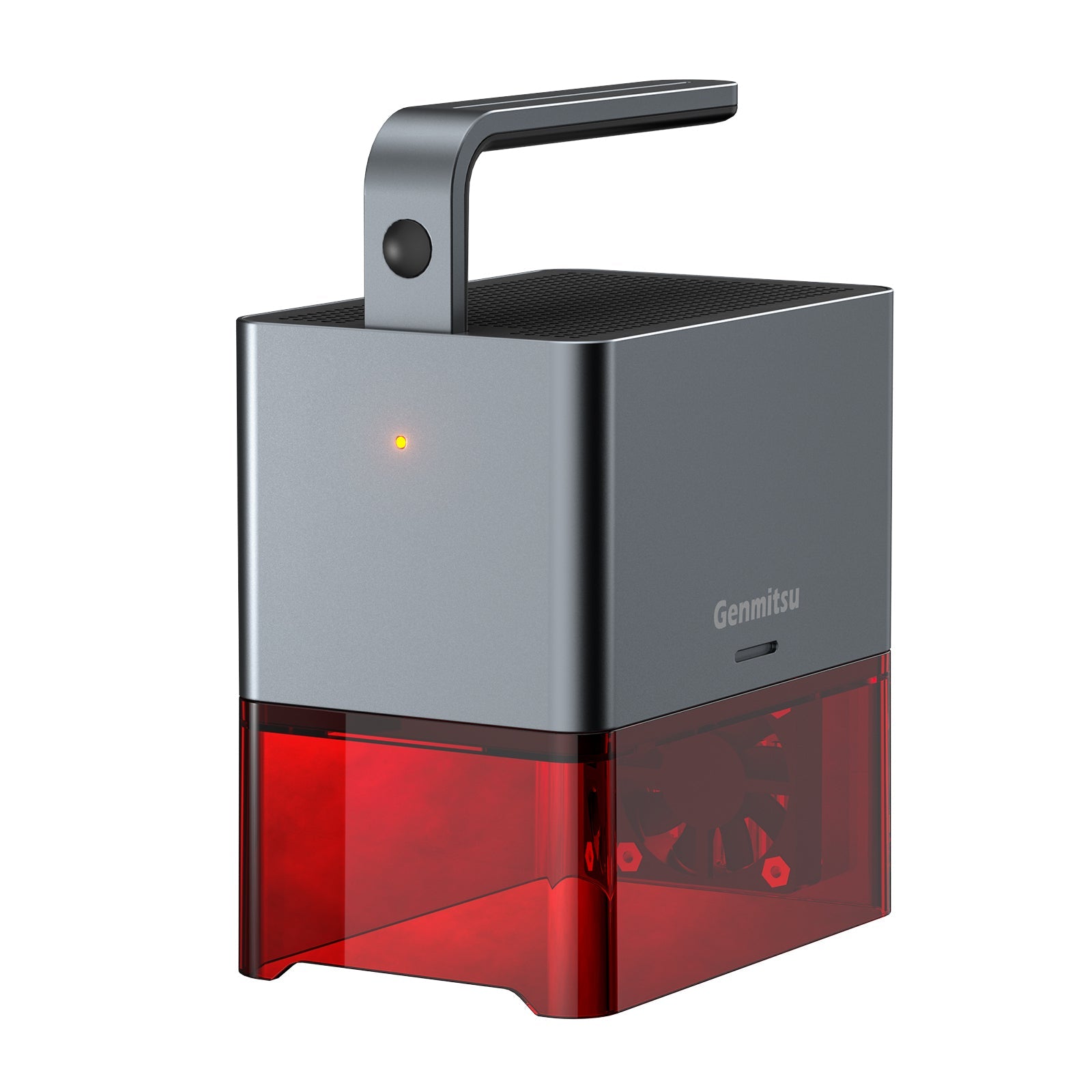

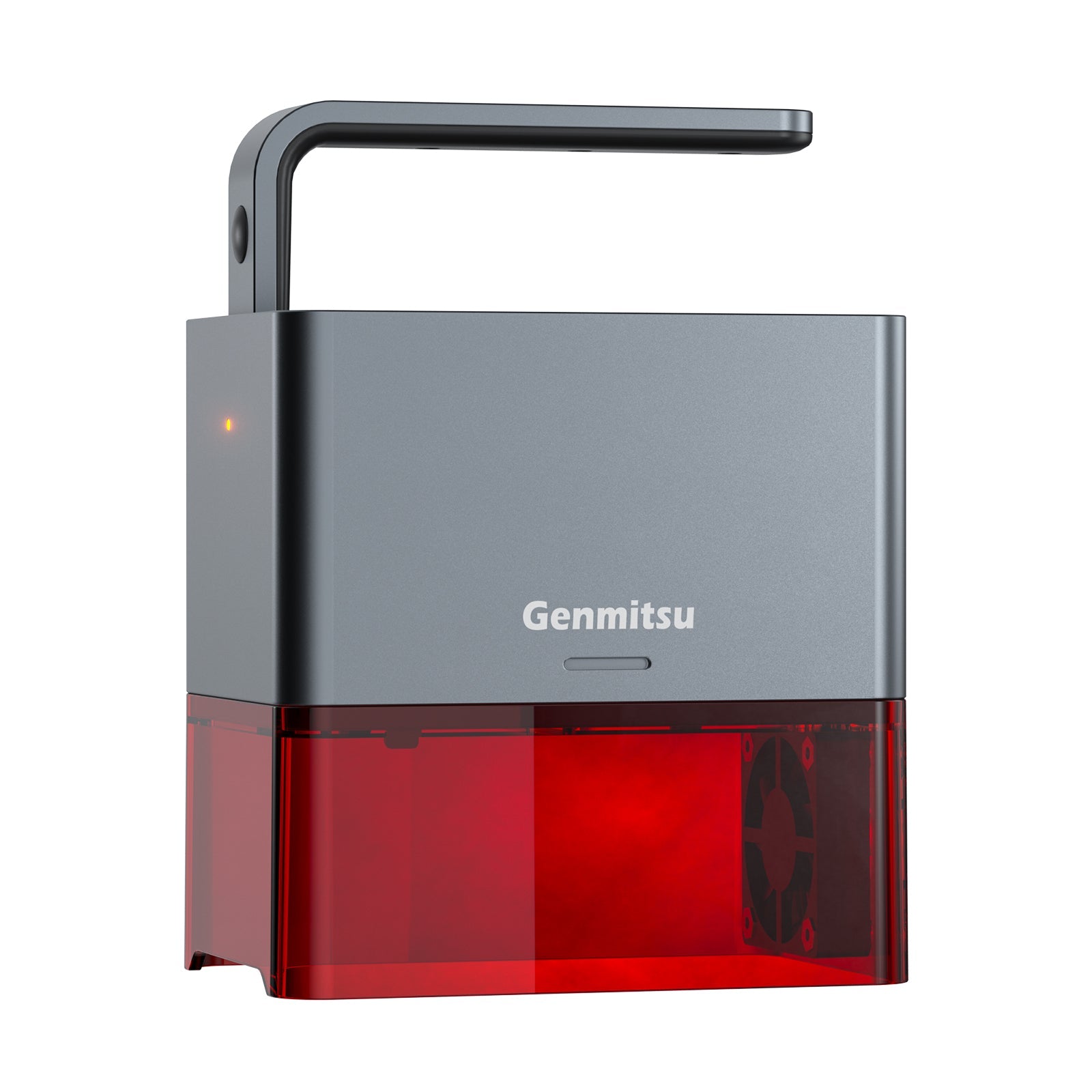

On-the-go laser engraver

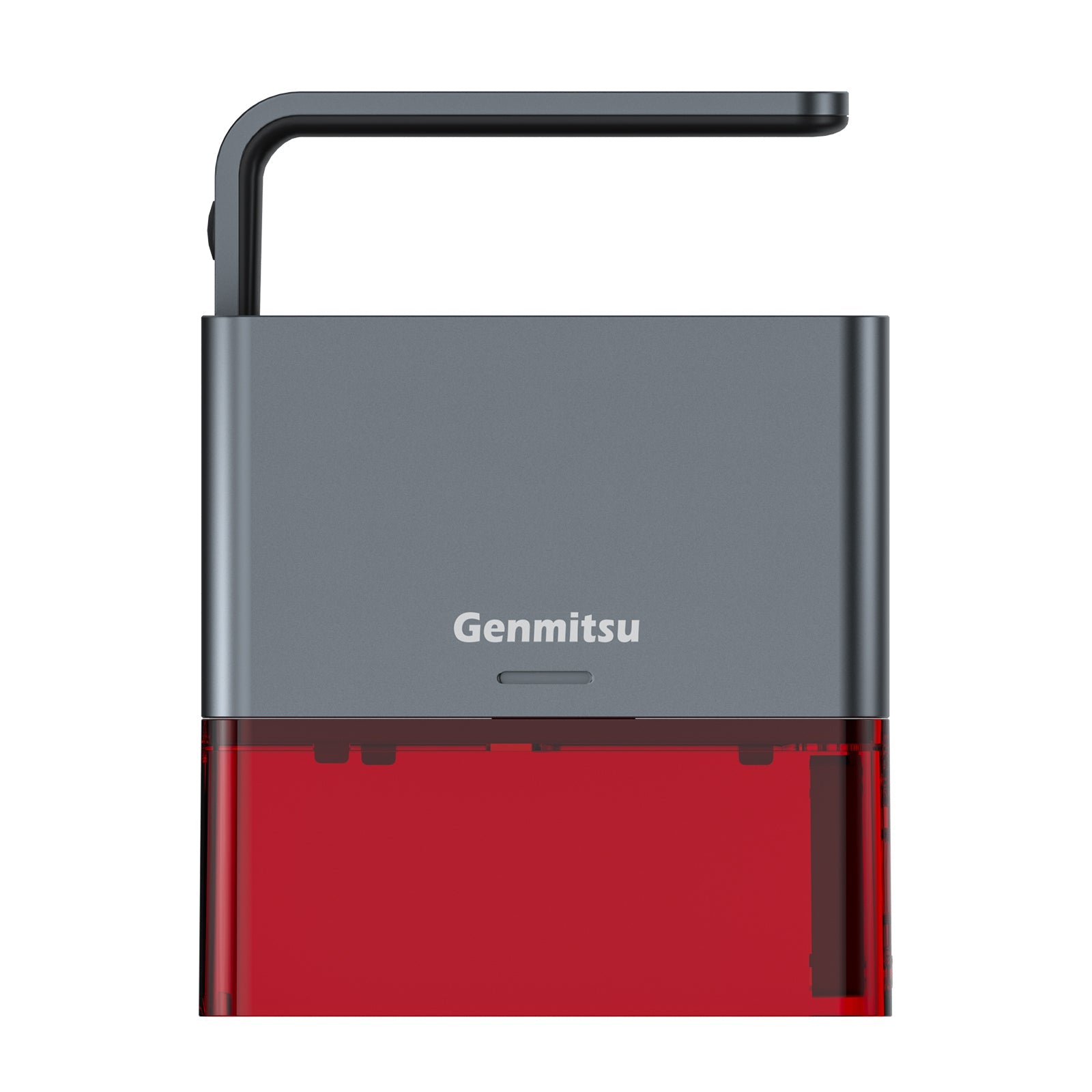

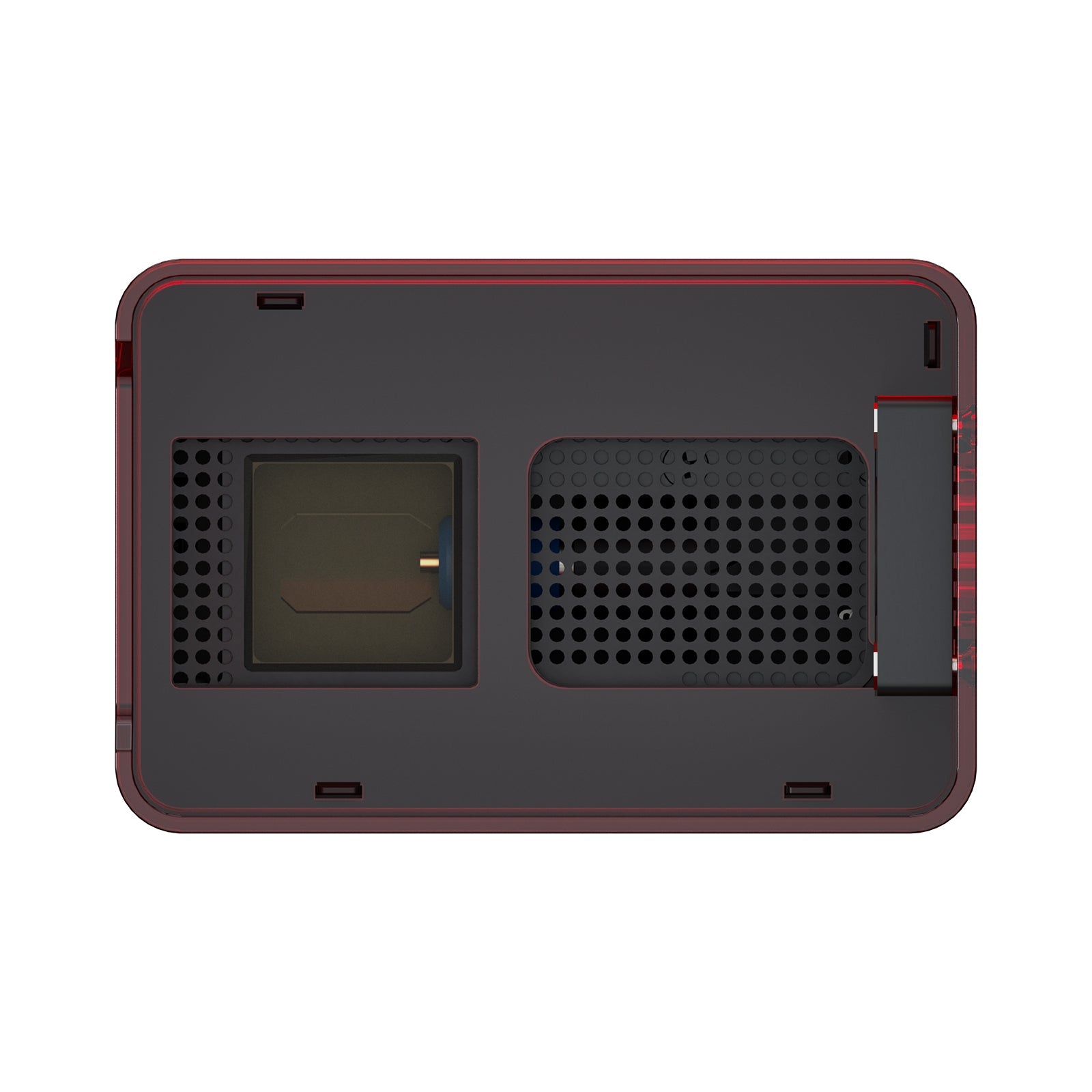

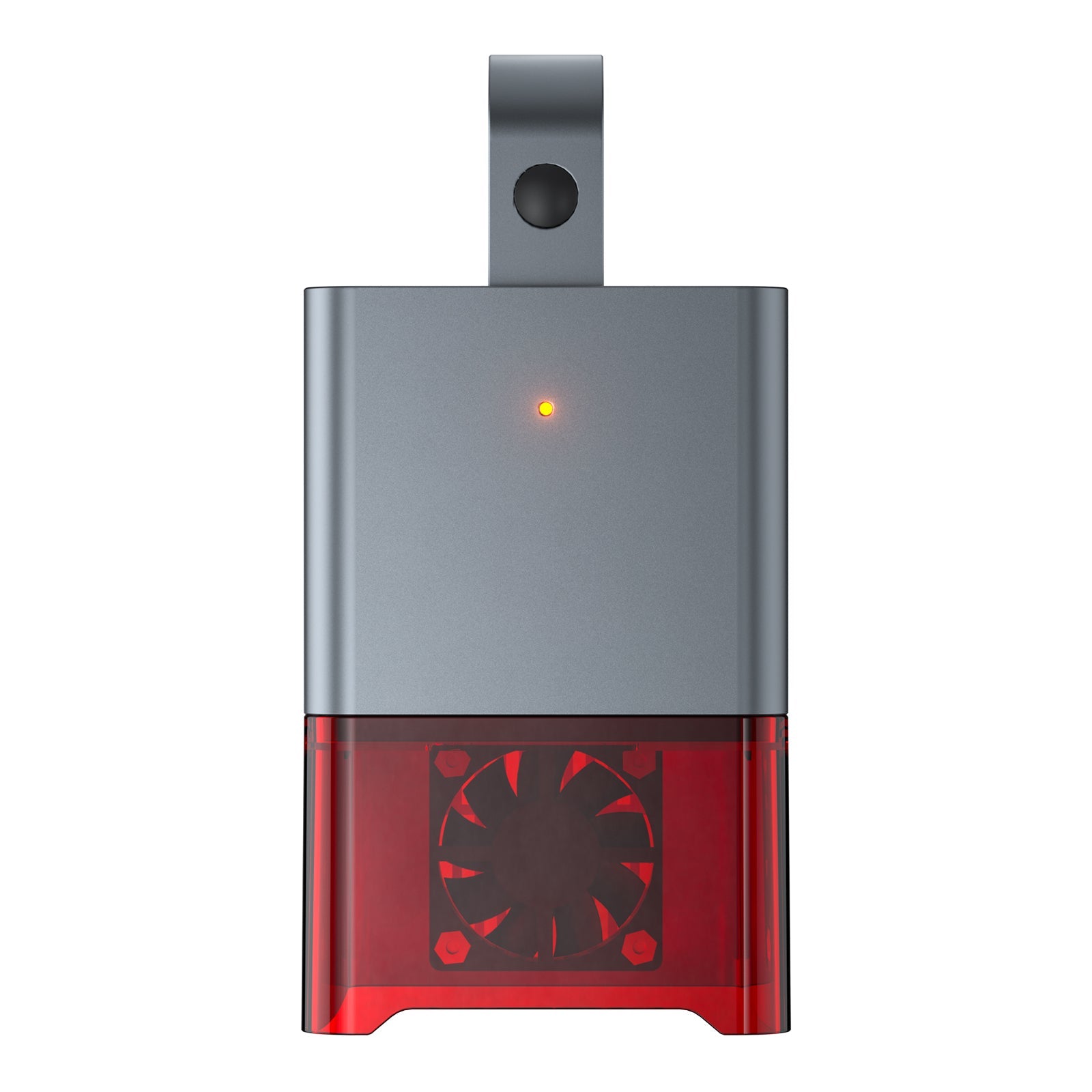

Jinsoku Z4 equipped with a 5W fixed focus blue laser in its compact body.
Also with a handle, just pick up like an iron on top of the object you want to carve, and you can start carving.
Create with fewer limits

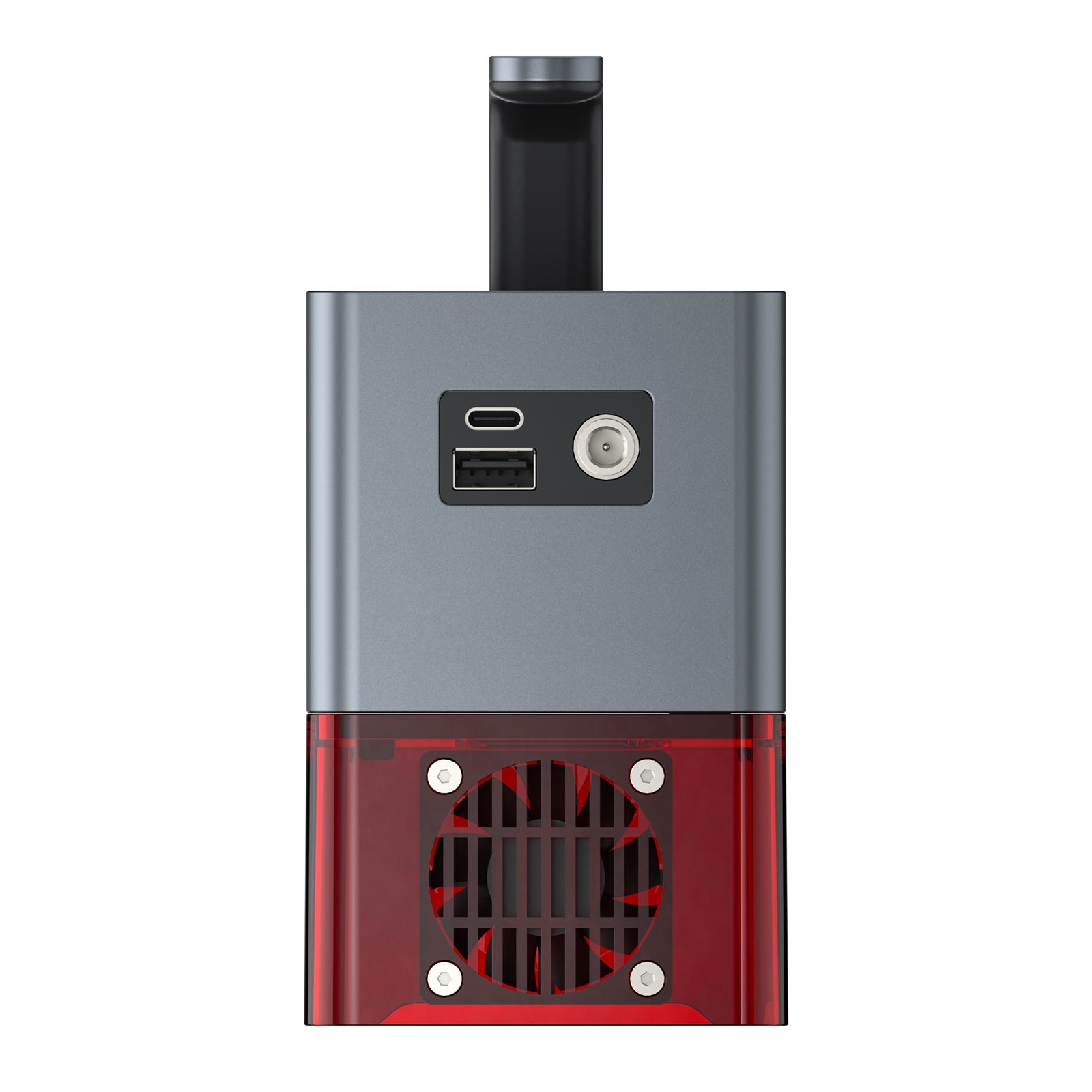

The Jinsoku Z4 is compatible with Bluetooth and USB connection and
supports a wide range of input file formats. So you can transfer your designs easily between the device and a
computer or smartphone smoothly and conveniently.
One-click Preview & Start
Engraving and cutting are more precise and hassle-free thanks to the
preview mode of the Z4. The preview is not limited to just the approximate area either, you can clearly preview the
graph with one simple click. Set your pattern to the best spot and press start. Your design is created exactly as
shown in the preview.
Specifications
Jinsoku Z3 |
Jinsoku Z4 |
|
Material | High Strength Anodized Aluminum | High Strength Anodized Aluminum |
Laser Focus | Automatic Focusing | Automatic Focusing |
Laser Head | 450nm Blue Laser | 450nm Blue Laser |
Laser Power | 5W | 5W |
Connecting Inter faces | Bluetooth 5.0 Dual Mode Adapter, Type-C Port for PC User Manual |
Bluetooth 5.0 Dual Mode Adapter, Type-C Port for PC User Manual |
Operating Systems | Mobile: iOS & Android 7.0 or above. Desktop: Windows & MacOS Tablets: Not supported |
Mobile: iOS & Android 7.0 or above. Desktop: Windows & MacOS Tablets: Not supported |
File Formats | JPEG/BMP/GIF/PNG/JPG/XJ/PLT/DXF/HPGL | JPEG/BMP/GIF/PNG/JPG/XJ/PLT/DXF/HPGL |
Power Supply | 12V/5A, Portable Charger | 12V/5A, Portable Charger |
Power Consumption | 0.89A(Standby) 2.2A(Engraving) | 0.89A(Standby) 2.2A(Engraving) |
Cooling | Forced Air Cooling | Forced Air Cooling |
Laser Service Time | >10000H | >10000H |
Engraving Area | 8cm×8cm (3.14"×3.14") | 5cm×5cm (1.97"×1.97") |
Engraving Accuracy | 0.05mm | 0.05mm |
Engraving Speed | 600mm/s (1417"/min) | 600mm/s (1417"/min) |
Engravable Materials | Paper, Wood, Bamboo, Cloth, Acrylic, Plastic, Leather, Bread, Fruit, Glass, Ceramic | Paper, Wood, Bamboo, Cloth, Acrylic, Plastic, Leather, Bread, Fruit, Glass, Ceramic |
Cuttable Materials | Paper, Wood, Bamboo, Leather | Paper, Wood, Bamboo, Leather |
Laser Unit Size | 21×13×22cm (8.27"×5.12"×8.66") | 11.4×7.6×15.3cm (4.49"×2.99"×6.02") |
Package Size | 35*25*14cm (13.78"×9.84"×5.51") | 37.5×22×16.5cm (14.76"×8.66"×6.5") |
Machine Weight | 1.9KG | 0.68KG |
