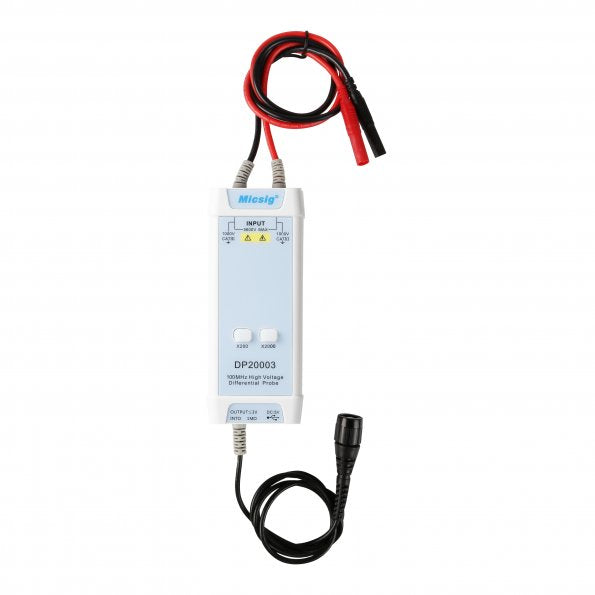

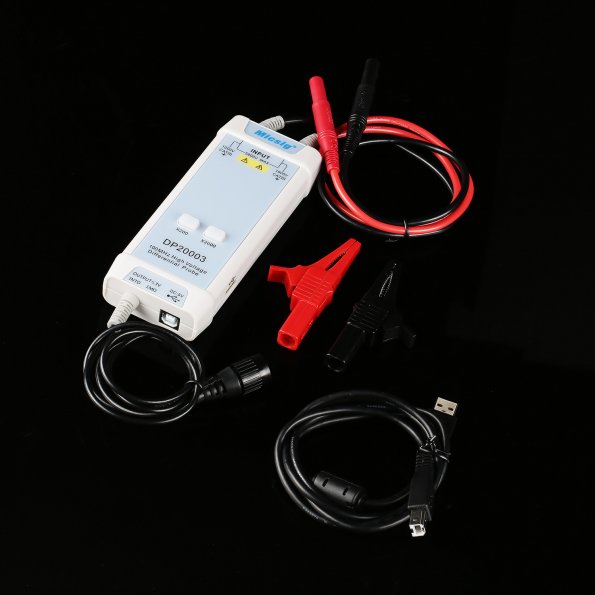

[Open Box] Micsig High Voltage Differential Probe, DP20003

Upgraded Version of DP10013

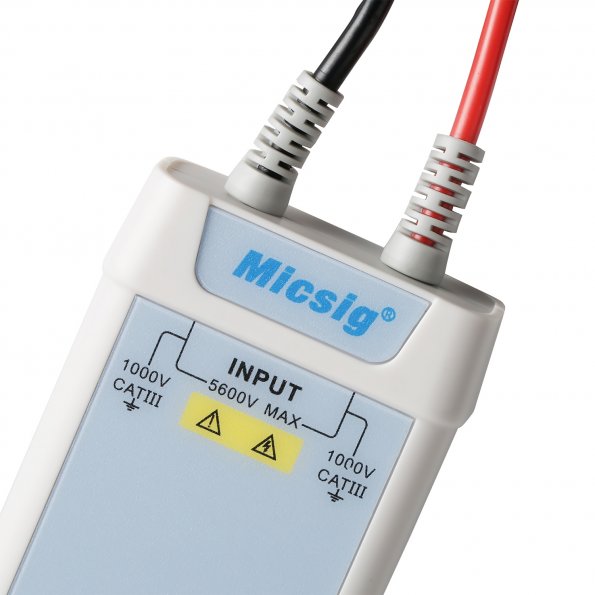

Micsig DP20003 is the upgraded Version of DP10013 and more powerful. Maximum Differential Test Voltage( DC + Peak AC) up to 5600V(DP10013: 1300V). Switchable attenuation: 200X, 2000X(DP10013: 50X, 500X)

Cost Effective

While Tektronix counterparts, such as P5200A P5205A P5210A, starts at $1,500, Micsig DP20003 offers the same specifications at a reasonable low price.

Portable

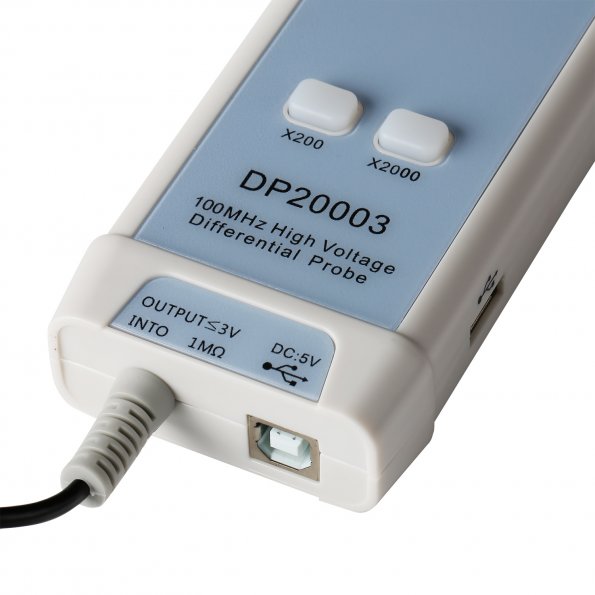

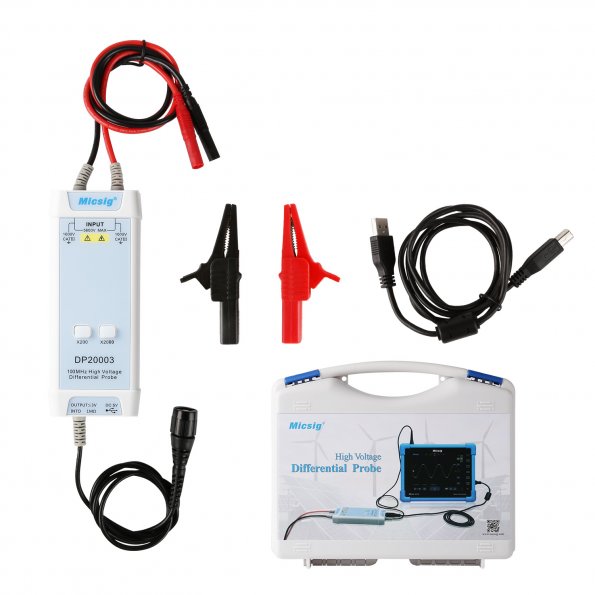

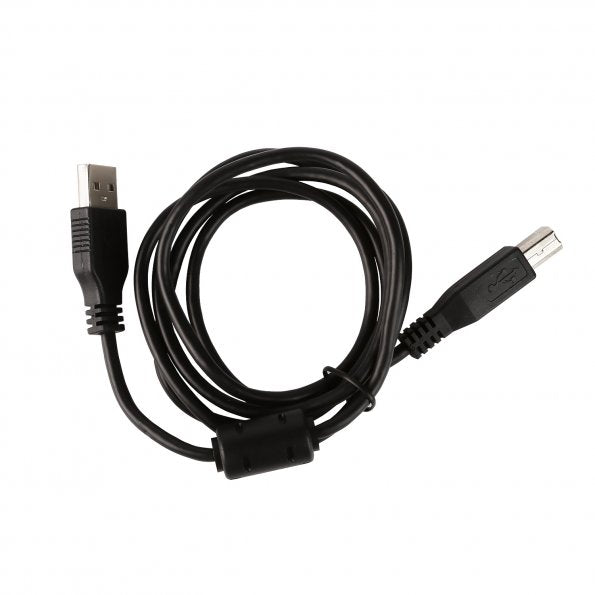

With portable and simple design, you can take the DP20003 to work anywhere with the small package box. Power supply USB DC 5V output, more portable while oscilloscope has USB interface.

Application

Designed for the measurement of high voltage differential signal, switching power supply design, motor drive design, electronic ballast design, CRT display design, power converter design and service, power device evaluation.

Precise Signal

With stable physical properties and high quality plug-in cards, you will get an accurate signal. But please note that a calibration is needed when a substantial change in temperature or other circumstances affect the accuracy of the probe's zero point. You can short the input terminals of the probe, then power the probe while simultaneously pressing the 200X and 2000X keys for 3 seconds.
