[Open Box] MINIWARE 60W Mini Hot Plate Preheater Soldering Station
[Open Box] MINIWARE 60W Mini Hot Plate Preheater Soldering Station
- 101-92-MHP30*SEC
- 101-92-MHP30M*SEC
Couldn't load pickup availability
![[Open Box] MINIWARE 60W Mini Hot Plate Preheater Soldering Station](http://www.sainsmart.com/cdn/shop/products/NewARRI_dc1b7e5b-8b12-4f13-8687-1283fc1ad37e.png?v=1679466789&width=1445)
![[Open Box] MINIWARE 60W Mini Hot Plate Preheater Soldering Station](http://www.sainsmart.com/cdn/shop/products/DSC_6954_04f03e3e-b9a6-412d-80ea-741cb6d575ef.jpg?v=1679466789&width=1445)
![[Open Box] MINIWARE 60W Mini Hot Plate Preheater Soldering Station](http://www.sainsmart.com/cdn/shop/products/DSC_6981_4649d8e1-58e7-4870-a119-fb7751ebf36d.jpg?v=1679466789&width=1445)
![[Open Box] MINIWARE 60W Mini Hot Plate Preheater Soldering Station](http://www.sainsmart.com/cdn/shop/products/DSC_6987_4adcef21-3413-4c2c-a729-2e274365cd00.jpg?v=1679466789&width=1445)
![[Open Box] MINIWARE 60W Mini Hot Plate Preheater Soldering Station](http://www.sainsmart.com/cdn/shop/products/DSC_7331_ae77b78e-c757-4bd4-9e6e-cac413c2c537.jpg?v=1679466789&width=1445)
![[Open Box] MINIWARE 60W Mini Hot Plate Preheater Soldering Station](http://www.sainsmart.com/cdn/shop/products/DSC_7360_56169dc8-6d00-4edc-8168-89e7f6048891.jpg?v=1679466789&width=1445)
![[Open Box] MINIWARE 60W Mini Hot Plate Preheater Soldering Station](http://www.sainsmart.com/cdn/shop/products/DSC_7418_39e519bc-7a55-49d3-98a3-ed92a9c2efbd.jpg?v=1679466789&width=1445)
![[Open Box] MINIWARE 60W Mini Hot Plate Preheater Soldering Station](http://www.sainsmart.com/cdn/shop/products/DSC_7489_c60ced03-c851-4e70-8fe3-7f7355473eee.jpg?v=1679466789&width=1445)
![[Open Box] MINIWARE 60W Mini Hot Plate Preheater Soldering Station](http://www.sainsmart.com/cdn/shop/products/DSC_7497_bc93d8d0-793e-417c-af61-3501288f4f9b.jpg?v=1679466789&width=1445)
![[Open Box] MINIWARE 60W Mini Hot Plate Preheater Soldering Station](http://www.sainsmart.com/cdn/shop/products/DSC_7651_13d8dbbe-9994-4119-9996-1b0df466aba9.jpg?v=1679466789&width=1445)

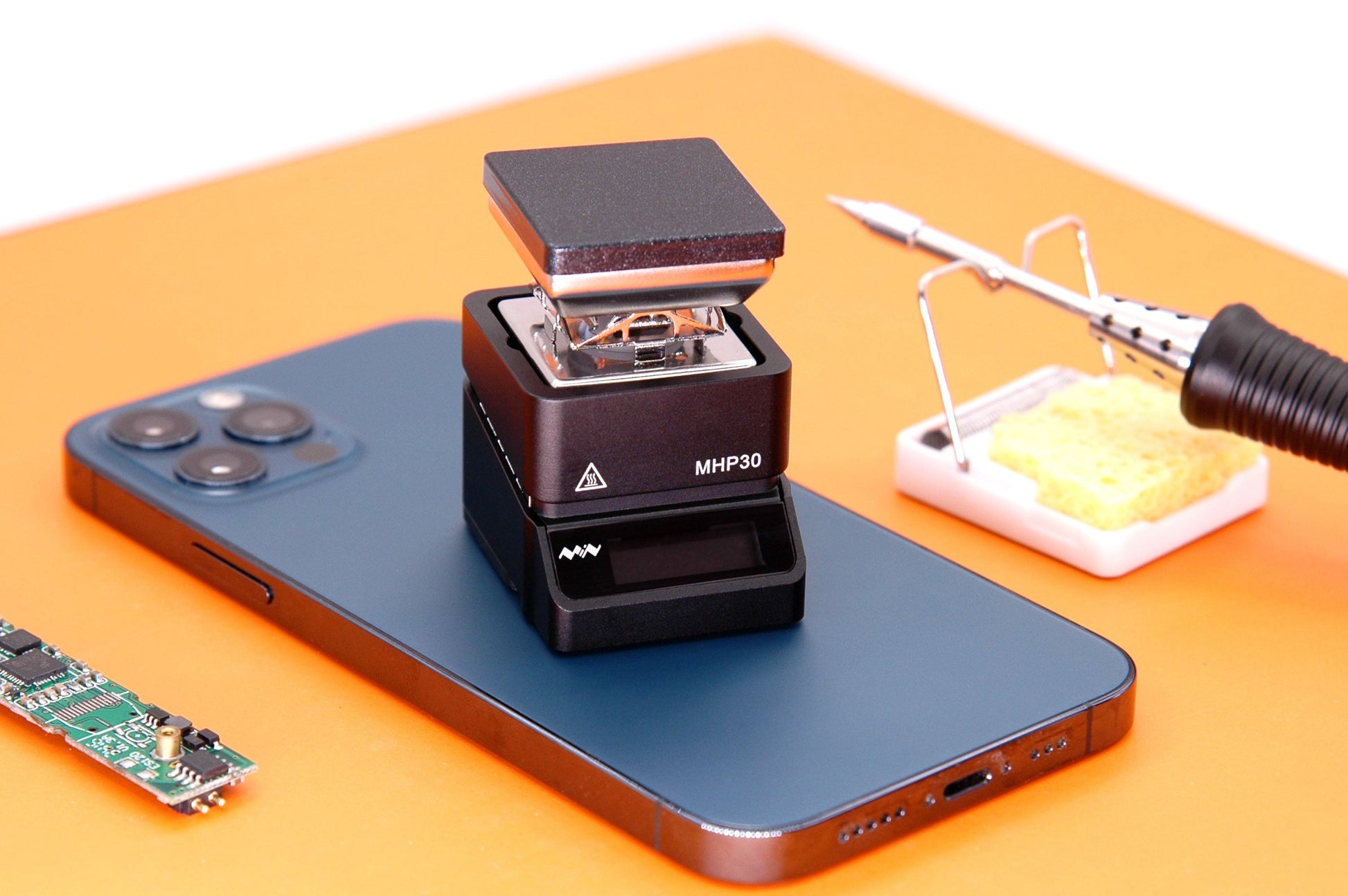

Easy to Carry

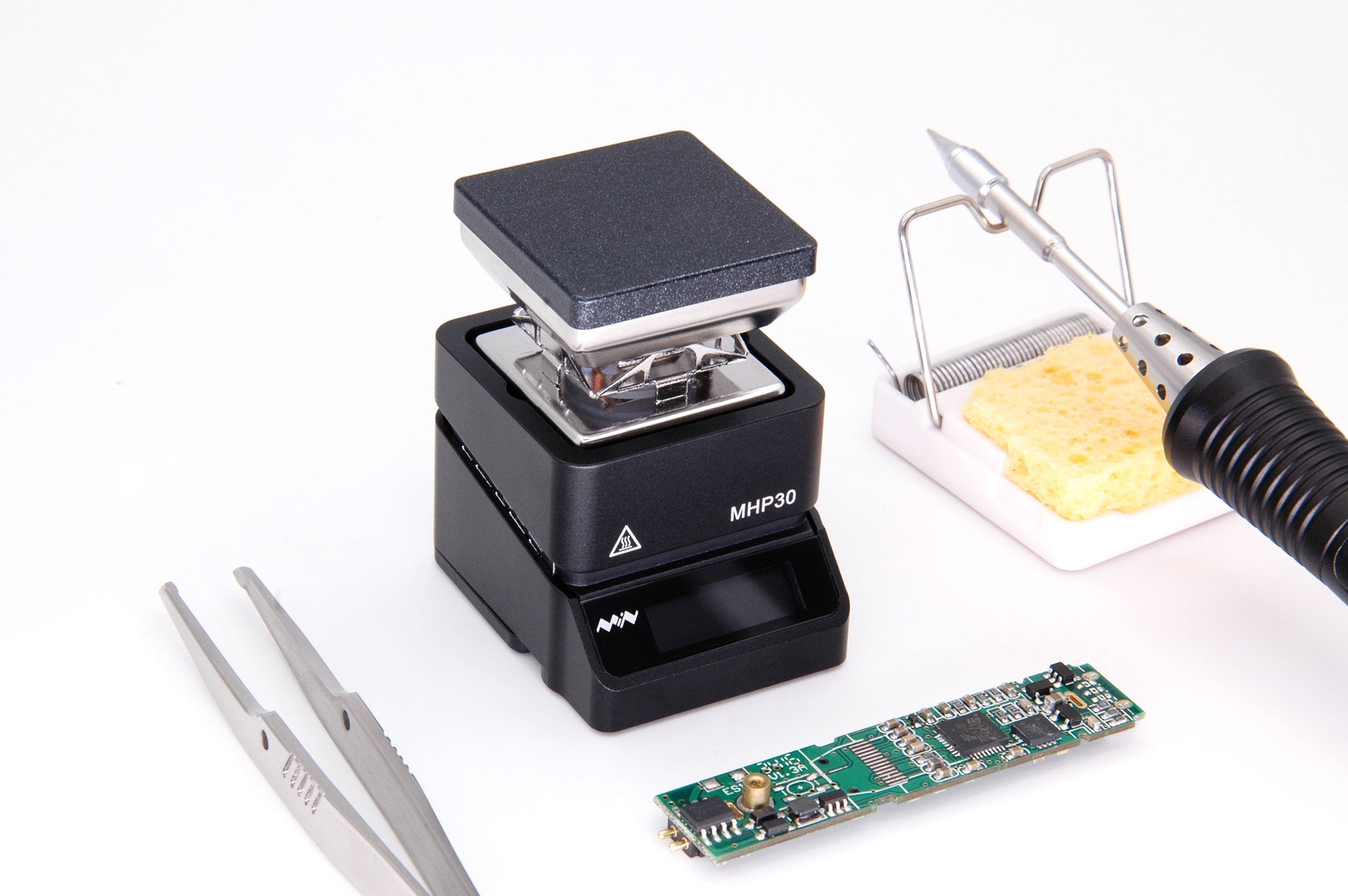

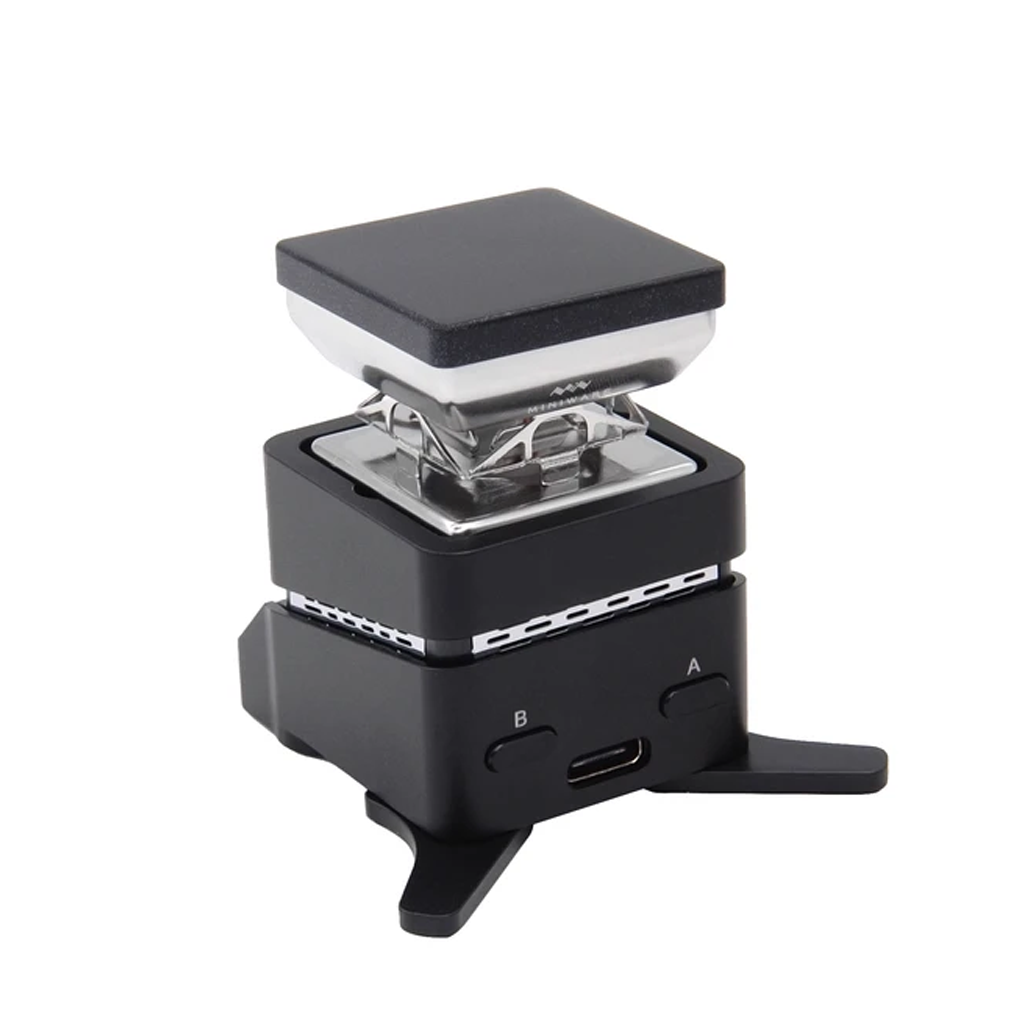

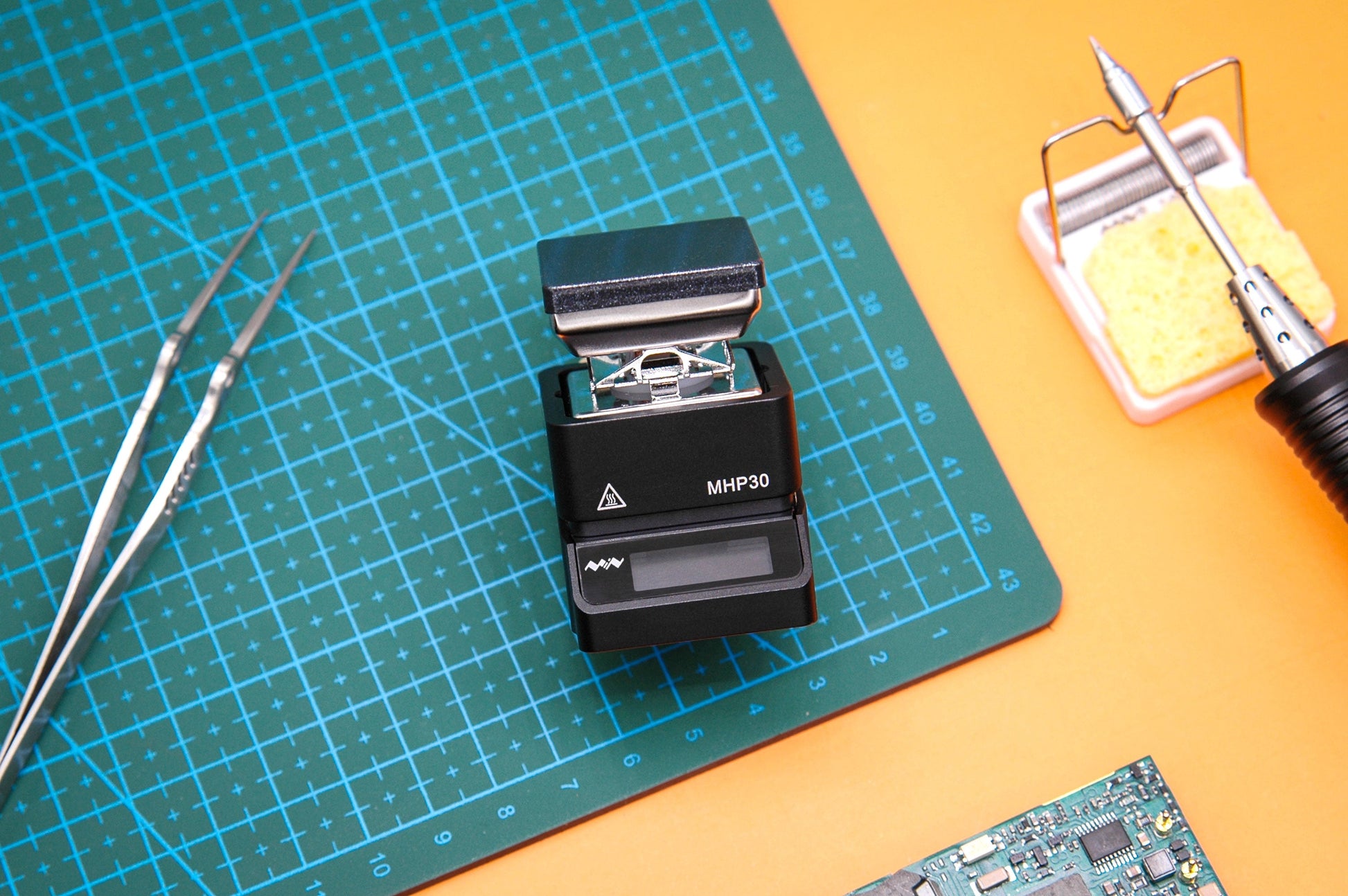

MINIWARE MHP30 Mini Hot Plate Preheater is an ultra-mini smart constant temperature hot plate (heating station). It eliminates redundancy, retains sufficient effective heating area, greatly saves energy and heating time. MHP30 condenses the large desktop heating station into pocket size, and with popular PD power input, it makes possible for heating station to become a portable tool.
High Quality

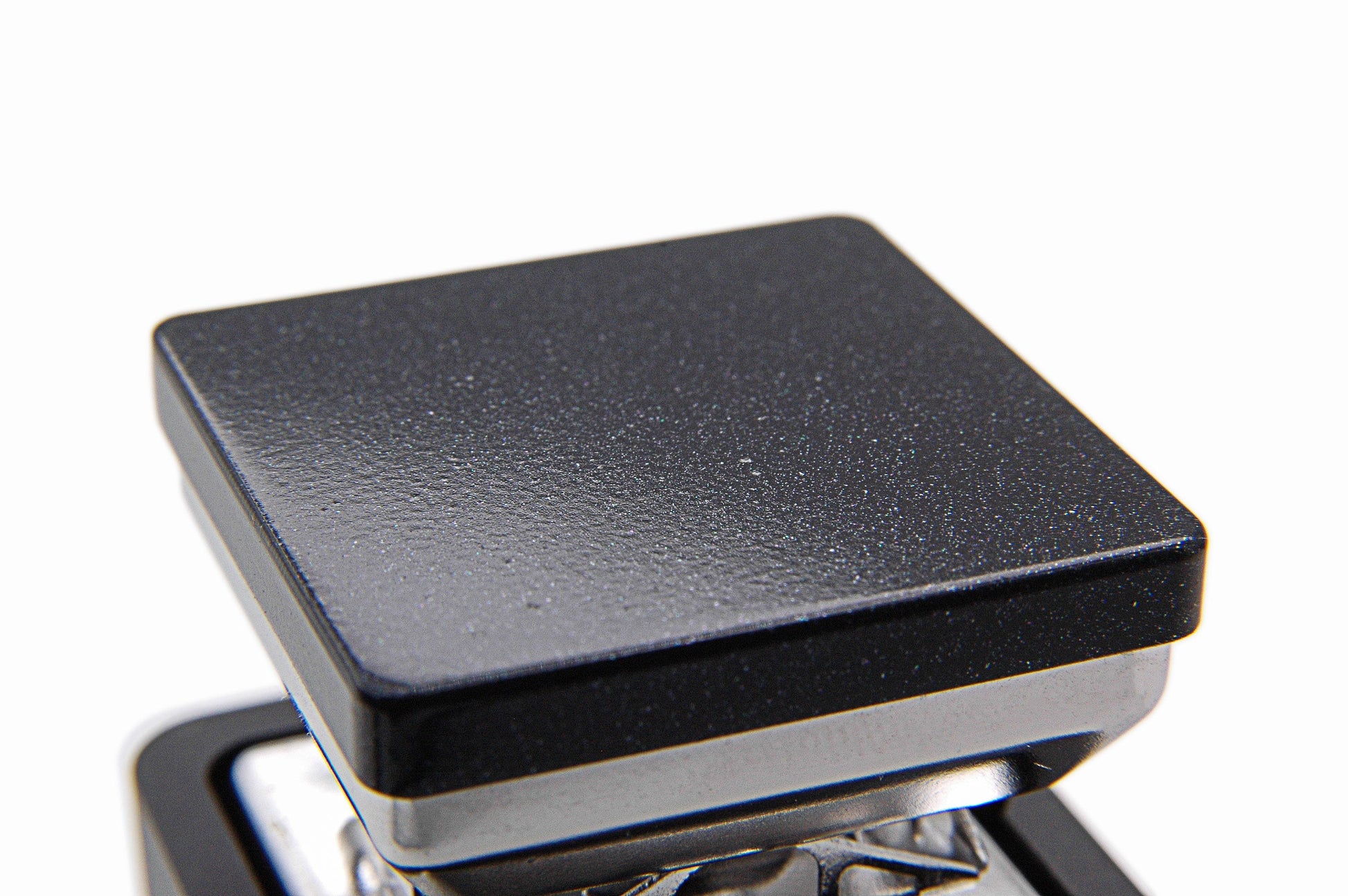

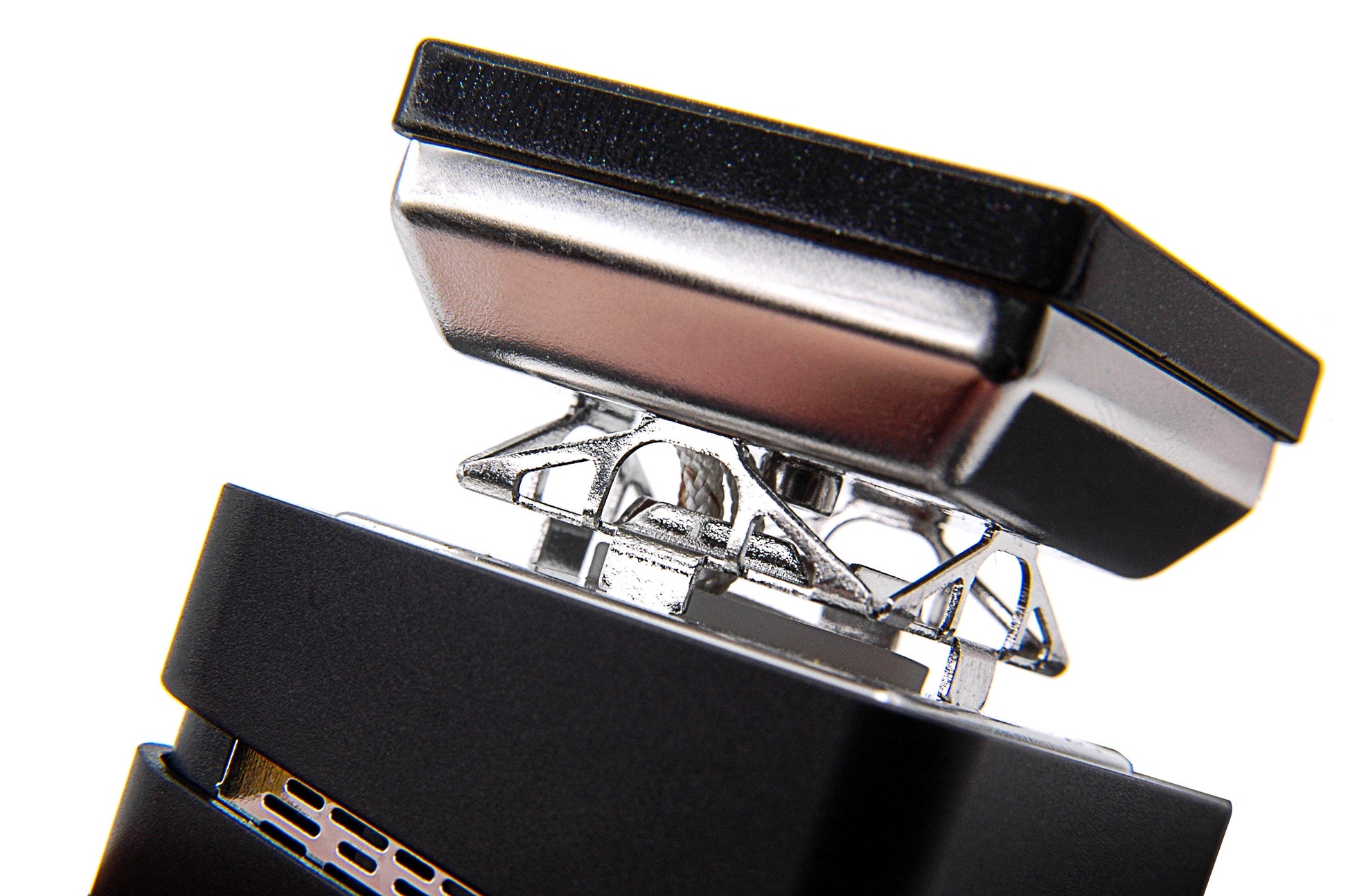

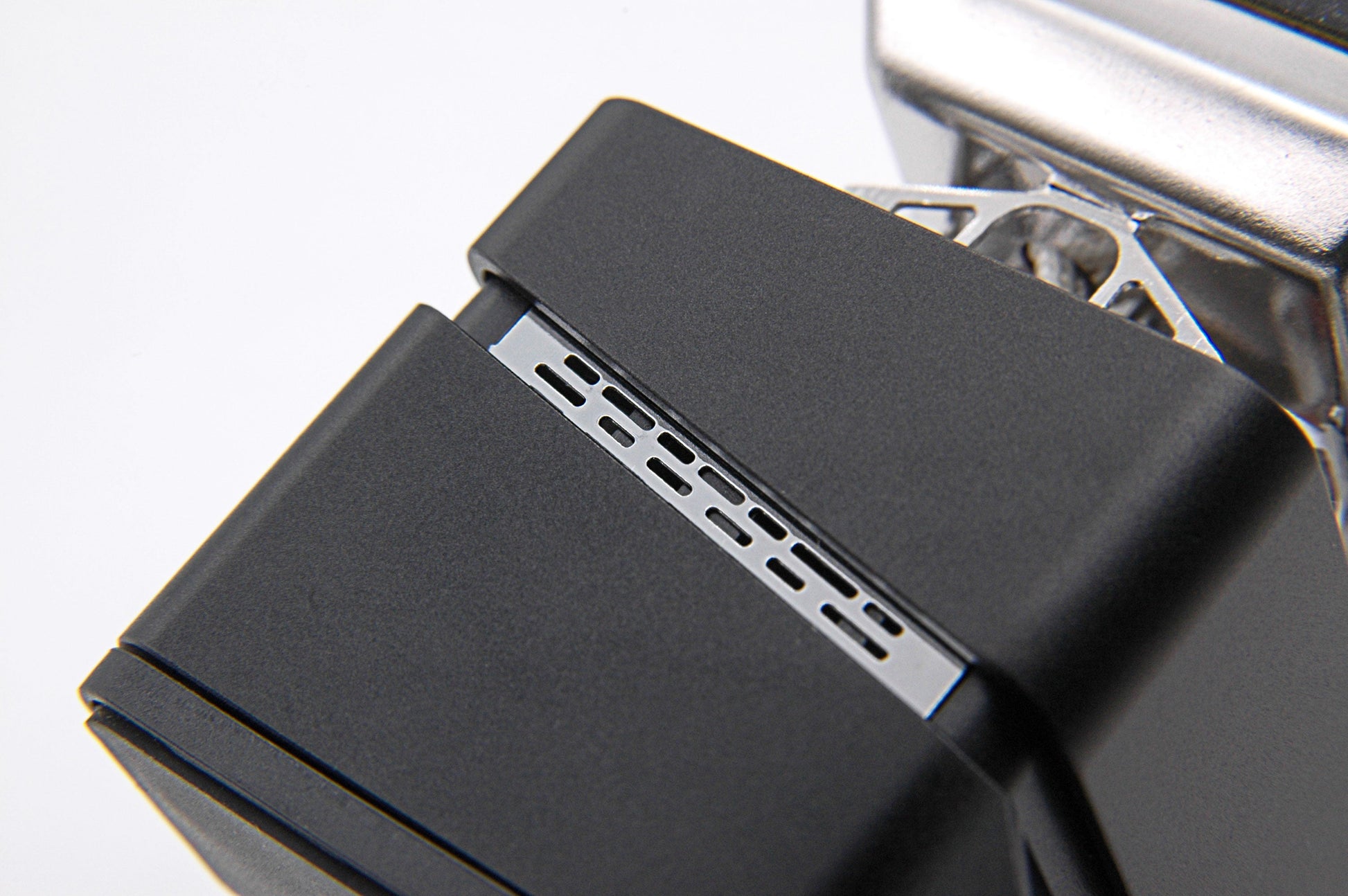

The hot plate's heating body is made of brass with nano-ceramic coating, smooth on surface and evenly heated. A futuristic stainless steel hollow bracket connects the heating part with the circuit board that can be directly inserted into the controller.
True Color LED

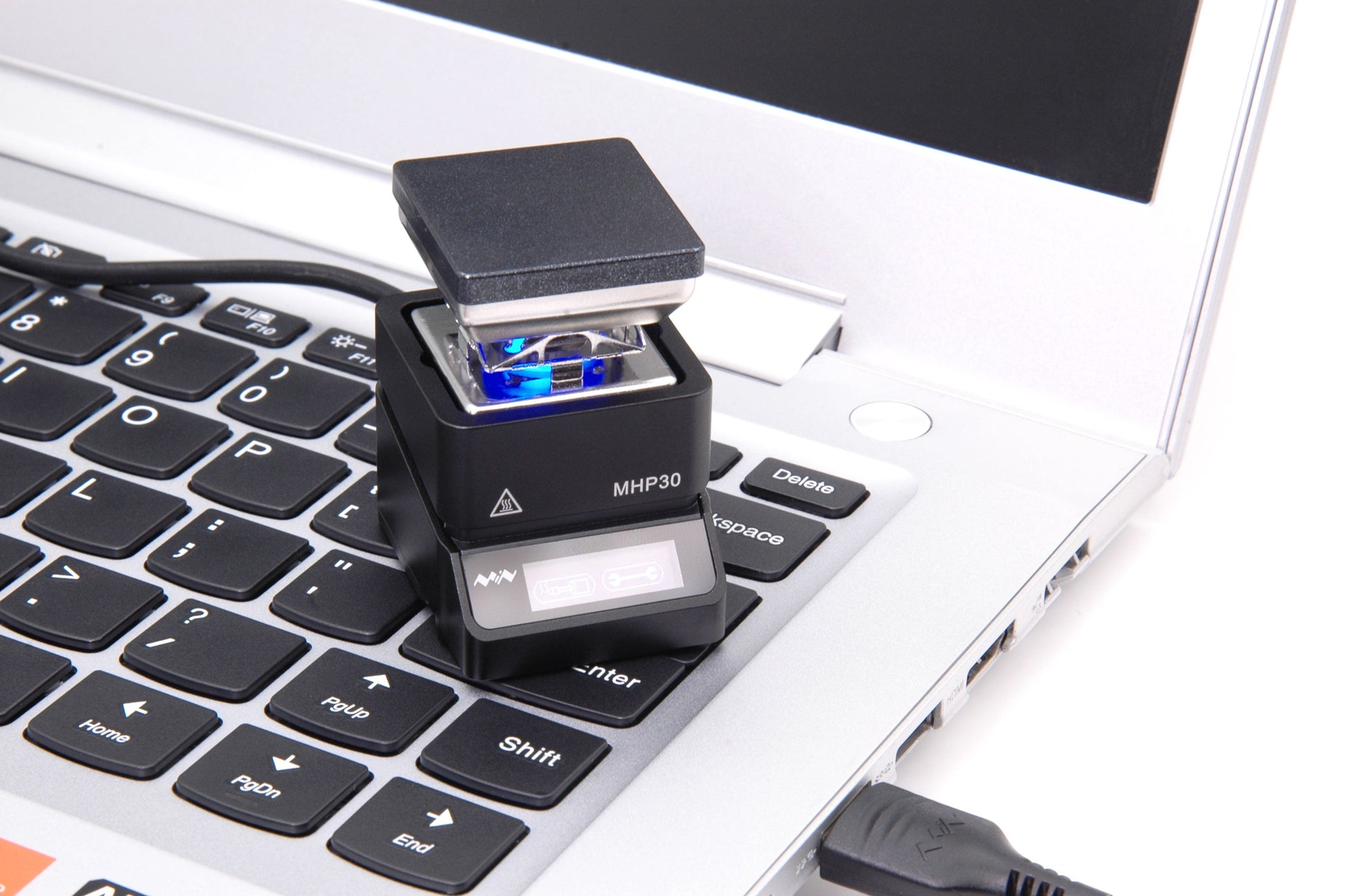

The controller has a built-in true color LED that changes color with the rises and falls of the temperature, letting you know the warm and cold at a glance.
Meet Your Needs
In addition to the upgradeable firmware function, MHP30 also has smart modes such as preset temperature, tilt protection, power wake-up and automatic sleep. Users can set to turn on or off these functions according to their needs.
Specifications:
|
Product Model |
MHP30 |
|
Hot Plate Model |
BS30 |
|
Heating Area |
30mm*30mm |
|
Temperature Range |
100-350°C (Support setting as Fahrenheit) |
|
Temperature Stability |
3% |
|
Ground Resistance |
<2Ω |
|
Power |
60W (Max) |
|
Power Input |
PD input |
|
Size |
Controller: L43mm*W35mm*H31mm Hot plate: L31mm*W31mm*H28mm |
|
Weight (Controller + Hot plate) |
82g |
|
Smart Modes |
Multi smart modes: preset temperature, tilt protection, power wake-up, automatic sleep, firmware upgrade |

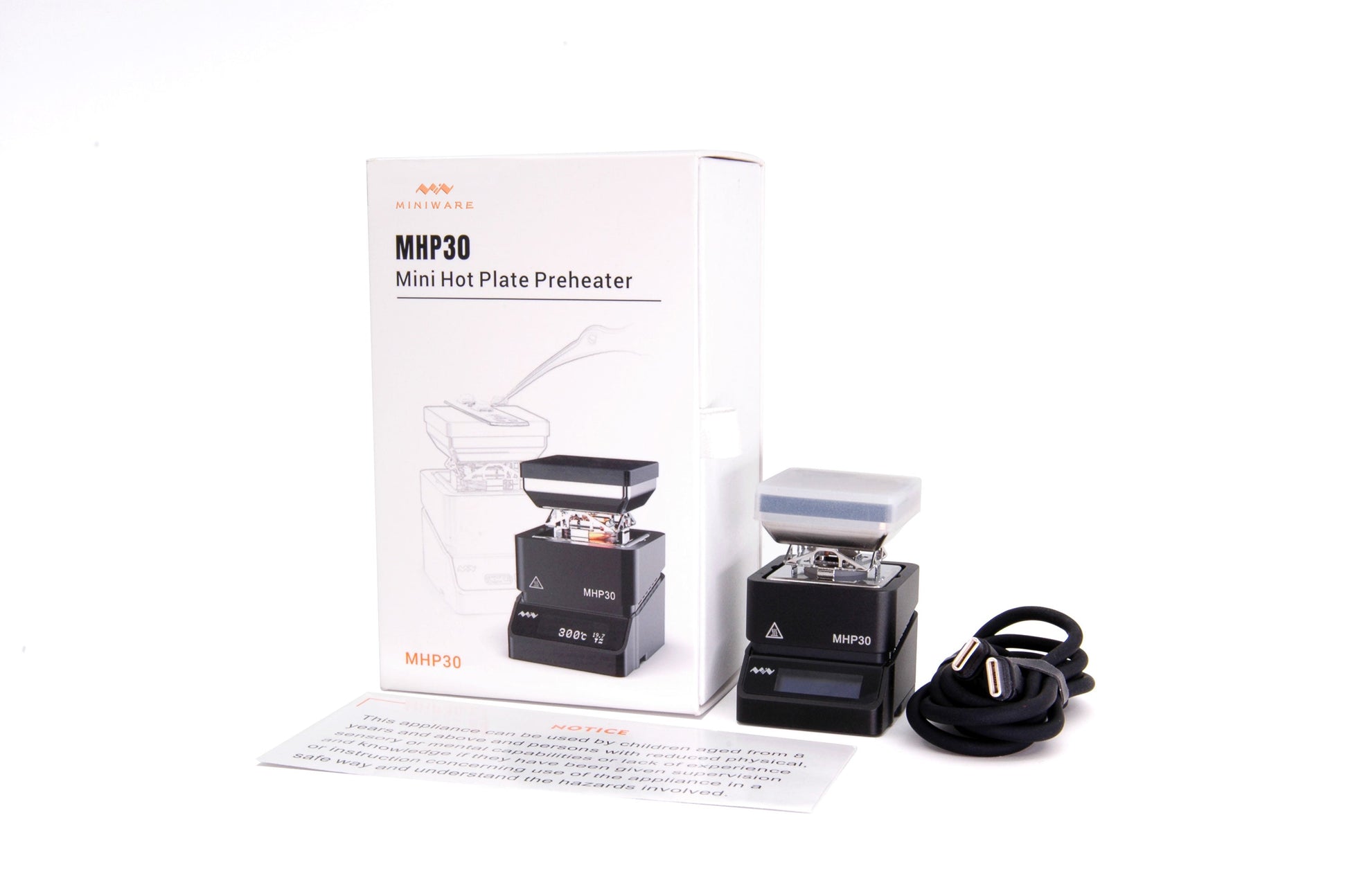

Package List: (MHP30)
1×Hot Plate Preheater
1×USB Cable

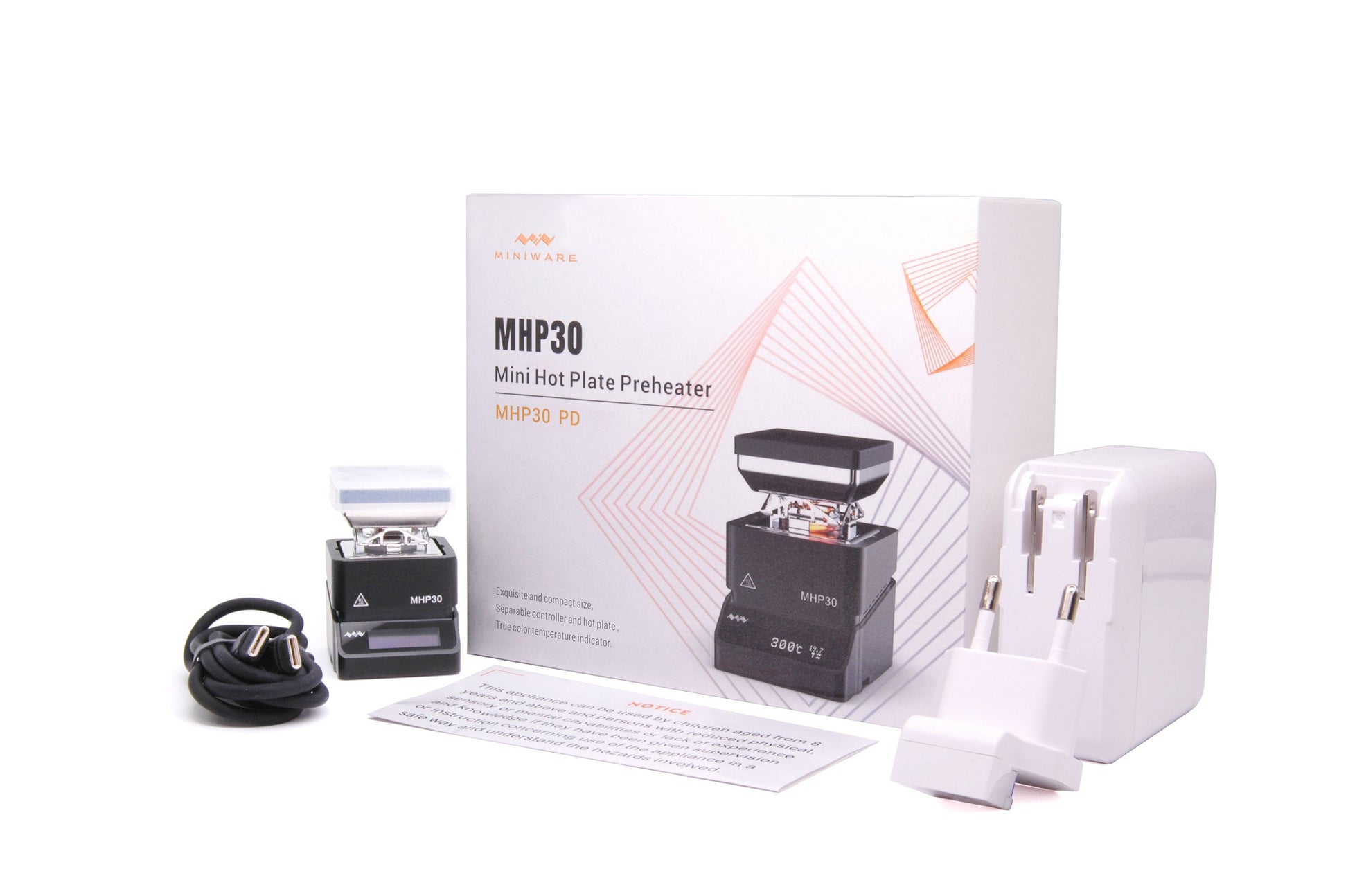

Package List: (MHP30M)
1×Hot Plate Preheater
1×USB Cable
1×US Standard Adaptor
1×EU Gauge Adapter
