Brand: SainSmart

[Open Box] ToolPAC PRO32 Smart Soldering Tool Set

[Open Box] ToolPAC PRO32 Smart Soldering Tool Set

SKU:  101-92-500*SEC
Regular price $59.99
-33% Regular price $89.99 Sale price $59.99
Save $30.00
Shipping calculated at checkout.
  • 101-92-500*SEC
Please check the necessary options first
I agree to the item is not eligible for exchange or return. Details

The Pro32 is a staple tool for the hobbyist, tinkerer, or electrical engineer.  Featuring a sleek body, complete with temperature adjustment buttons and an OLED display, the Pro32 feels good in the hand and offers a wide temperature range for operation.  Its internal heating element warms up to operating temperature in just 12 seconds!

Rapid Warmup

With the help of dual temperature sensors, the internal heating element reaches its operating temperature extremely fast—just 12 seconds!  The tip temperature can be set between 212° F and 752° F (100° C to 400° C) using the adjustment buttons and OLED display.

New Power Supply Design

The Pro32 features an integrated DC5525 12-24V connection.  Its anti-static design isolates the temperature sensors from extraneous surges.

Tough & Portable

The sleek, slim design is comprised of an SAE 304 stainless steel core, housed inside a polycarbonate shell with an easy-to-read OLED display.

Smart & Safe

The integrated STM32 processor chip automatically regulates the Pro32’s “sleep mode”, “standby”, and “operating mode”, ensuring the safety of the user.

View full details



Why choose SainSmart?

As an industry leader since 2010, SainSmart offers a 1-year manufacturer’s warranty on all parts, so you can rest assured that your purchase is protected.

 What's new:

  1. Brand new box design. Well packaged and space saver.
  2. Included both B2 and BC2 soldering tips that meet daily soldering needs.
SPECIFICATION
  • Operating Voltage: 12 to 24 VDC
  • Power: 17 W to 65 W
  • Display: OLED
  • Data Port: Micro USB
  • Power Port: DC5525
  • Temperature Stability: ±2%
  • Soldering Tip Resistance (to ground): < 2Ω
  • Temperature Range: 212° F to 752° F (100° C to 400° C)
  • Handle Size: 96 mm long x 16.5 mm diameter
  • Heating Element Size: 72+33 mm x 5.5 mm diameter
  • Certification: CE FCC
  • NOTE: 4S/5S/6S LiPo Battery is available for Pro32, but you need a cable to link battery and soldering iron.(self-provide)

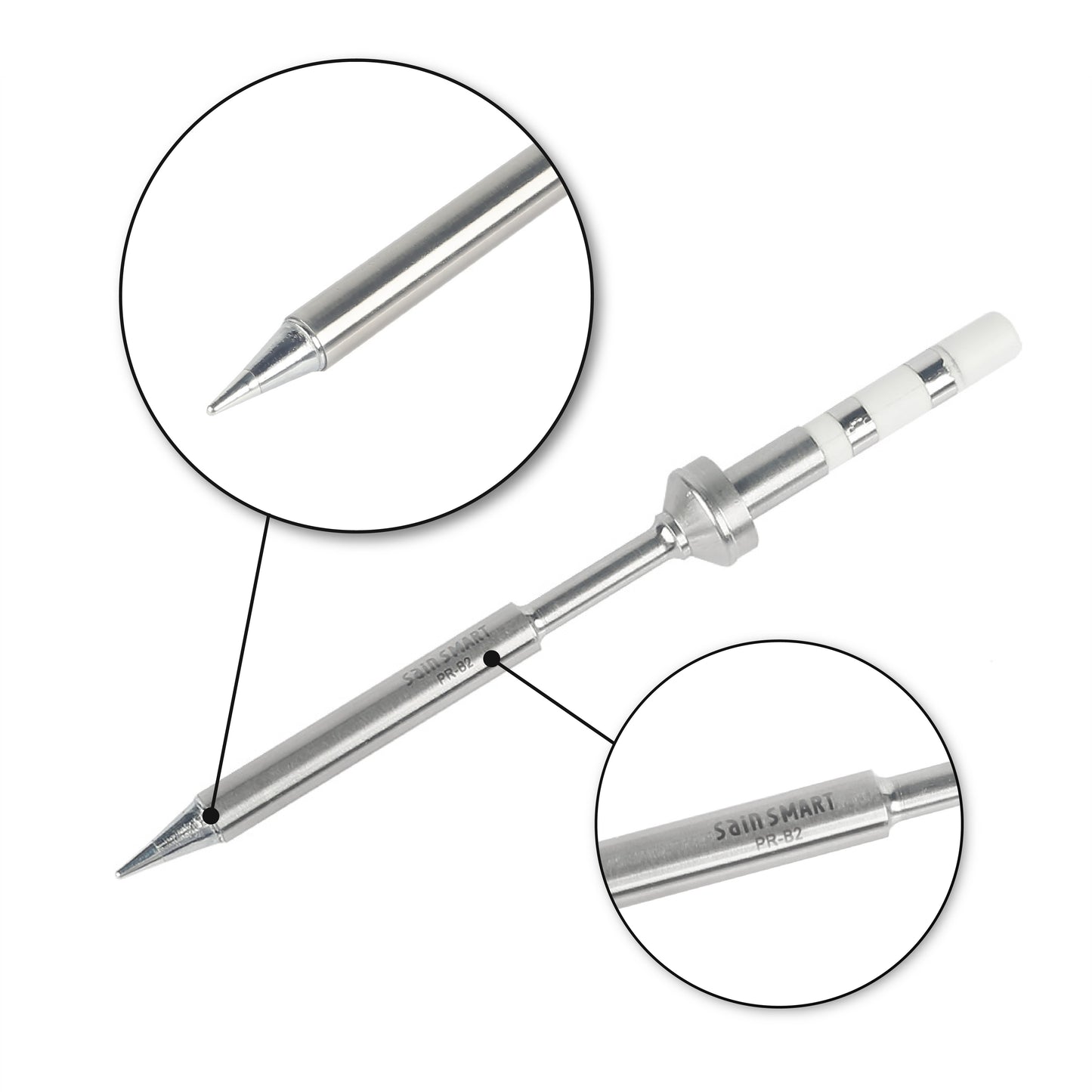

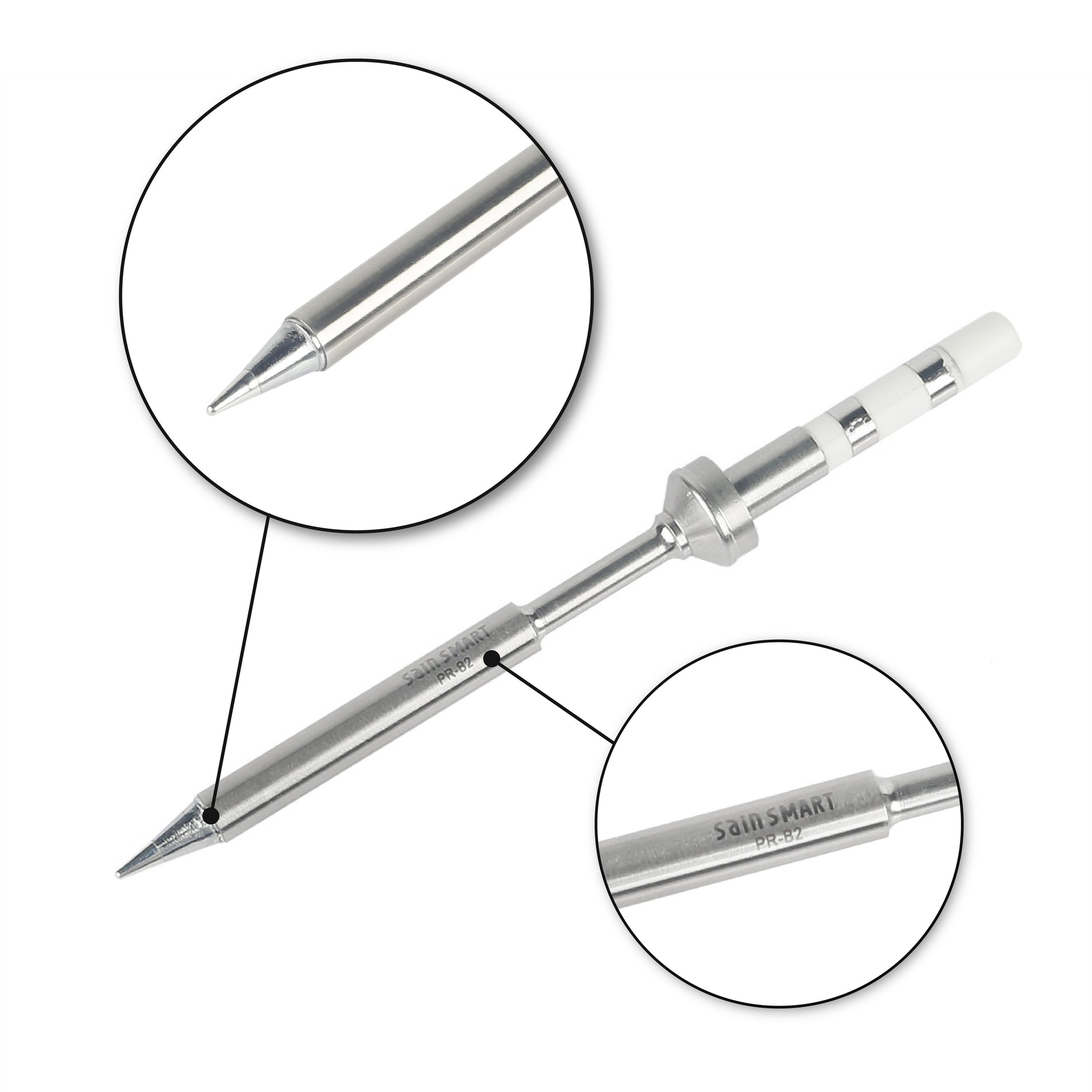

Original Replacement Solder Tip for Pro 32 Digital LCD Soldering Iron:

Specifications Total length Weight
PR-B2 105mm 10.5g
PR-BC2 106mm 10.5g

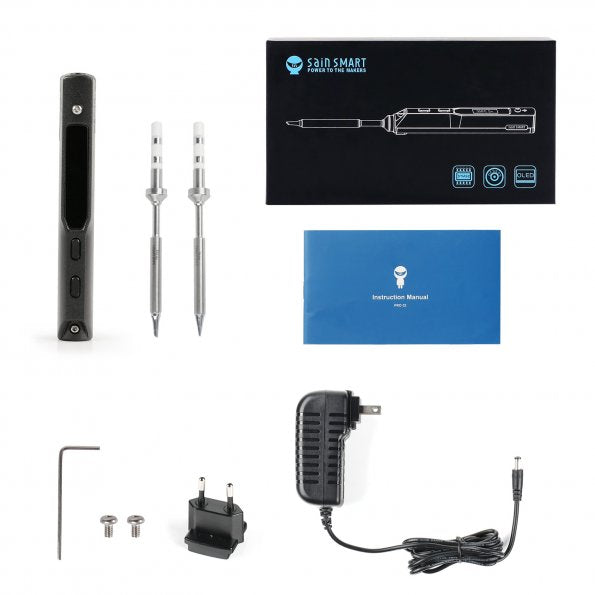

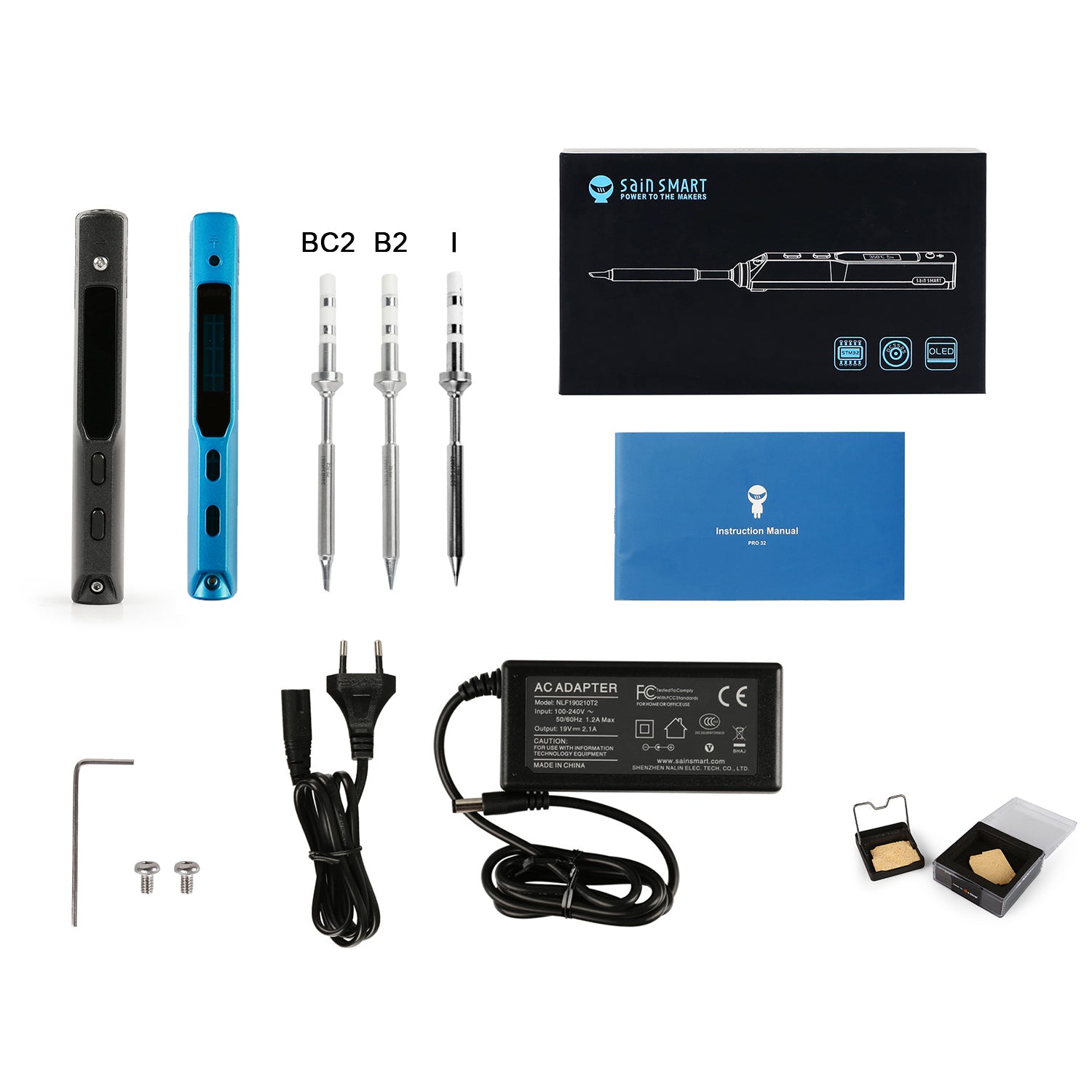

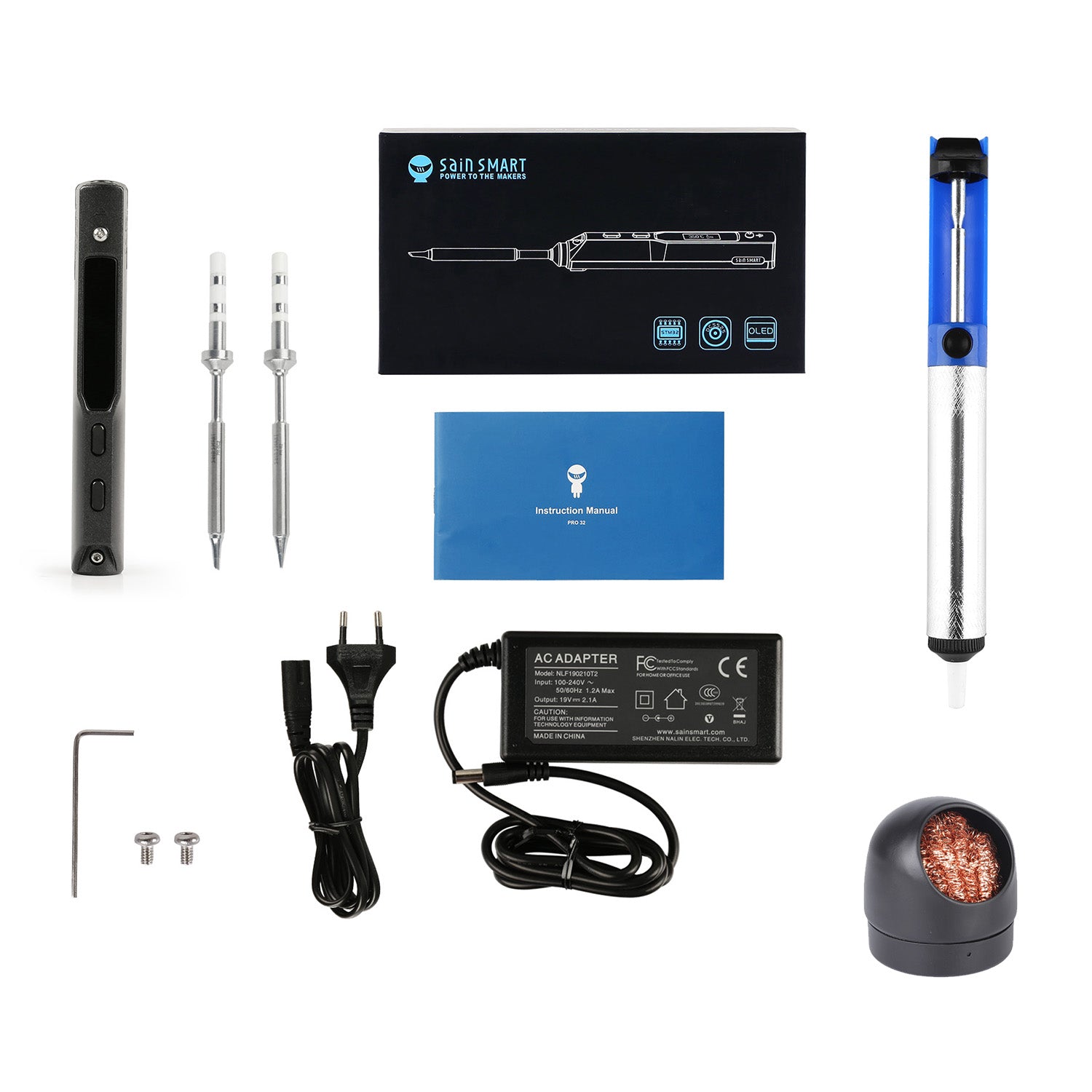

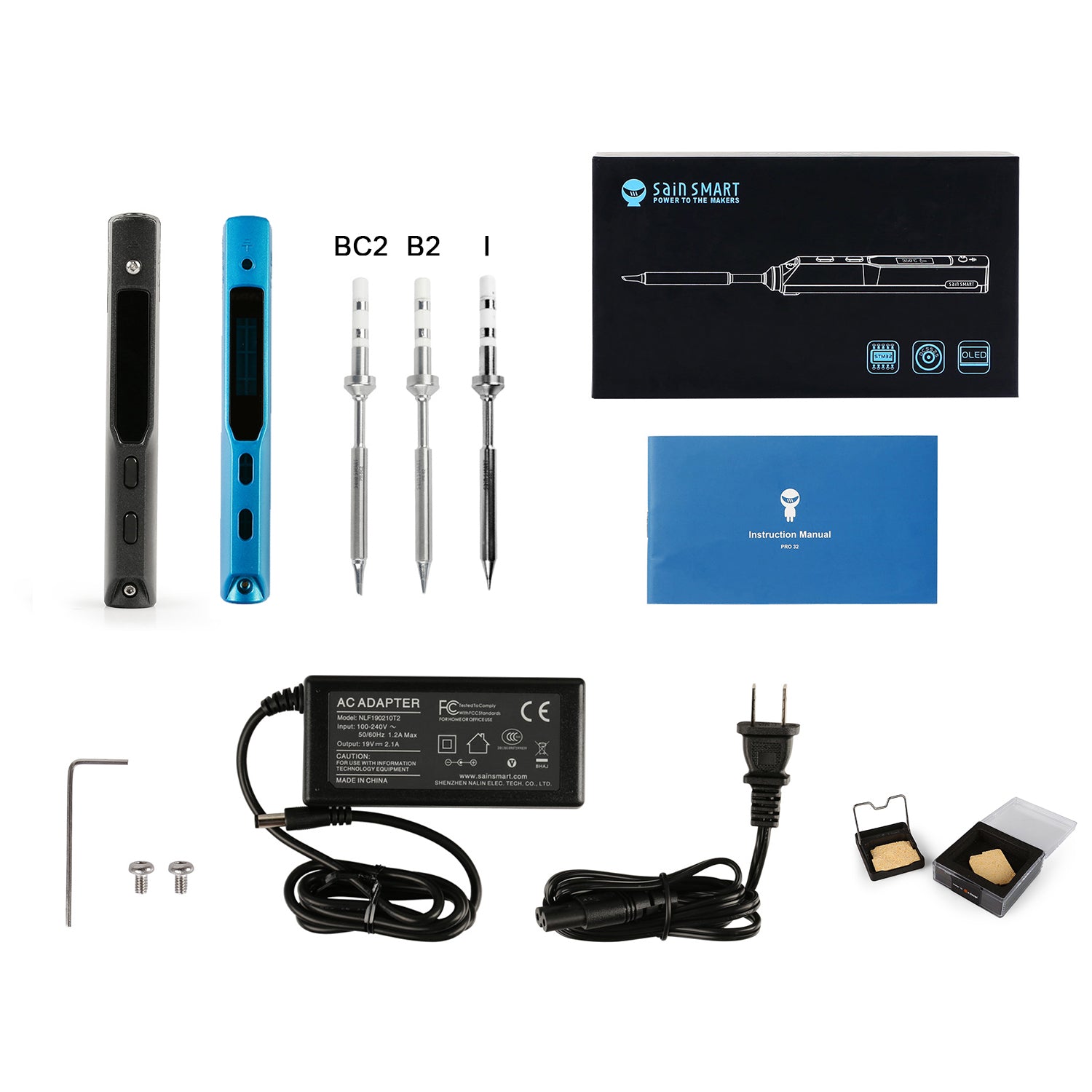

WHAT'S IN THE PACKAGE

Two Tips

  • 1 x Pro 32 Digital LCD Soldering Iron
  • 1 x PR-B2
  • 1 x PR-BC2 Solder Tip
  • 1 x Allen Key (For replace the tips and heating element)
  • 1 x 19V/2.1A 100-240V Power Supply (AC/DC adapter)



DOCUMENT
http://wiki.sainsmart.com/index.php/SainSmart_Pro32_Soldering_Iron_Kit#Resources
