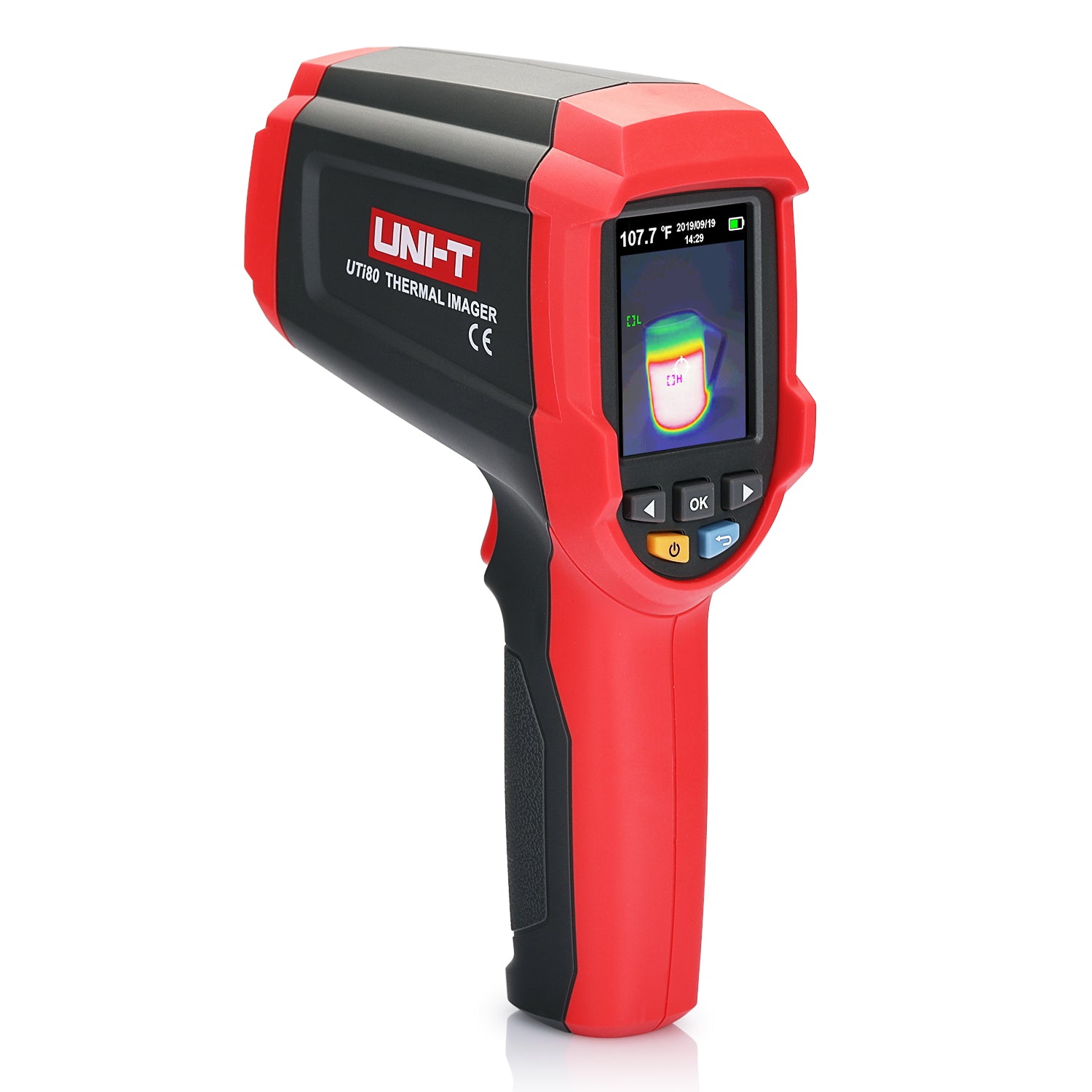

[Discontinued] [Open Box] UNI-T UTi80 Handheld Infrared Thermal Camera

[Discontinued] [Open Box] UNI-T UTi80 Handheld Infrared Thermal Camera

SKU:  UNT-TI-80*SEC
$195.99
-30% $279.99 $195.99
Free Shipping
Save $84.00
Shipping calculated at checkout.
Ship to
  • UNT-TI-80*SEC
Please check the necessary options first
I agree to the item is not eligible for exchange or return. Details

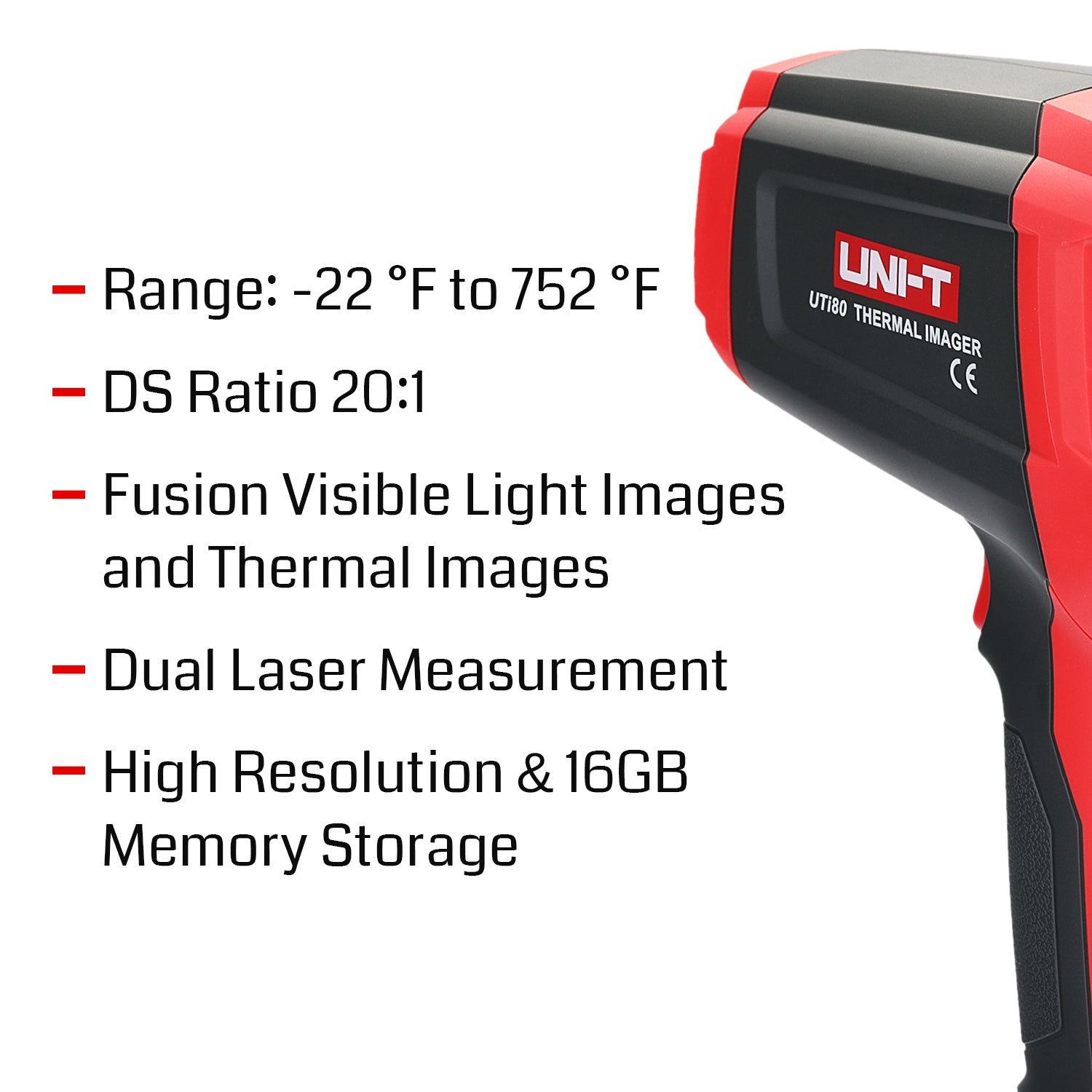

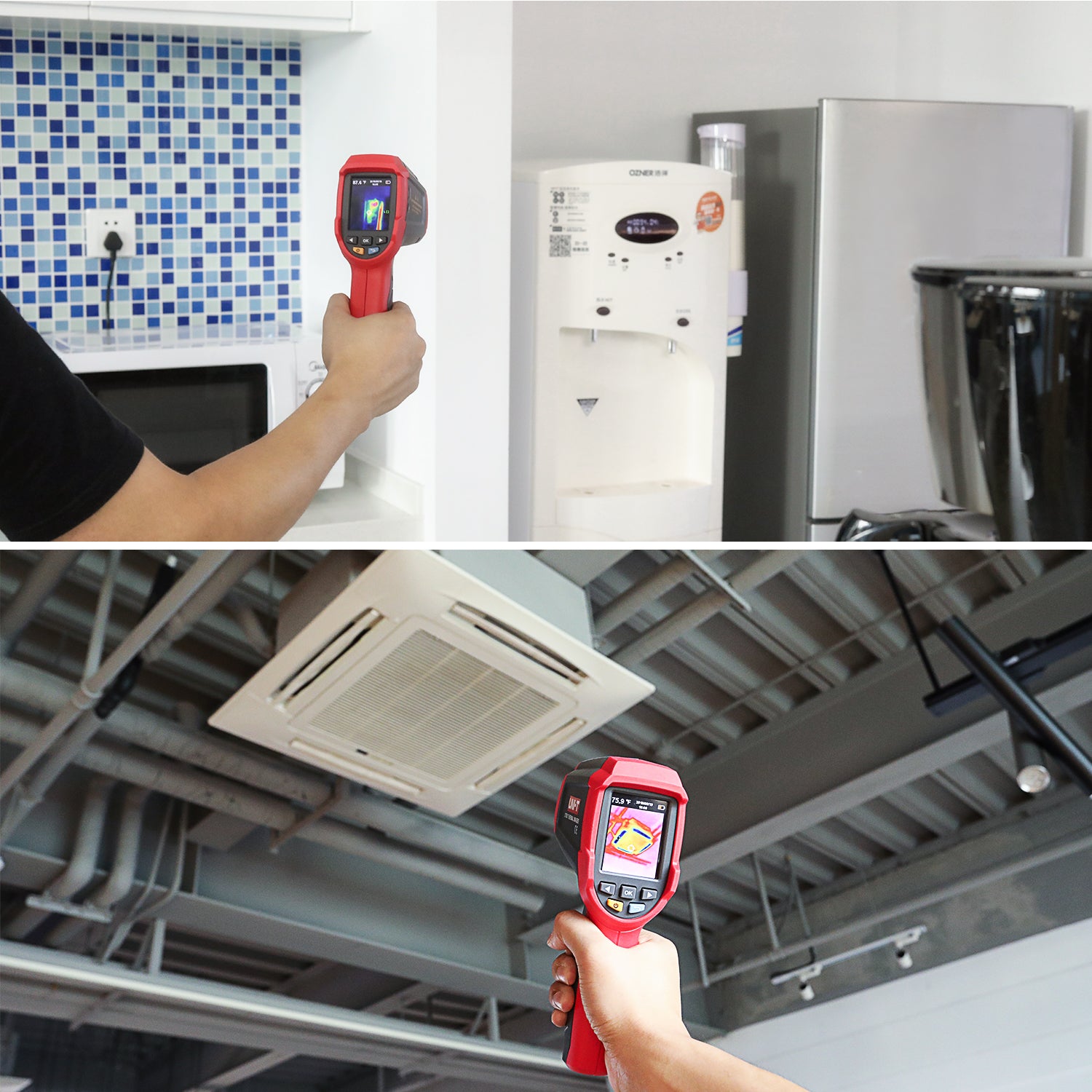

Professional and Home Use

From home inspection to professional field use, the UNI-T i80 is perfect for jobs that require accurate temperature readings from-22°F to 752°F. Our intuitive design features a 20:1 DS (distance coefficient) ratio for safe measurements from long distances.

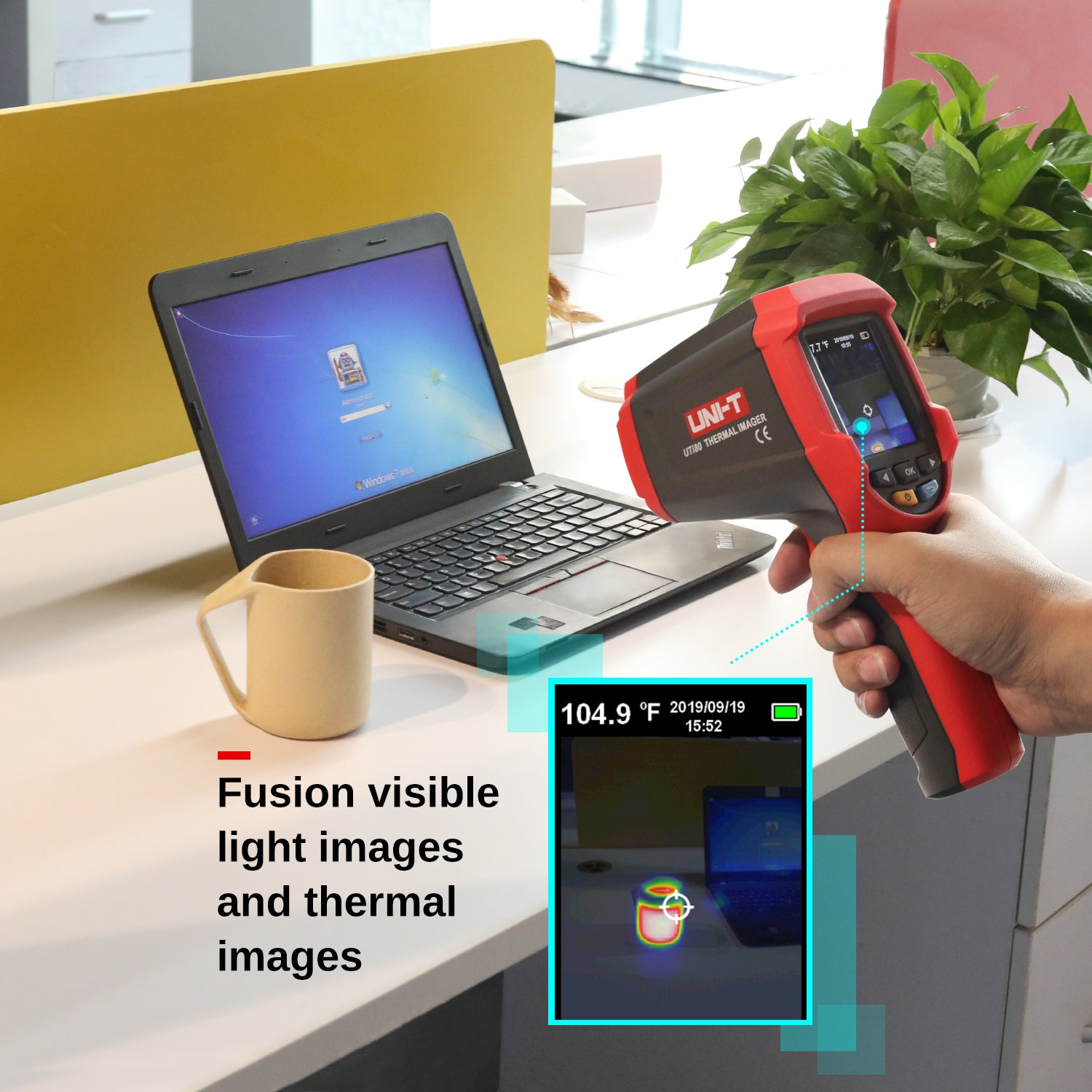

Fusion Image and High Resolution

Fusion visible light images and thermal imaging for quick troubleshooting.  The 80x60 pixel thermal imaging camera and 2.4 inches TFT LCD screen allow you to view and capture high-resolution professional images for later evaluation or reporting.

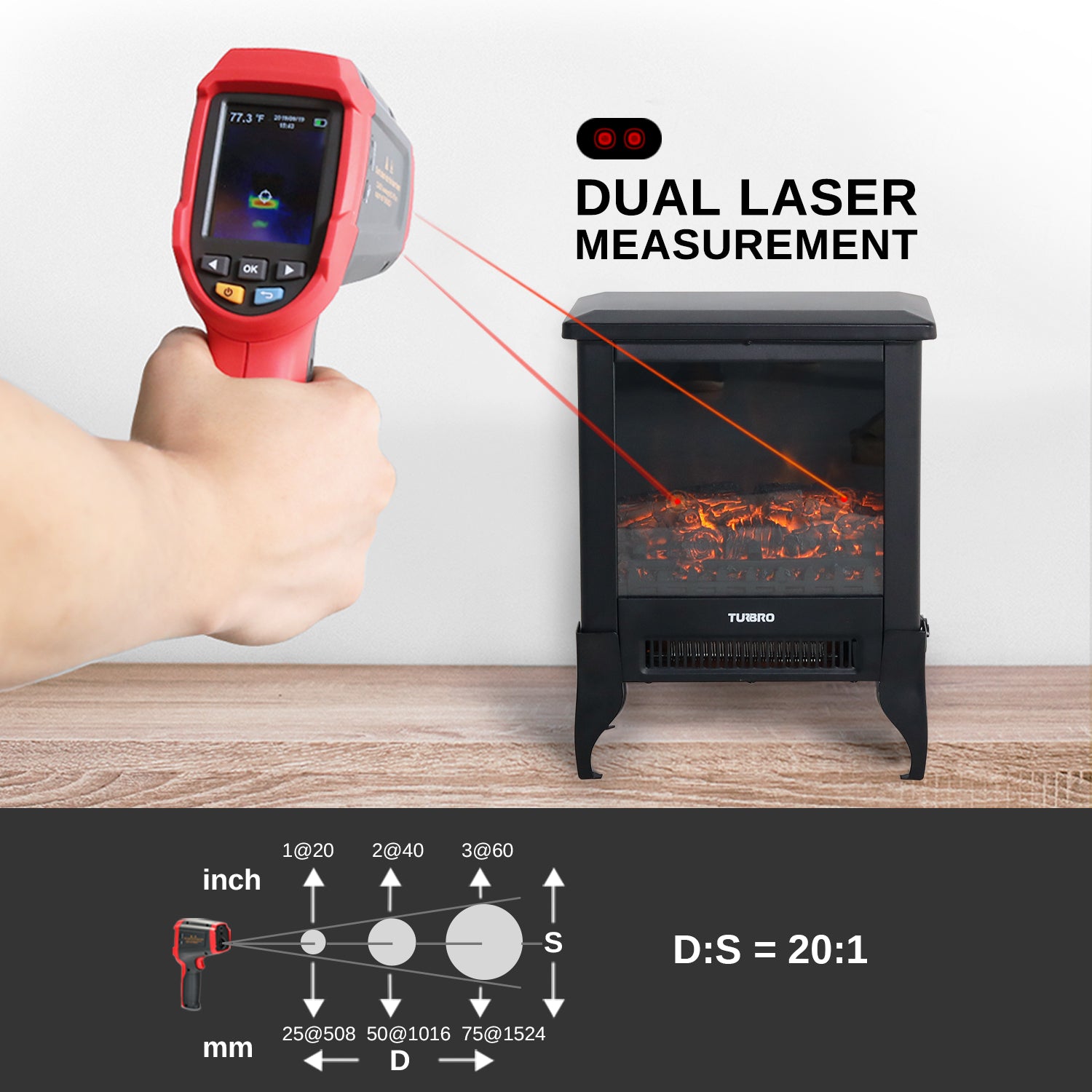

Dual Laser Measurement Tool

Our dual laser pointer design allows you to easily discern the distance between two points on screen for accurate measurements.

16GB Memory Card Storage

Images and data can be easily saved into the included 8GB microSD card for later troubleshooting and documentation.

Portable and Comfortable Grip

The UTi80’s compact design allows it to be easily stowed and transported and includes a rechargeable Lithium battery for extended use and a lower environmental impact compared to other disposable battery devices.


View full details
Open Box items are final sale with 6-month warranty. No exchange or return.
Overview

The UTi80 features thermal imaging and displays hot and cold spots on the screen, allowing users to more effectively observe object temperature changes. The dual laser transmitter helps you quickly lock on to the target area. The standard 8GB memory card can store a large number of images and data while generating high-quality infrared images, which is a good tool for troubleshooting and later documentation.

Technical Specification



Infrared temperature measurement

  • Temperature range: -22°F to 752°F
  • Basic accuracy:  -22°F to 32°F:±5.4°F
  • 32°F to 212°F:±3.6°F
  • 212°F to 752°F:±2%
  • Nominal temperature and humidity 73.4°F±3.6°F, 50-75% RH
  • Emissivity: 0.95 (default, 0.1-0.99 manual adjustment)
  • D:S (Distance to Spot ratio):20:1
  • Measurement resolution:0.1°F
  • Response time:250ms



Thermal imaging technology

  • IR resolution:4800 pixels (80*60)
  • Pixel size: 17µm
  • Display mode:  Thermal imaging, image blending, digital camera
  • Color palette: Ironbow, rainbow, grayscale
  • Image blending setting:0% (full thermal imaging), 25%, 50%, 100% (all visible light )
  • Optimized image blending distance:≧1m
  • Spectral range: 8~14µm
  • Field of view (FOV): 50° horizontal
  • Thermal imaging sensitivity: 150mk
  • Frame rate:≦9Hz
  • Save image format: BMP (320x240)



General parameters

  • Visual camera:2 MP
  • Equipment size (length * width * height):205mm *124mm * 65mm
  • Display Type:2.4”TFT LCD
  • Display resolution:320*240 pixels
  • Laser indication: Dual laser
  • Battery: 3.7V/2600mAh
  • Auto Power Off: Yes
  • Battery life: Approx. 6 hours
  • Charge time: Approx. 7 hours
  • Storage temperature: -4°F~122°F
  • Working temperature: 32°F~113°F
  • Temperature coefficient:±0.18°F or ±0.1% (any of the larger ones)
  • Drop test:1 meter (3.28 feet)
  • Standard accessory: User manual, USB cable, 8GB Micro SD card
  • Altitude: No more than 2000 meters

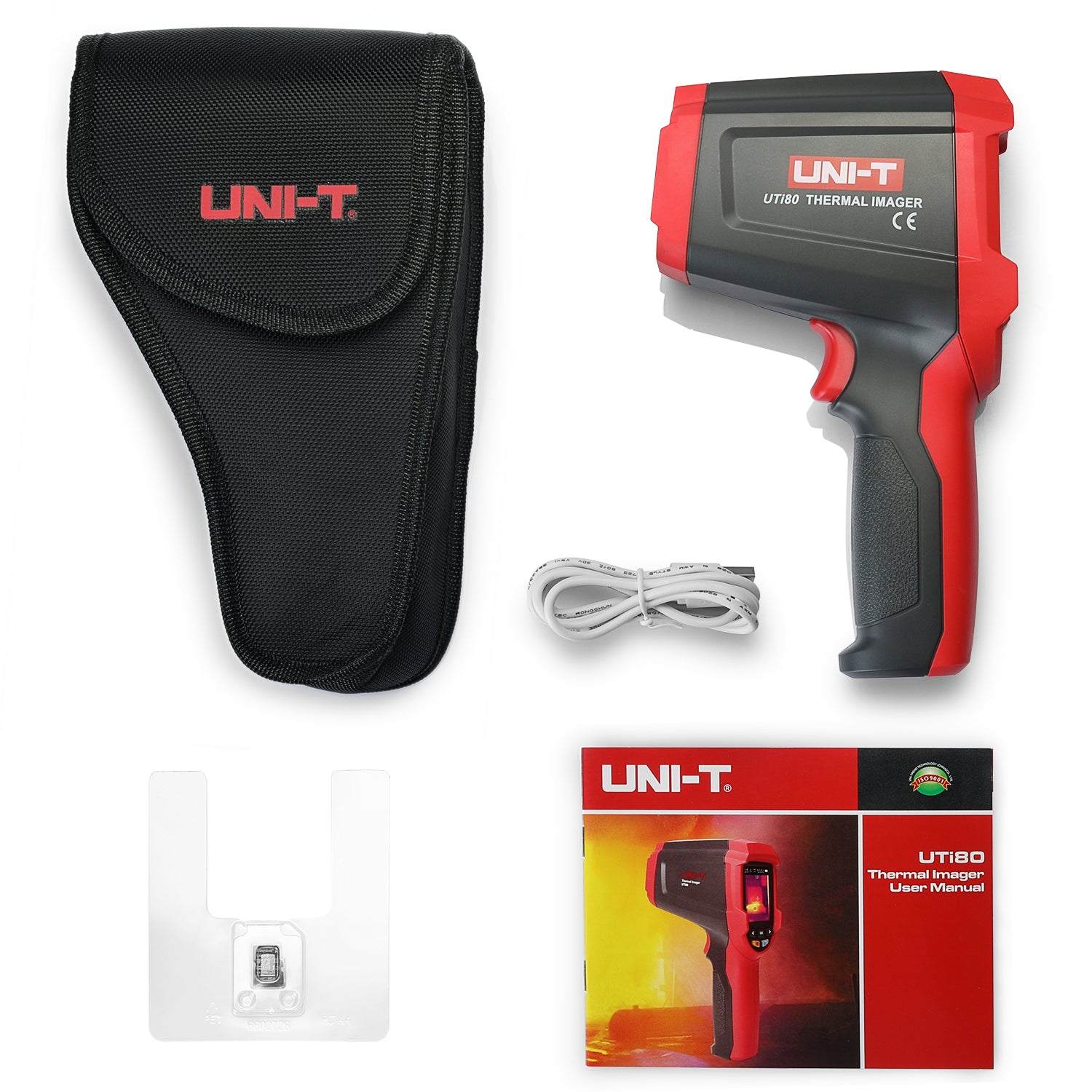

Package List
  • 1 x UTi80 Thermal Camera
  • 1 x 8GB Micro SD card
