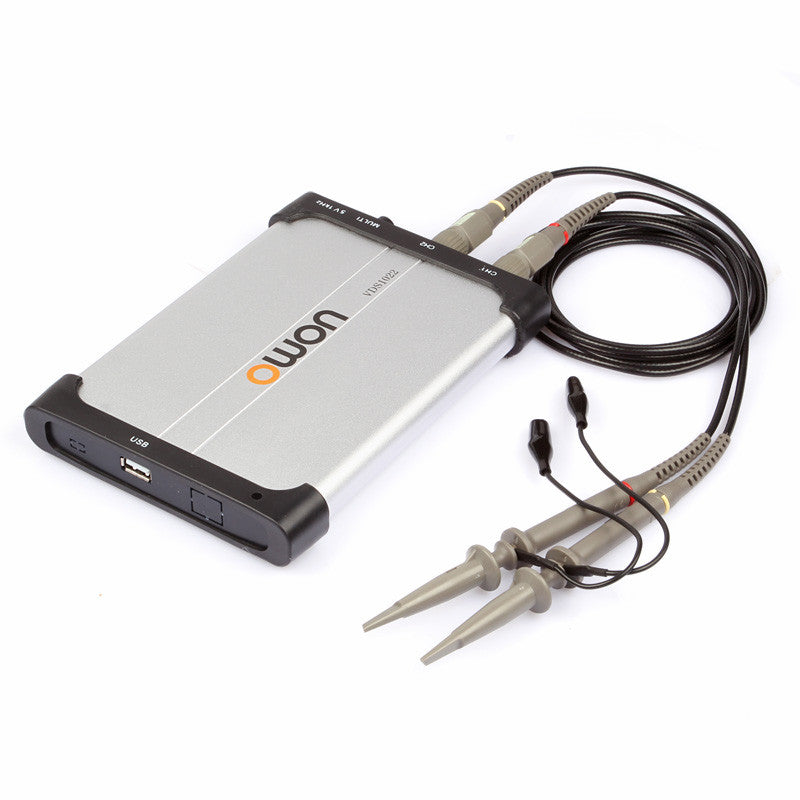

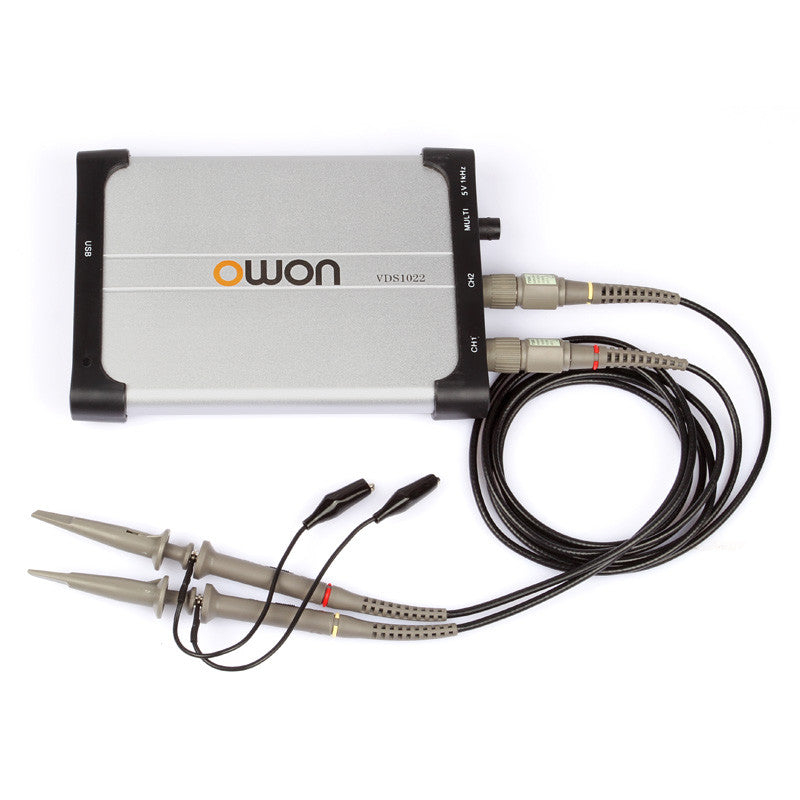

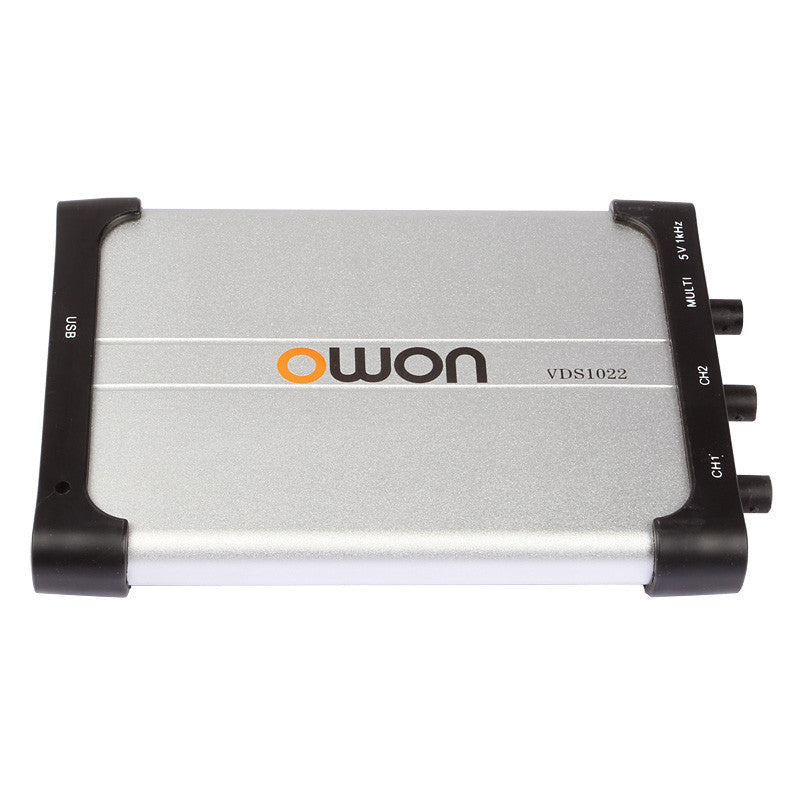

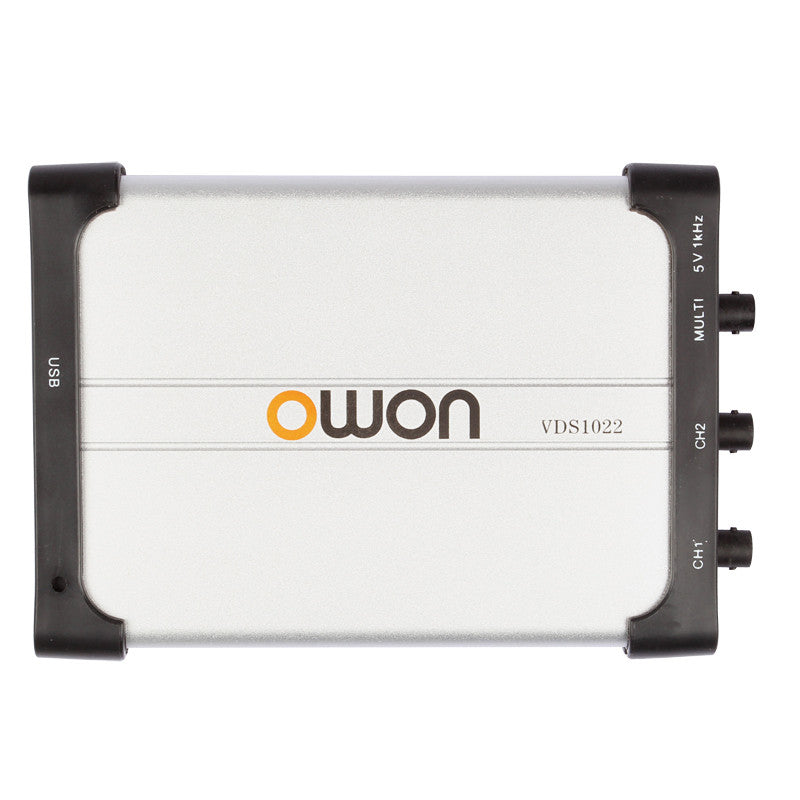

[Discontinued] VDS1022 25MHz 2+1 Channel PC USB Oscilloscope

Upgrade version:

VDS1022 25MHz 2+1 Channel PC USB Oscilloscope, MIT USB Isolation

DESCRIPTION

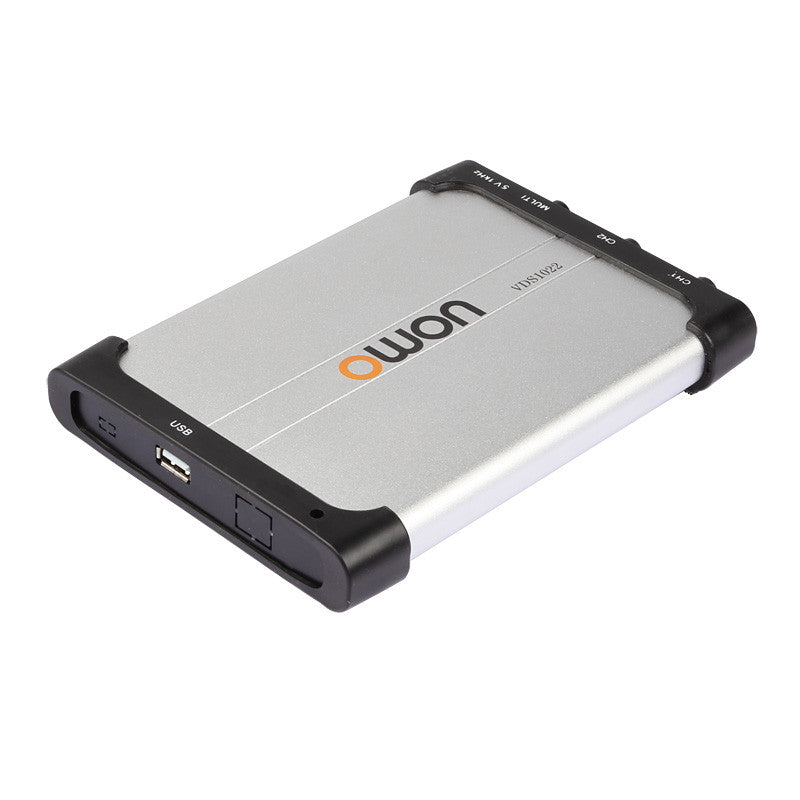

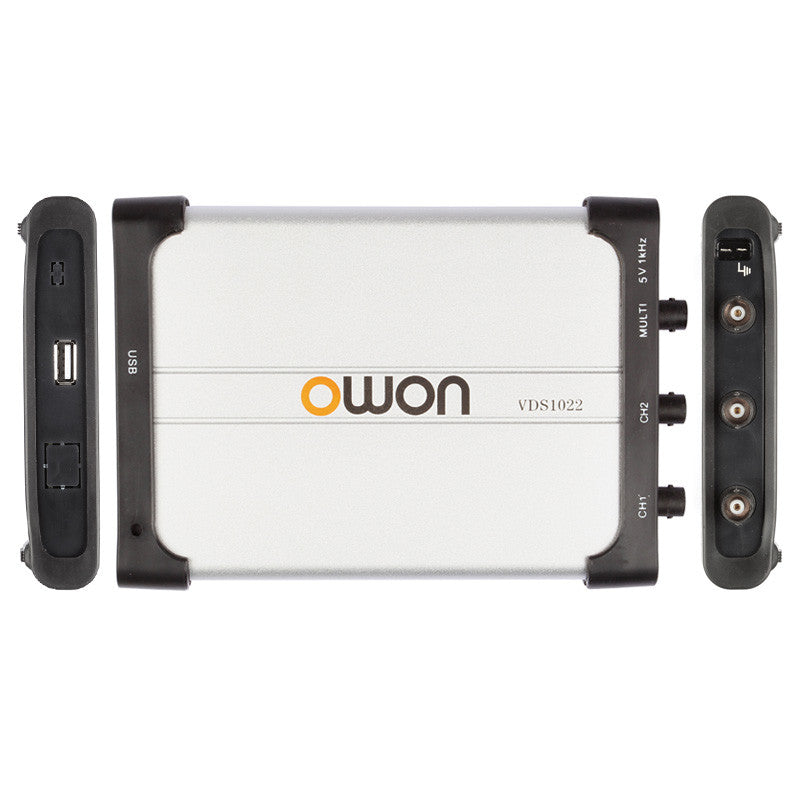

1. Ultra-thin body design, easy portability

• RS232 port (optional)
• USB port : power supplying via USB bus, communicating with PC
• LAN port (optional) : remote control

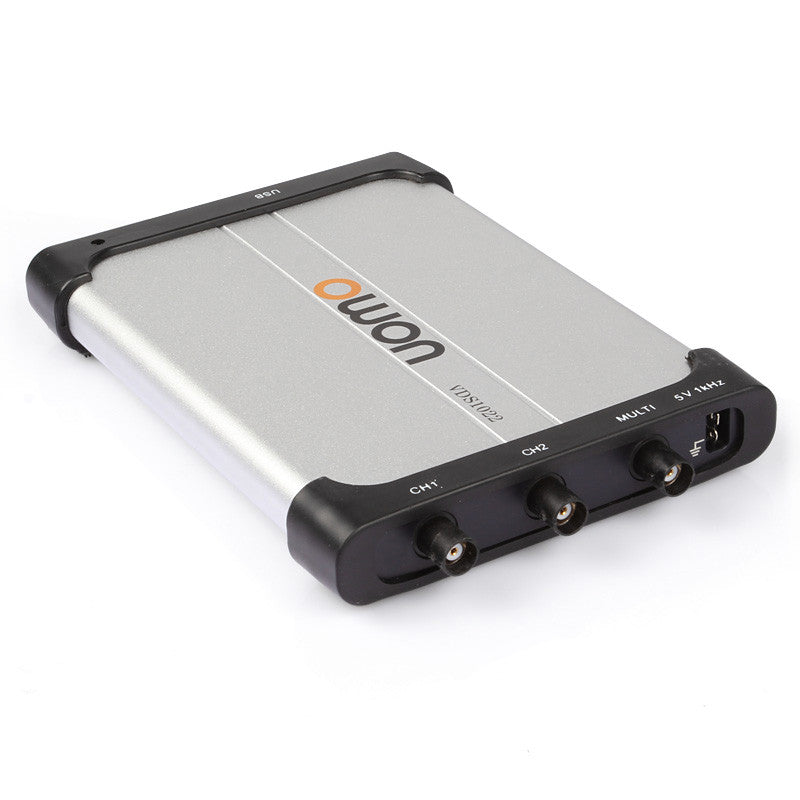

• Channel 1 signal input
• Channel 2 signal input
• EXT trigger input, trigger output, or Pass/Fail output
• probe compensation : measurement signal (3.3V/1KHz) output

Note : When communicating with PC via LAN, the oscilloscope should be powered by adapter.

2. Record length up to 10M

Various record length option, max 10M.

3. Multi-trigger option

Edge, Video, Slope, Pulse, and Alternate

4. X-Y mode, FFT mode  with  waveform displayed on the same screen

SPECIFICATION

• Bandwidth: 25MHz
• Channel: 2+1 (multi)
• Sample Rate: 100MS/s
•  Horizontal Scale (s/div): 5ns/div~100s/div, step by 1~2~5
• Rise Time: <=14ns
•  Record Length: 5K
•  Input Coupling: DC AC GND
•  Input Impedance: 1MΩ+-2%,in parallel with10Pf+-5pF
• Channels Isolation: 50Hz : 100 : 1, 10MHz : 40 : 1
• Max Input Voltage: 40V (PK - PK) (DC+AC, PK - PK)
•  DC Gain Accuracy: +-3%
•  DC Accuracy: Average>=16: +-(3% reading + 0.05div) for ?T
•  Probe Attenuation Factor: 1X, 10X, 100X, 1000X
•  LF Respond (AC, -3dB): >=5Hz (at input, AC coupling, -3dB)
•  Sampling Rate / Relay Time Accuracy: 150ps
•  Interpolation: sin(x) / x
•  Interval (?T) Accuracy (full bandwidth):
• Single: +-(1 interval time + 100ppm × reading + 0.6ns),
• Average >16: +-(1 interval time + 100ppm × reading + 0.4ns)
•  Vertical Resolution (A/D): 8 bits resolution (2 channels simultaneously)
•  Vertical Sensitivity: 5mV/div~5V/div
• Communication Interface: USB 1.1

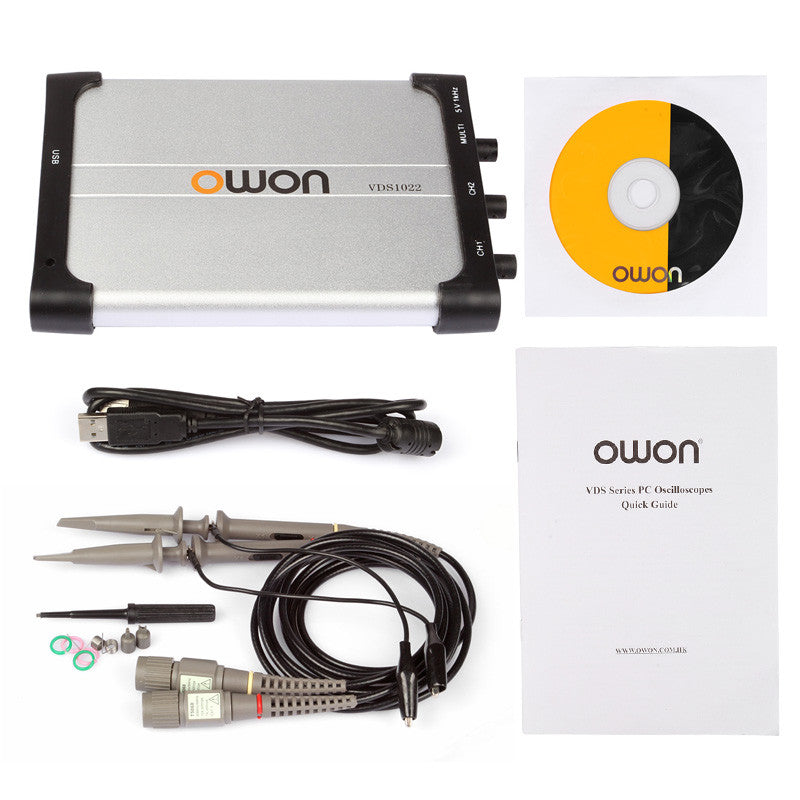

WHAT'S IN THE PACKAGE

• 1 x Owon oscilloscope

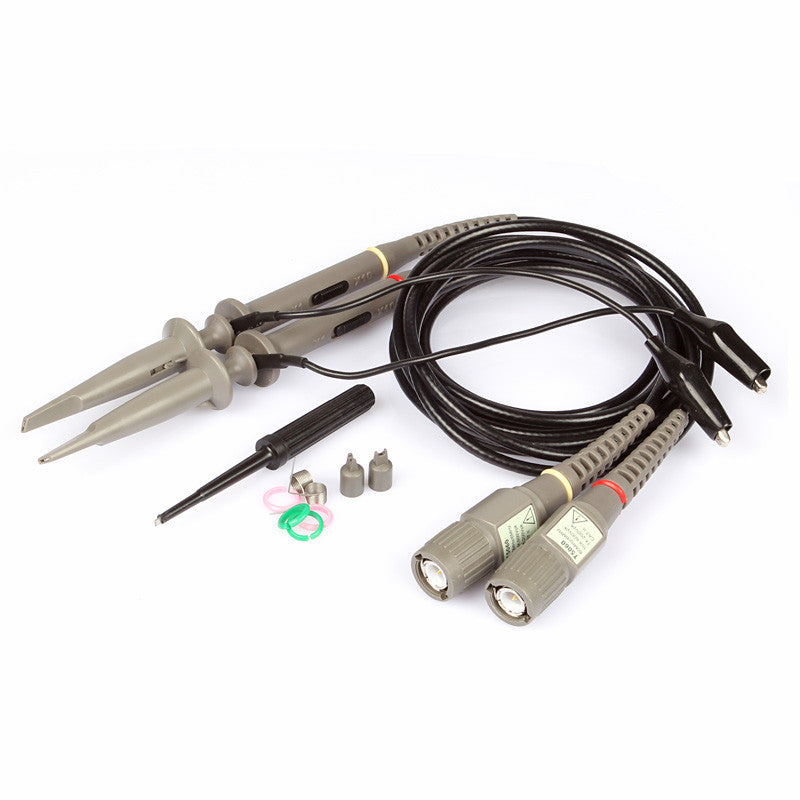

• 2 x unit of probes
• 1 x Driver CD
• 1 x USB cable
• 1 x Probe Adjust Pen
• 1 x English Manual
