Brand: Genmitsu

Rotary Module Kit for PROVerXL 4030 V2 CNC Router

Rotary Module Kit for PROVerXL 4030 V2 CNC Router

SKU:  101-63-4AXIS-43V2
Regular price $299.99
-Liquid error (snippets/price line 160): divided by 0 Regular price Sale price $299.99
Free Shipping
Shipping calculated at checkout.
Ship to
  • 101-63-4AXIS-43V2
  • 101-63-4AXIS-43V2
  • 101-63-4AXIS-43V2
  • 101-63-4AXIS-43V2

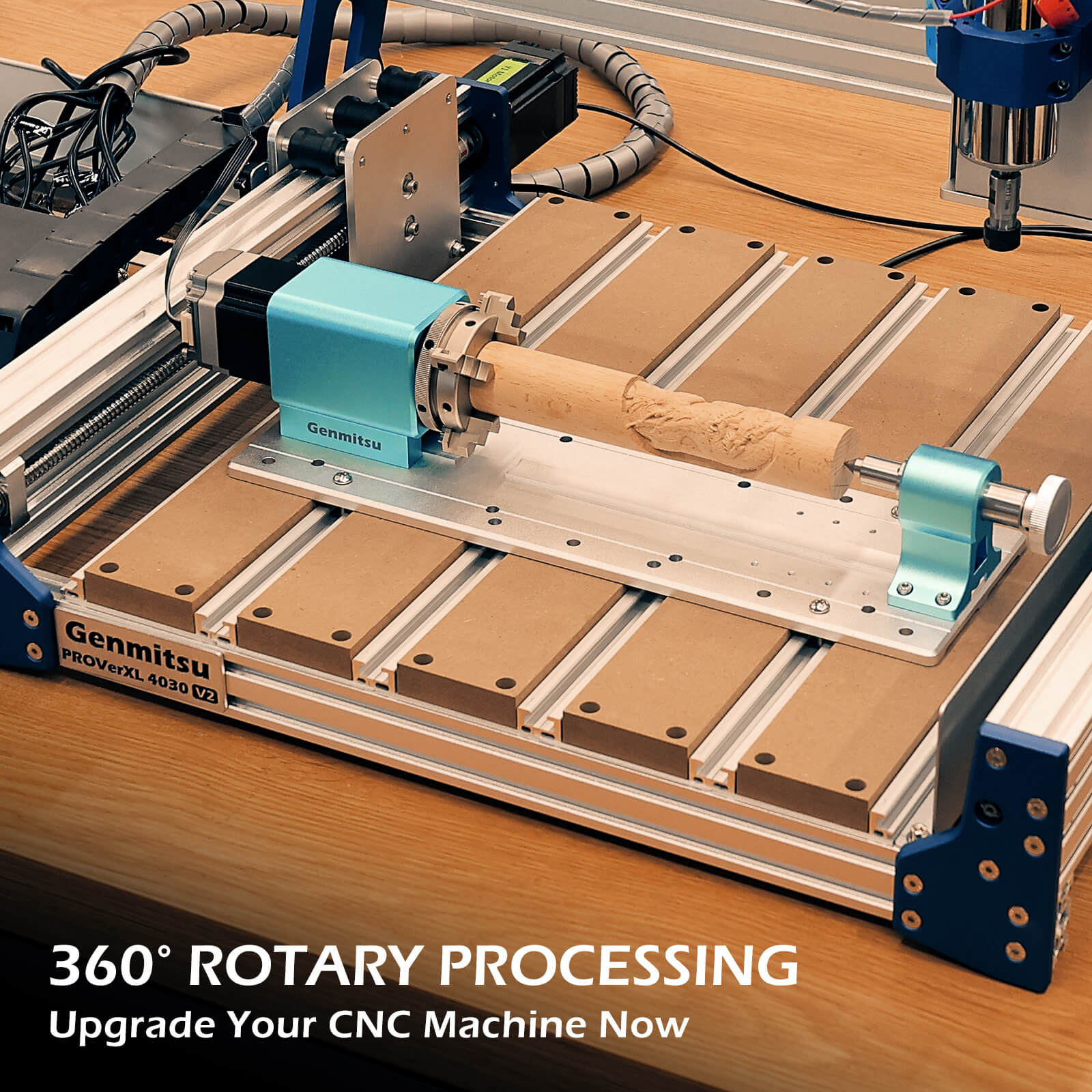

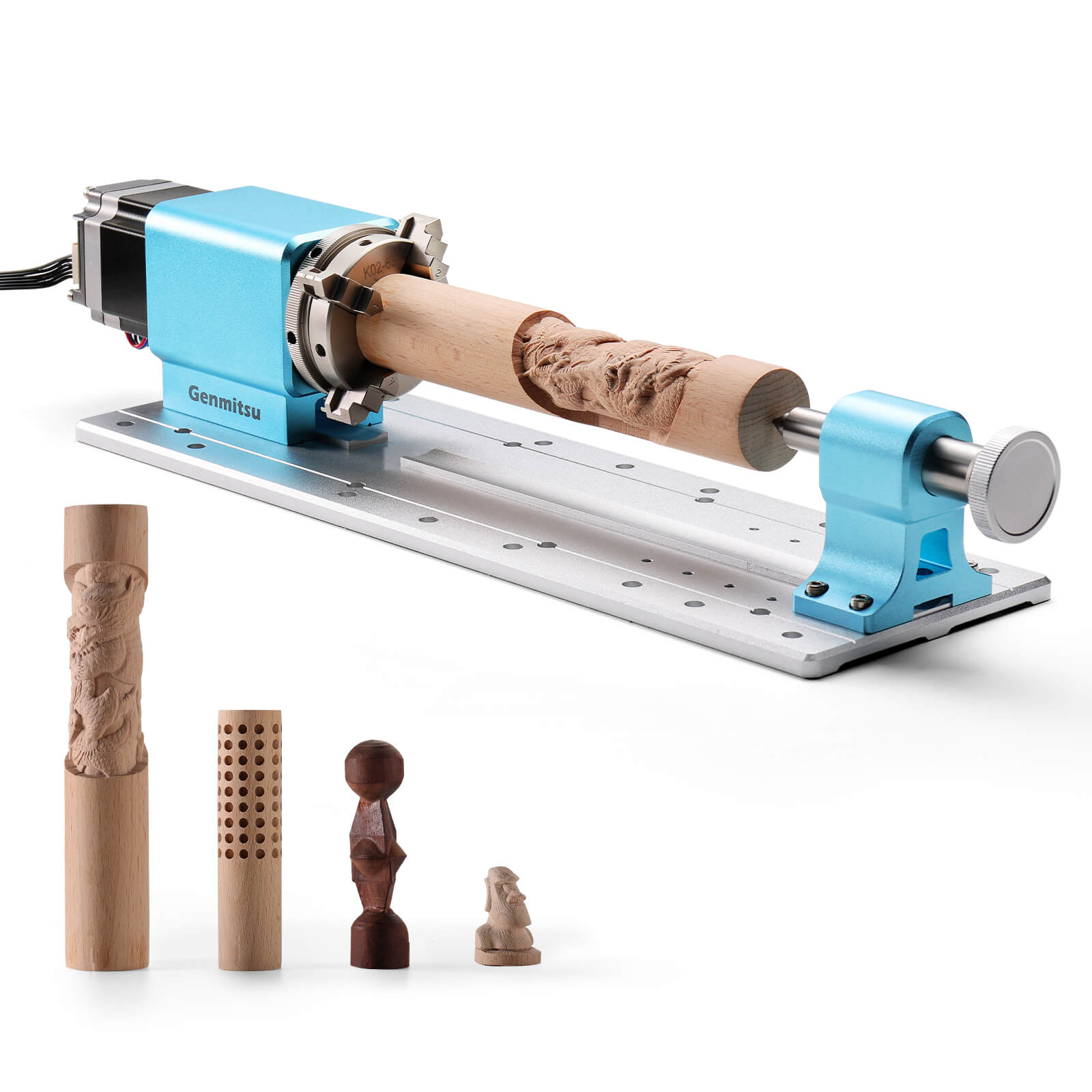

Unlock New Possibilities: Upgrade your 4030V2 CNC with the Genmitsu Rotary Kit for 360° carving and full rotary 3D/2D designs, enabling complex projects that traditional 3-axis machines can't achieve

NEMA23 Planetary Gear Stepper Motor: Powered by a NEMA23 closed-loop planetary gear stepper motor, offering superior torque and precision for smoother, more accurate rotations compared to belt-driven systems

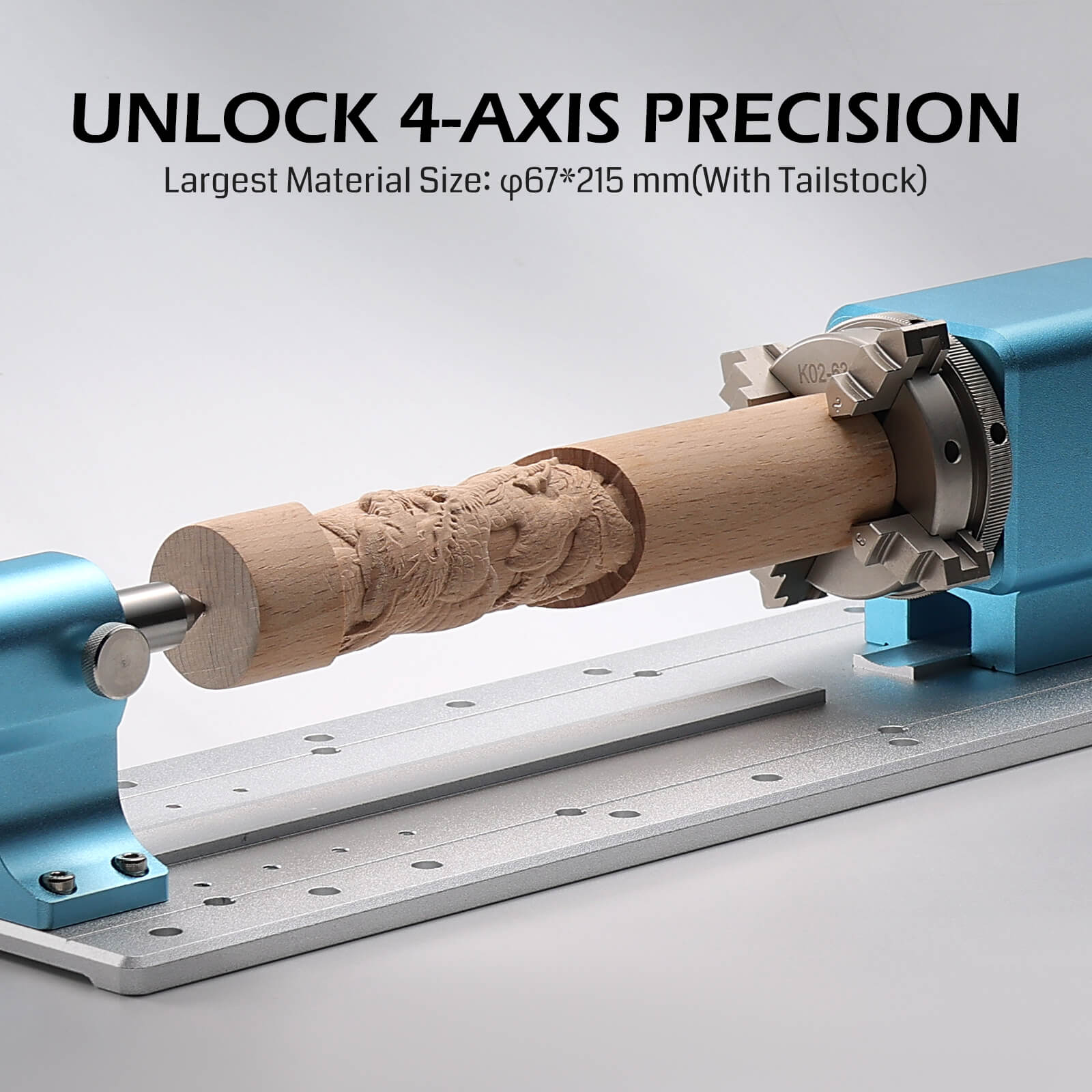

Versatile Material Compatibility: Supports 2-67mm diameters and material lengths up to 275mm (without tailstock), or 215mm (with tailstock), perfect for a variety of project sizes and materials

Precision Control: Features a 10:1 reduction ratio for precise 0.1° angle control and a fast 480°/second rotation speed, ensuring high-speed, accurate carvings

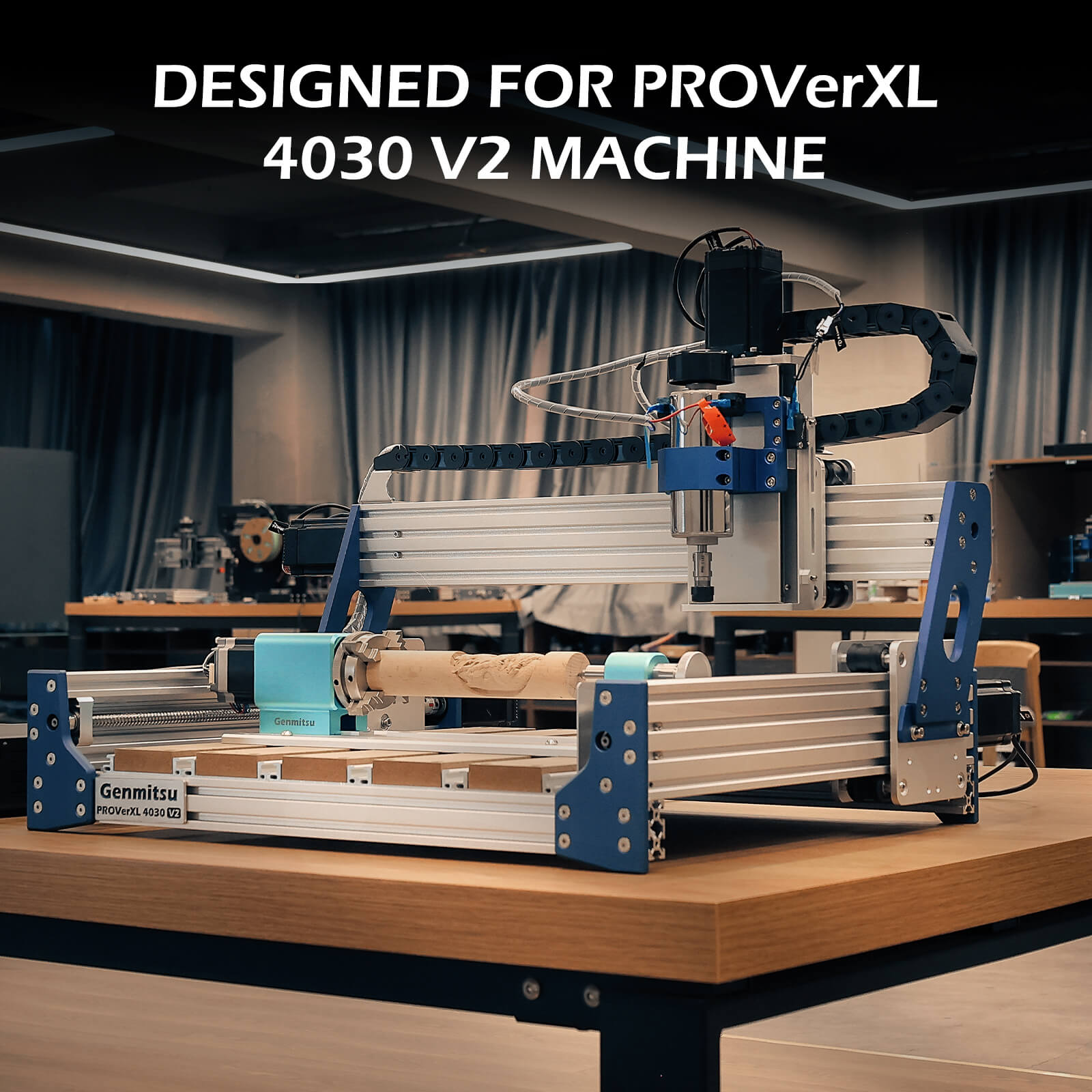

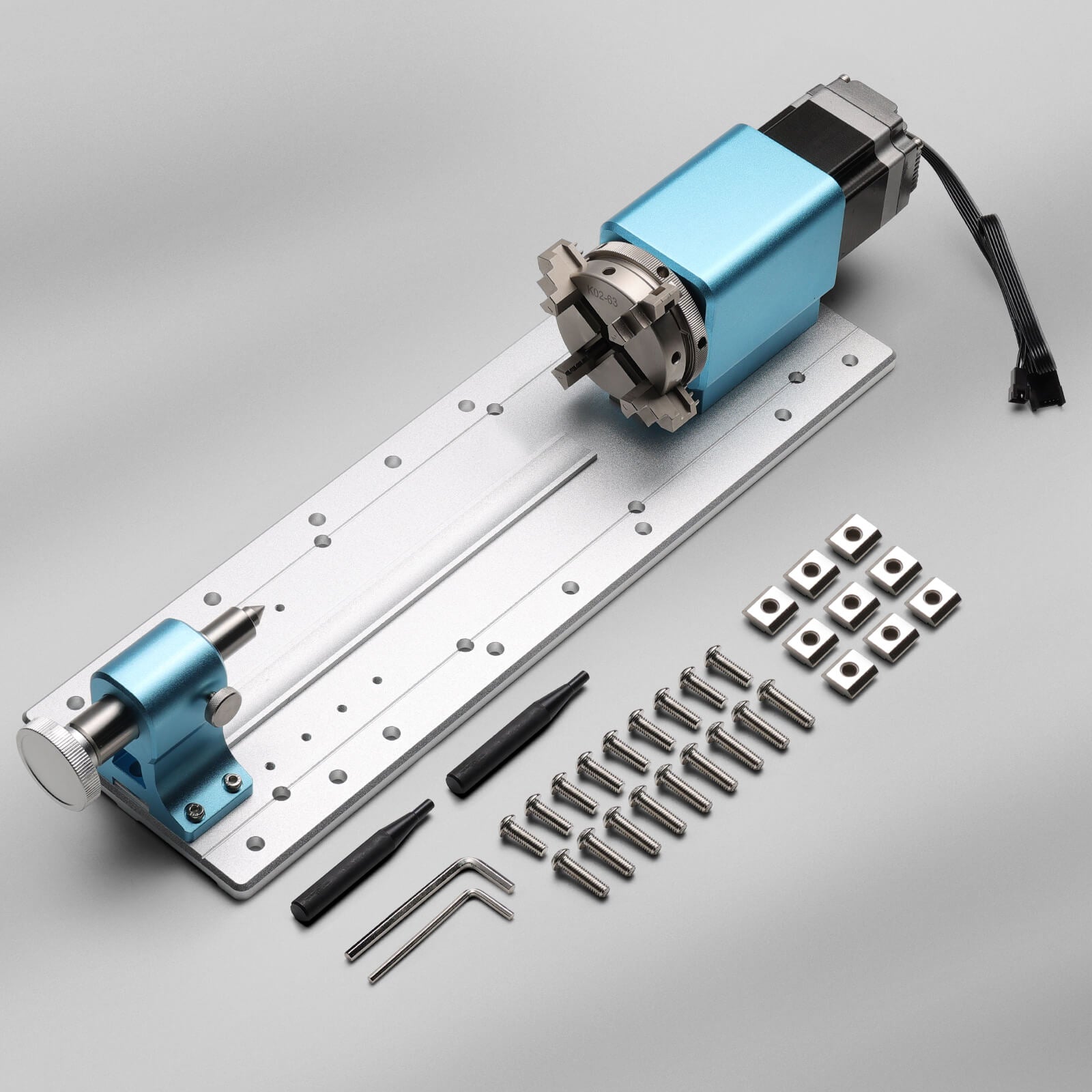

Easy Installation & Global Support: Designed for hassle-free installation, this rotary kit is a drop-in upgrade that integrates seamlessly with your 4030V2 CNC machine

View full details
Rotary Module Kit for PROVerXL 4030V2 CNC Router | SainSmart

Superior Performance

Enhanced accuracy with the NEMA23 Planetary Geared Stepper Motor, outperforming other belt-driven rotary modules on the market

Rotary Module Kit for PROVerXL 4030V2 CNC Router
Rotary Module Kit for PROVerXL 4030V2 CNC Router

Precise Control

A 10:1 reduction ratio ensures precise control, delivering a minimum angle of 0.1° and a maximum angular speed of 480° per second

Simple Length Adjustment

Quick setup of the rotary module kit to various material lengths and diameters, ensuring optimal precision and flexibility in all your CNC projects

Rotary Module Kit for PROVerXL 4030V2 CNC Router
Rotary Module Kit for PROVerXL 4030V2 CNC Router

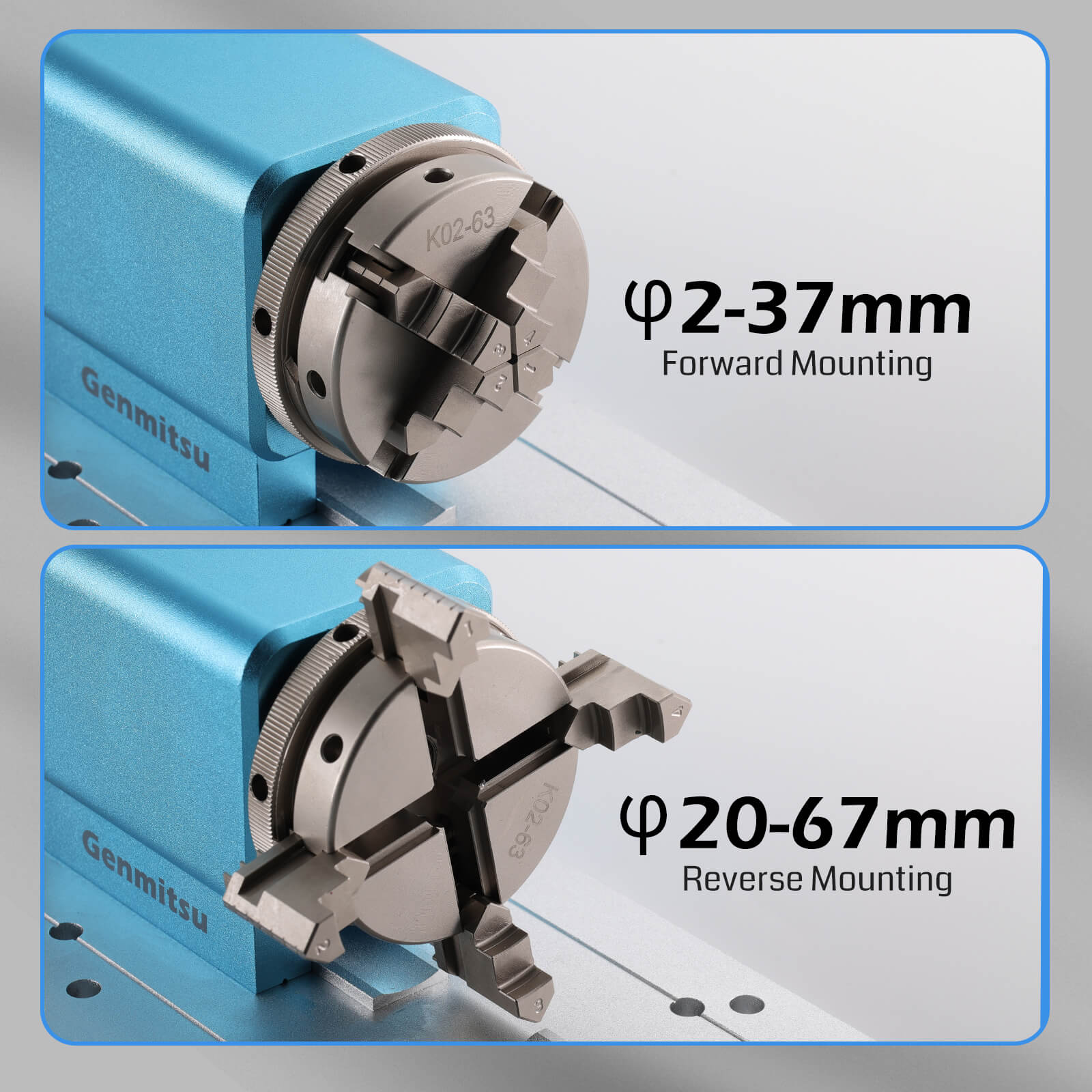

Flexible Mounting Solutions

The rotary module's clamp with forward and reverse mounting options for a wider range of sizes

Specifications

Compatible CNC Machine

PROVerXL 4030 V2

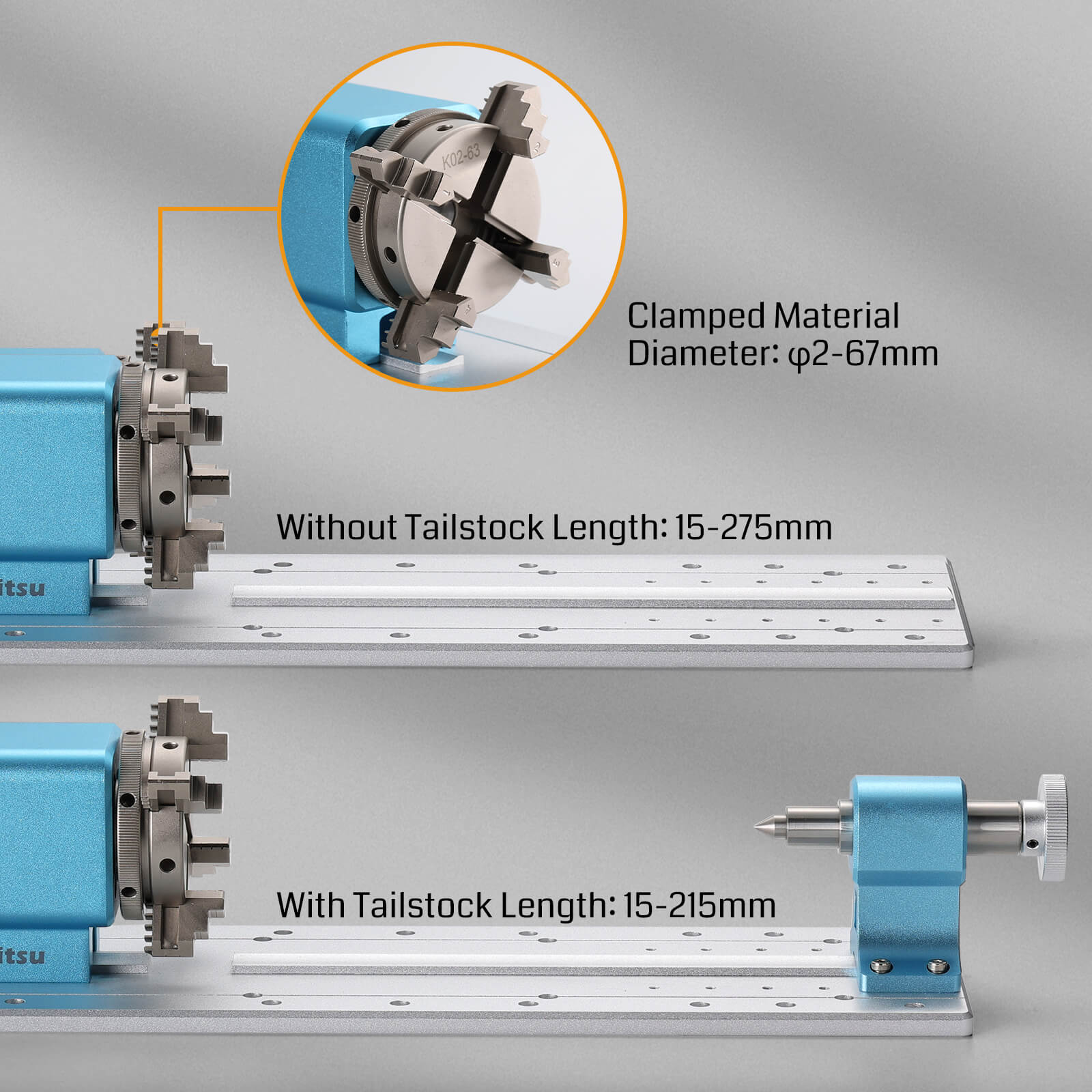

Clamped Material Size

With Tailstock Length: 15-215mm

Without Tailstock Length: 15-275mm

Clamped Material Diameter

Forward Mounting: 2-37mm

Reverse Mounting: 20-67mm

Tailstock Spacing Adjustment

5 installation positions, each position spacing is 16mm, and the range of adjustment is 16-81mm.

Tailstock Center Adjustment Range

0-30mm

Direct Electric Motor

NEMA23 Planetary Geared Stepper Motor

Gear Ratio

10:1

Max Rotate Speed

480°/S

Unidirectional Maximum Rotation Angle

33512 x 360°

Center Height

60mm

Size

470 x 125 x 105 mm (18.50”x 4.92” x 4.13”)

Resource

User Manual (Click to read)
