Brand: SainSmart

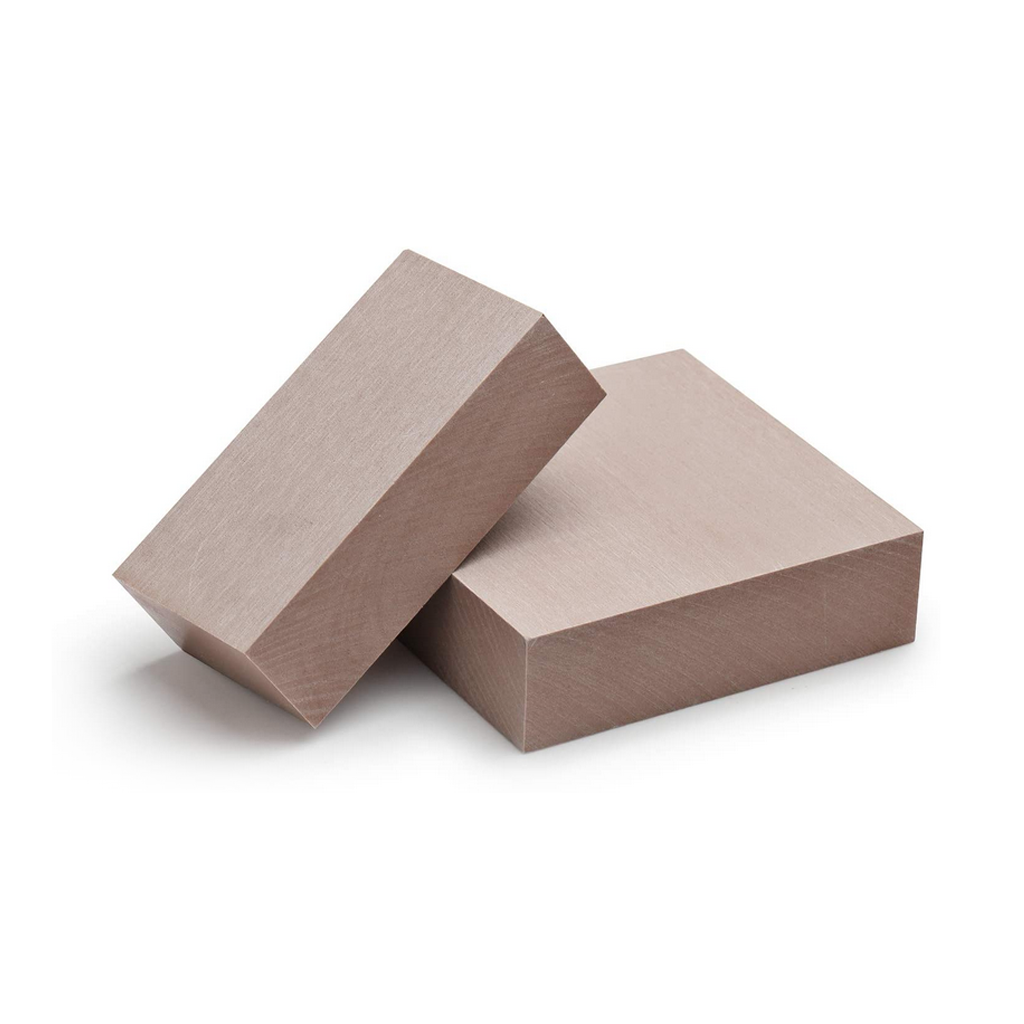

SainSmart Brown Resin Board for CNC Engraving

SainSmart Brown Resin Board for CNC Engraving

SKU:  101-60-M460
$16.99
--14% $14.99 $16.99
Shipping calculated at checkout.
Ship to
  • 101-60-M460
  • 101-60-M460
  • 101-60-M460
  • 101-60-M460
  • SainSmart Resin Board is a medium-high density polyurethane modeling and styling board.
  • It was developed to meet the growing demand for higher-quality, more dimensionally accurate, machined master patterns and prototypes.
  • Featured with a smooth surface finish, this board is an ideal material for prototype vacuum-forming tools, styling prototypes, master models, tooling aids, and automotive die models.

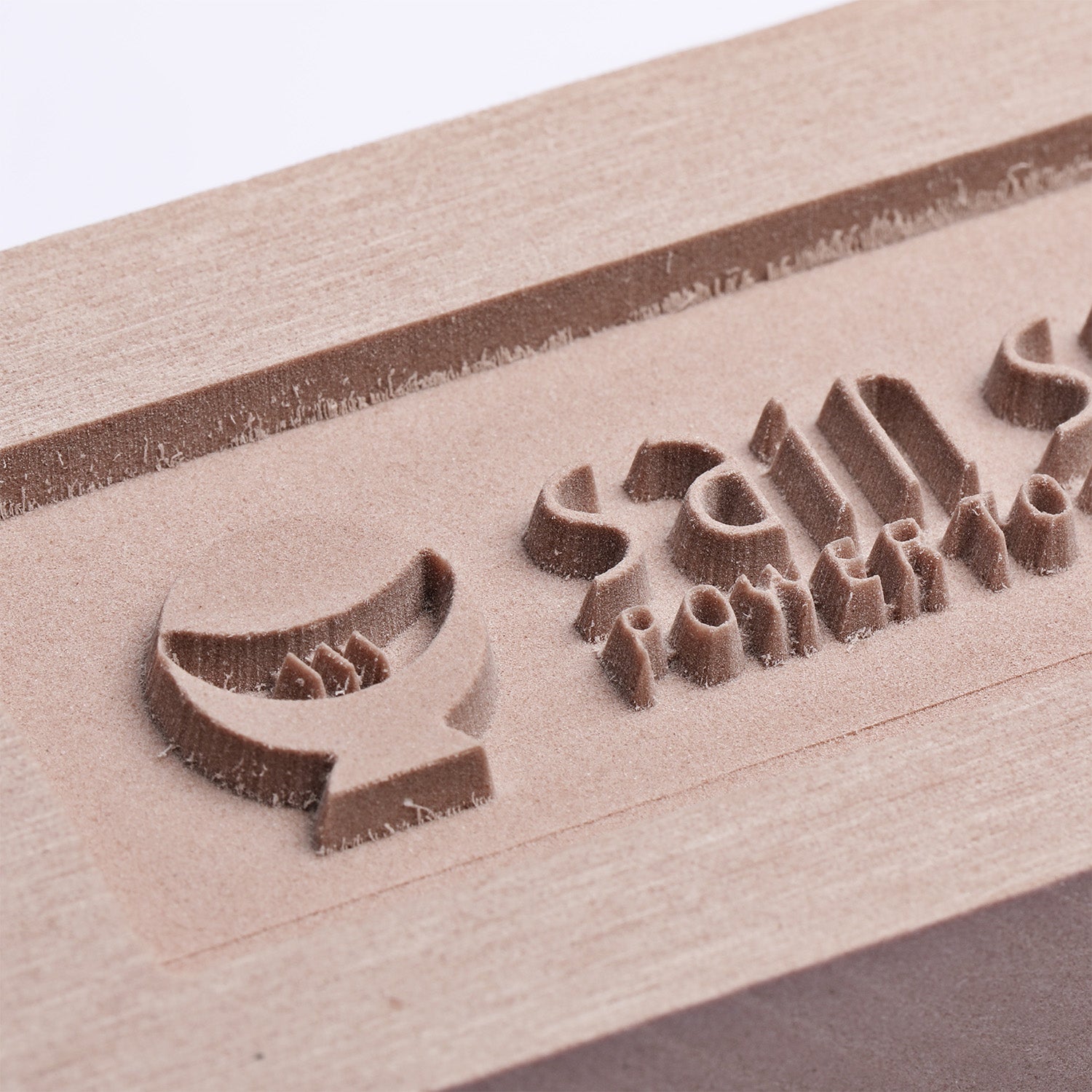

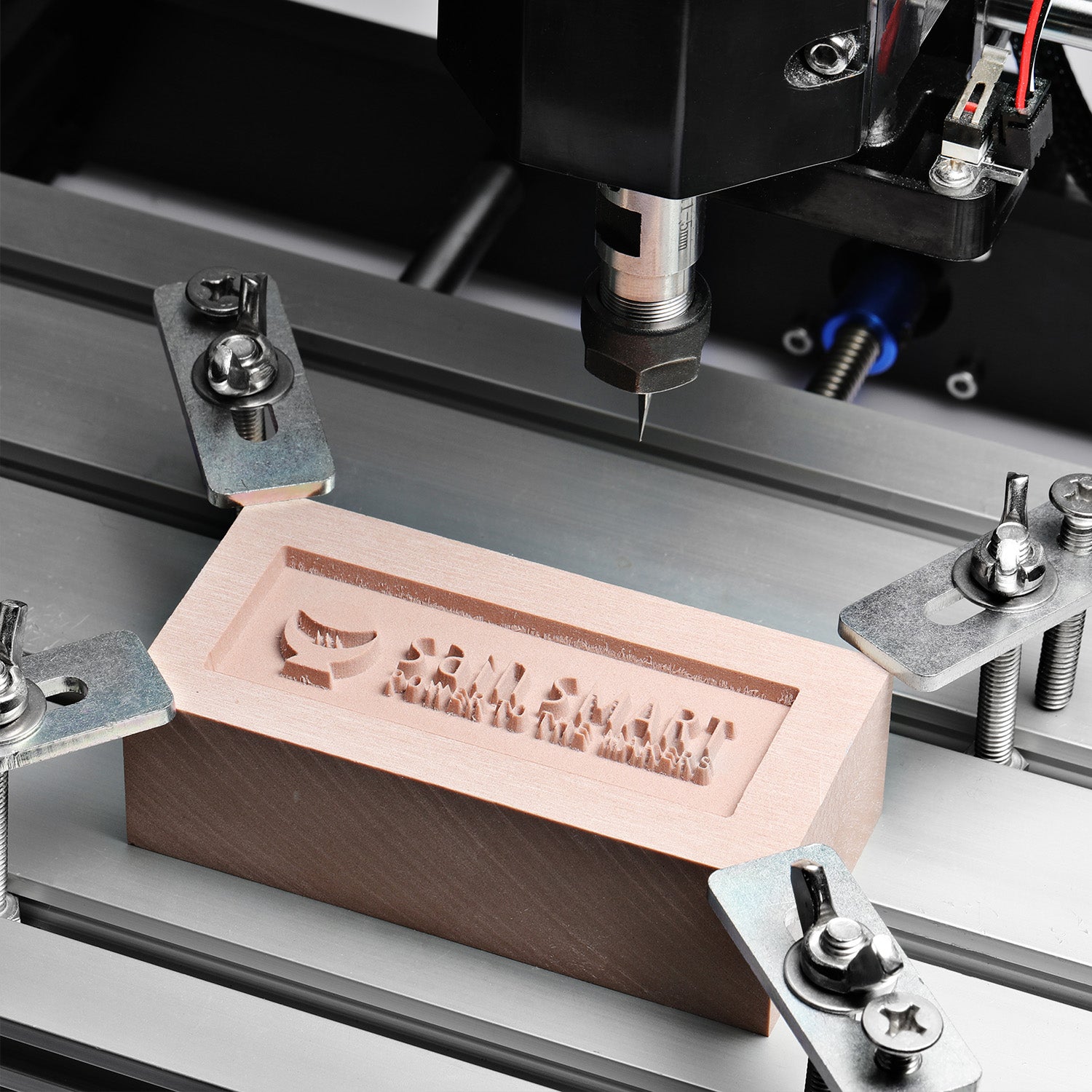

  • This resin board will reduce residual particles while engraving, so it is easy for you to clean up.
  • With excellent dimensional stability and maintain tolerances even when exposed to temperature and humidity extremes.
View full details
SPECIFICATION

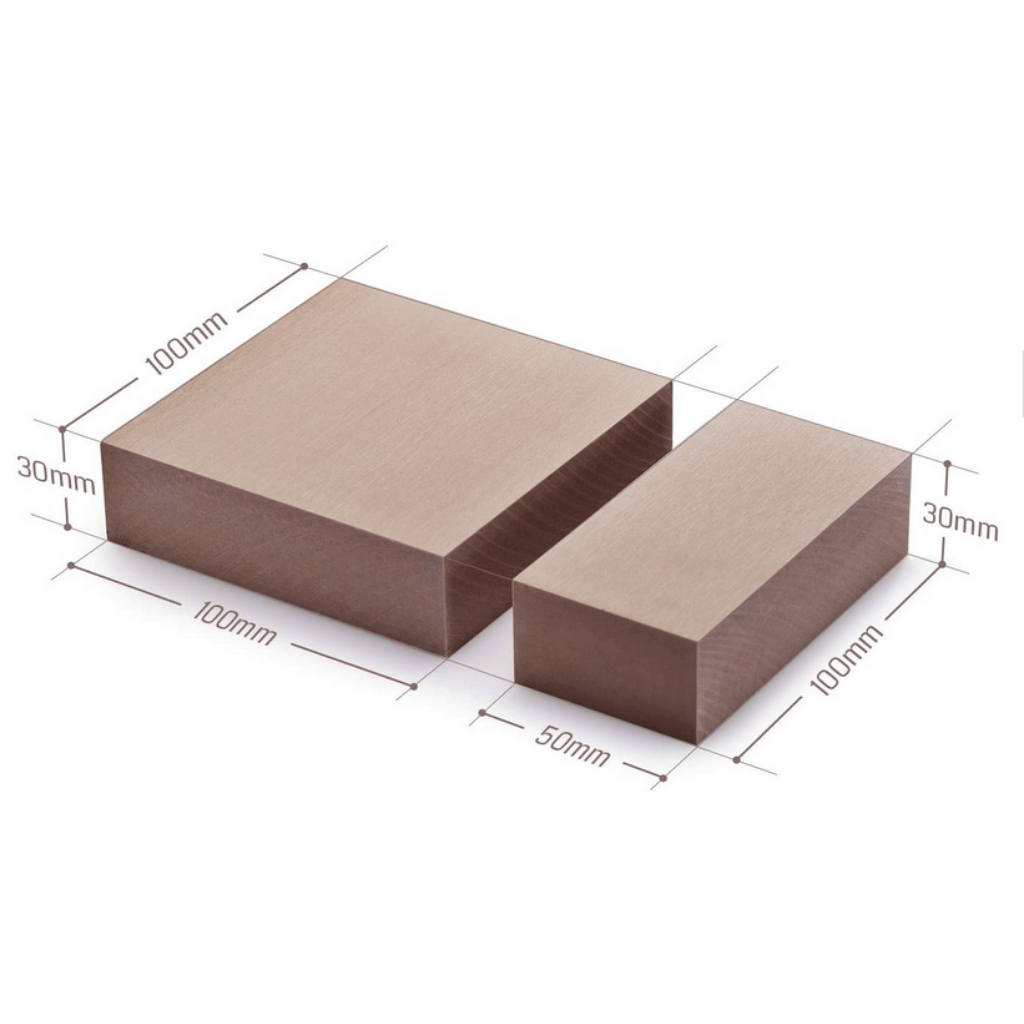

  • Size: 100 x 100 x 30 mm(3.9" x 3.9" x 1.2") & 50 x 100 x 30 mm(2.0" x 3.9" x 1.2")
  • Density: 0.83 g/cm³
  • Shore hardness:65-70
  • Compressive strength: 30~35
  • Compression factor: 1080
  • Thermal expansion coefficient: 45~50
  • Heat distortion temperature: 85℃
WHAT'S IN THE PACKAGE
  • 1 x Resin Board (100 x 100 x 30 mm)
  • 1 x Resin Board (50 x 100 x 30 mm)
