[Discontinued] SainSmart Relay Cycle Timer Module - Programmable with Customized Settings (5V)

Upgraded with New Features:

• 1) Auto protection against faulty wiring: will not damage due to wrong connection of polarity;
• 2) Function increased from 8 kinds to 18 kinds.
• 3) Minimum time setting enhanced from 1 second to 0.1 second.

SPECIFICATION

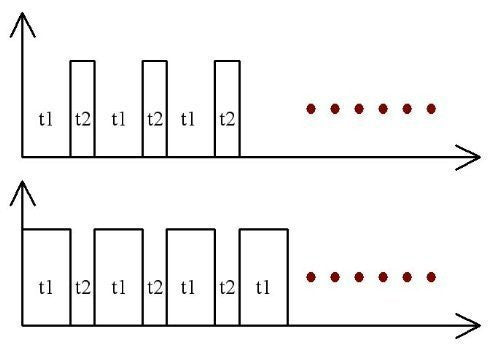

• Infinite loop timing mode
• Finite loop timing mode
• Latching relay mode
• Trigger relay mode
• Timing pull
• Timing is disconnected
• Timing pull off again
• Then pull off the timing
• Trigger timing pull off again
• Timing off and then pull the trigger
• Infinite loop timing mode
• Finite loop timing mode
• Pull the trigger timing
• Disconnect the trigger timing

Control voltage: AC 0~250V / max. 10A, DC 0~30V / max. 10A
Size: 2.59*1.57*0.67 inches

DOCUMENT

• Click to download the manual
