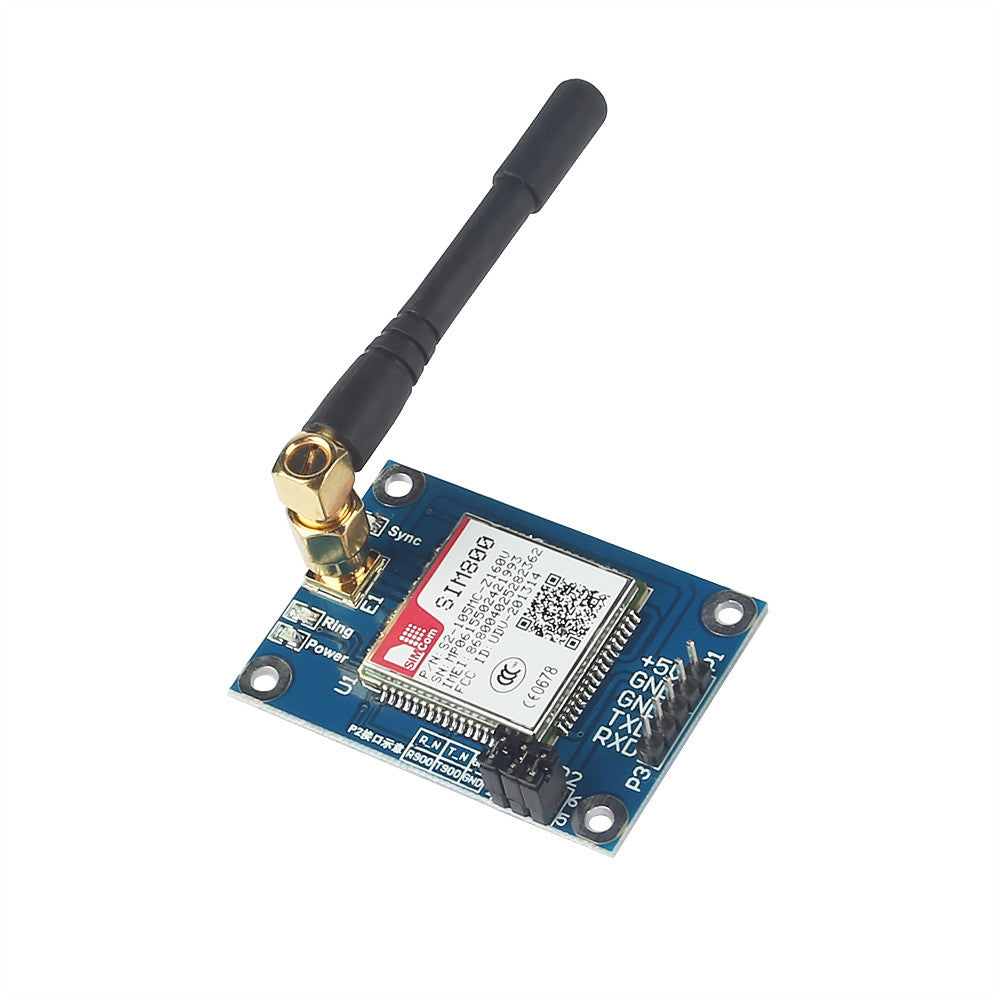

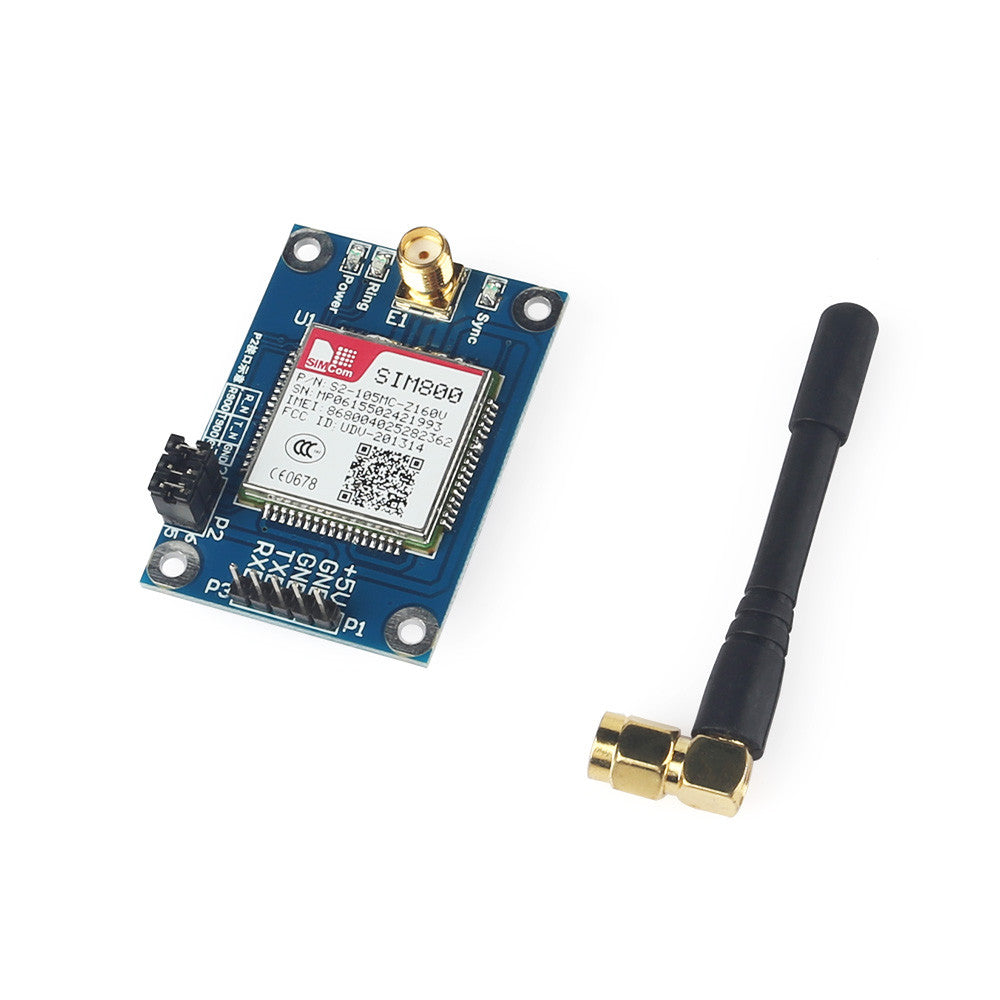

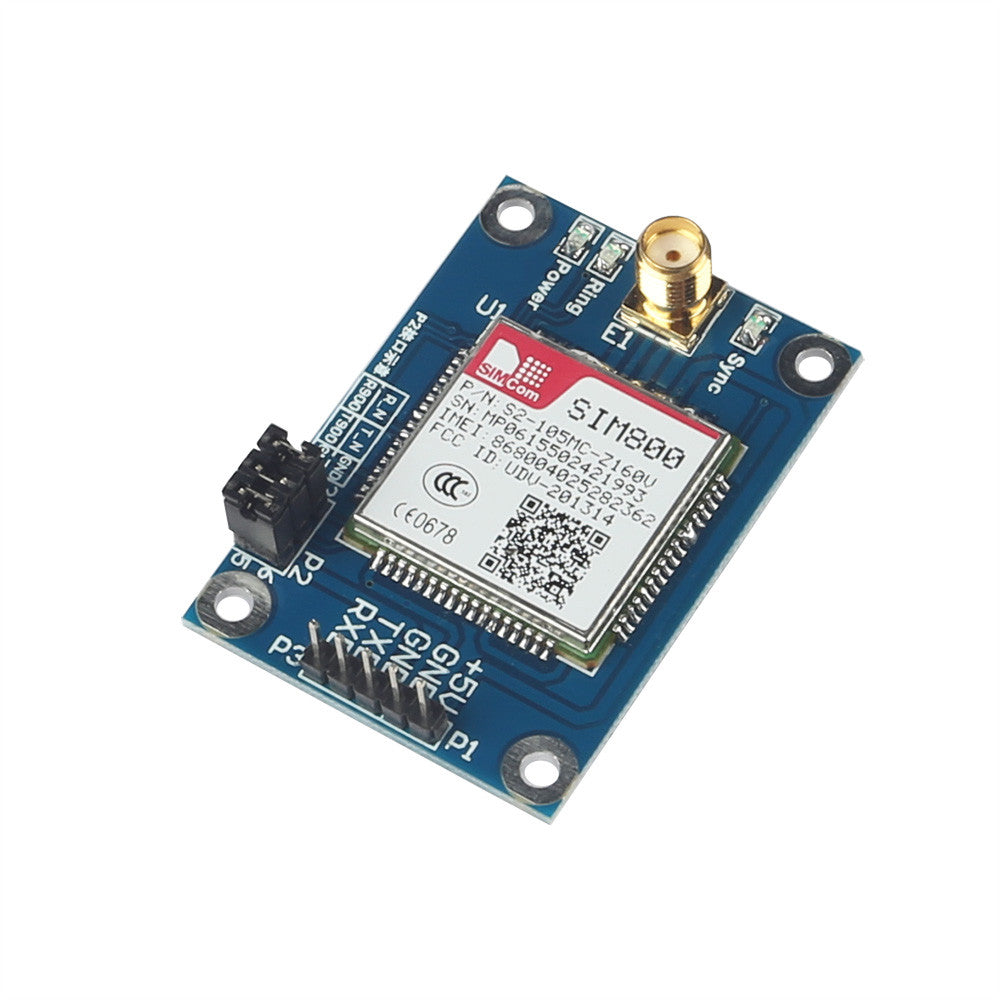

[Discontinued] SainSmart SIM800 GPRS/GSM Board Quad-Band Module Kit

[Discontinued] SainSmart SIM800 GPRS/GSM Board Quad-Band Module Kit

SKU:  101-60-234
Regular price $22.99
-Liquid error (snippets/price line 160): divided by 0 Regular price Sale price $22.99
Shipping calculated at checkout.
  • 101-60-234
View full details
SPECIFICATION
  • Quad-Band 850/900/1800/1900 MHz - would work on GSM networks in all countries across the world.
  • GPRS multi-slot class 10/8
  • GPRS mobile station class B
  • Compliant to GSM phase 2/2+
  • Class 4 (2 W @ 850 / 900 MHz)
  • Class 1 (1 W @ 1800 / 1900MHz)
  • Control via AT commands - Standard Commands: GSM 07.07 & 07.05 | Enhanced Commands: SIMCOM AT Commands.
  • Short Message Service - so that you can send small amounts of data over the network (ASCII or raw hexadecimal).
  • Embedded TCP/UDP stack - allows you to upload data to a web server.
  • RTC supported.
  • Selectable serial port.
  • Speaker and Headphone jacks
  • Low power consumption - 1.5mA(sleep mode)
  • Industrial Temperature Range - -40°C to +85 °C
WHAT'S IN THE PACKAGE

    1x SIM800 GPRS/GSM Board Quad-Band Module Kit
