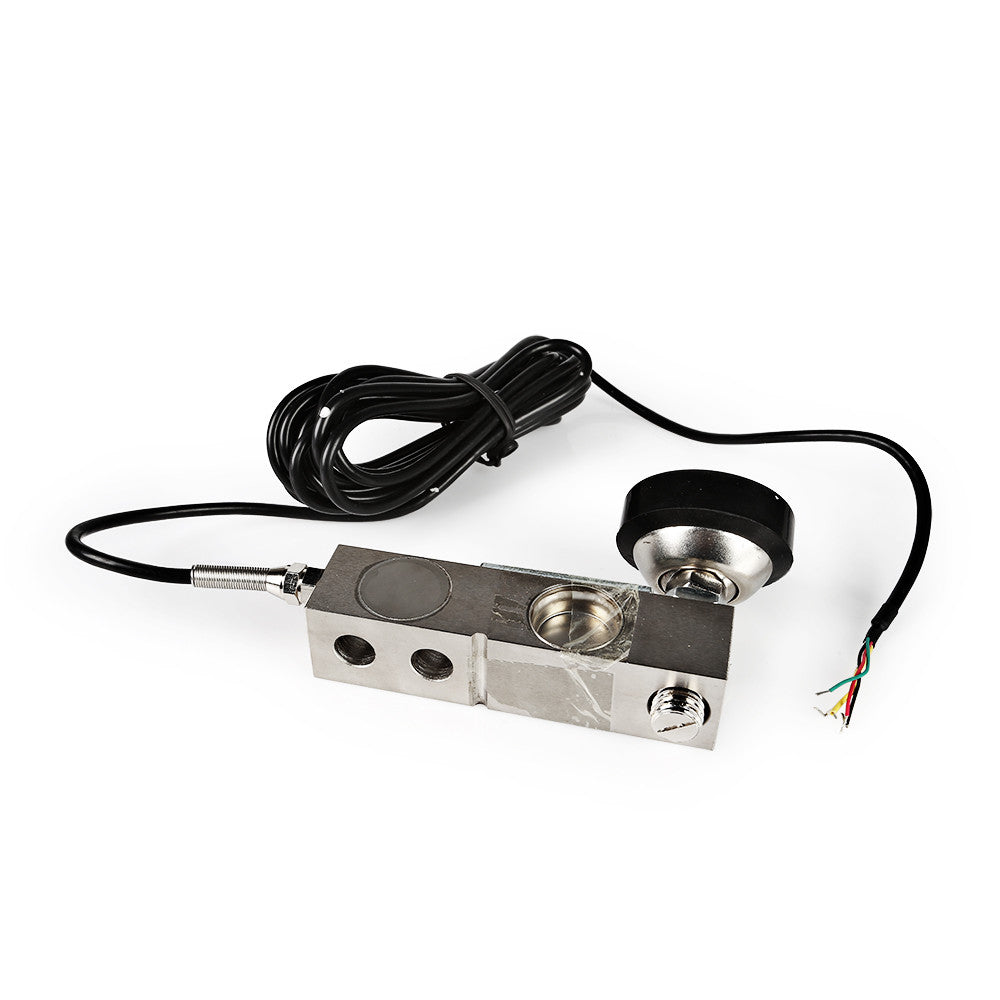

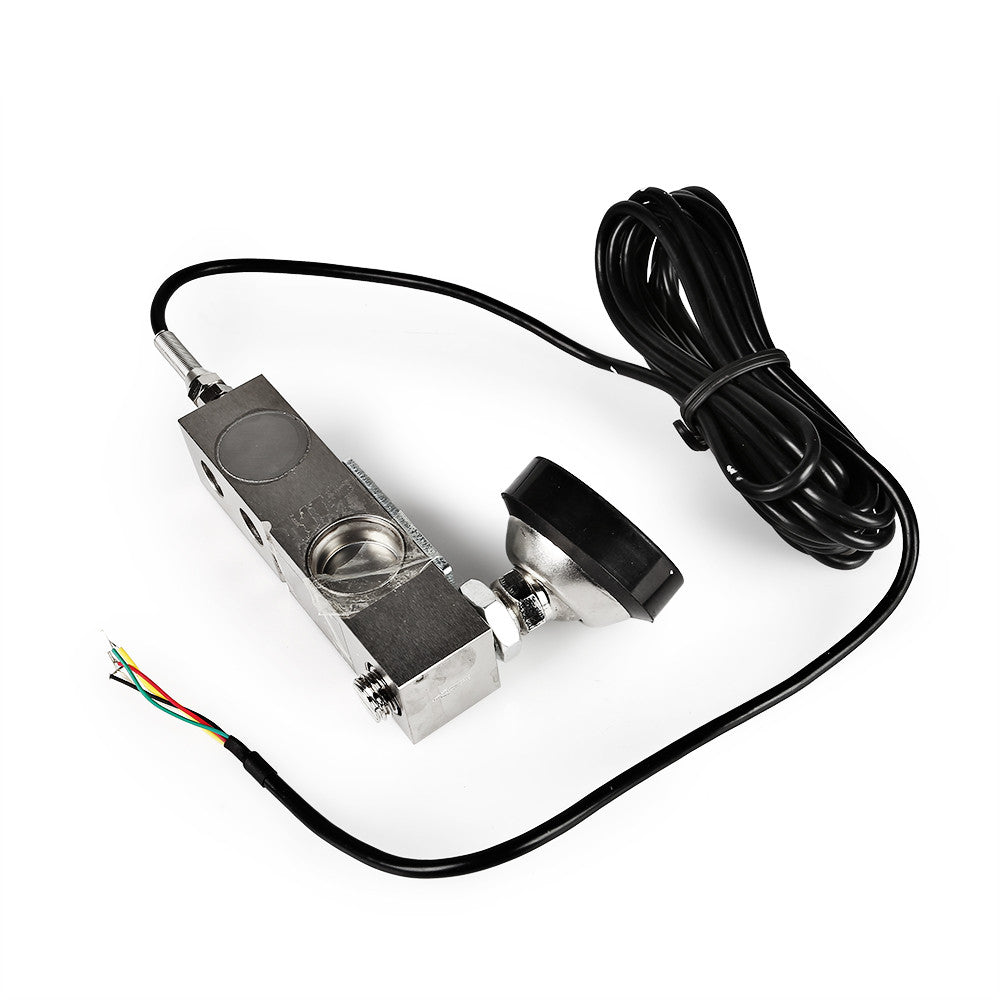

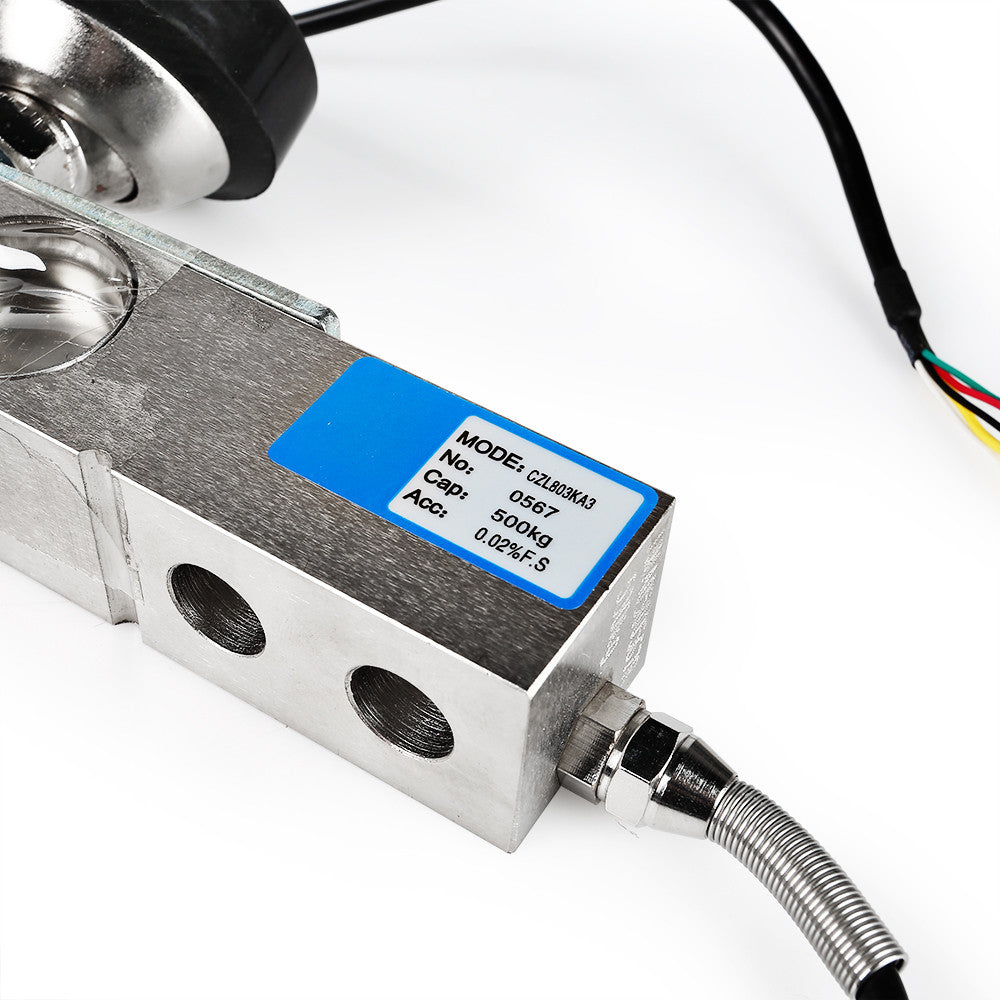

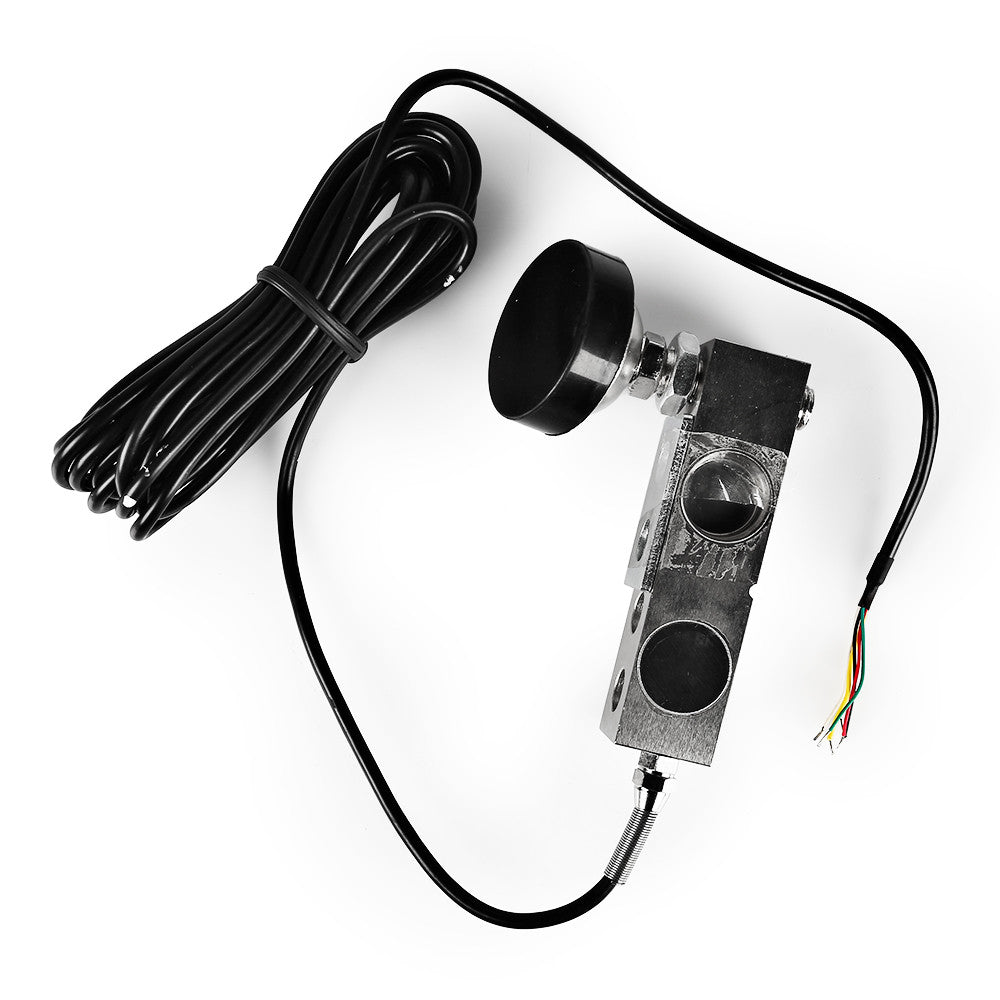

[Discontinued] SainSmart Single shear beam load cell CZL803KA3 500KG

DESCRIPTION

• Suit for electronic scale, truck scale and other weighing equipment.
• Made of alloy steel
• High precision, steady performance, a reliable load cell
• Hermetically sealed with glue to IP66
• Integral structure, package come with screws and nuts, aslo can be sealed by welding

SPECIFICATION

•   Precision : C2
•   Temp. effect on (%F.S/10?): ±0.017/ ±0.011
•   Comprehensive error(%F.S) : ±0.02
•   Temp. effect on zero(%F.S/10?) : ±0.029
•   Rated output(mv/v) : 3.0±0.003
•   Compensated temp. range(? ) : -10~+40
•   Creep(%F.S/30min) : ±0.02
•   Use temp. range(? ) : -20~+60
•   Zero balance(%F.S) : ±1.0
•   Excitation voltage(V) : 9~12(DC)
•   Input resistance(Ω) : 350±5
•   Safe overload (%F.S) : 150
•   Output resistance(Ω) : 350±3
•   Ultimate overload (%F.S) : 200
•   Insulation resistance(MΩ) : ≥5000(100VDC)
•   Defend grade : IP66

Wiring connection:

Red: motivate ( +) 111    Green: signal ( +)
Black: motivate ( -) 111  White: Signal ( -)

3m Four-core cable

WHAT'S IN THE PACKAGE

• 1×Single shear beam load cell CZL803KA3 500KG
