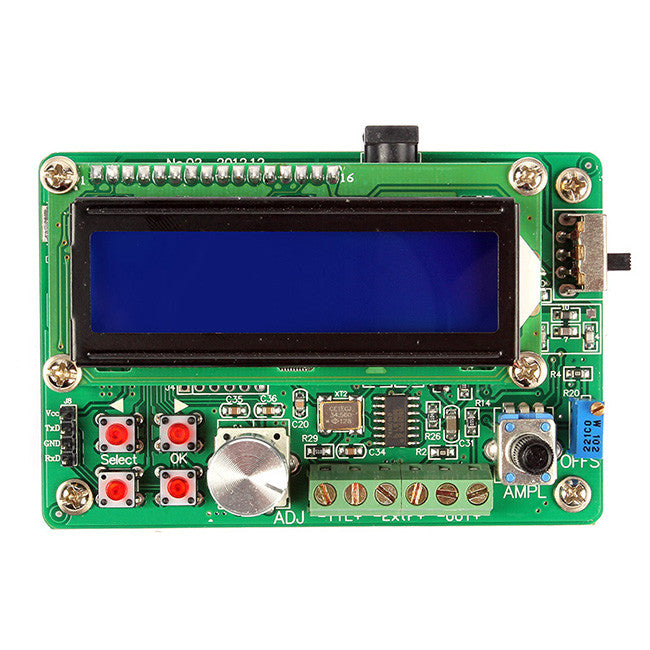

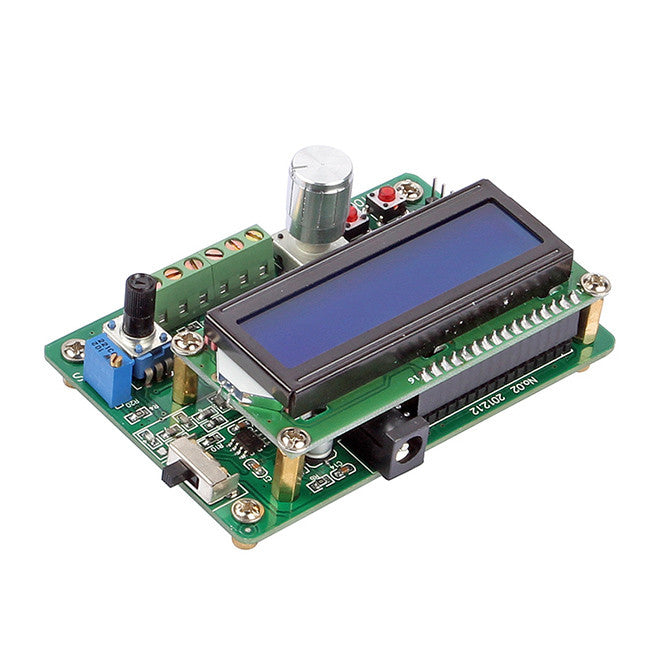

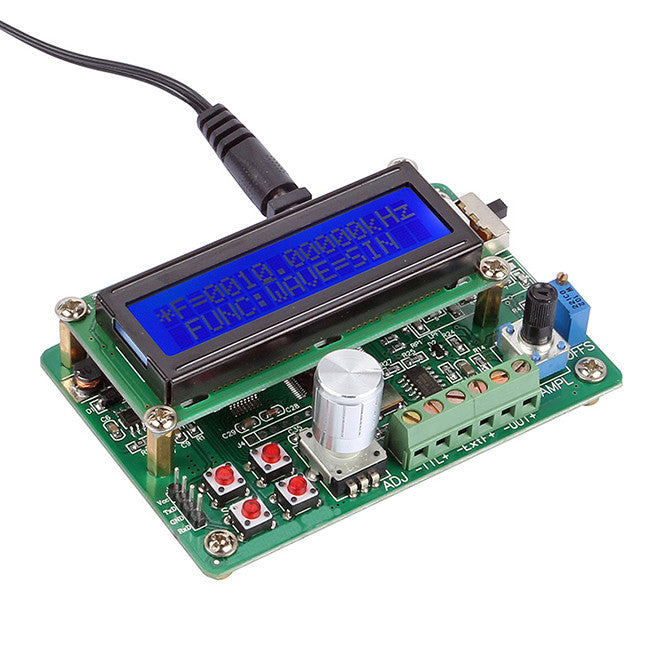

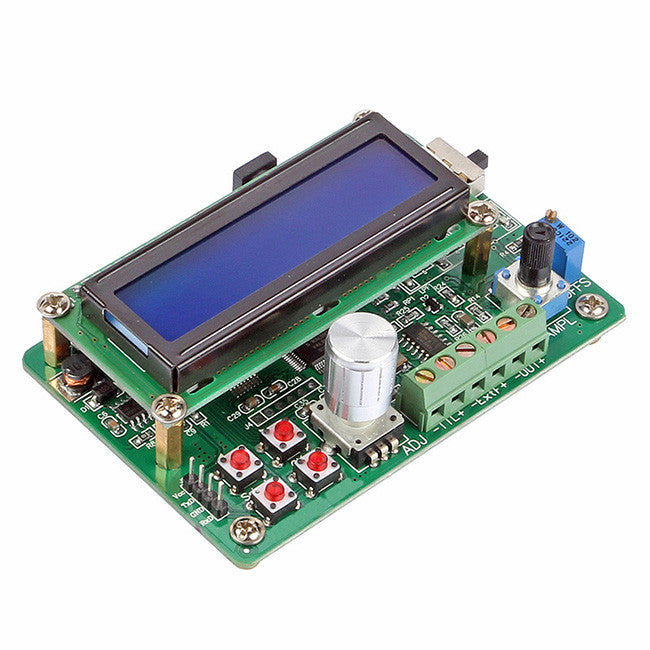

[Discontinued] SainSmart UDB1008S 8MHz with Frequency Sweep Function DDS Signal Source Signal Generator

1. Signal Output function

• Output waveforms:Sine wave, Square wave and Triangle wave
• Output amplitude:â‰?0Vp-p(signal output, no load)
• Output impedance:50ω±10%(signal output)
• DC offset:±2.5V(no load)
• Display:LCD160
• Frequency range:0.01Hz ~ 5MHz(SG1005)
• Resolution:0.01Hz
• Frequency Stability:±1×10-6
• Frequency accuracy:±5×10-6
• Sine wave distortion:â‰?.8% (reference frequency is 1kHz)
• Trinagle linearity:â‰?8%  (0.01Hz~10kHz)
• Rise and fall time of square wave:â‰?00ns
• Square Wave Duty range:1%~99%

2.TTL Output  function

• Frequency range:0.01Hz ~ 8MHz(SG1008)
• Amplitude:>3Vp-p
• Fan Out:>20 TTL loads

3.COUNTER  function

• Counter Range:0-4294967295
• Frequency Meter Range:1Hz~80MHz
• Input Voltage Range:0.5Vp-p~20Vp-p

4.Others  function

• Save and Load Parameter:0-9(0: default load)

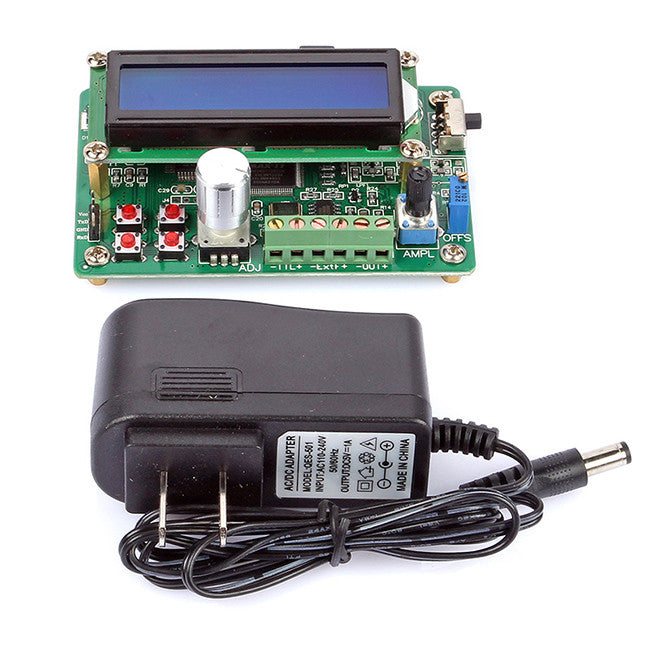

WHAT'S IN THE PACKAGE
