Brand: SainSmart

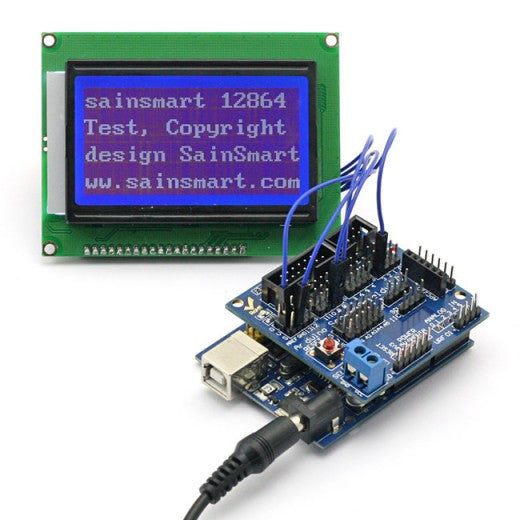

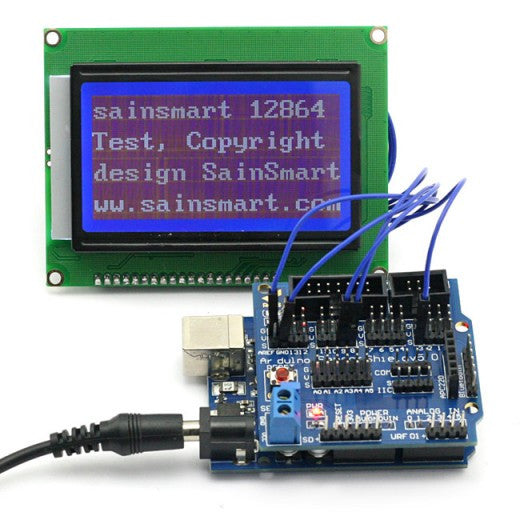

[Discontinued] SainSmart UNO +12864 Graphic Blue LCD + Sensor Shield V5 for Arduino UNO MEGA R3 ATMEL AVR

[Discontinued] SainSmart UNO +12864 Graphic Blue LCD + Sensor Shield V5 for Arduino UNO MEGA R3 ATMEL AVR

SKU:  20-011-C30
Regular price $30.60
-Liquid error (snippets/price line 160): divided by 0 Regular price Sale price $30.60
Shipping calculated at checkout.
  • 20-011-C30
View full details

SainSmart UNO:

  •  Microcontroller: ATmega328
  •  Operating Voltage: 5V
  •  Input Voltage (recommended): 7-12V
  •  Input Voltage (limits): 6-20V
  •  Digital I/O Pins: 14 (of which 6 provide PWM output)
  •  Analog Input Pins: 6
  •  DC Current per I/O Pin: 40 mA
  •  DC Current for 3.3V Pin: 50 mA
  •  Flash Memory: 32 KB (ATmega328) of which 0.5 KB used by bootloader
  •  SRAM: 2 KB (ATmega328)
  •  EEPROM: 1 KB (ATmega328)
  •  Clock Speed: 16 MHz


SainSmart 12864 LCD:
This is a 128x64 liquid crystal display that support Chinese character , English characters and even graphics, very suitable for interactive work with Arduino.

  •  Voltage: 5V
  •  With Chinese font
  •  Blue backlit
  •  Controller: ST7920
  •  Size: 93x70mm


SainSmart Sensor Shield V5:
It can connect to various modules like sensors, servos, relays, buttons, potentiometers
Each functional module has buckled port with VCC, GND and Output, which has corresponding port on the Sensor Shield, connected with a plain 2.54mm dual-female cable you may start playing already. Buckled brick cables are like cement for bricks, make the connections easier, secure and more professional looking.

Package List:
1x SainSmart UNO
1x SainSmart 12864 LCD Shield
1x SainSmart Sensor Shield V5
1x USB Cable
