[Discontinued] SainSmart UNO + Sensor V5 + LCD12864 Yellow for Arduino UNO MEGA R3 Mega2560 Duemilanove Nano Robot

The SainSmart Arduino Uno has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller.

The SainSmart Sensor Shield V5 (new version) has the COM and I2C (IIC) ports separated,so that both ports can be utilized at the same time to increase the possibilities of use.

Arduino Sensor Shield allows you to connect to various modules like sensors, servos, relays, buttons, potentiometers and so on.Just plug & play.Each functional module has buckled port with VCC, GND and Output, which has corresponding port on the Sensor Shield, connected with a plain 2.54mm dual-female cable you may start playing already.

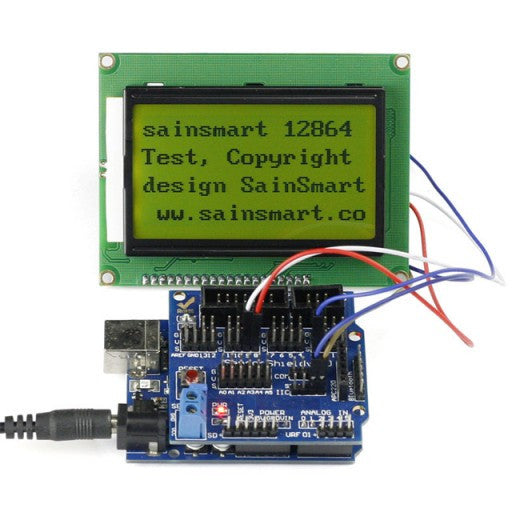

SainSmart 12864 128x64 Graphic Yellow LCD Display Module Backlight a 128x64 liquid crystal display that support Chinese character, English characters and even graphics, very suitable for interactive work with Arduino.

Specifications:
Voltage: 5V
Yellow backlit
Controller: ST7920
Size: 93x70mm

Package Including:
1× SainSmart UNO
1× SainSmart Sensor Shield Digital Analog Module V5
1× SainSmart 12864 128x64 Graphic Yellow LCD Display Module
