Description:
Scan QR code to get the manual:
Specifications:

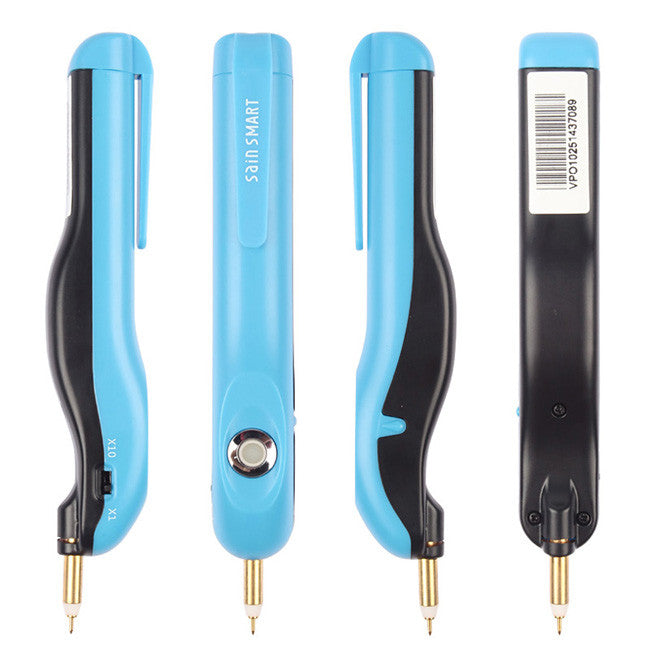

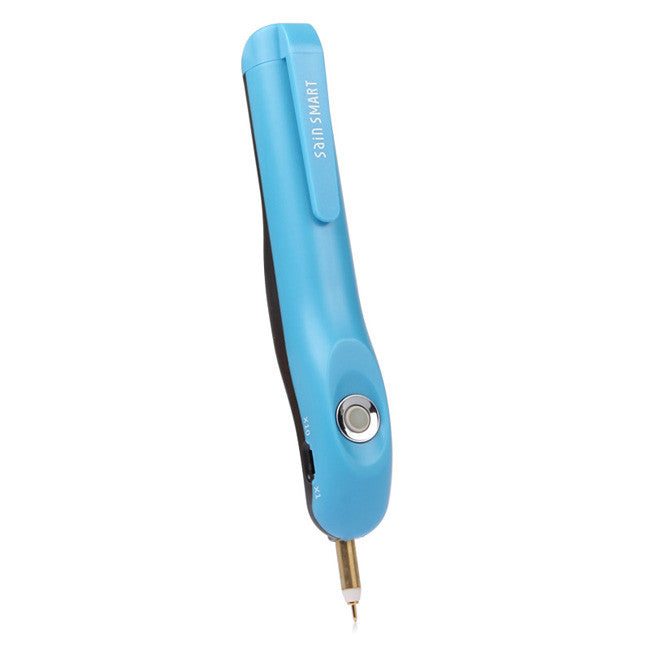

- Track ball: Roll the track ball to do some operations

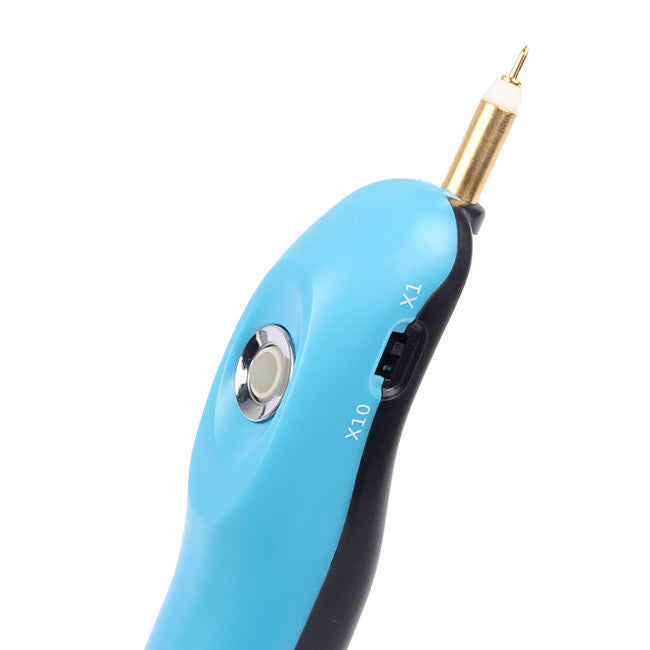

- Switch of probe: Switch the attenuation between X1and X10

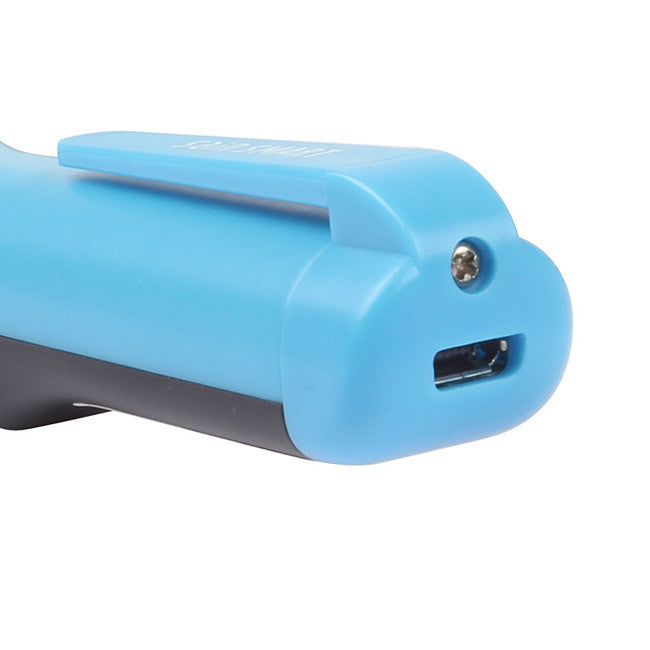

- USB port: Connect USB cable to communicate with PC
- "Z" button: The button function can be customized
|
Model |
VPO1025 |
|
|
Bandwidth |
25MHz |
|
|
Sample rate |
100MS/s |
|
|
Rise time |
�4ns |
|
|
Horizontal Scale (S/div)
|
5ns/div~ |
|
|
Sampling model |
Sample, Peak detect, Average |
|
|
Channel |
1 |
|
|
Max Record length |
5k |
|
|
Input coupling |
DC, AC , |
|
|
Input impedance |
10MΩ±2%(X10) 1MΩ±2%(X1) |
|
|
Input capacitance |
20pF±5pF |
|
|
Max. input voltage |
VPO 1025 |
50V (PK-PK) (DC + AC PK-PK) |
|
VPO 1025 (I) |
400V (PK-PK) (DC + AC PK-PK) |
|
|
DC gain accuracy |
±3% |
|
|
Vertical sensitivity |
5mV/div~5V/div |
|
|
Trigger type |
Edge, Slope, Pulse |
|
|
Trigger mode |
Auto, Normal, Single |
|
|
Automatic measure-ment
|
Vpp, Vmax, Vmin, Vtop, Vbase, Vamp, Vavg, Vrms, Overshoot, Preshoot, Freq, Period, Rise Time, Fall Time, +Width, -Width, +Duty, -Duty |
|
|
Waveform Math |
FFT |
|
|
Communi-cation interface
|
USB2.0 |
|
|
Power supply |
5.0V/300mA Power consumption <1.5W |
|
|
Dimension |
150mm× 20mm×18mm (L*H*W) |
|
|
Weight |
About 27g |
|

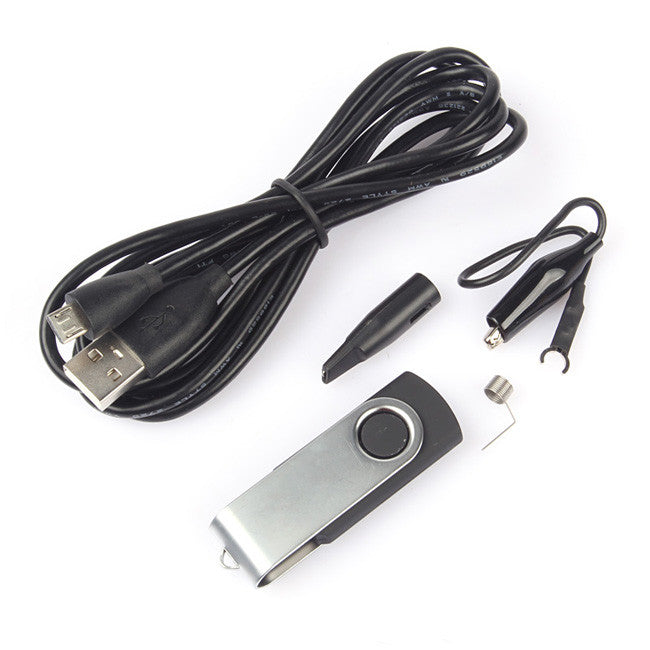

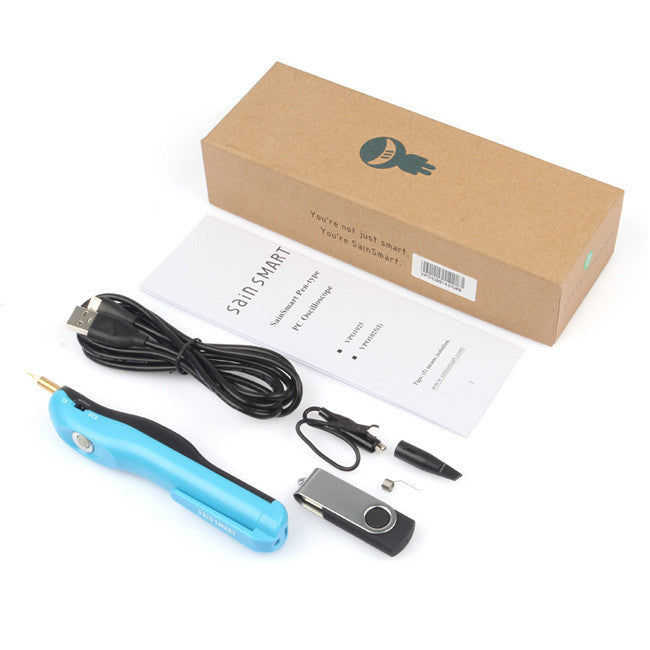

Standard Accessories:
- 1x CD (Supplied Software)
- 1x USB cable
- 1x Quick Guide
- 1x Ground Clamp
- 1x Hook Cover
