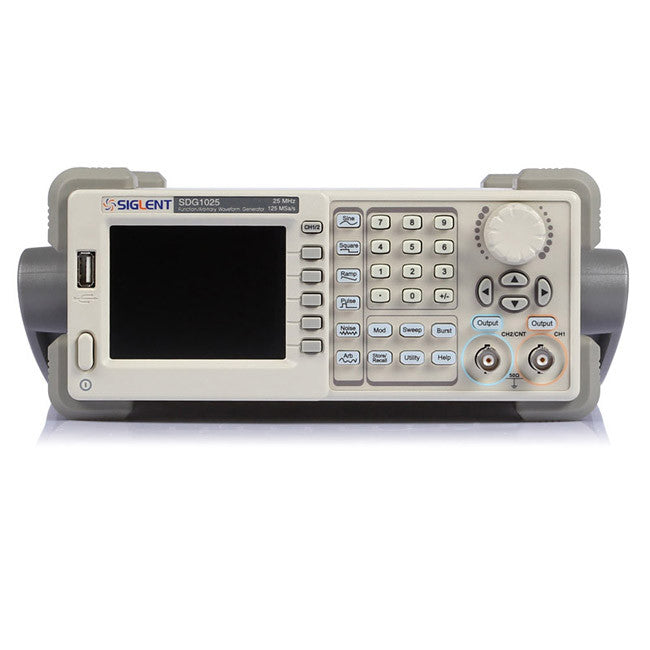

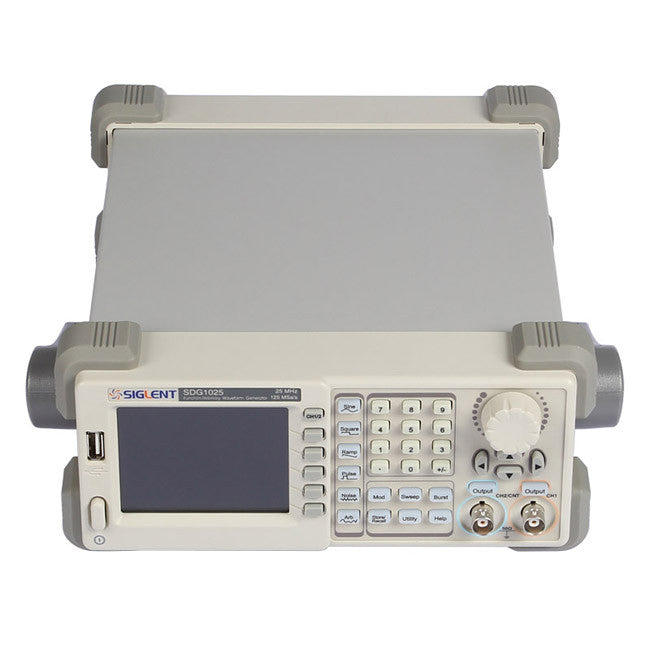

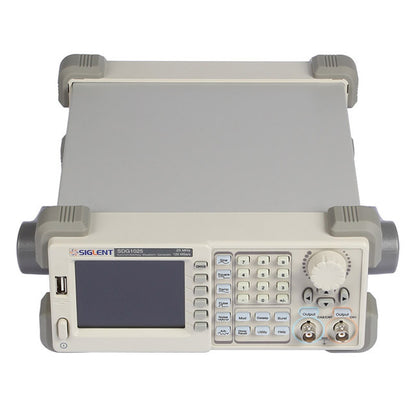

[Discontinued] Siglent SDG1025 25MHz 125 MSa/s Signal Function/Arbitrary Waveform Generator

[Discontinued] Siglent SDG1025 25MHz 125 MSa/s Signal Function/Arbitrary Waveform Generator

SKU:  20-010-423
Regular price $389.59
-Liquid error (snippets/price line 160): divided by 0 Regular price Sale price $389.59
Shipping calculated at checkout.
Standard
  • 20-010-423
  • 20-010-009
View full details

Description:

SDG1000 Series Function/Arbitrary Waveform Generator has a clear and simple front-panel. The user-friendly panel layout and instructions, versatile terminals, direct graph interface, built-in instructions and help system have greatly simplified the operation process, with the help of which, users do not have to spend a great deal of time learning and familiarizing the operation of the generator before they can use itproficiently. The built-in AM, FM, PM, ASK, and FSK modulation functions generate modulated waveforms at ease, without the help of a separate modulating source. USB I/O is a standard accessory, while LAN and GPIB are optional. Remote instructions meet the SCPI specification requirements.

Now combine shipping with SIGLENT SDS1102CNL 100MHz 1GSa/s Real Time Sample Rate Digital Oscilloscope you can get MORE 16% OFF

http://www.sainsmart.com/media/wysiwyg/SainSmart/20/20-010-405/08.jpg

http://www.sainsmart.com/media/wysiwyg/SainSmart/20/20-010-405/09.jpg



http://www.sainsmart.com/media/wysiwyg/SainSmart/20/20-010-405/10.jpg

http://www.sainsmart.com/zen/albums/temp/e/lance/20/20-010-405/profit_vanity/function.jpg

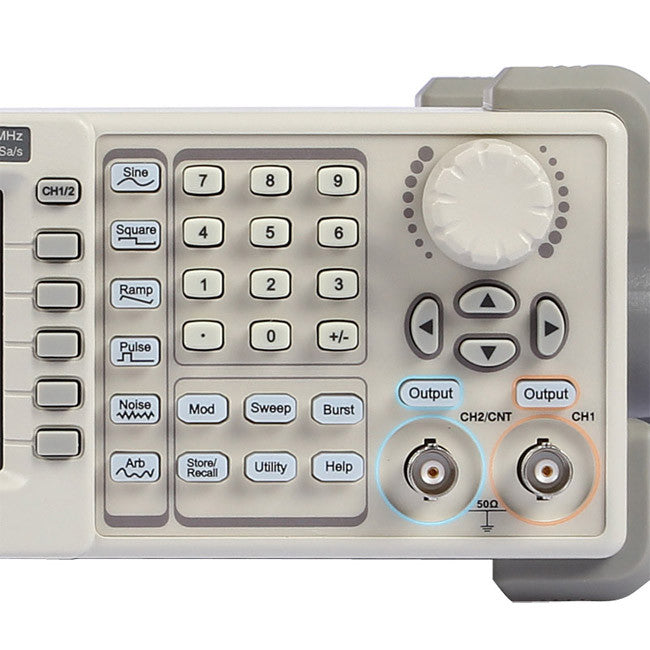

Features:

  1. Apply DDS technology, double output, adjustable phase, the highest output frequency is 25MHz.
  2. 125MSa/s sample rate, 14bit vertical resolution, 16Kpts wave length.
  3. Output 5 types of standard waveform, internally installed 48 types of waveform;
  4. Internally installed high precision, wide frequency counter, frequency is up to 200MHz.
  5. Abundant modulation function, sweep-frequency output, pulse train output.

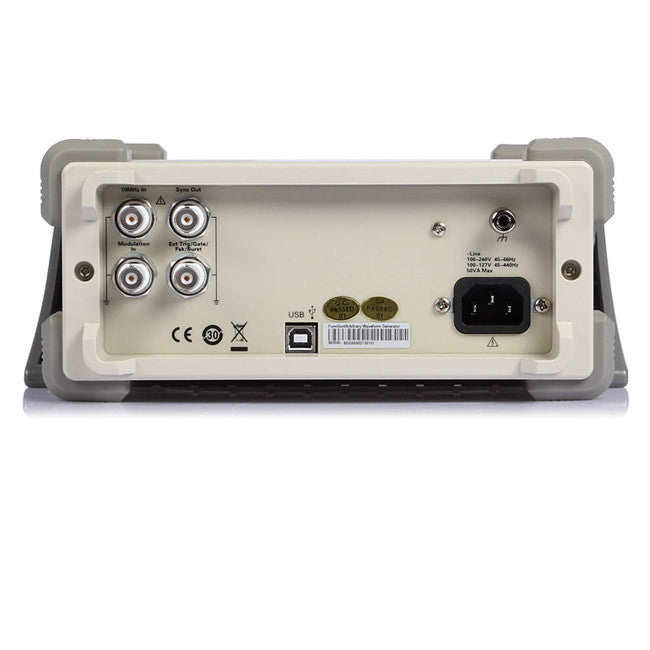

  6. Standard collocation connection: USB Device, USB Host, support U Disk storage and software upgrading;GPIB and LAN port are optional.
  7. Can connect to SDS1000 series digital oscilloscope perfectly, and support remote command control.

Applications:

  1. Analog Sensor
  2. Real Environmental Signals
  3. Circuit Function Test
  4. IC Test
  5. Education

Technical parameters:

Model

SDG1005

SDG1010

SDG1020

SDG1025

SDG1050

Maximum output frequency

5MHz

10MHz

20MHz

25MHz

50MHz

Output channels

2

Sampling rate

125 MSa/s

Wave length

16 kpts

Frequency resolution

1 μHz

Vertical resolution

14 bits

Waveform

Sine, Square, Ramp, Pulse, Gaussian white noise, 48 types of built-in arbitrary waveforms

Sine wave

1μHz ~ 5MHz

1μHz ~ 10MHz

1μHz ~20MHz

1μHz ~ 25MHz

1μHz ~ 50MHz

Square wave

1μHz ~ 5MHz

1μHz ~ 10MHz

1μHz ~20MHz

1μHz ~ 25MHz

1μHz ~ 25MHz

Pulse

500μHz ~ 5MHz

500μHz ~ 5MHz

500μHz ~5MHz

500μHz ~ 5MHz

500μHz ~ 5MHz

Ramp

1μHz ~ 300KHz

1μHz ~ 300KHz

1μHz ~ 300KHz

1μHz ~ 300KHz

1μHz ~ 300KHz

Gaussian  white noise

5MHz
bandwidth(-3dB)

10MHz
bandwidth(-3dB)

20MHz
bandwidth(-3dB)

25MHz
bandwidth(-3dB)

50MHz
bandwidth(-3dB)

Arbitrary wave

1μHz ~ 5MHz

1μHz ~ 5MHz

1μHz ~5MHz

1μHz ~5MHz

1μHz ~ 5MHz

Modulation function

AM, FM, PM, DSB-AM, FSK, ASK, PWM, Sweep, Burst

Other functions

Frequency counter: 100 mHz ~ 200 MHz

Standard configuration

USB Host & Device

Optional port

USB-GPIB adapter

Size

229mm×105mm×281mm

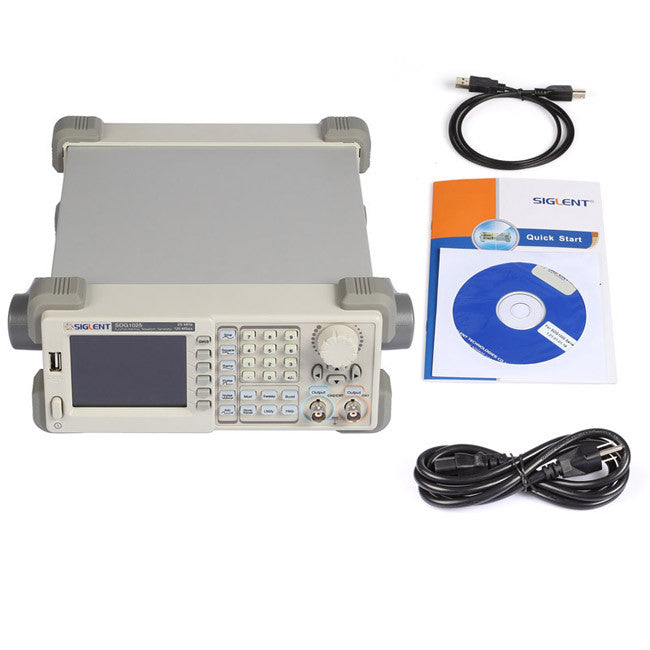

Standard  Accessories:

  • 1x User Manual
  • 1x Certification
  • 1x Guaranty Card
  • 1x CD(including EasyWave1.0 computer software system)
  • 1x Power Cord that fits the standard of destination country
  • 1x USB Cable

Optional  Accessories:

  • 1x BNC Coaxial cable
  • 1x GPIB(IEEE 488.2)
