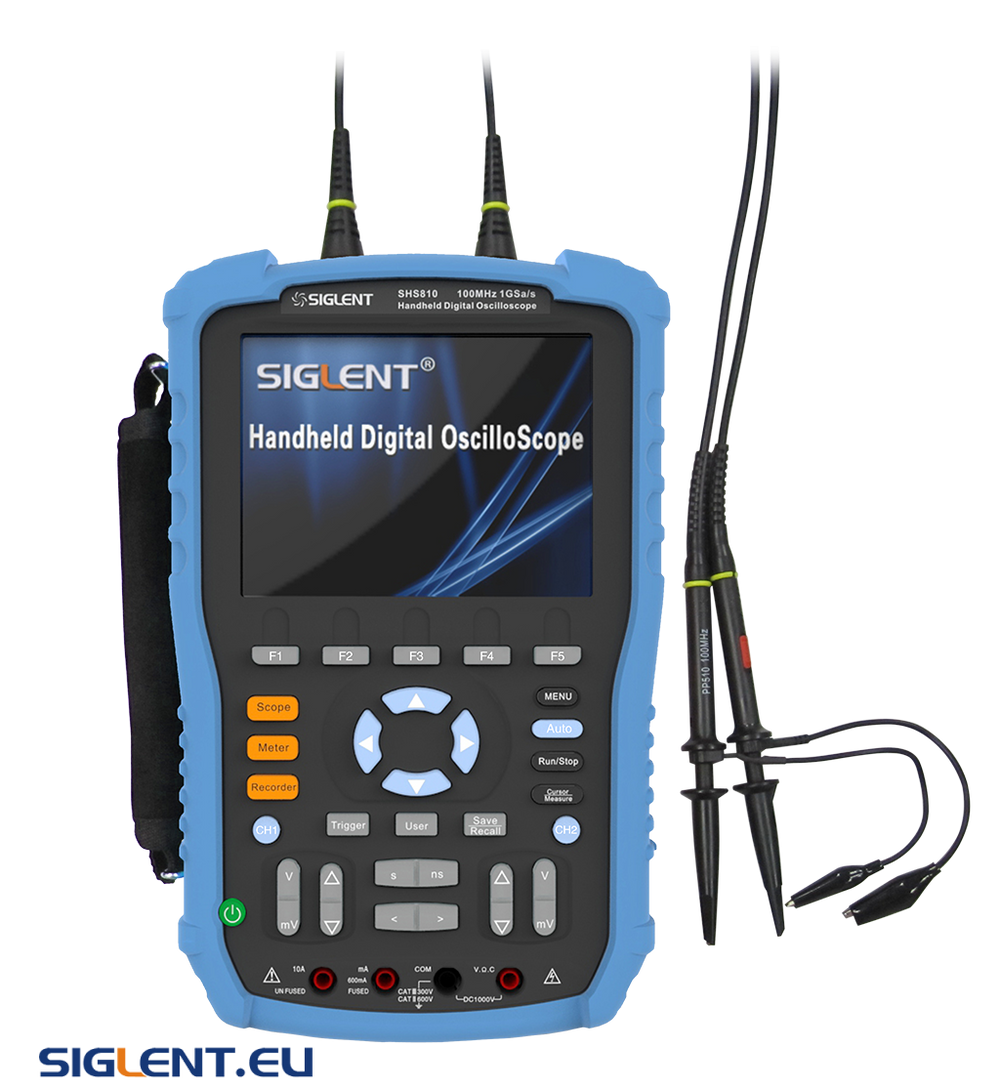

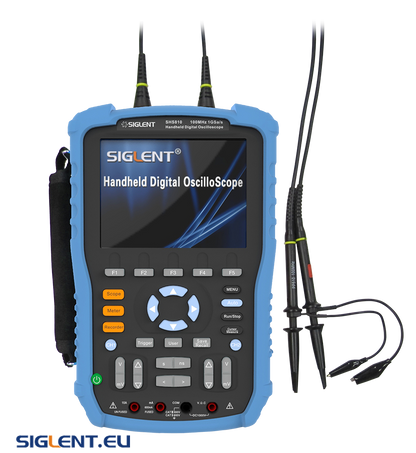

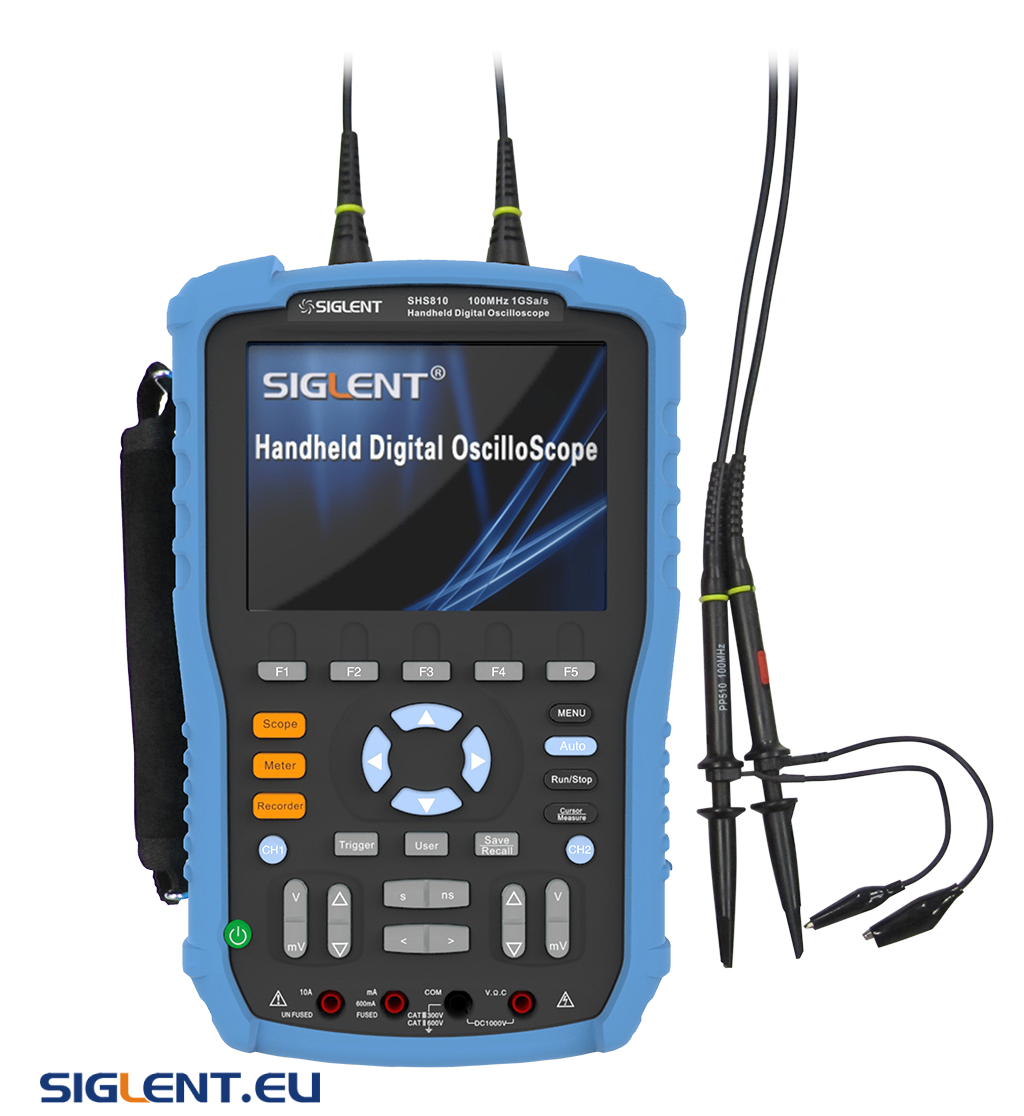

[Discontinued] SIGLENT SHS815 Handheld Oscilloscope 150MHz 1Ghz 5.7'' TFT-LCD

Descritpion:

The SHS815 is a portable oscilloscope with features normally found only on expensive bench-top instruments.  It is ideally suited for field application circuit measurements, electrical debugging, education, scientific research, and quality control.  It combines a sophisticated 150MHz oscilloscope, a 6000 count multimeter, and a waveform recorder in a portable unit with a bright 5.7â€?color TFT LCD screen.  With a bandwidth of 150MHz, it can measure single channel signals at a rate of 1GSa/s or both channels at 500MSa/s, with a 2Mpt sample memory to allow storing, replaying and zooming in on measurements.
The built in data-recorder has up to 18 hours recording time, while the Meter TrendPlot can record multimeter measurement data for as long as 6000 hours at 0.05Sa/s. The Multimeter measures DCV, ACV, DCI, ACI, Resistance, Diode, Capacitance, and Continuity.

Input voltage: input voltage through BNC is up to CATII 300V and CATIII 150V Standard probe: 10X CAT II 400V Optional probe: 10X CAT II 1000V and 10X CAT III 600V Oscilloscope and multimeter safety to CAT II 600V and CAT III 300V.

The SHS815 offers 32 automatic measurements,3 cursor measure modes, 4 digital filters (low-pass, high-pass, band-pass, band-limit) as well as Math functions +, -, ×, ÷, and X/Y plots, as well as FFT frequency display.  Multiple trigger types include video signal settings.

It features USB device for software updates, and USB host capabilities for PictBridge-compatible printers. SHS815 connects to a PC through a USB cable for EasyScope control software and can save/recall waveforms to USB Flash drive. SHS815 can save 2 groups of reference waveforms, 20 groups of setups and 10 groups of waveforms in its internal memory, save setup data, waveform data, waveform interface image, and CSV file to an USB flash drive.

The SHS815 comes with a rechargeable 7.4V 5000mAh Lithium battery pack which lasts up to 5 hours of continuous use, but a DC adapter, 100-240V 50/60Hz 9V 4A DC adapter is also provided.

Feature:

• 150MHz bandwidth
• Real time sampling rate of 1GSa/s
• Equivalent sampling rate of 50GSa/s
• Memory depth of 2Mpts
• Built in data-recorder with 7m internal storage and up to 18 hours recording time
• USB port allows up to 3000 hours recording time
• Record, replay and zoom on measurements
• Built-in high precision multimeter measures DC/AC Voltage, DC/AC Current, resistance, diode, capacitance and continuity
• 6000 count display for multimeter
• Includes 32 measurement TrendPlot analyser with scope of 800k points capacity (more than 24 hours recording time
• Dual or single channel waveform measurements
• Suitable for use in a wide variety of different applications
• 5.7 inch TFT colour LCD display
• Trigger Modes: Automatic, Normal and Simple
• Trigger Types: Edge, Pulse, Video, Slope and Alternative
• 32 automatic measurements and 3 cursor measure modes
• 4 digital filter mode: low pass, high pass, band pass and band limit
• Multiple language user interface
• USB device and USB host built-in
• Rechargeable battery pack

Specification:

Package List:

• 1x Siglent SHS815 Handheld Oscilloscope
• 1x 9V, 4A Power Adapter
• 2x 1X/10X Oscilloscope Probes
• 2x Test Leads for Multimeter
• 1x Probe Calibration Accessory
• 1x USB Data Transmitting Cable
• 1x User Manual
• 1x Warranty Card
• 1x Easyscope Software (Used for PC control)

Documents:

•     SHS800 Series Datasheet
