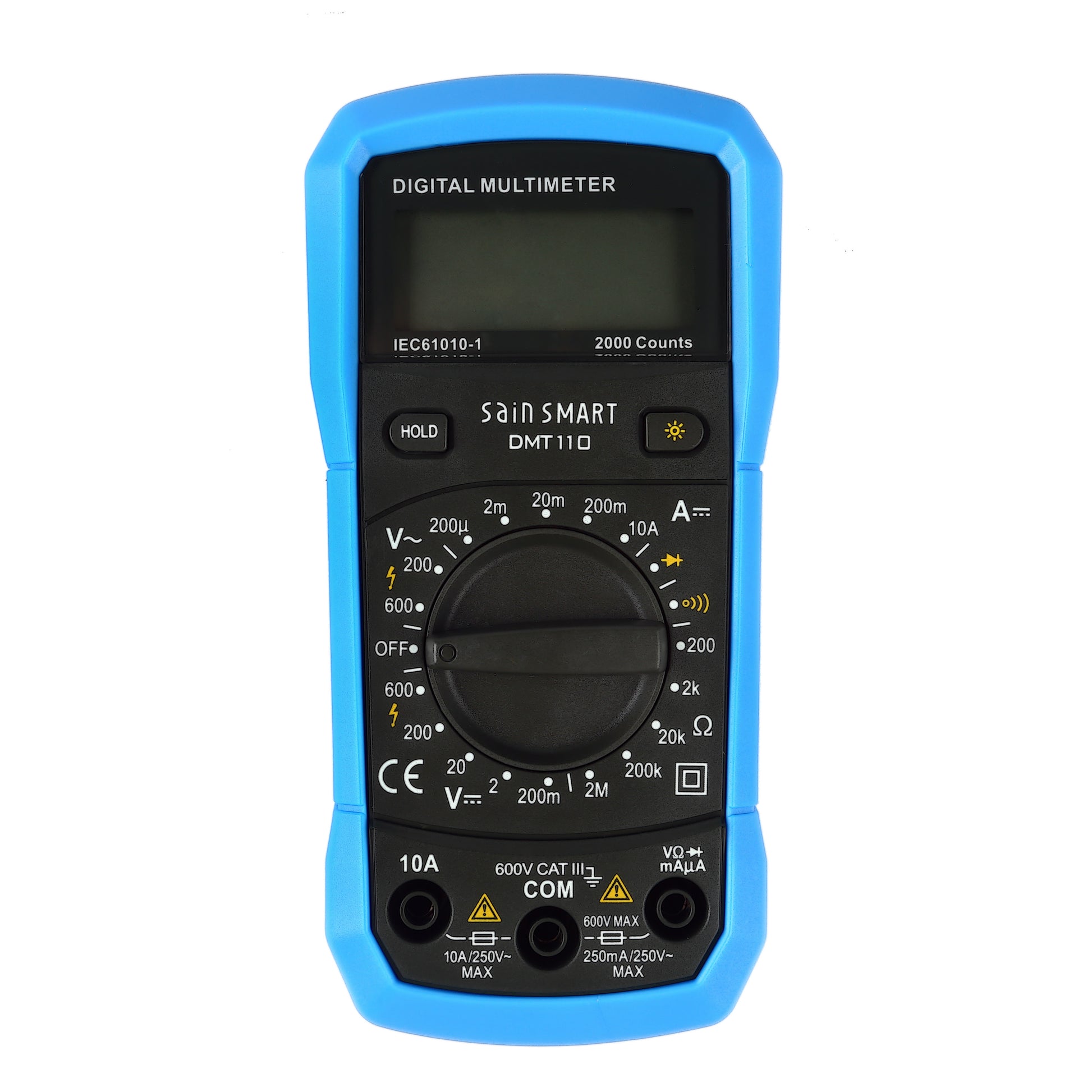

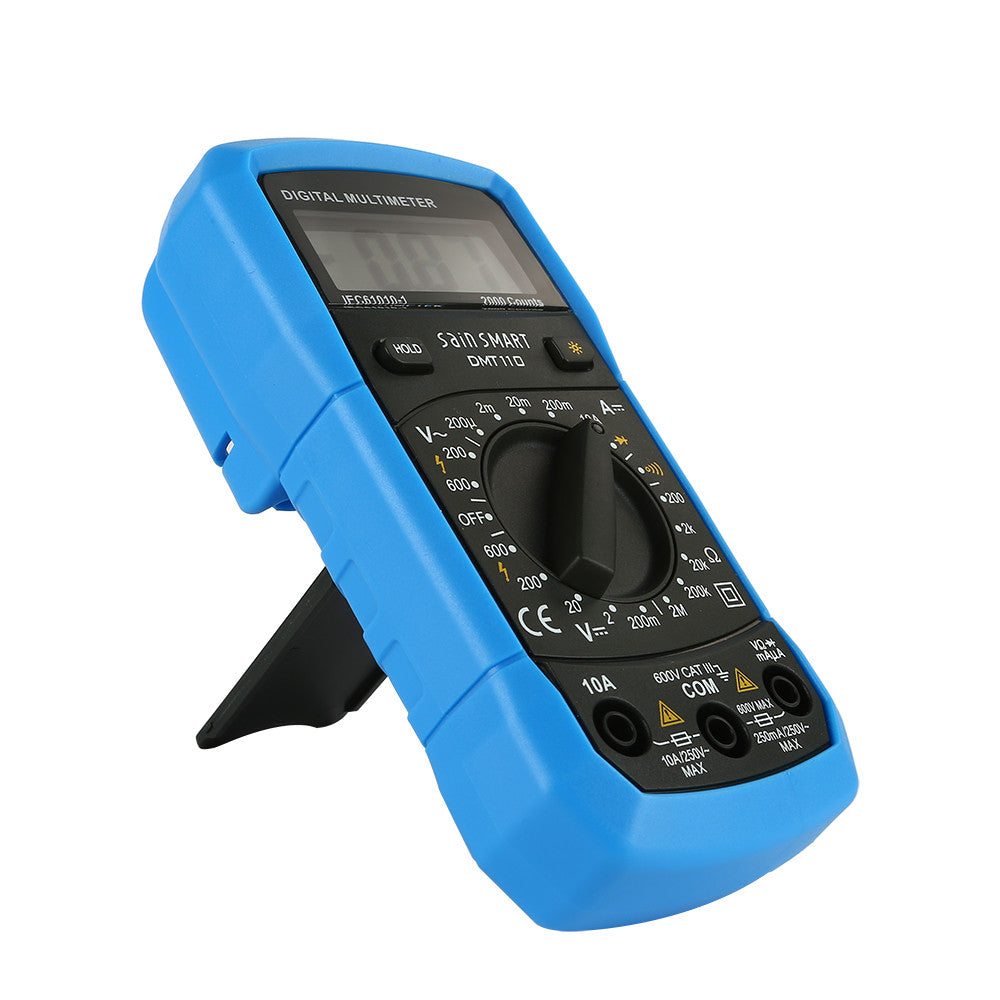

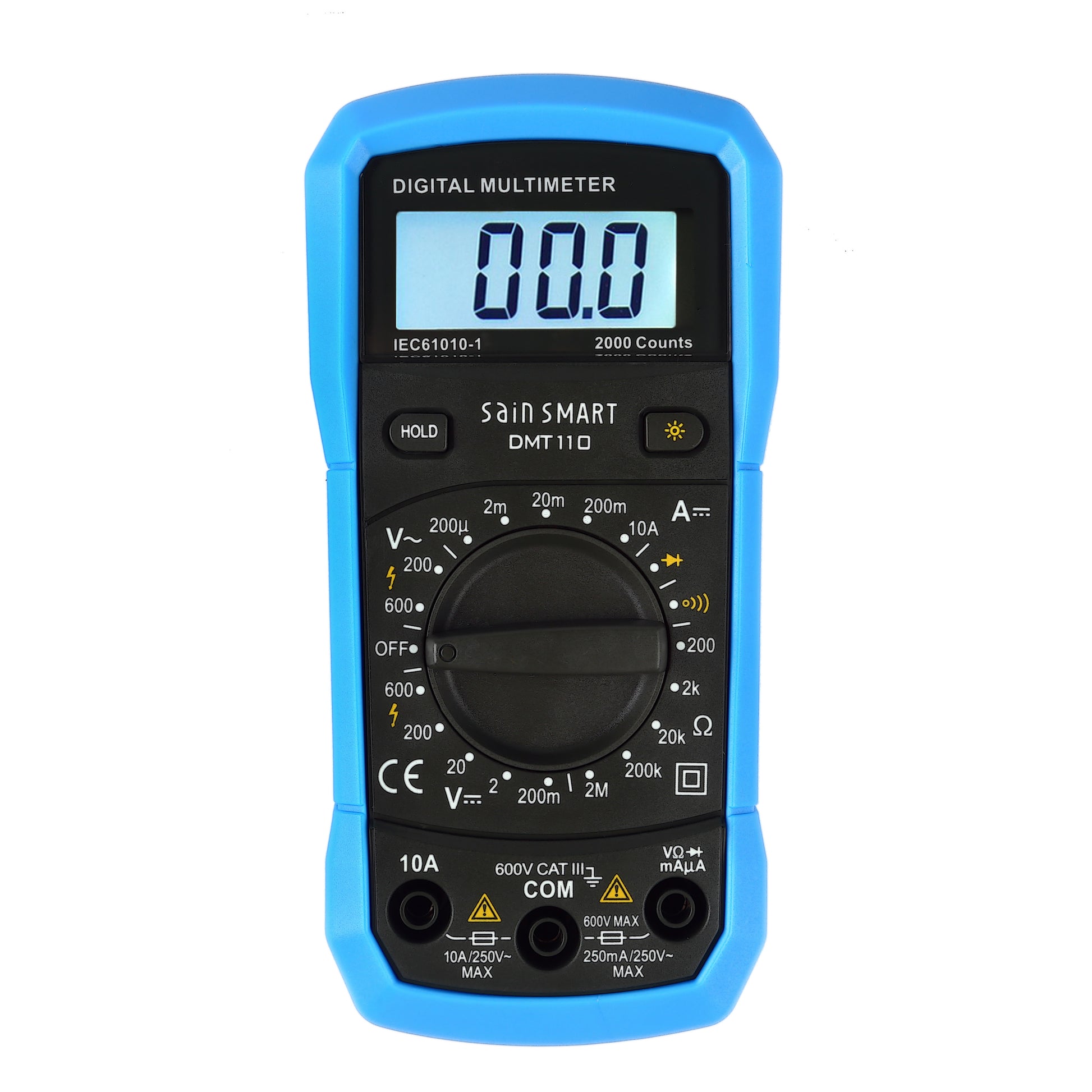

[Discontinued] ToolPAC DMT110 Mini Digital Multimeter

DESCRIPTION

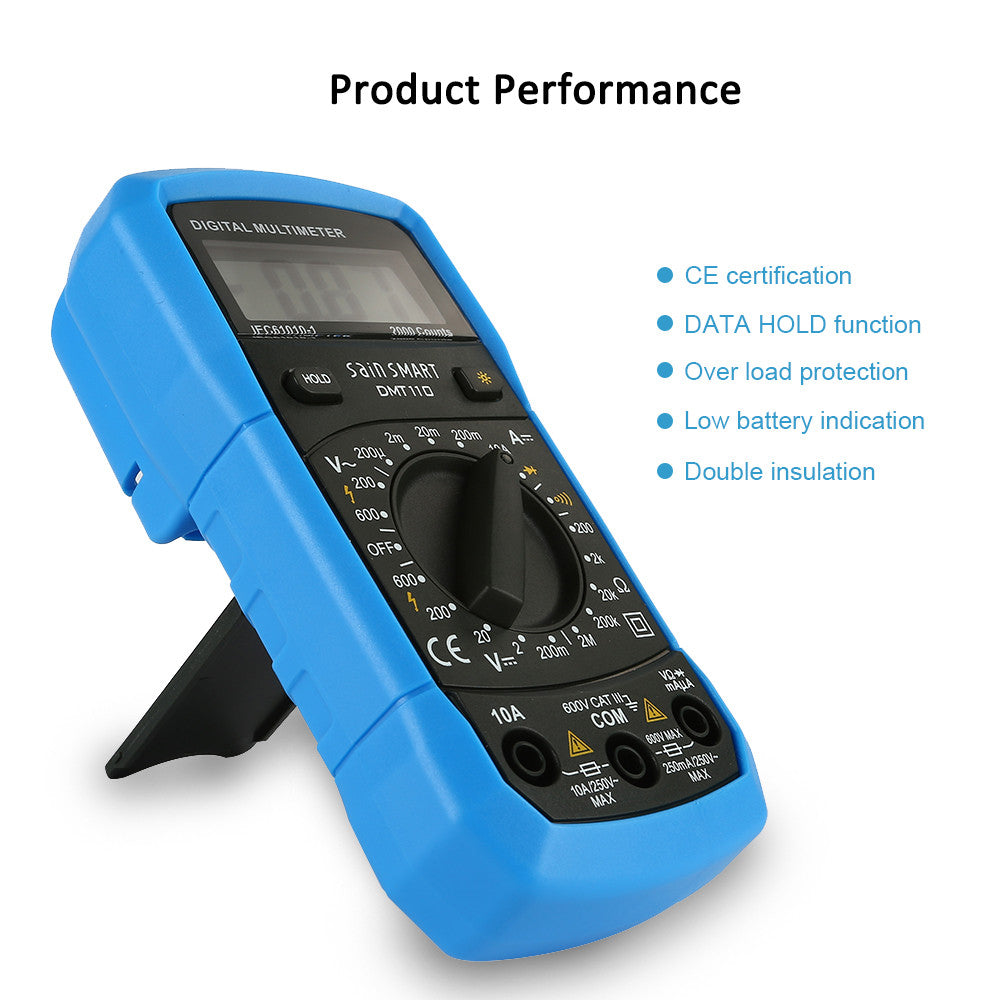

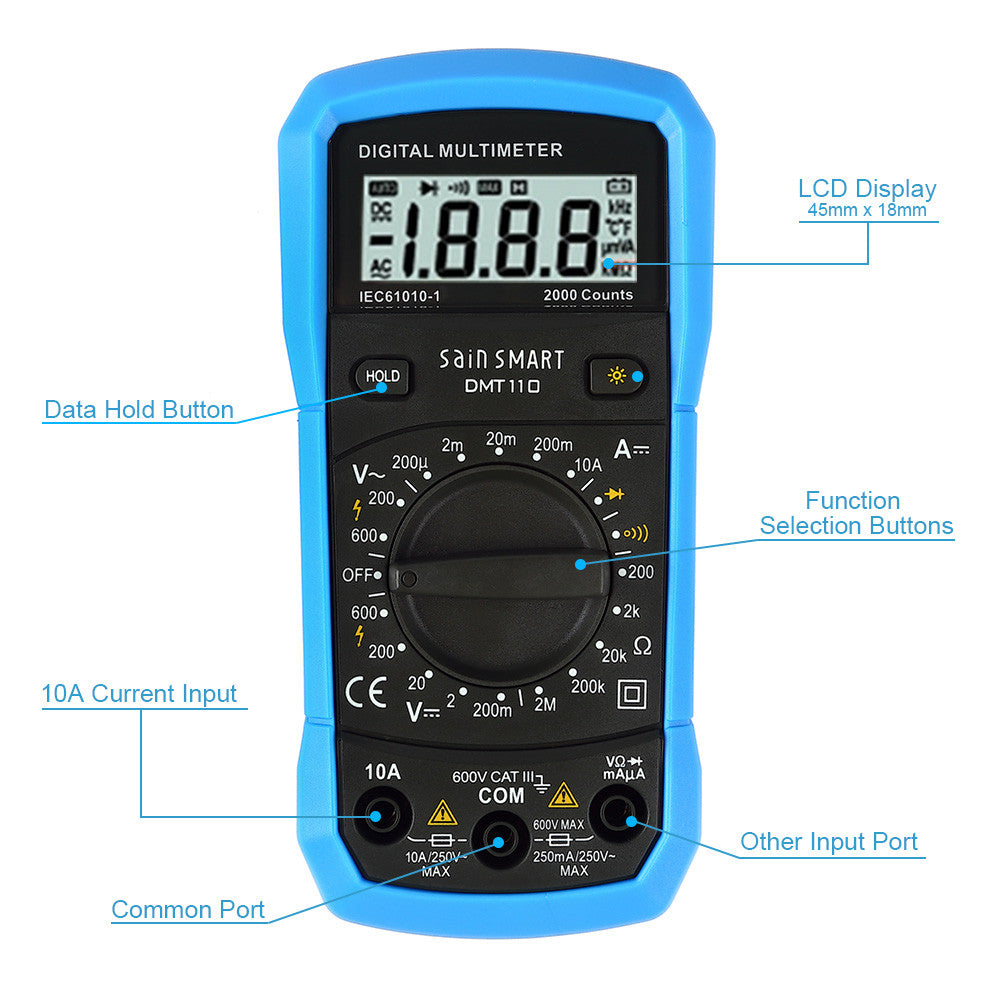

SainSmart DMT Digital Multimeter series is a practical tool for electricians, hobbyists, and general household use. It is easy to operate and have various functions for measuring current, voltage and resistance, as well as continuity, transistor, and diode testing. It can be used to diagnose, assemble, and repair circuitry and wiring. Other features include a low battery indicator, continuity buzzer, and overload protection. There's also backlit LCD with large digits for visibility in dimly lit areas. Displays results quickly with 2-3 readings per second update speed.

SPECIFICATION

• Maximum voltage between: CATII 600V terminals and earth ground
• Fuse protection: F250mA/250V 10A/250V

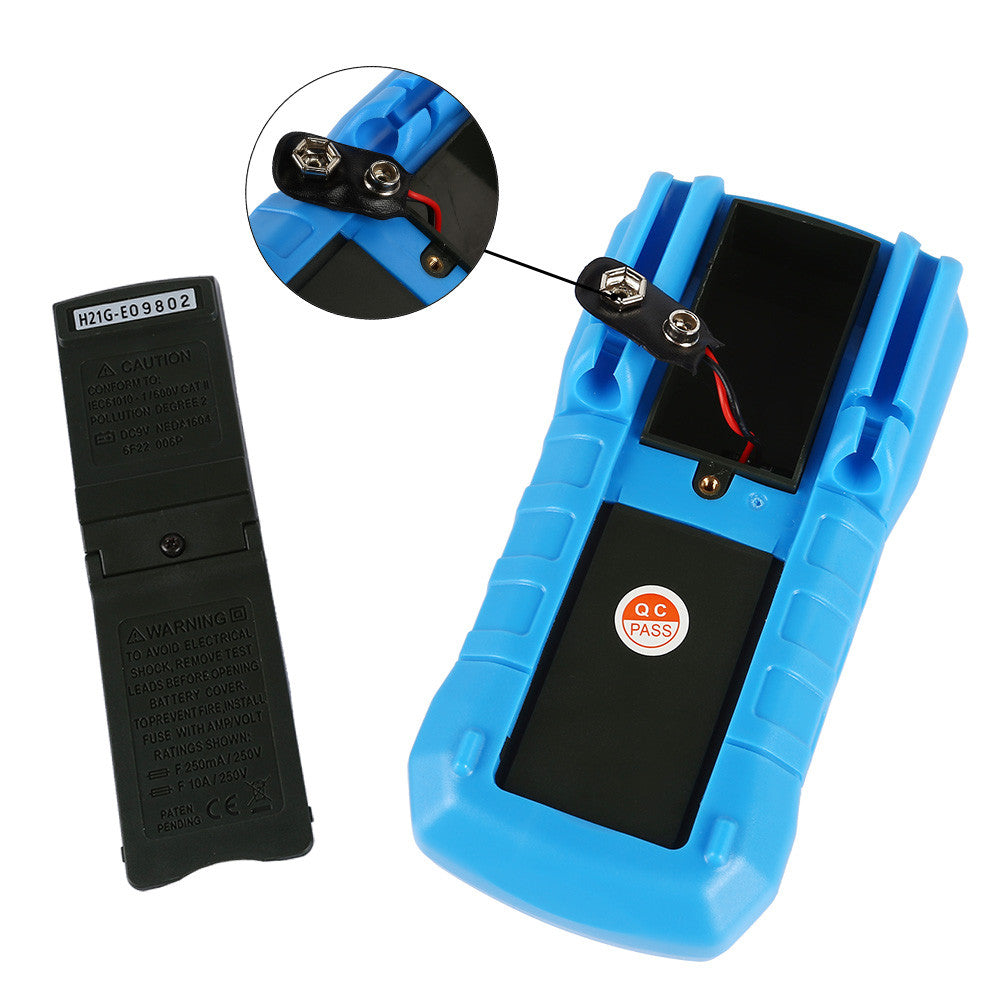

• Power: 9V battery, NEDA 1604 or 6F22
• Display: LCD 2000 counts, updates 2-3/ sec,
• Measuring method: Dual-slope integration A/D converter
• Over range indication: Only figure "1" on the display
• Polarity indication: "-" displayed for negative polarity
• Operating environment: 0 to 40℃
• Storage temperature: -10℃ to 50℃
• Size: 140mm x 67mm x 30mm
• Weight: Approx. 112g.

Accuracy Specifications

DC Voltage

Overload protection: 250rms. For 200mV range and 600V dc or rms. ac for other range.

AC Voltage

Overload protection: 600V DC or RMS. ac for all ranges.

Frequency range: 40Hz~400Hz;

Response: average responding, calibrated in rms. of a sine wave

DC Current

Overload protection: F 250mA/250V fuse. F 10A/250V fuse.

Resistance

Overload protection: 250V dc or rms. ac for all ranges.

Maximum open circuit voltage: 3.2V

Diode & Continuity

Overload protection: Maximum 250V dc or ac. rms.

FUNCTION

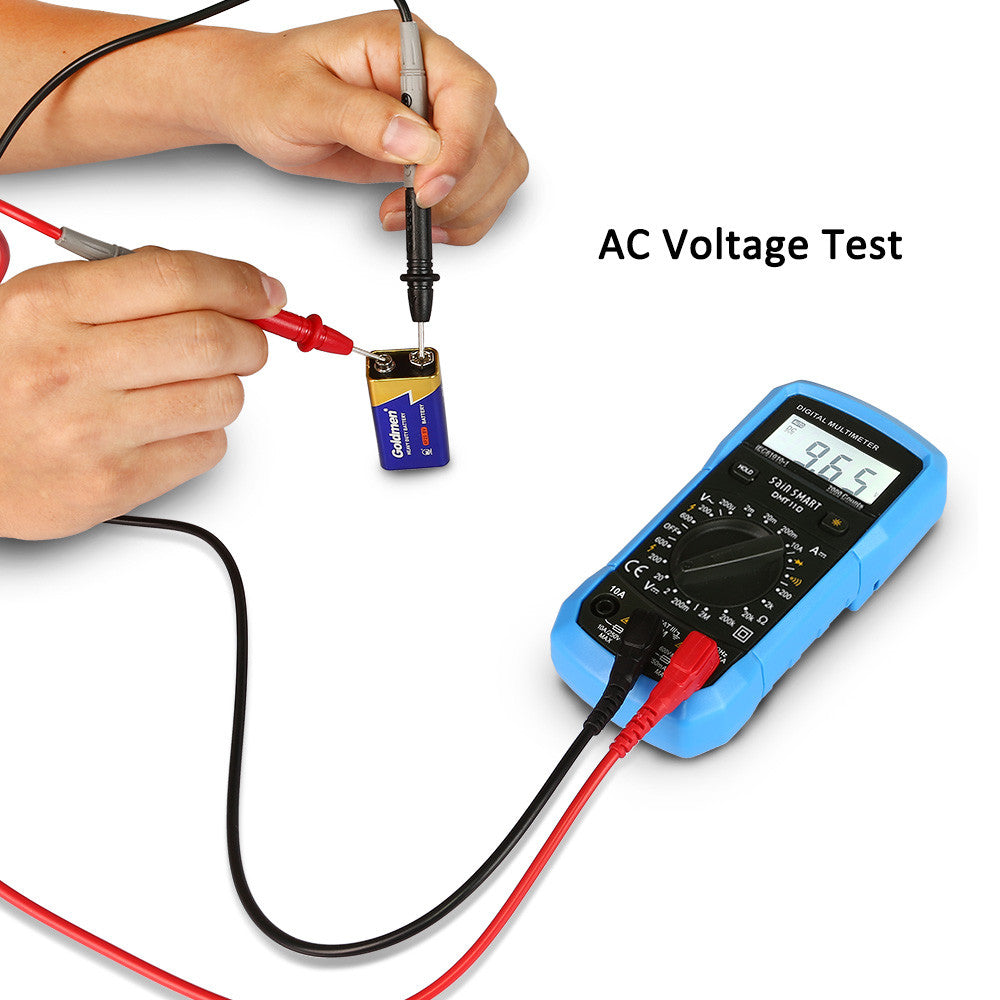

• DC Voltage Measurement
• DC Current Measurement

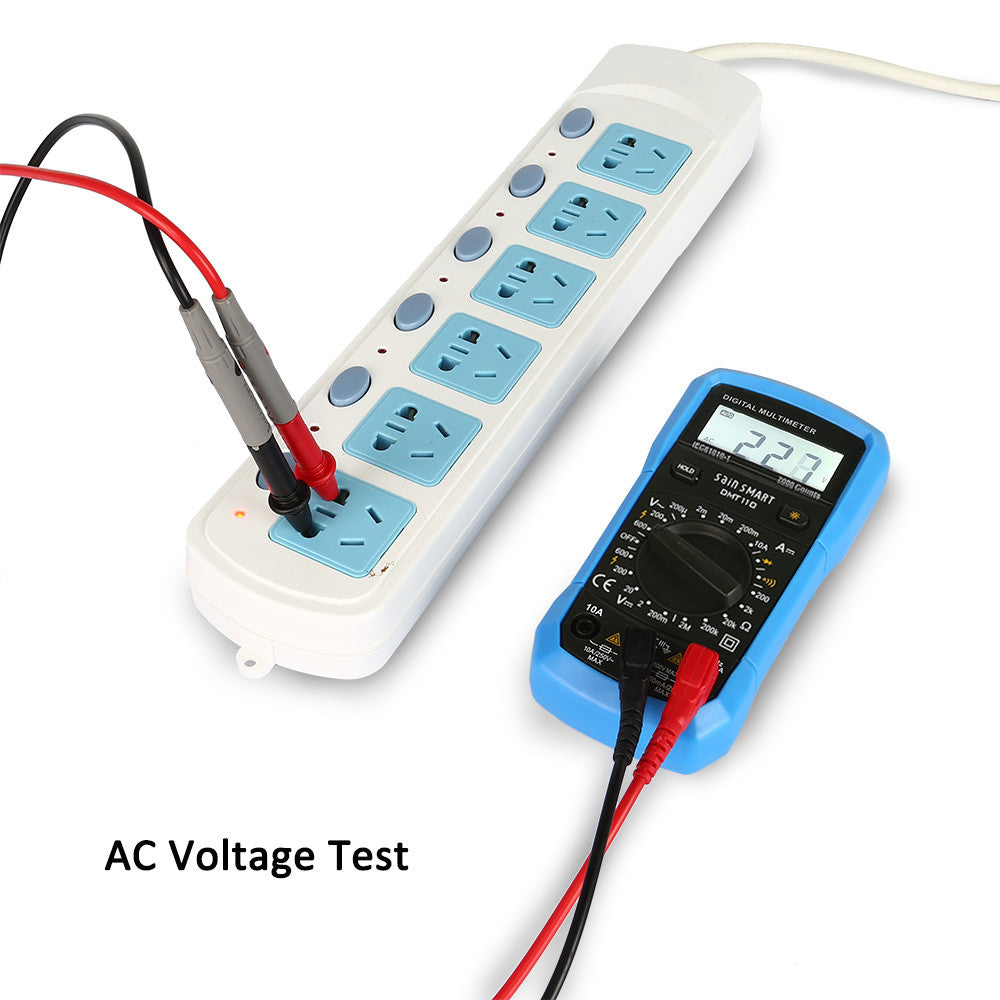

• AC Vlotage Measurement
• Resistance Measurement
• Diode Test
• Audible Continuity Test

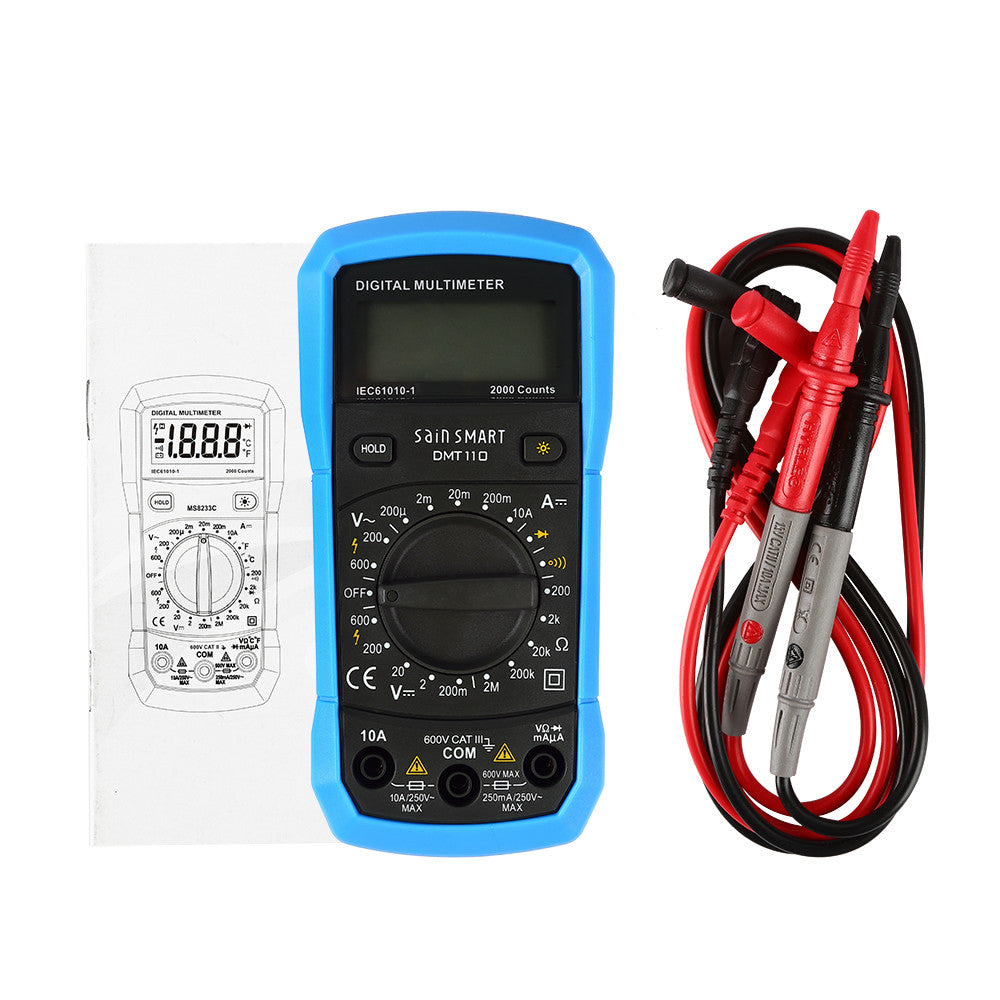

WHAT'S IN THE PACKAGE

• 1x SainSmart DMT110 Digital multimeter (no battery)

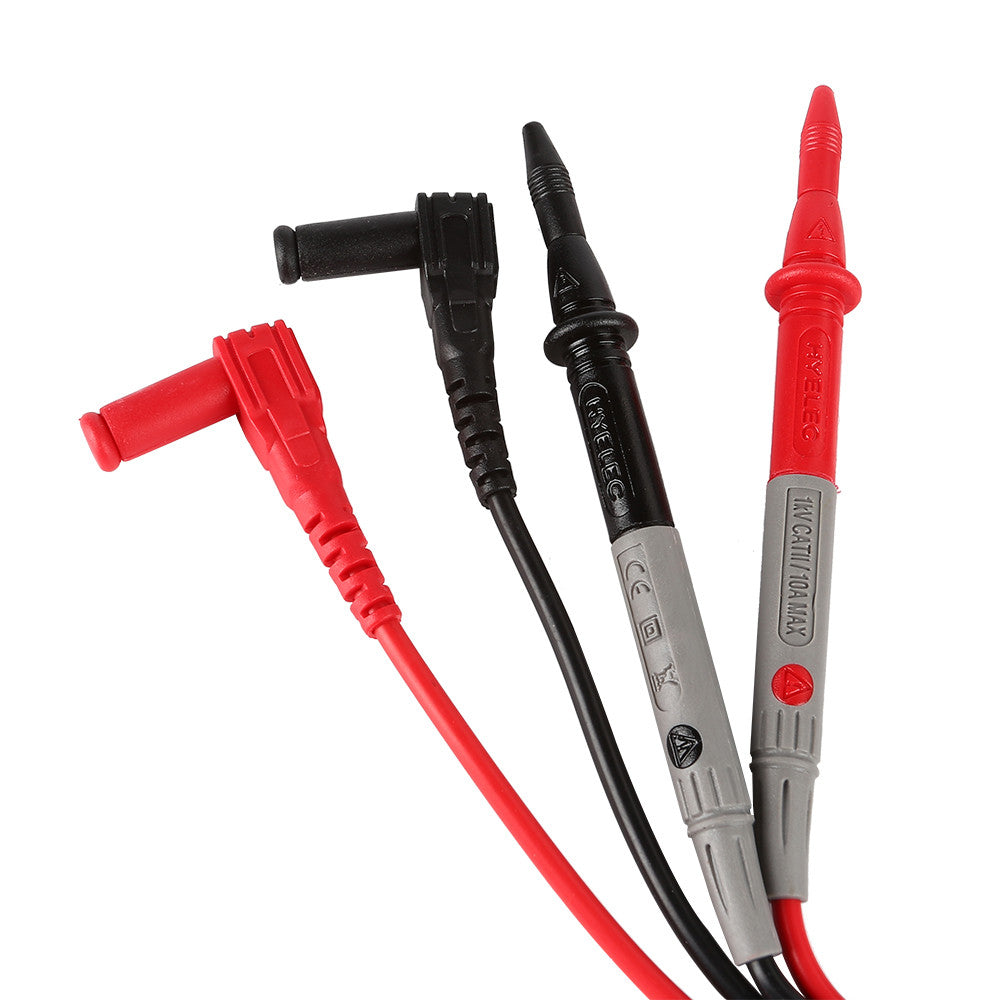

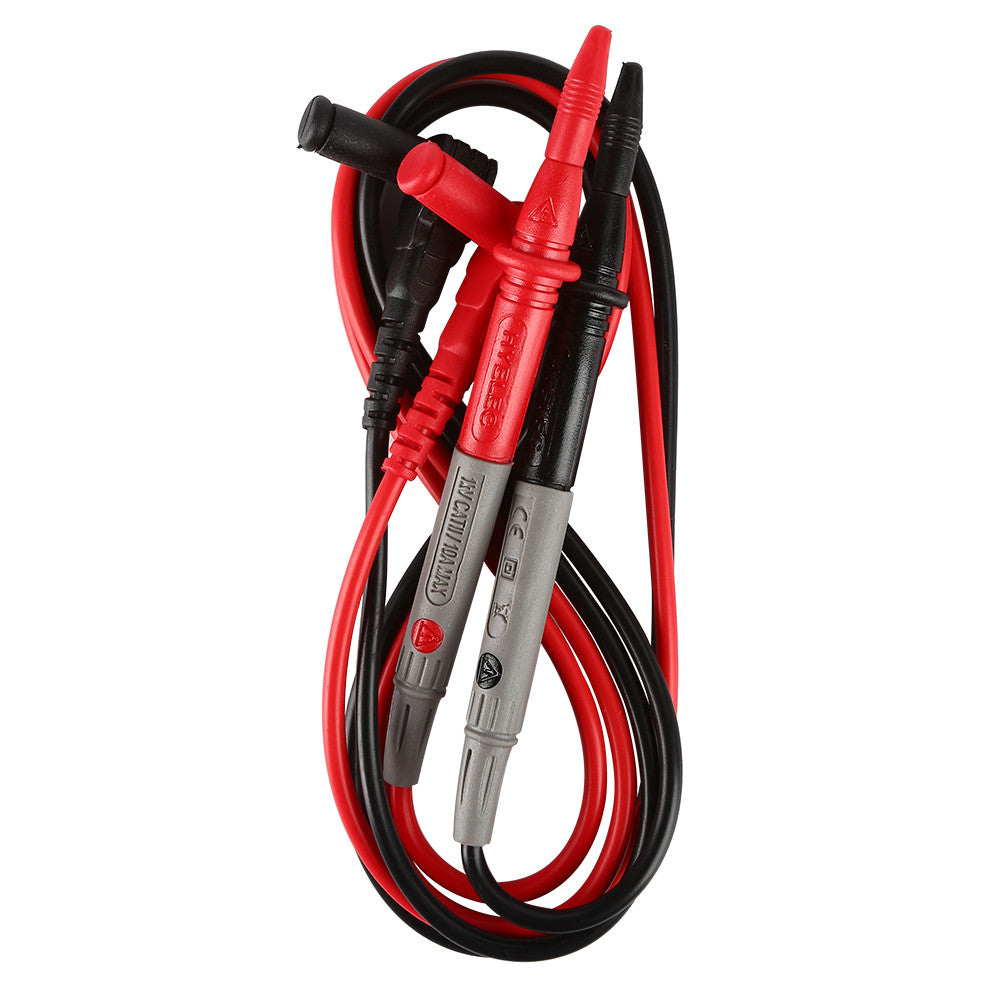

• 2x Test leads
• 1x User manual
