[Discontinued] Uno Learning Kit, Compatible with Arduino, Basic Edition (SHO)

Basic edition (SHO)

Deluxe edition (CHIKU)

Ultimate edition (BAI)

What's the different between these editions?

A: The previous edition is part of the later one.

The ultimate edition contains all the parts that previous editions have, and we carefully prepared more components (e.g. LCD, water sensor) and projects ( e.g. RFID) to inspire creativity. It's recommended for beginners who wants to get hard core on Arduino.

DESCRIPTION

Building some creative and simple projects is a great way to walk through coding and basic electronic circuits knowledge.

The SHO kit includes a selection of the most common and useful electronic components with a manual of 18 projects.

• Project1--Hello_World
• Project2--LED_Flashing
• Project3--Traffic_Lights
• Project4--Flowing_LED_Lights
• Project5--Button
• Project6--Answer_Machine
• Project7--Active_Buzzer
• Project8--Passive_Buzzer
• Project9--Analog_Read_Serial
• Project10--Potentiometer_control_LED
• Project11--Photoresistor_control_LED
• Project12--Photoresistor_control_Buzzer
• Project13--7-Segment_Display
• Project14--4-Bit_7-Segment_Display
• Project15--Dot-Matrix_LED_Display
• Project16--RGB_LED
• Project17--LM35_Temperature_Sensor
• Project18--Servo

Click here or visit learn page for tutorial

SPECIFICATION

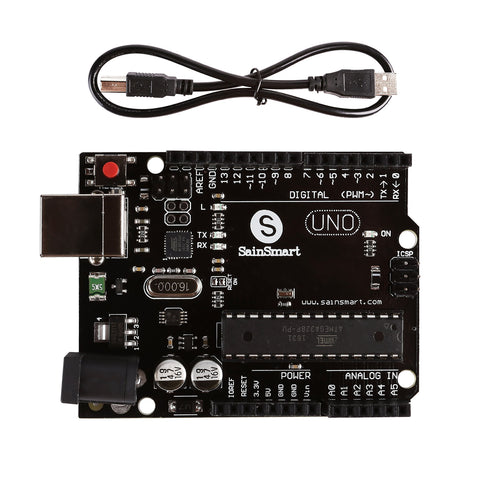

Uno R3

•   ATmega328P-PU microcontroller
•  Input voltage - 5-10V
•  5V Electric current : 500MA
•  3.3V Electric current : 50MA
•  14 Digital I/O Pins (6 PWM outputs)
•  6 Analog Inputs
•  32k Flash Memory
•  16Mhz Clock Speed

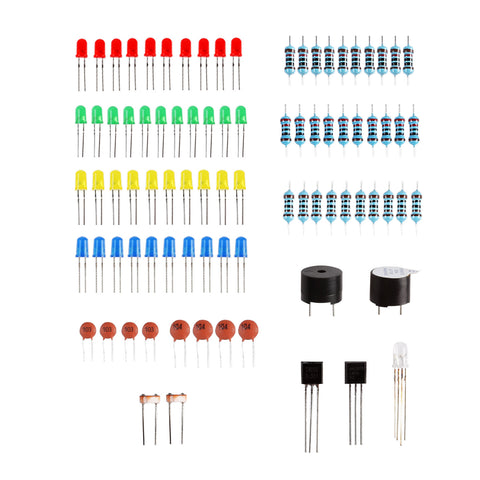

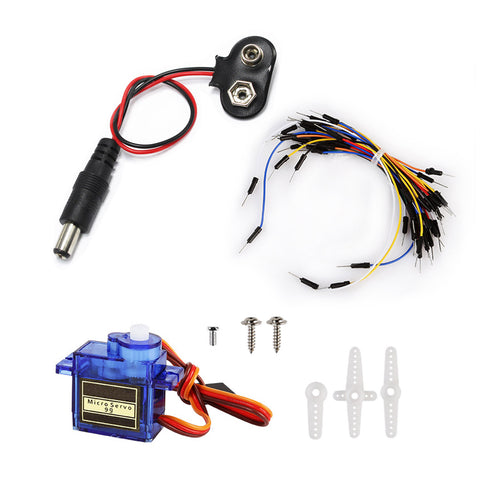

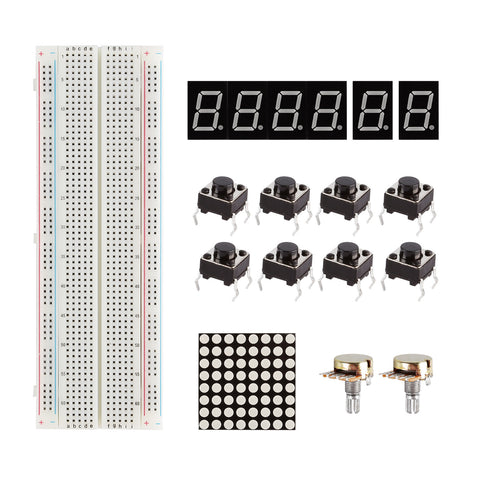

WHAT'S IN THE PACKAGE
