[Discontinued] Uno R3 Starter Kit

DESCRIPTION

Click to Download Manual

This kit has more than 16 projects for fans or geeks, or those beginners who are interested in coding for Arduino.  You will have a complete set of  most common and useful electronic components. What's more. We will offer you a detailed tutorials including project introduction and their source codes.You may learn about coding through using these basic projects. This kit will help you control the physical world with sensors.

Includes SainSmart UNO R3 Development Board Compatible With Arduino UNO R3. SainSmart UNO R3 now uses an ATMega16U2 instead of the ATMega8U2 chip. This allows for faster transfer rates and more memory. No drivers needed for Linux or Mac (inf file for Windows is needed and included in the IDE), and the ability to have the Uno show up as a keyboard, mouse, joystick, etc. 3.3VV/5V Supply Voltage and IO Voltage is optional. More 3.3V modules supported, such as Xbee module, Bluetooth module, RF module, GPRS module, GPS module, LCD5110 Backlight and so on, but the original version can only support 5V IO. Controller uses SMD MEGA328P-AU chip. Add A6/A7 port. SainSmart R3 can directly use the electronic building blocks on I / O port and elicit G, V, S.

The Uno R3 also adds SDA and SCL pins next to the AREF. In addition, there are two new pins placed near the RESET pin. One is the IOREF that allow the shields to adapt to the voltage provided from the board. The other is a not connected and is reserved for future purposes. The Uno R3 works with all existing shields but can adapt to new shields which use these additional pins.

SainSmart UNO R3 also support code which writed in Arduino.

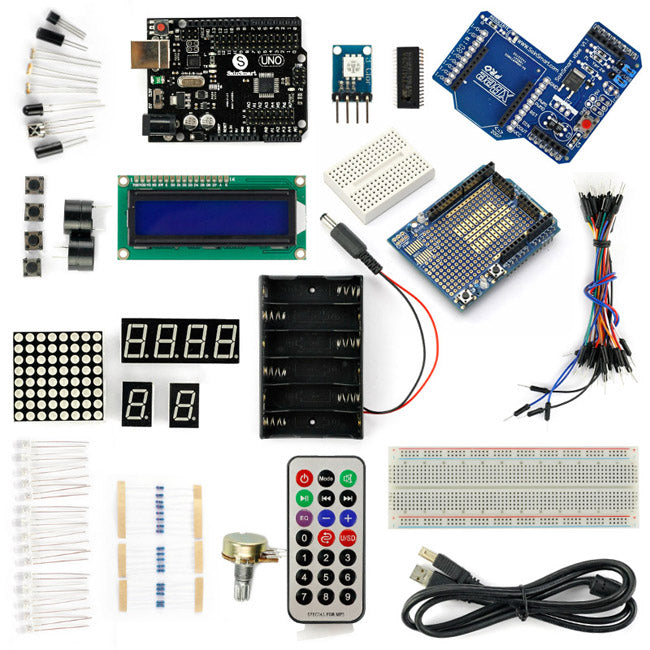

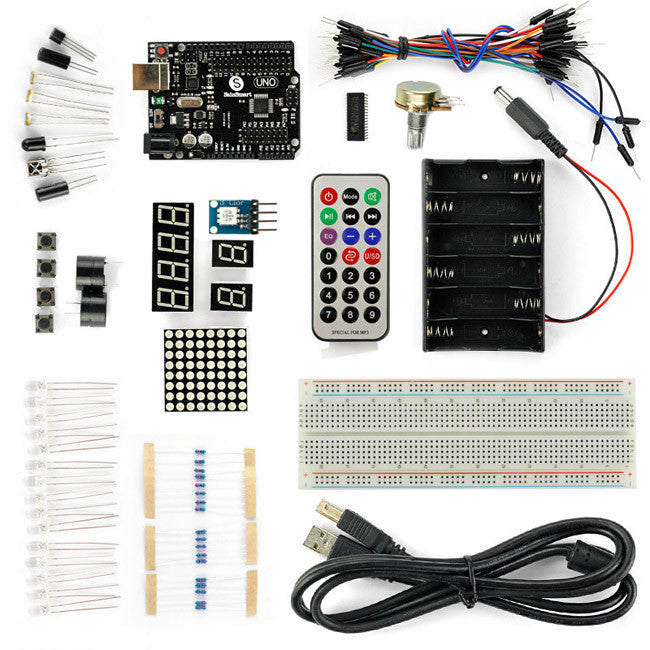

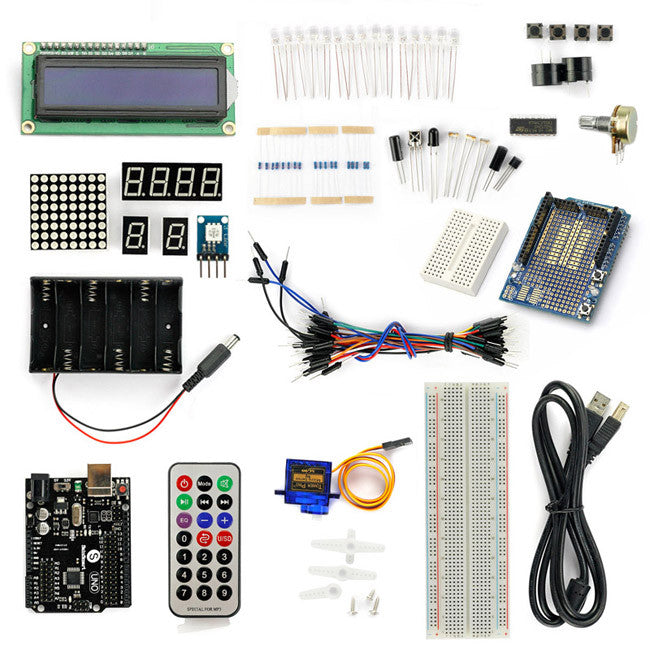

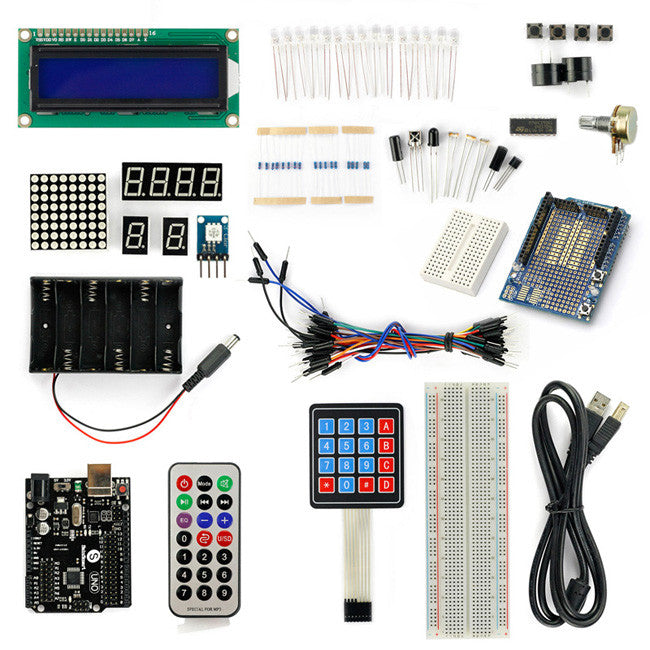

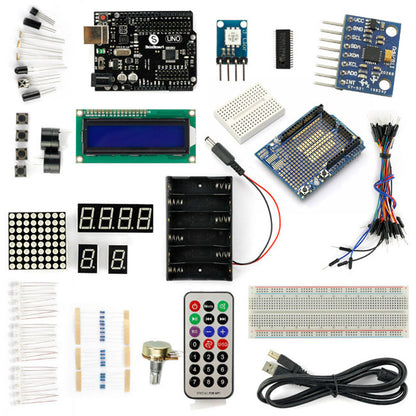

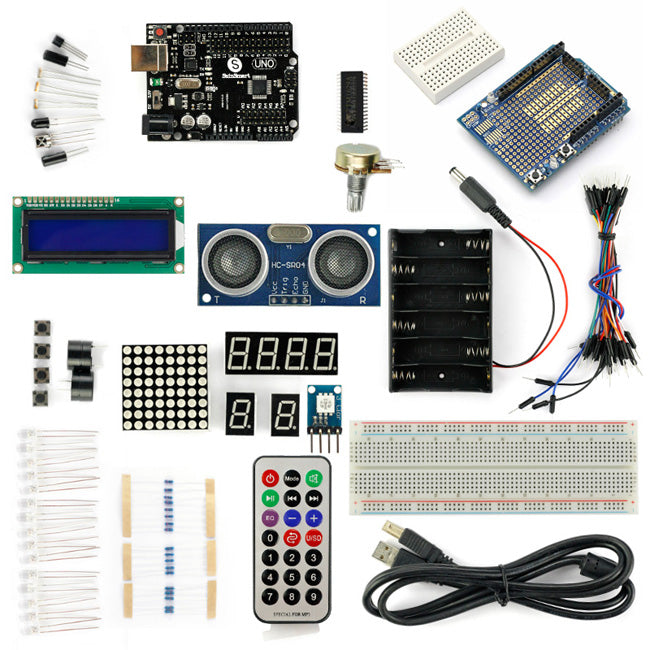

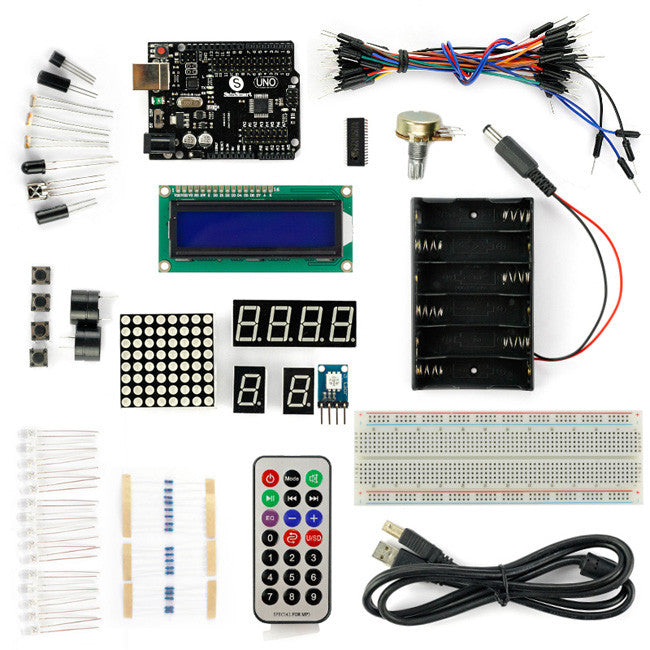

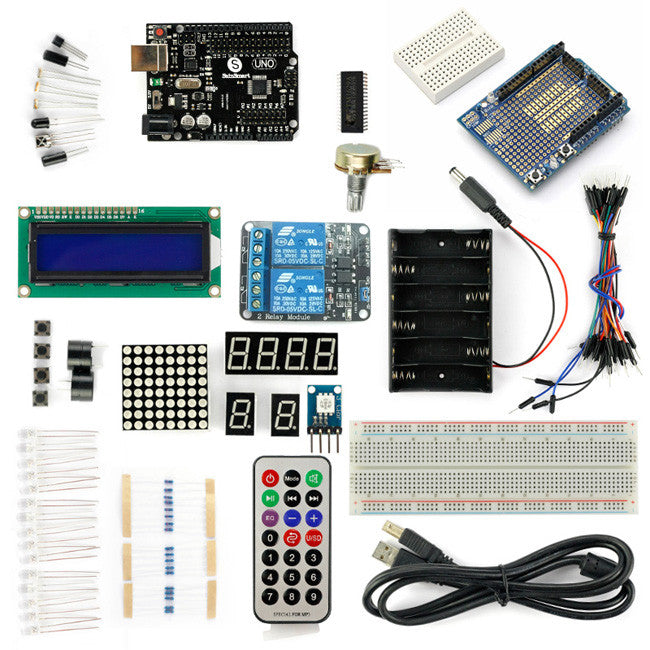

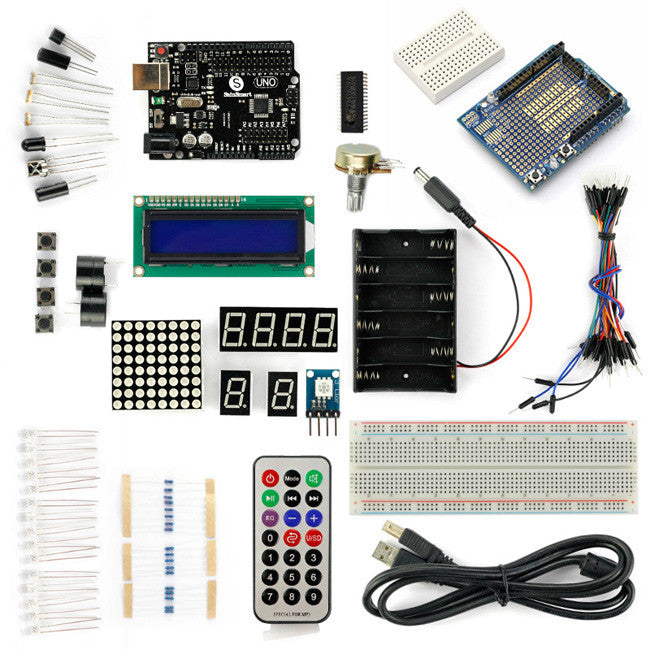

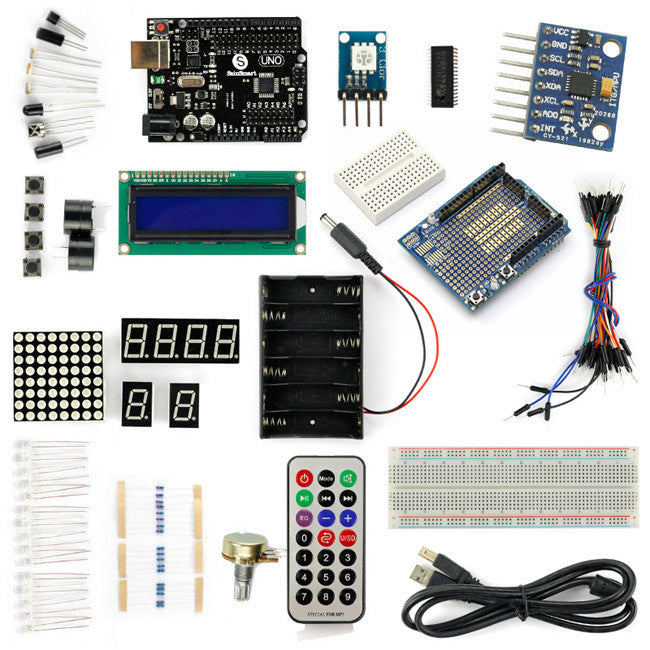

WHAT'S IN THE PACKAGE

• 1 x  UNO R3
• 1 x  USB Cable
• 1 x  Buzzer
• 2 x 7 Segment LED Numeric Displays
• 1 x 4 Digit 7 Segment LED Display Module
• 1 x  Temperature Sensor
• 1 x  74HC595
• 1 x  Infrared Remote Control
• 1 x  Infrared Receiver
• 1 x  Photoresistor
• 1 x  Potentiometer
• 2 x  Tilt sensor
• 4 x  Pushbuttons
• 1 x  RGB
• 1 x  Flame Sensor
• 1 x  Cell Box
• 6 x  Resistors
• 1 x  Breadboard & Jumper wires
• 3 x LEDs
