Model |
Support |
Resolution |
Sensor |
Adjustable Focus |
IR |
Support Light |
Field Angle (Degree) |
Size (mm) |
Raspberry Pi/ Pi2 /Pi3 Model A/ B/ B+ |
5MP |
OV5647 |
× |
× |
× |
73 |
25x24 |
|
Raspberry Pi/ Pi2 /Pi3 Model A/ B/ B+ |
5MP |
OV5647 |
× |
√ |
√ |
73 |
25x24 |
|
Raspberry Pi/ Pi2 /Pi3 Model A/ B/ B+ |
5MP |
OV5647 |
√ |
√ |
√ |
76 |
25x24 |
|
Raspberry Pi/ Pi2 /Pi3 Model A/ B/ B+ |
5MP |
OV5647 |
√ |
× |
√ |
160 |
25x24 |
|
Raspberry Pi/ Pi2 /Pi3 Model A/ B/ B+ |
5MP |
OV5647 |
√ |
√ |
√ |
160 |
25x24 |
|
Raspberry Pi/ Pi2 /Pi3 Model A/ B/ B+ |
5MP |
OV5647 |
√ |
× |
√ |
175 |
25x24 |
|
Raspberry Pi/ Pi2 /Pi3 Model A/ B/ B+ |
5MP |
OV5647 |
√ |
√ |
√ |
175 |
25x24 |
|
Raspberry Pi/ Pi2 /Pi3 Model A/ B/ B+ |
5MP |
OV5647 |
√ |
√ |
√ |
76 |
31x32 |
|
Raspberry Pi Zero , Pi Zero w |
5MP |
OV5647 |
× |
× |
× |
73 |
60x8 |
|
Raspberry Pi Zero , Pi Zero w |
5MP |
OV5647 |
× |
√ |
× |
73 |
60x8 |
SPECIFICATION
- The Raspberry Pi Camera Board Features a 5MP (2952×1944 pixels)
- Omnivision 5647 sensor in a fixed focus module
- The module attaches to Raspberry Pi, by way of a 15 Pin Ribbon Cable, to the dedicated 15-pin MIPI Camera Serial Interface (CSI)
- The CSI bus is capable of extremely high data rates, and it exclusively carries pixel data to the BCM2835 processor
- The sensor itself has a native resolution of 5 megapixel, and has a fixed focus lens onboard
- The camera is capable of 2952 x 1944 pixel static images, and also supports 1080 p @ 30 fps, 720 p @ 60 fps and 640 x480 p 60/90 video recording
- The camera is supported in the latest version of Raspbian, the Raspberry Pi's preferred operating system
WHAT'S IN THE PACKAGE

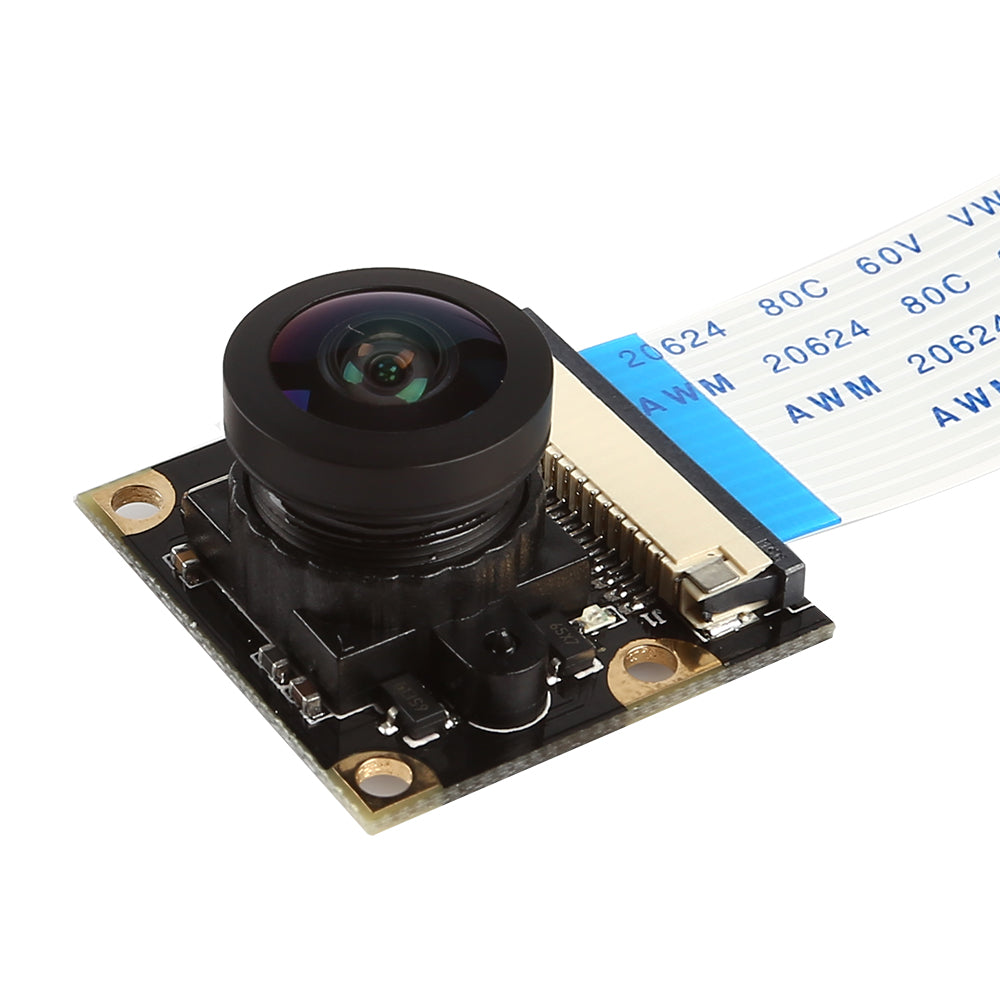

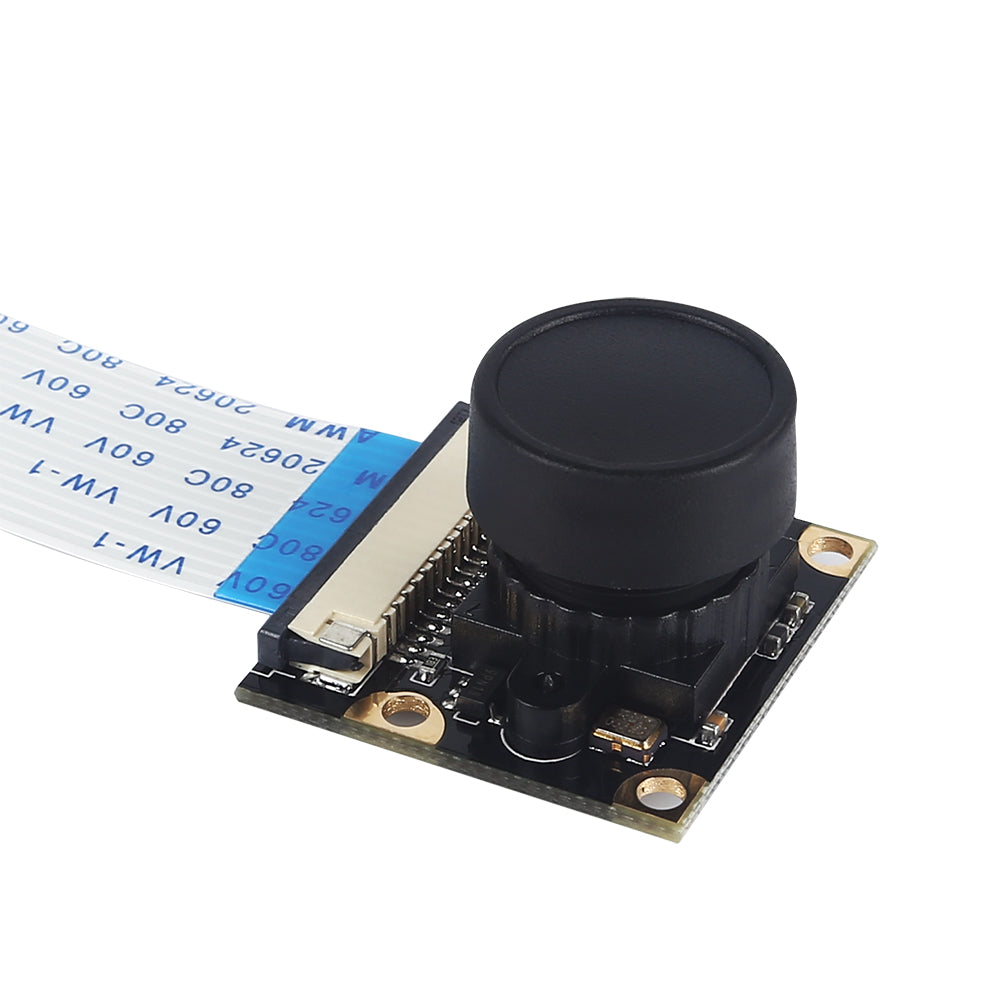

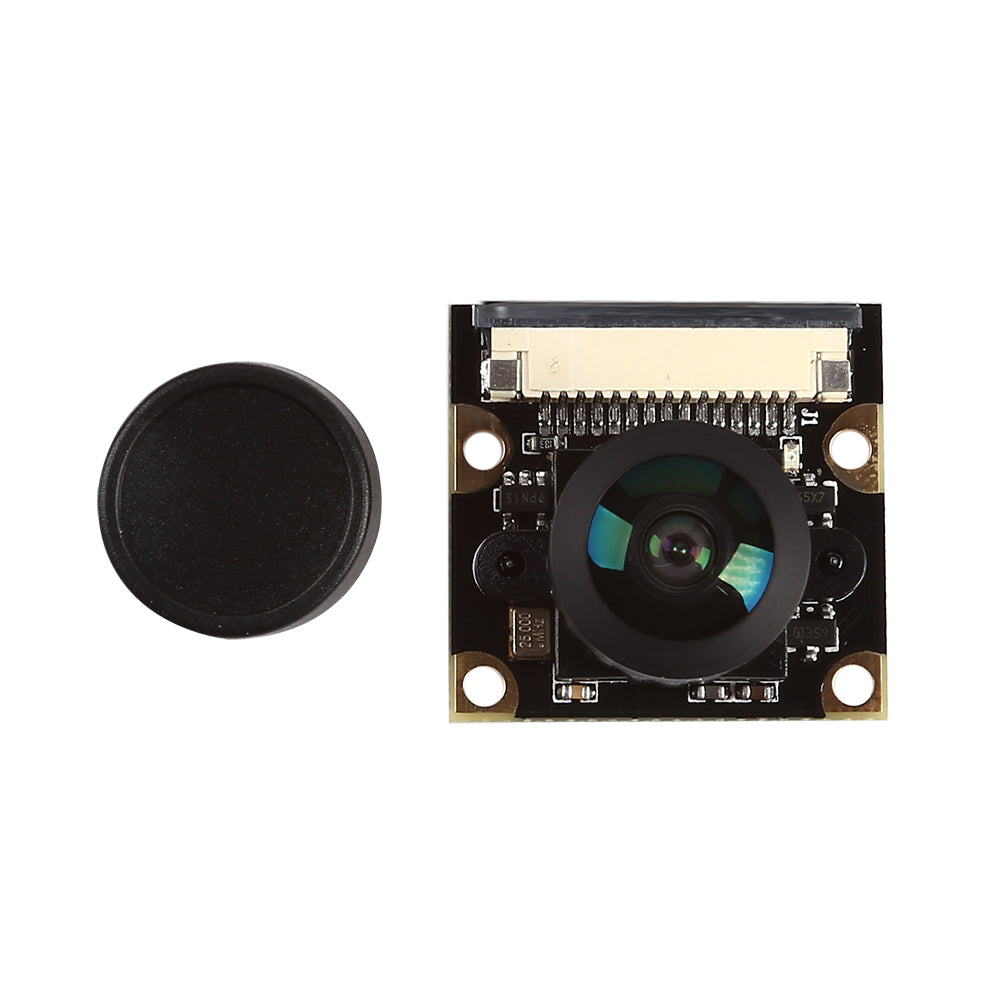

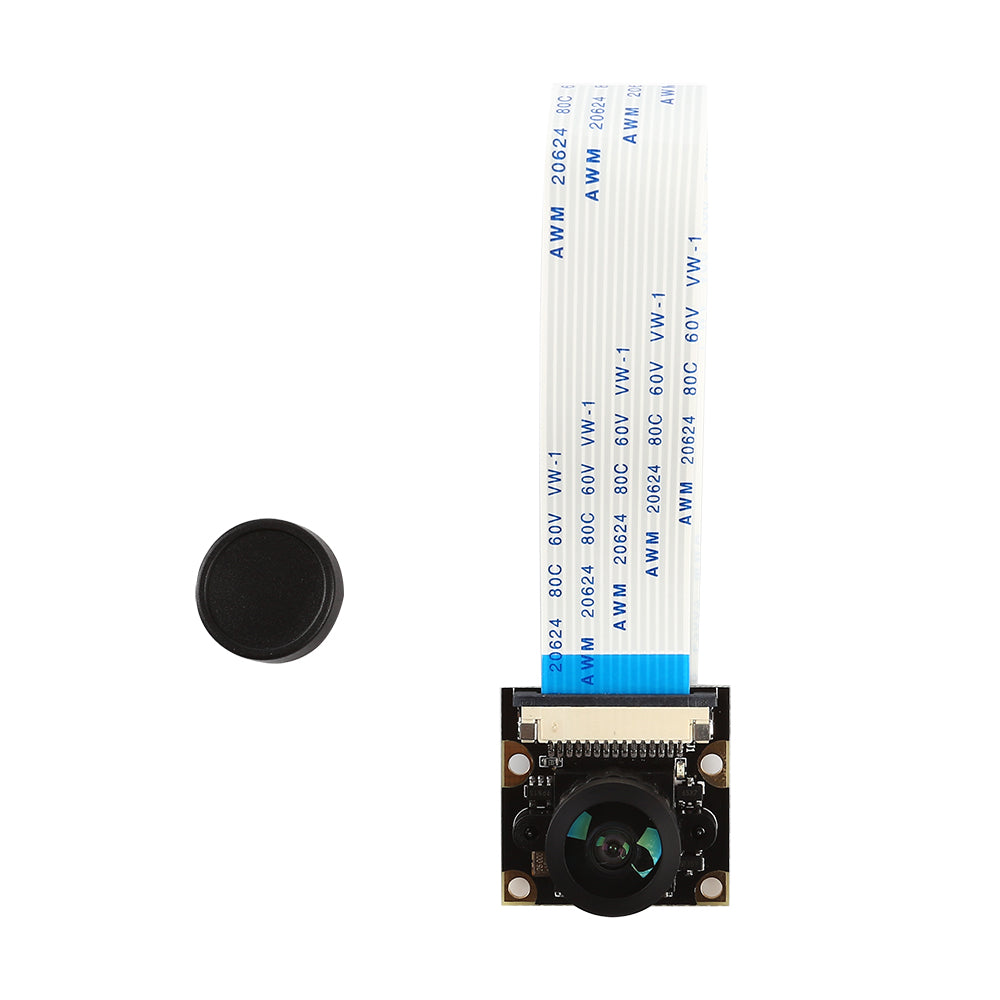

- 1 x SainSmart 5MP Camera Module 175 Degree Panoramic Wide Angle for Raspberry Pi
