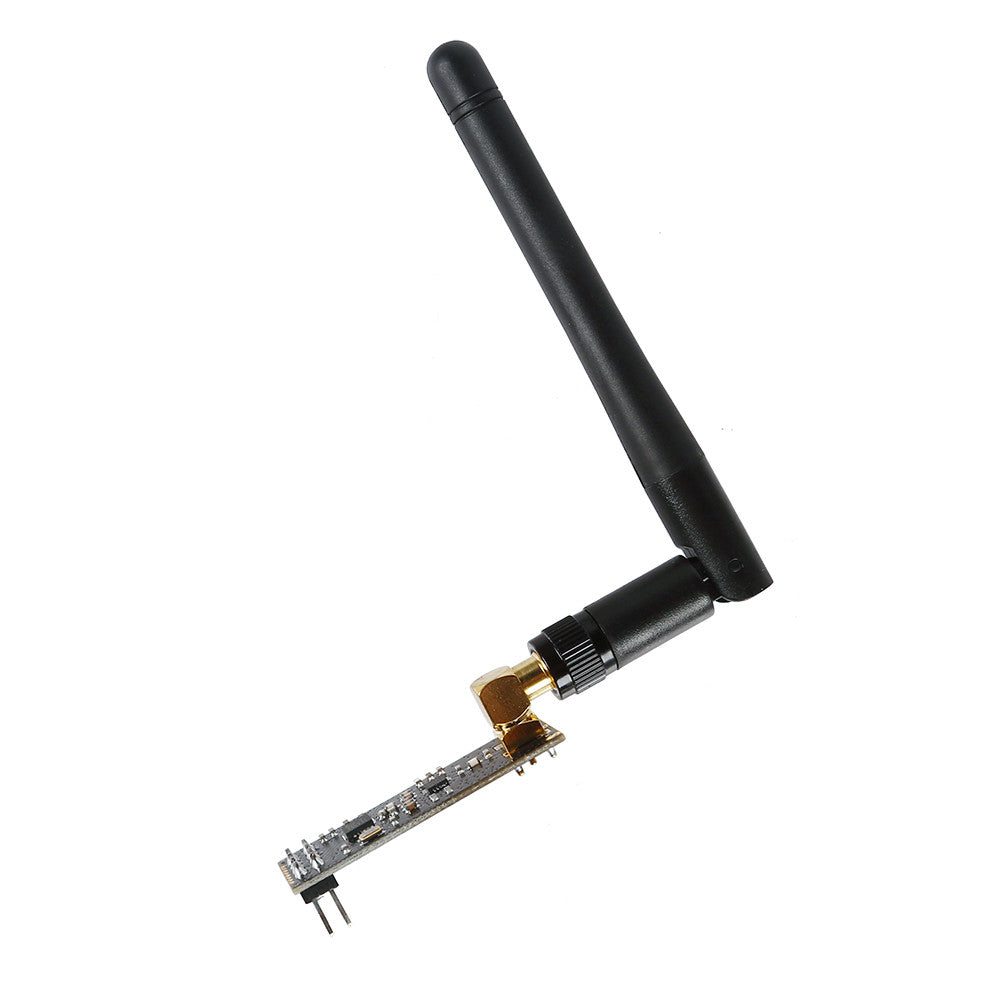

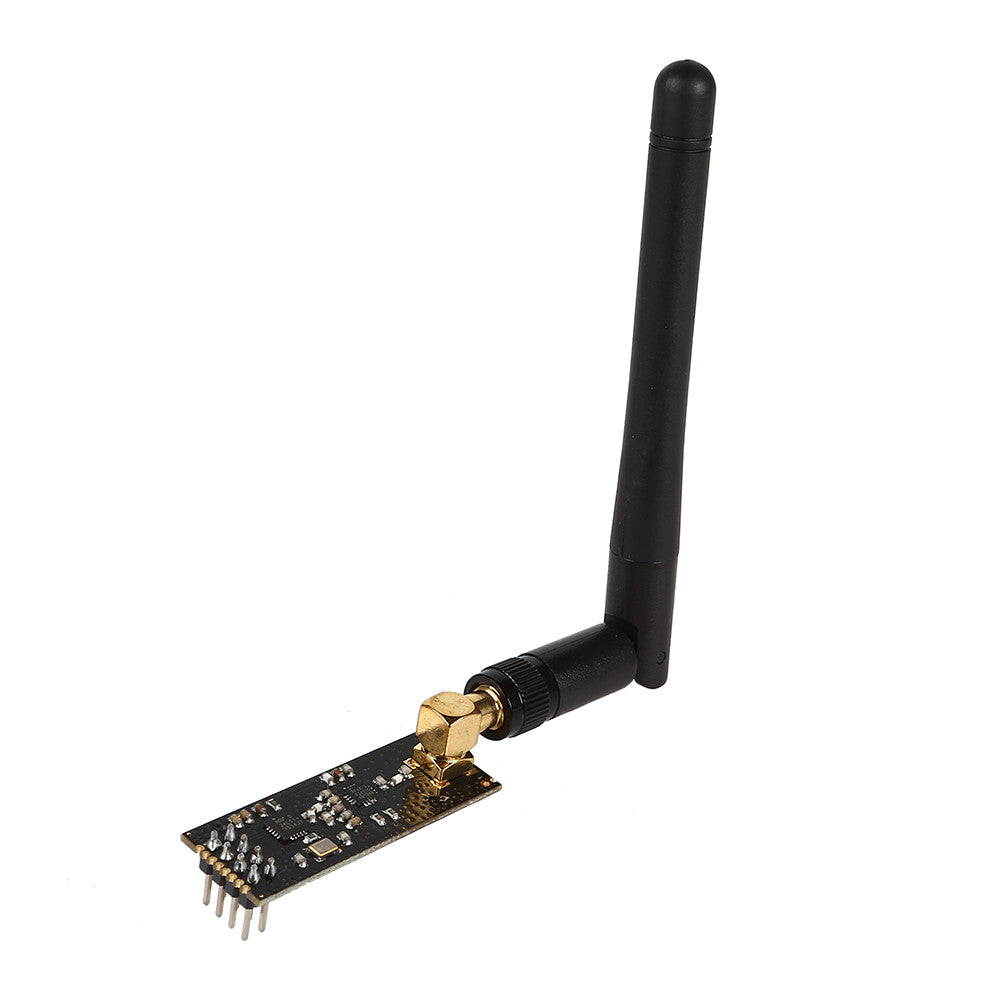

[Discontinued] Wireless Module with Antenna, NRF24L01+PA+LNA

[Discontinued] Wireless Module with Antenna, NRF24L01+PA+LNA

SKU:  101-60-263
$9.99
-Liquid error (snippets/price line 160): divided by 0 $9.99
Shipping calculated at checkout.
  • 101-60-263

This is a 2.4GHz Wireless Complete Module.
Wireless communication become extremely easy.

  • Auto-acknowledge and auto-retransmit abilities
  • Internal filtering results in high margins of meeting RF regulatory standards. The module's radio uses Gaussian Frequency-Shift Keying (GFSK) modulation as well as fast Automatic Gain Control (AGC).
  • The module includes an Interrupt Request (IRQ) pin which can be used to wake the host microcontroller, (ex: Arduino), from sleep when the module receives a transmission providing great power conservation in battery devices.
View full details
SPECIFICATION
  • The nRF24L01+ is a 2.4GHz ISM band transceiver
  • Range: 800+ meters line of sight

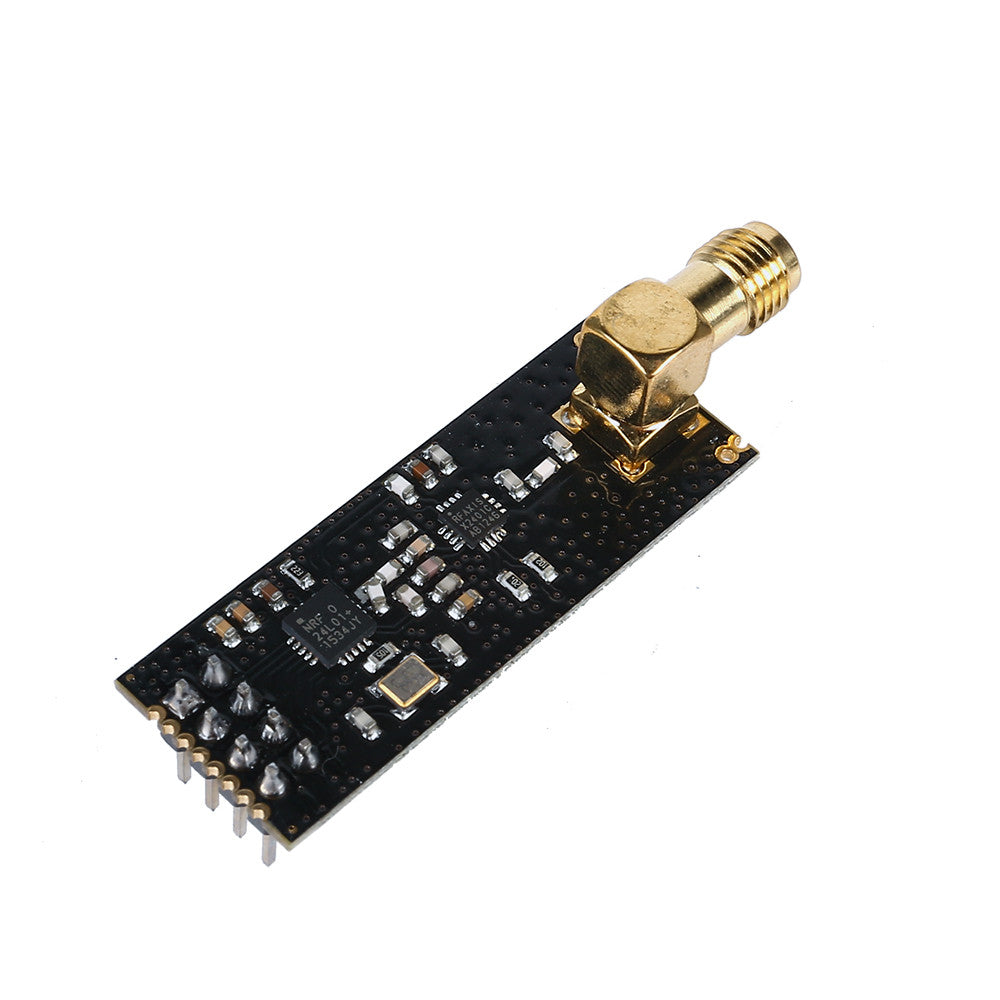

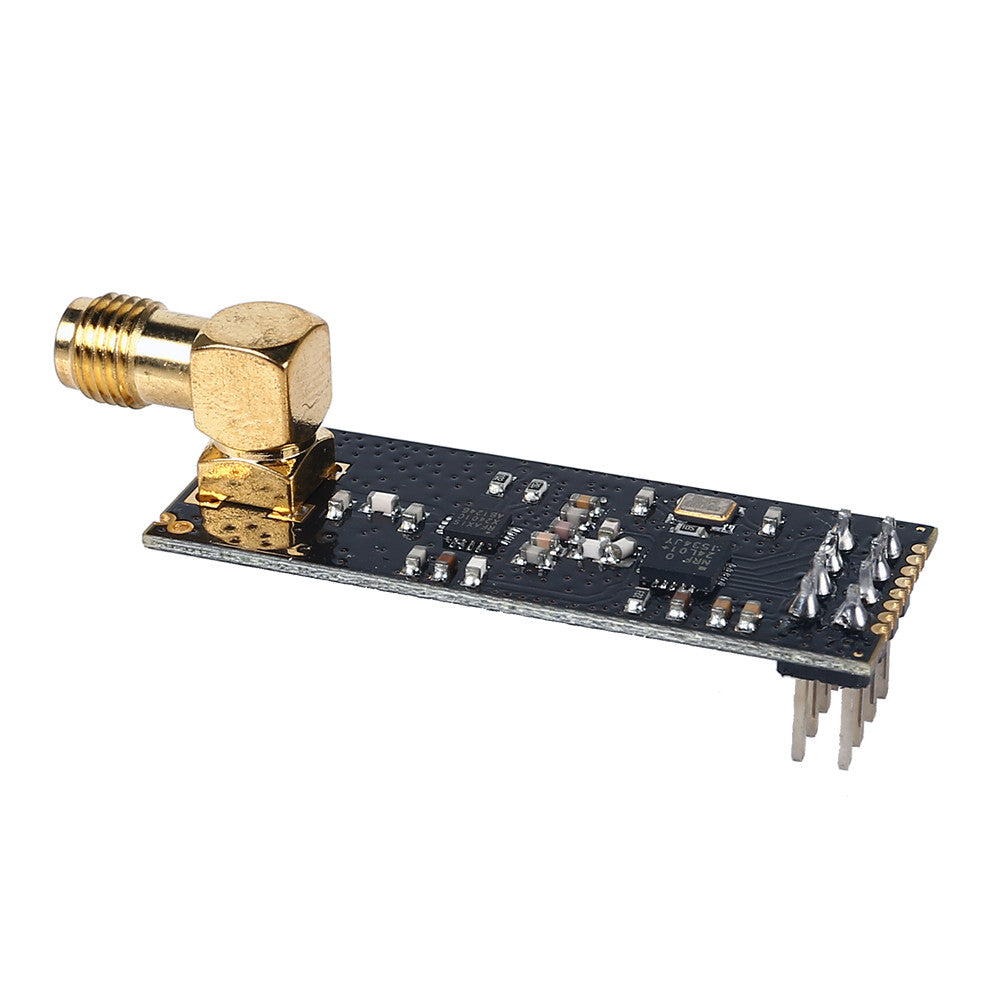

  • Includes on board support components and the RFX2401C which is the PA (Power Amplifier) and LNA (Low-Noise Amplifier)
  • A host microcontroller can communicate and configure the nRF24L01+ over a 4-pin Serial Peripheral Interface (SPI). The configuration registers are accessible through the SPI connection. Configurable parameters include frequency channel (125 selectable channels), output power, and data rate (data rates: 250kbps, 1Mbps, and 2Mbps).
  • The on chip voltage regulator accepts supply voltages from 1.9 to 3.6V.
  • The module has 5V tolerant inputs which allows for direct connection of SPI pins to the Arduino.
  • Weight: 13.28 g (0.468 oz)
  • Board dimensions, excluding pins: 15.5mm (0.61/) width x 40.7mm (1.6/) length x 12.2mm (0.48/) height

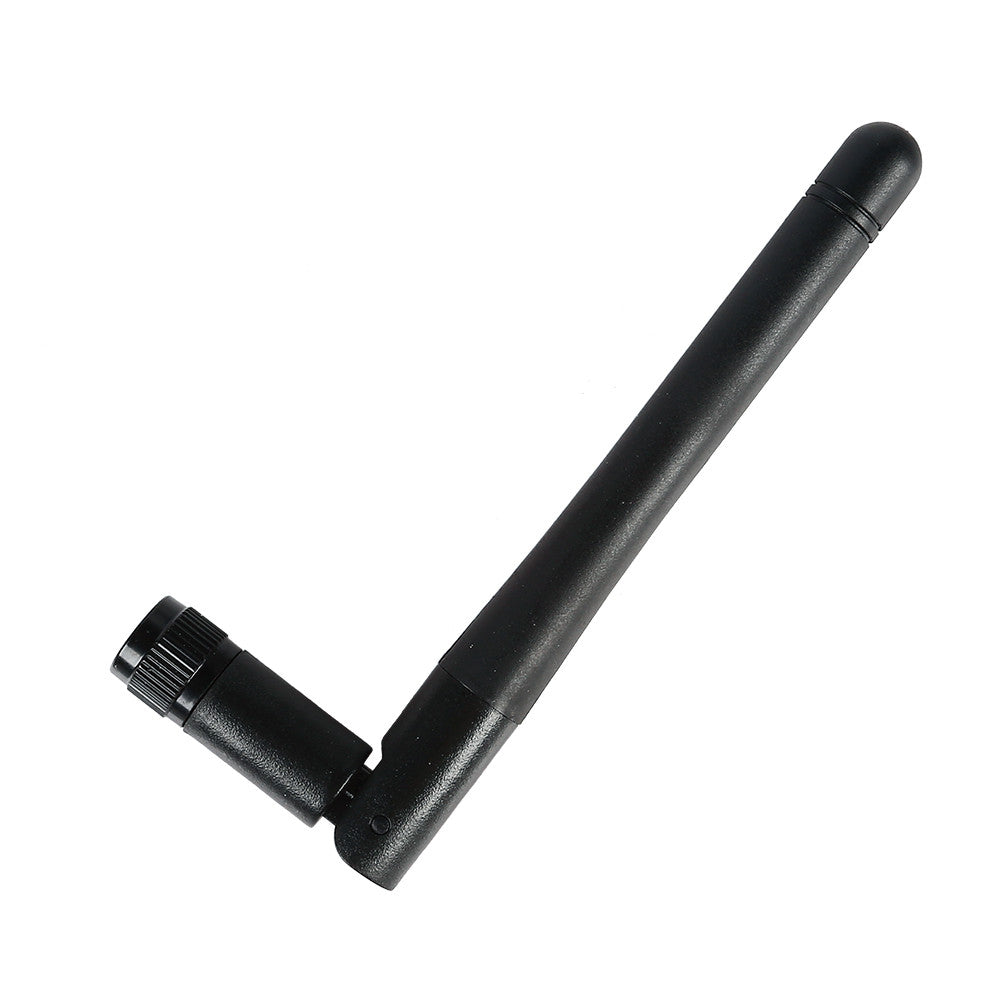

  • Dimensions of antenna, when angled at 90 degrees: 87mm (3.43/) height x 9.5mm (0.37/) diameter
WHAT'S IN THE PACKAGE
  • 1x Wireless Module
  • 1x Antenna
